ACT THE14 LWT40 ECHO White Phoshpor

3 620.003 750.00

THE-14 night vision monocular with LWT40 optics package. Manual Gain. Photonis Autogated ECHO White Phosphor Image Intensifiers  FOM 1600-2000 Free Shipping.

3 620.003 750.00
Unit B0136 B0165 B0213 B0285 B0302 B0334
Clear selection
GTIN: N/A SKU: THE14-LWT40-ZW0973C Category: Tags: ,

Description

Available models

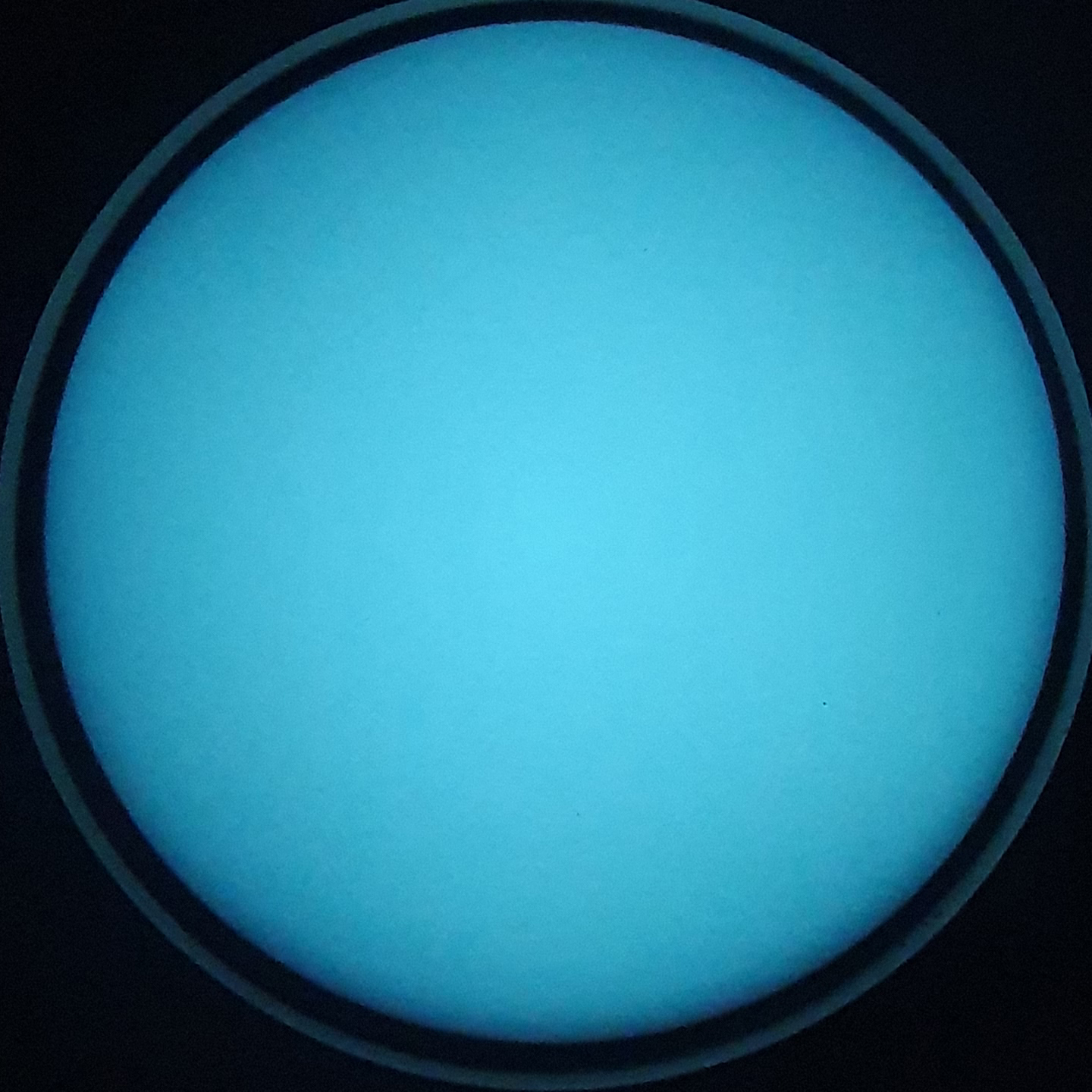

Since the difference between units can be pretty big (both FOM and the existence of black spots), we have decided to make public units specification and picture of the tube (to see black spots). Price depends on the quality of the tube. Please be aware that not all spots are visible on those pictures and in real life the spots appear to be bigger than on this picture. Spots score is our own metric to compare visibility of spots between tubes.

B0136

FOM1998
Gain10059
Resolution67
EBI0.07
SN29.82
IA0.09
Price3750€ + VAT

B0165

FOM1947
Gain9736
Resolution67
EBI0.06
SN29.06
IA0.16
Price3725€ + VAT

B0213

FOM1843
Gain9614
Resolution67
EBI0.18
SN27.51
IA0.09
Price3620€ + VAT

B0285

FOM1961
Gain9825
Resolution67
EBI0.12
SN29.27
IA0.09
Price3685€ + VAT

B0302

FOM1974
Gain10071
Resolution67
EBI0.15
SN29.46
IA0.08
Price3700€ + VAT

B0334

FOM1985
Gain10059
Resolution70
EBI0.10
SN28.36
IA0.20
Price3725€ + VAT
Housing

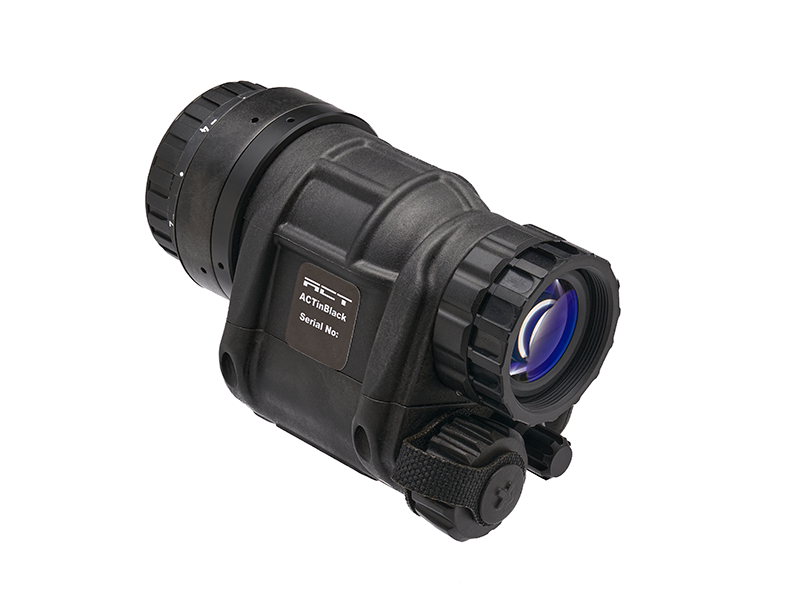

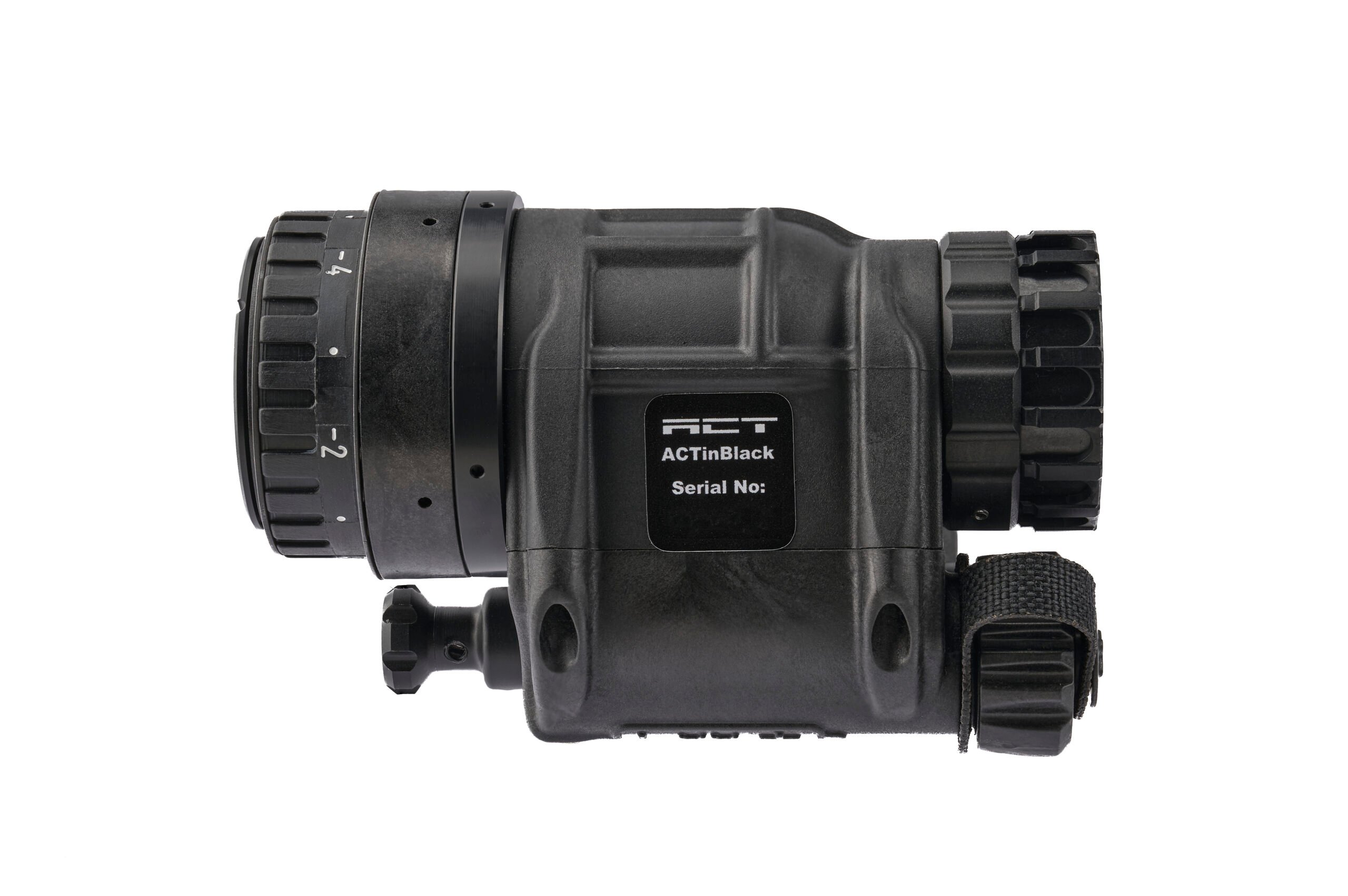

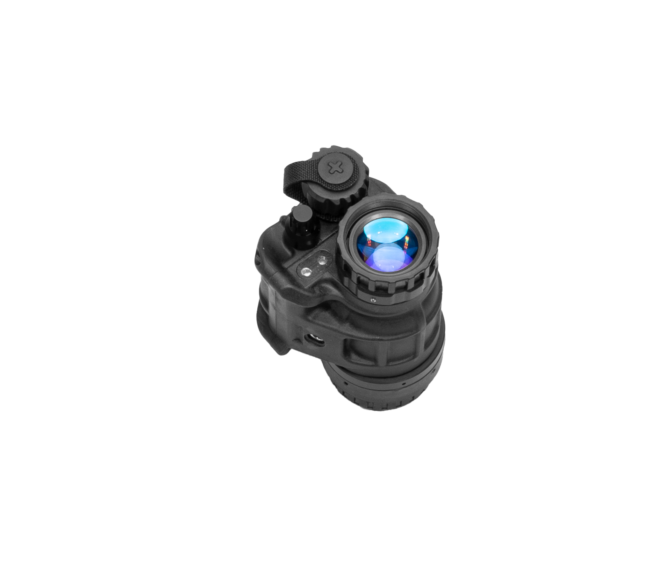

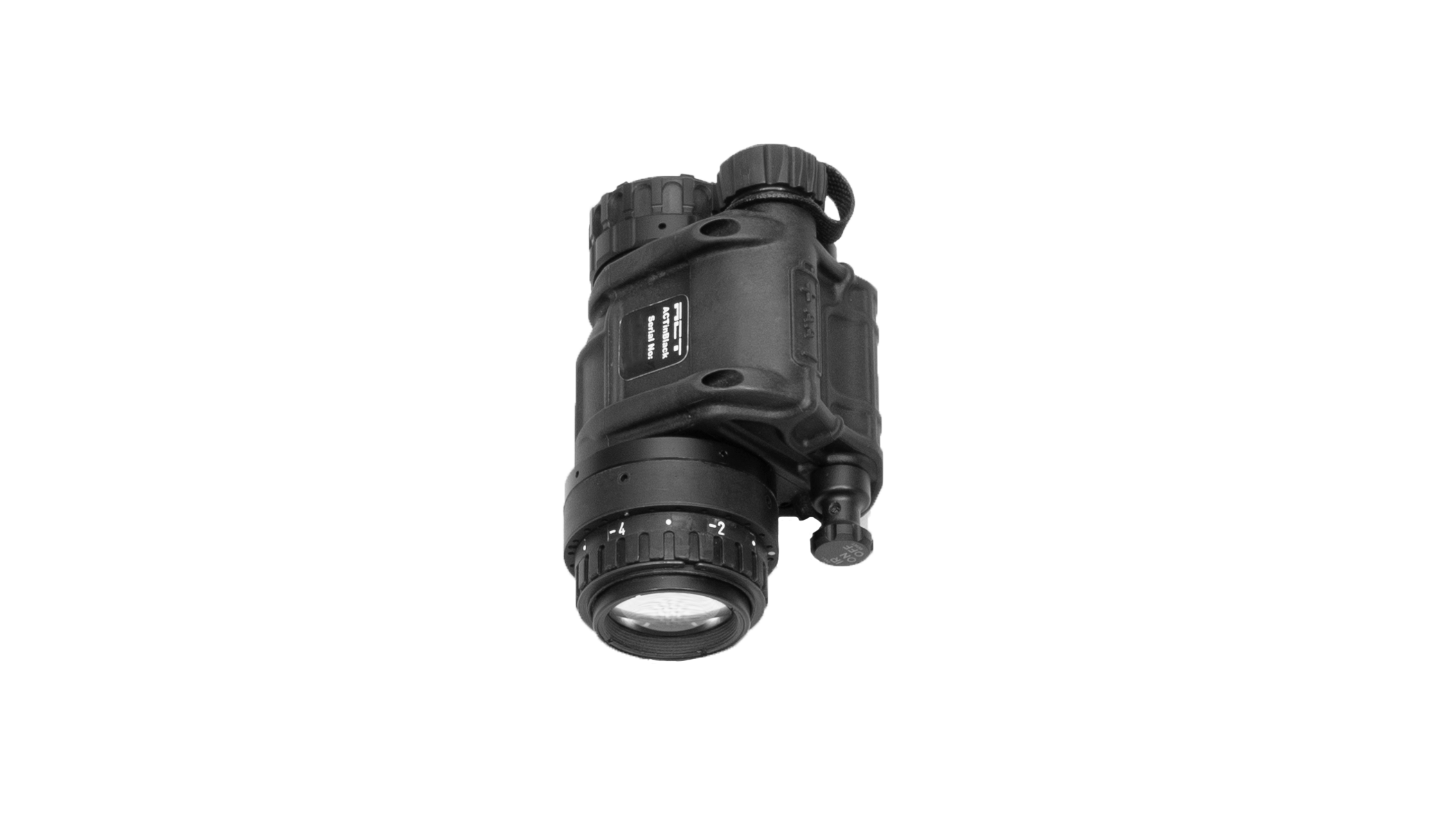

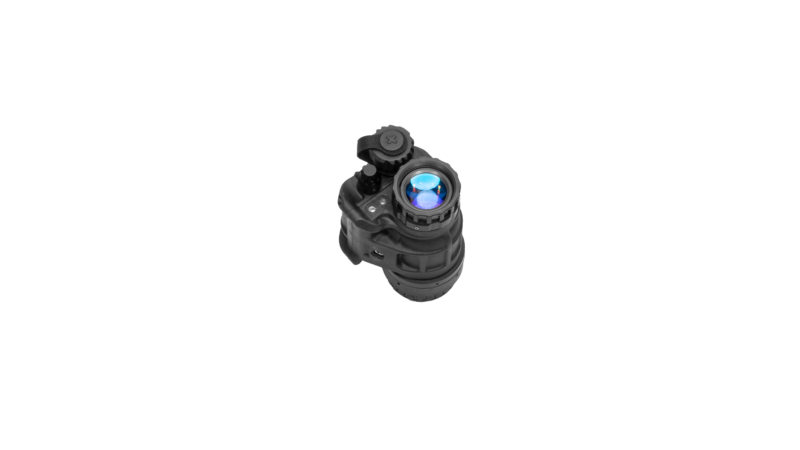

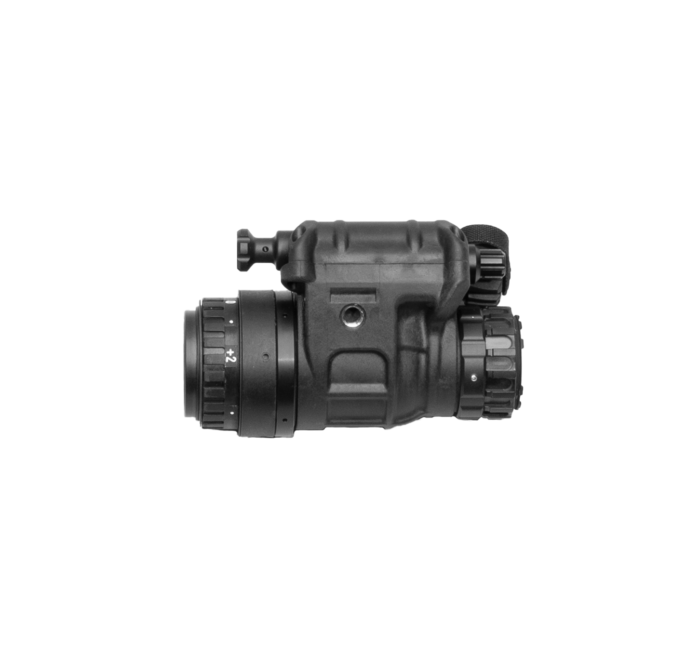

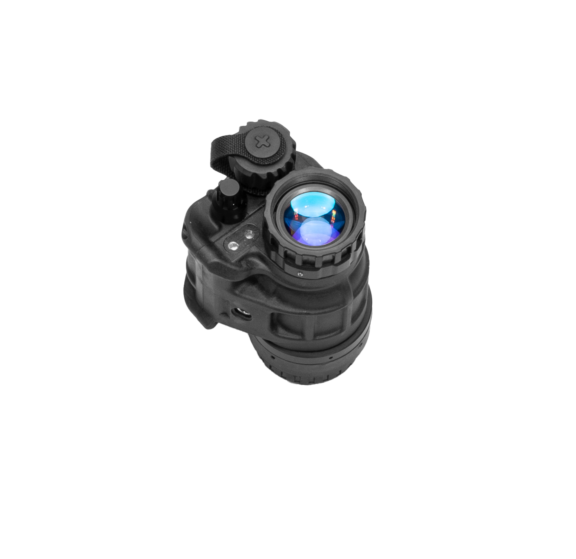

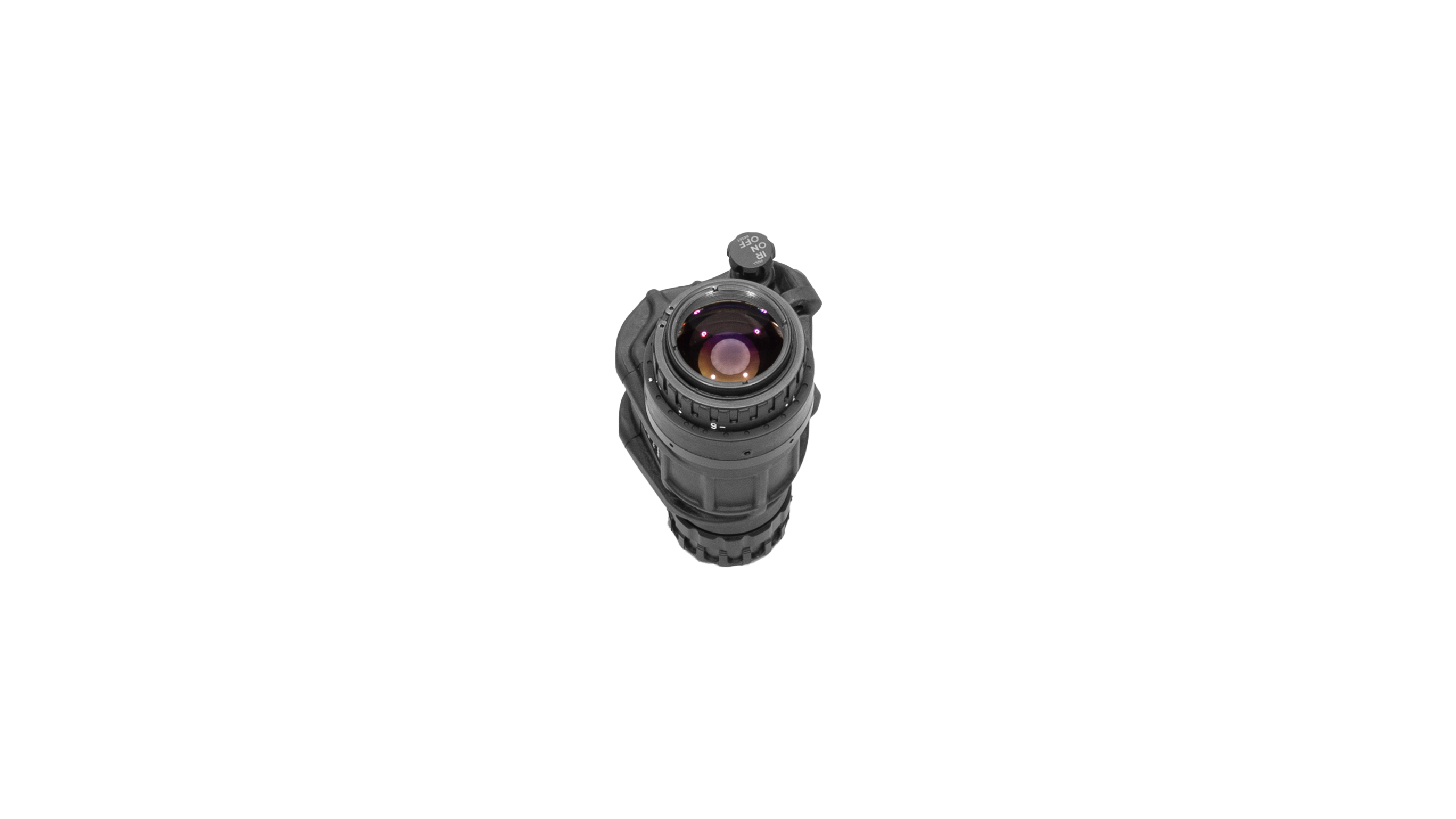

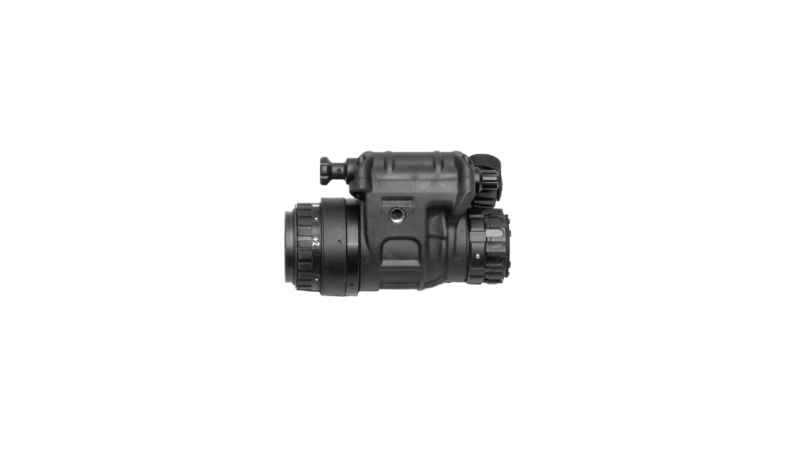

THE14 is ACT lightest PVS-14 type compatible monocular at 9 oz / 244g while still using standard 18mm image intensifier tubes. At no compromises in functionality it features manual gain, automatic flip up shut-off, IR illuminator, low battery indicator highlight cut-off while still utilize the same control pattern.

The monocular can be mounted to combat helmets or weapons, which enables night vision capabilities to daytime optical sights.

THE14 is certified to the MIL-STD-810G for environmental, drop and other relevant criteria. THE14 has a 66ft / 20m for 2h submersion rating.

THE14 is fully compatible to all PVS-14 type accessories, optics and image intensifier tubes, so it will not require replacement of existing accessories.

Image Intensifier Tube

Photonis ECHO WP ZW1499C FOM range 1600-2000.

Image Intensifier Tubes (IIT)Photonis ECHO White Phosphor
FinishMatte Black, Corrosion Resistant
Fibre re-enforces polycarbonate body
CapabilityFlip-Up On-Off
Side Flip-Up On-Off
Built-in IR LED with “IR-on” indicator in FOV
Low battery indicator in FOV
Waterproof: 20m (66ft) for 2 hours
Corrosion Resistance against salt water
Magnification1x
Diopter compensation-6 to +2 dpt
Battery Life40 h
Infrared illuminatoryes
StandardsExceeding MIL-STD-810G
True field of view40°
Range of focus0.25 m to ∞
Power Supply1x AA
Dimensions103 x 61 x 64 mm
Weight255 g

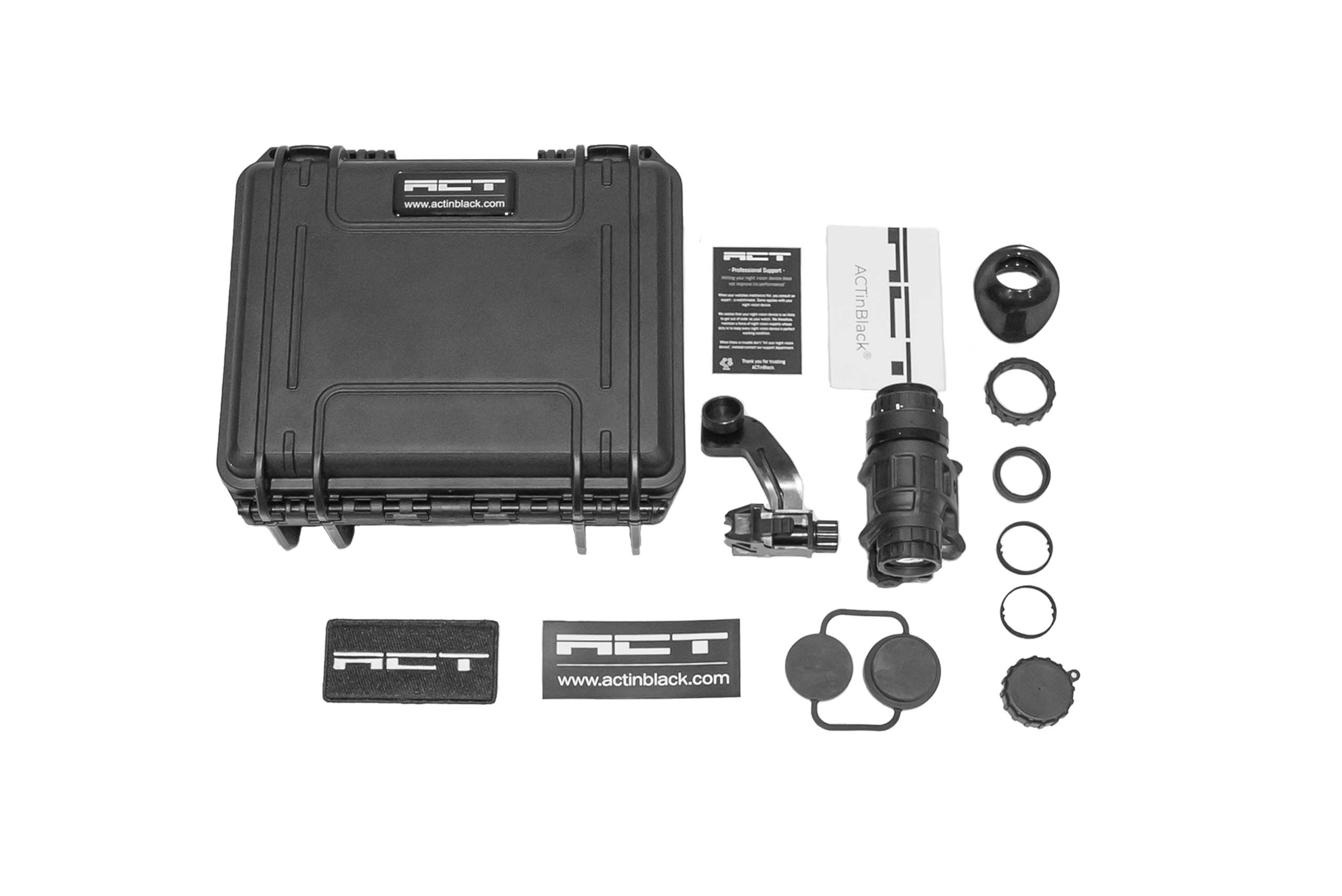

Included accessories
  • Hardcase
  • Standard J-Arm (Bayonet)
  • Sacrificial lens
  • Demist shield
  • Protective bikini cover
  • Rubber eye-cup
  • Objective lens cap
Included paperwork (original documentation is always included)
  • Tube specification sheet
  • Device birth certificate
  • Falconclaw user manual
  • Merchandise (patches, ACT lens cleaning paper)
  • Note! Flip the hardcase top cover foam to find everything above

Additional information

THE14 LW40 Echo

B0136, B0165, B0213, B0285, B0302, B0334

Brand

ACT

From 2013 ACTinBlack (ACT) was founded out of the drive to develop better, lighter and more user focused night vision systems – together with users from across the globe. The introduction of the DTNVG in 2016 created a (now) classic night vision binocular that proved itself in the harshest environments. To add to its legacy the introduction of the successor, the DTNVS, in 2020 created a milestone to ACT’s product line with a product that found immediate success by military and law enforcement user across the world. See more at https://actinblack.com/us/
