Description
What is Noctuvision?
Noctuvision is a tube manufacturer located in Turkey, These tubes have a performance similar to Photonis Echo+ tubes, but at a cheaper price point.
Available models

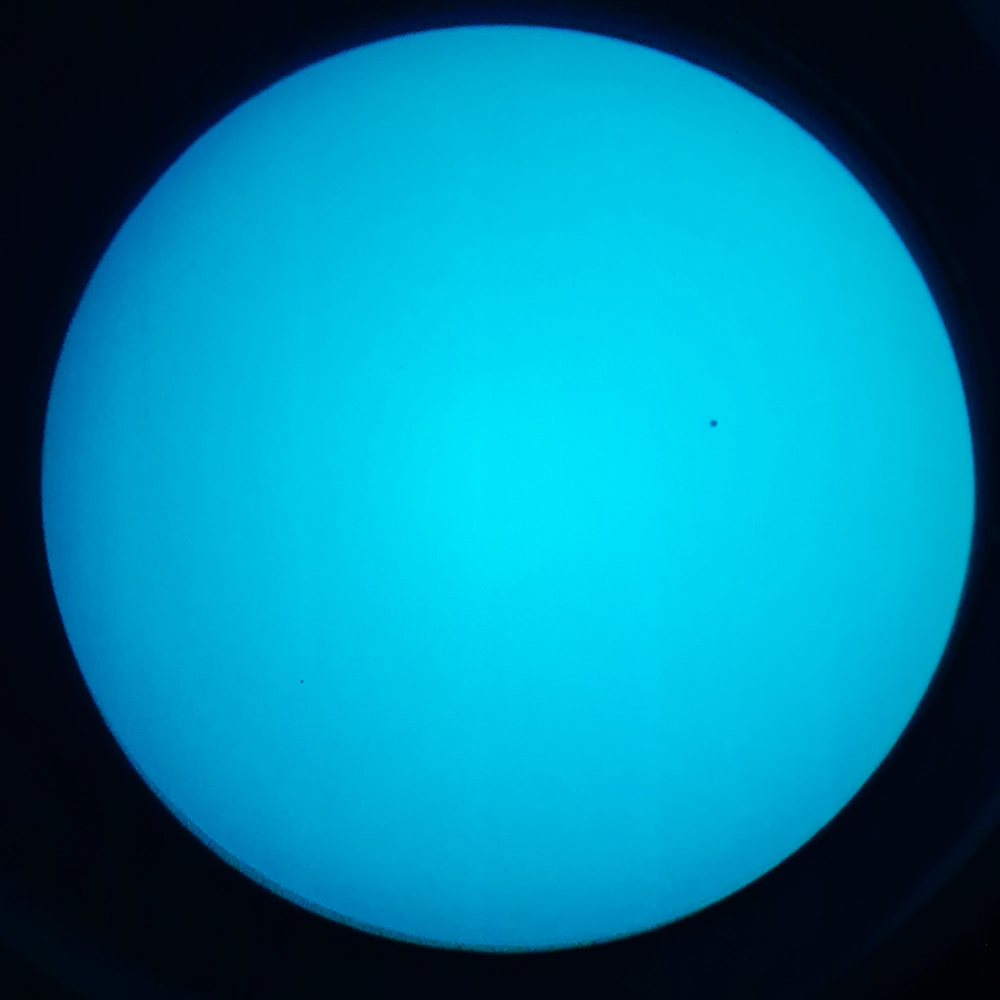

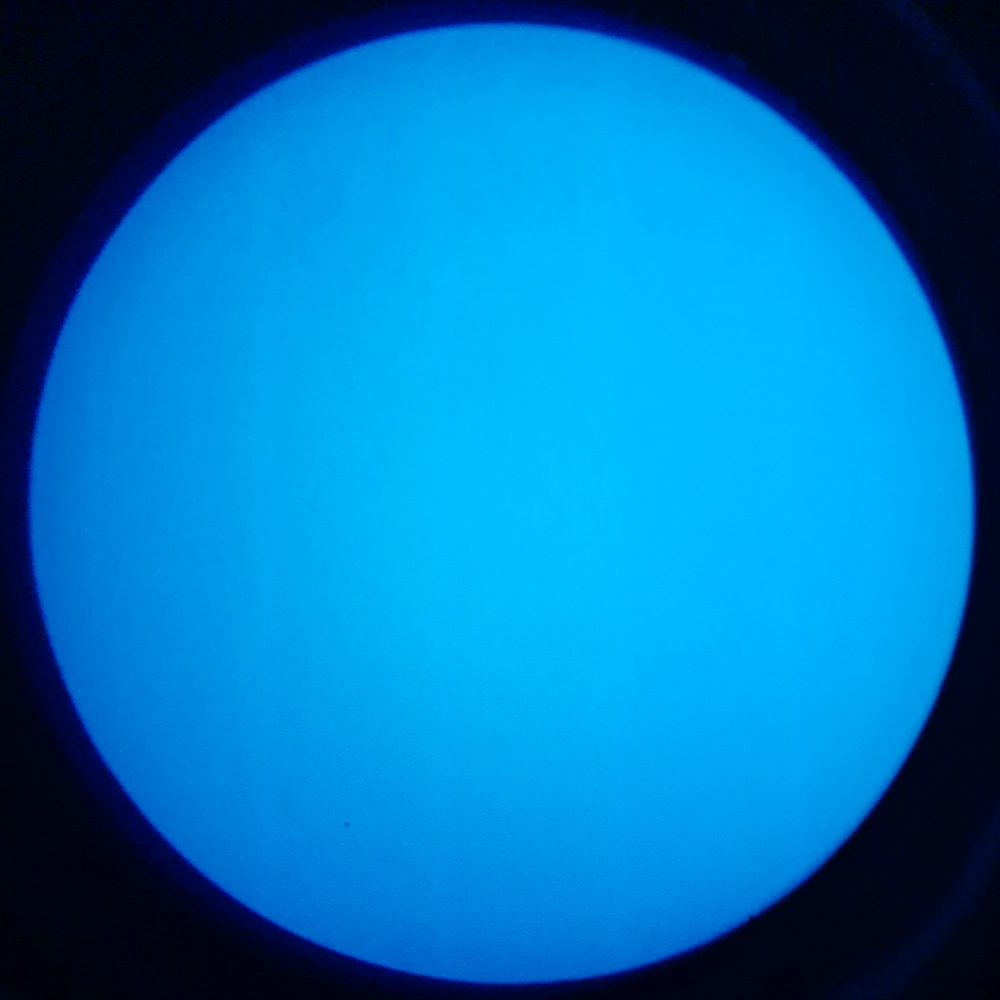

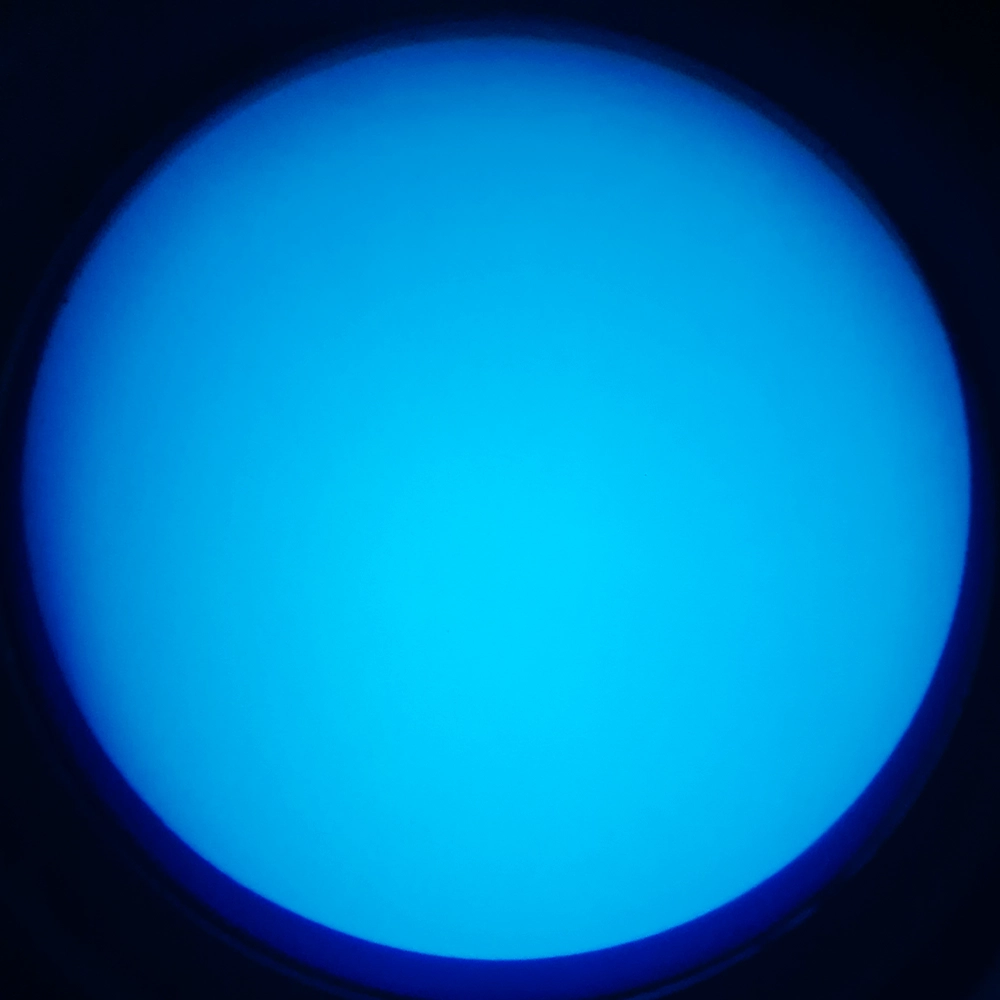

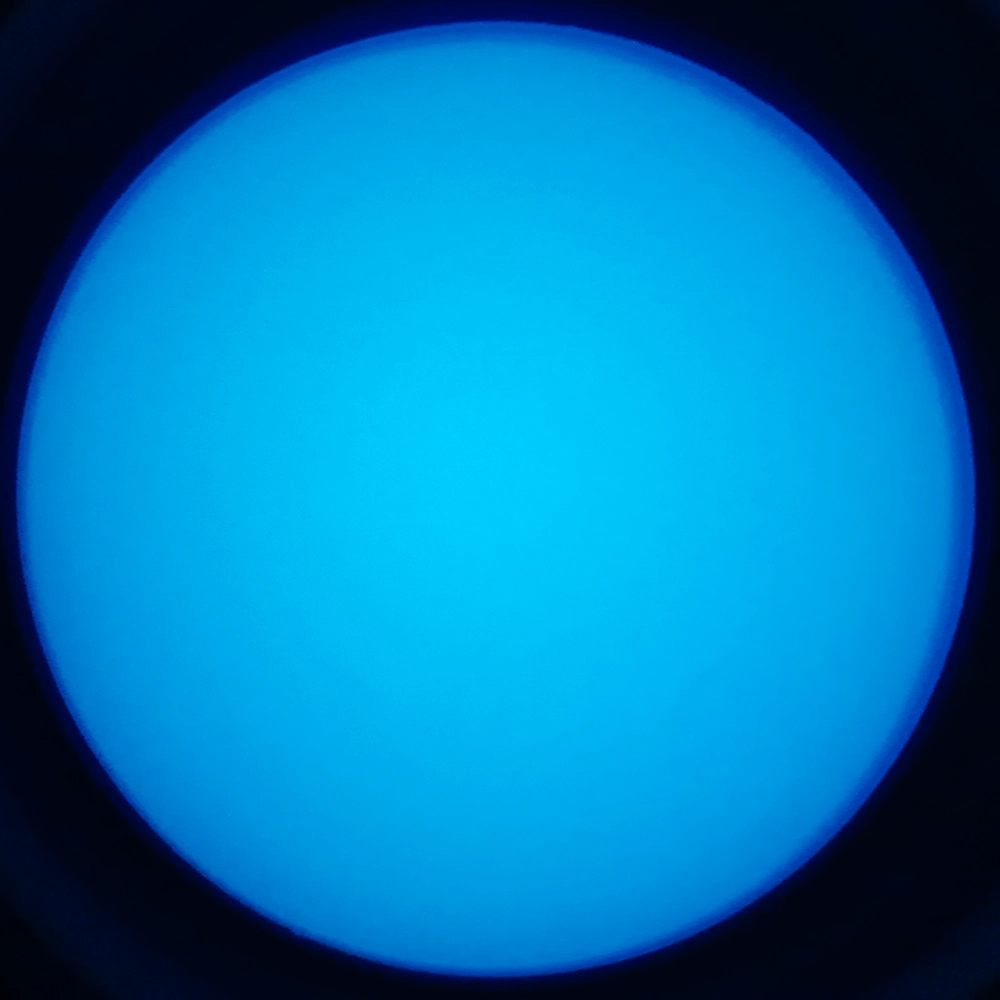

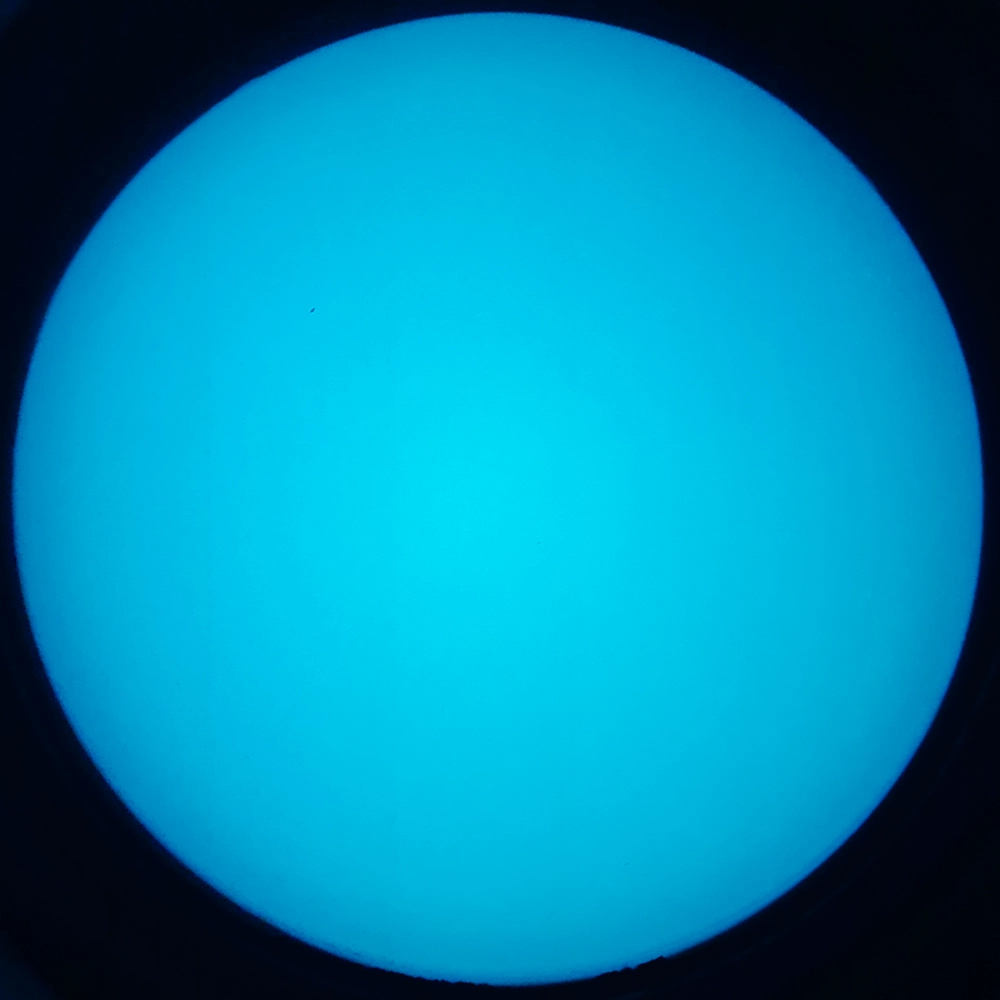

Since the difference between units can be pretty big (both FOM and the existence of black spots), we have decided to make public units specification and picture of the tube (to see black spots). Price depends on the quality of the tube. Please be aware that not all spots are visible on those pictures and in real life the spots appear to be bigger than on this picture. Spots score is our own metric to compare visibility of spots between tubes.
A003557
| FOM | 2099 | |
| Gain | 11100 | |
| Resolution | 64 | |
| EBI | 0,11 | |
| SN | 32,8 | |
| Price | SALE 3800€ + VAT |
A003541
| FOM | 2082 | |
| Gain | 11700 | |
| Resolution | 68 | |
| EBI | 0,14 | |
| SN | 30,63 | |
| Price | SALE 3790€ + VAT |
A003552
| FOM | 2071 | |
| Gain | 10800 | |
| Resolution | 68 | |
| EBI | 0,14 | |
| SN | 30,46 | |
| Price | SALE 3720€ + VAT |
A003553
| FOM | 2069 | |
| Gain | 11200 | |
| Resolution | 64 | |
| EBI | 0,11 | |
| SN | 32,33 | |
| Price | SALE 3700€ + VAT |
A003548
| FOM | 2059 | |
| Gain | 11200 | |
| Resolution | 64 | |
| EBI | 0,12 | |
| SN | 32,18 | |
| Price | SALE 3685€ + VAT 3985 |
A003555
| FOM | 2054 | |
| Gain | 10500 | |
| Resolution | 68 | |
| EBI | 0,12 | |
| SN | 30,22 | |
| Price | SALE 3680€ + VAT 398 |
A003549
| FOM | 2037 | |
| Gain | 11300 | |
| Resolution | 64 | |
| EBI | 0,07 | |
| SN | 31,84 | |
| Price | SALE 3650€ + VAT |
A003561
| FOM | 2032 | |
| Gain | 11100 | |
| Resolution | 64 | |
| EBI | 0,13 | |
| SN | 31,76 | |
| Price | SALE 3650€ + VAT |
A003563
| FOM | 2018 | |
| Gain | 11600 | |
| Resolution | 68 | |
| EBI | 0,11 | |
| SN | 29,68 | |
| Price | SALE 3555€ + VAT |
A003547
| FOM | 2015 | |
| Gain | 10500 | |
| Resolution | 68 | |
| EBI | 0,11 | |
| SN | 29,64 | |
| Price | SALE 3550€ + VAT |
A003559
| FOM | 2013 | |
| Gain | 11100 | |
| Resolution | 64 | |
| EBI | 0,09 | |
| SN | 31,46 | |
| Price | SALE 3500€ + VAT 38 |
Housing

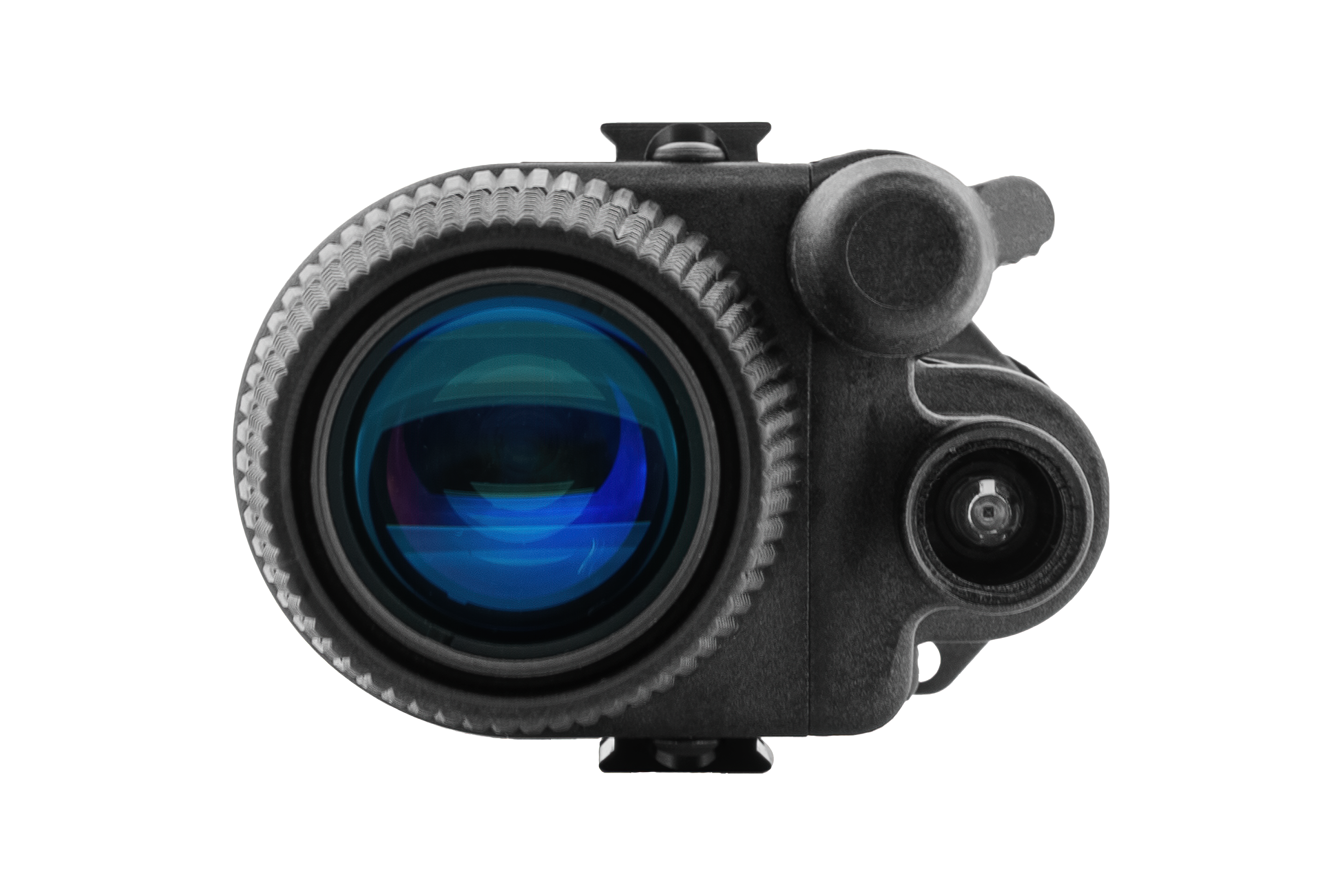

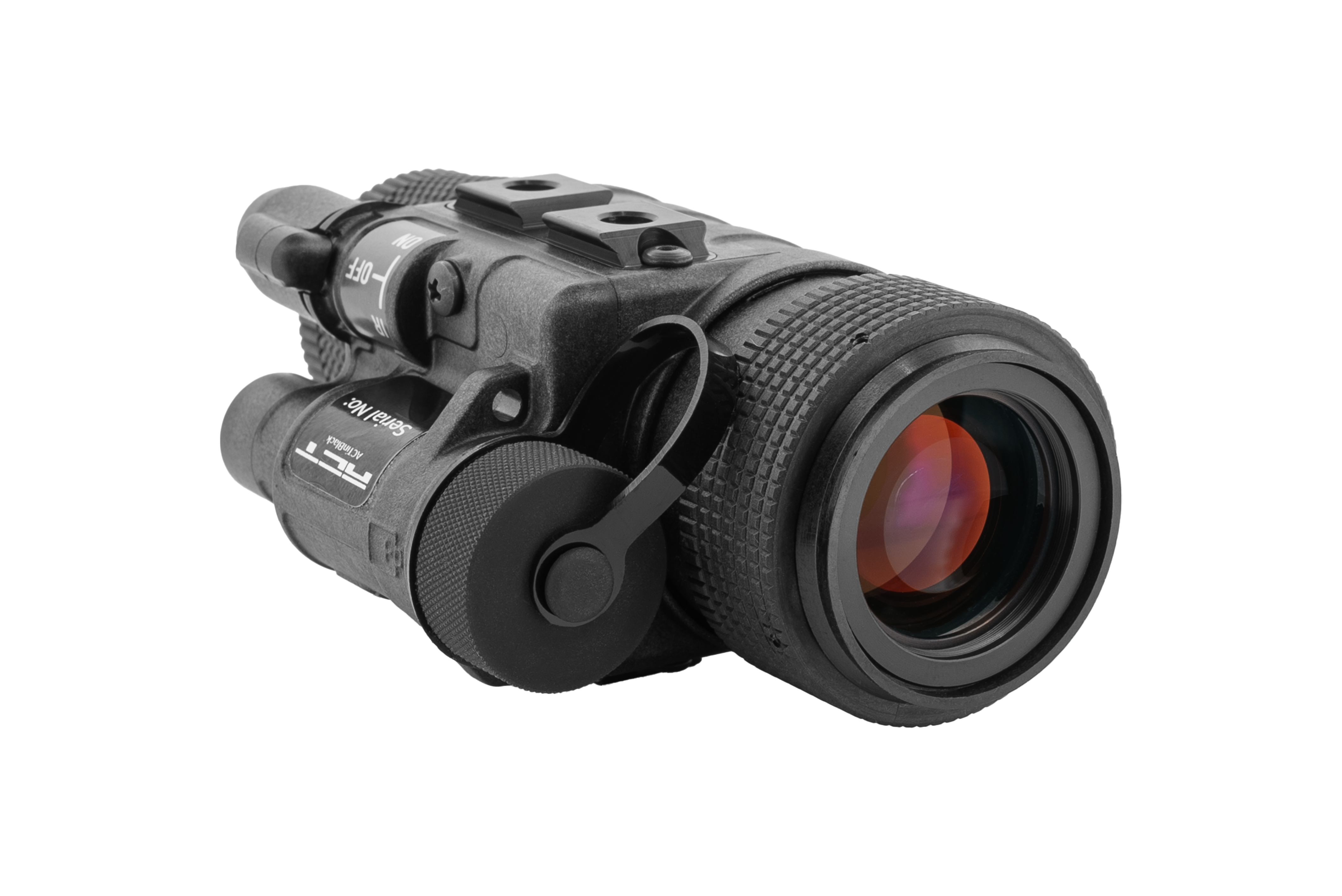

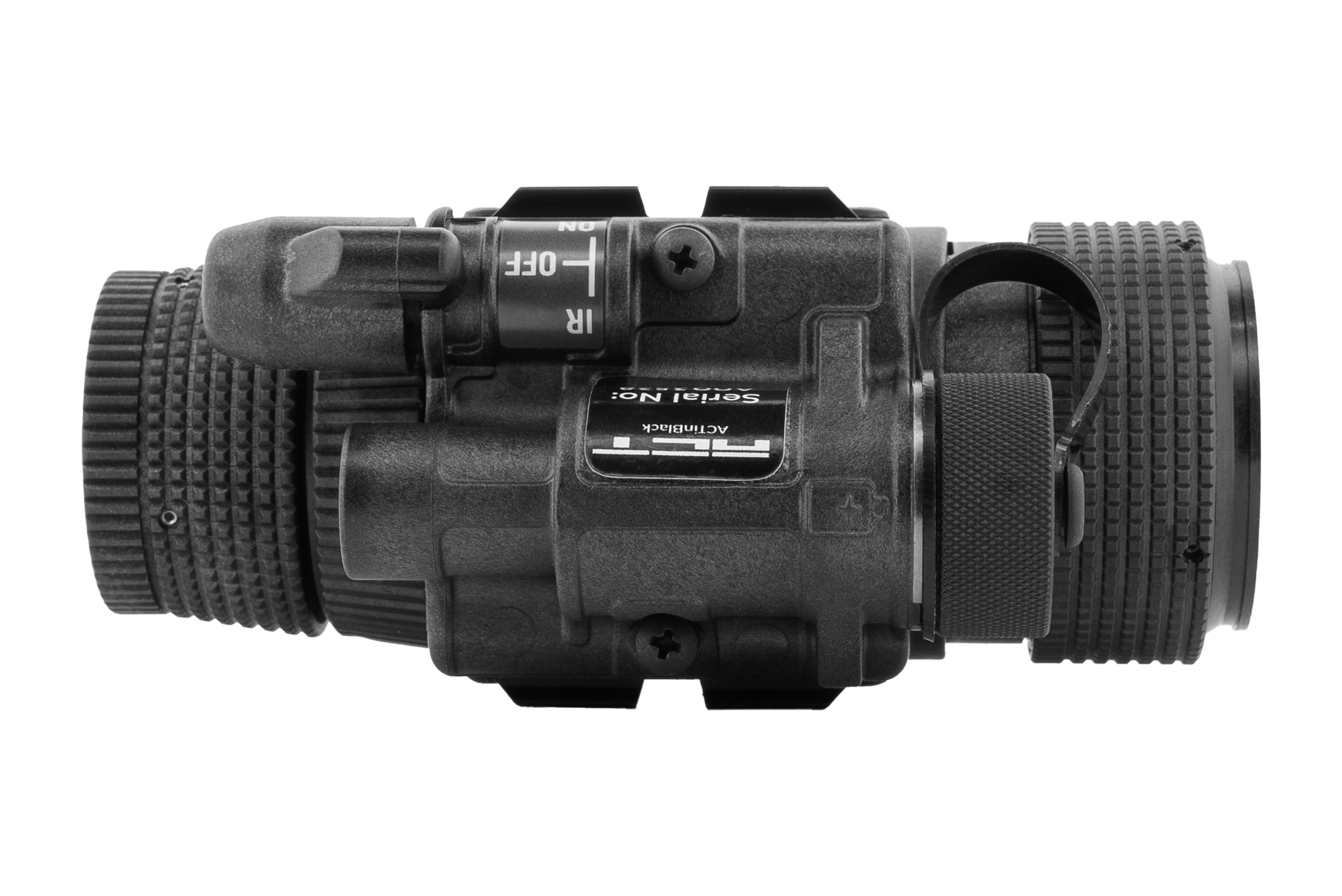

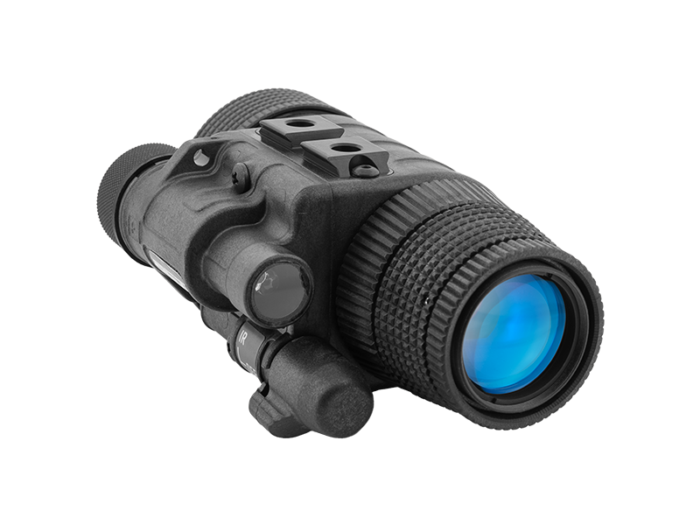

The MUM-14 is a high performance modular, hand-held passive night vision monocular device that utilizes a single intensifier tube to provide crisp, clear images under the darkest conditions. The MUM-14 “single tube / single eyepiece” approach to night vision missions is based upon the proven concept that independent use of each eye maximizes the ability of the user to operate under a wide range of low light conditions and maintain maximum situational awareness.
Small and Versatile, the MUM-14 gives you a high-performance system in the smallest, toughest package available.
Image Intensifier Tube
NoctuVision+ FOM range 2000+
| Image Intensifier Tubes (IIT) | Noctuvision White Phosphor |
| Finish | Matte Black, Corrosion Resistant Fibre re-enforces polycarbonate body |
| Capability | Built-in IR LED with “IR-on” indicator in FOV Low battery indicator in FOV Waterproof: 20m (66ft) for 2 hours Corrosion Resistance against salt water |
| Magnification | 1x |
| Diopter compensation | -6 to +4 dpt |
| Battery Life | 40h CR123 / 20h AA |
| Infrared illuminator | yes |
| Standards | Exceeding MIL-STD-810G |
| True field of view | 40° |
| Range of focus | 0.25 m to ∞ |
| Power Supply | 1x CR123 / 1x AA |
| Dimensions | 114 x 49 x 79 mm |
| Weight | 260 g (without battery) |
Included accessories
- Hardcase
- Minirail J-ARM (Bayonet)
- Demist shield
- Objective lens cap
- Tube specification sheet
- Device birth certificate
- Merchandise
- AA battery adapter
- Minirail helmet mount
- Minirail to Picatinny mount
Included paperwork (original documentation is always included)
- Tube specification sheet
- Device birth certificate
- Merchandise (patches, ACT lens cleaning paper)
- Note! Flip the hardcase top cover foam to find everything above
