Description
Available models

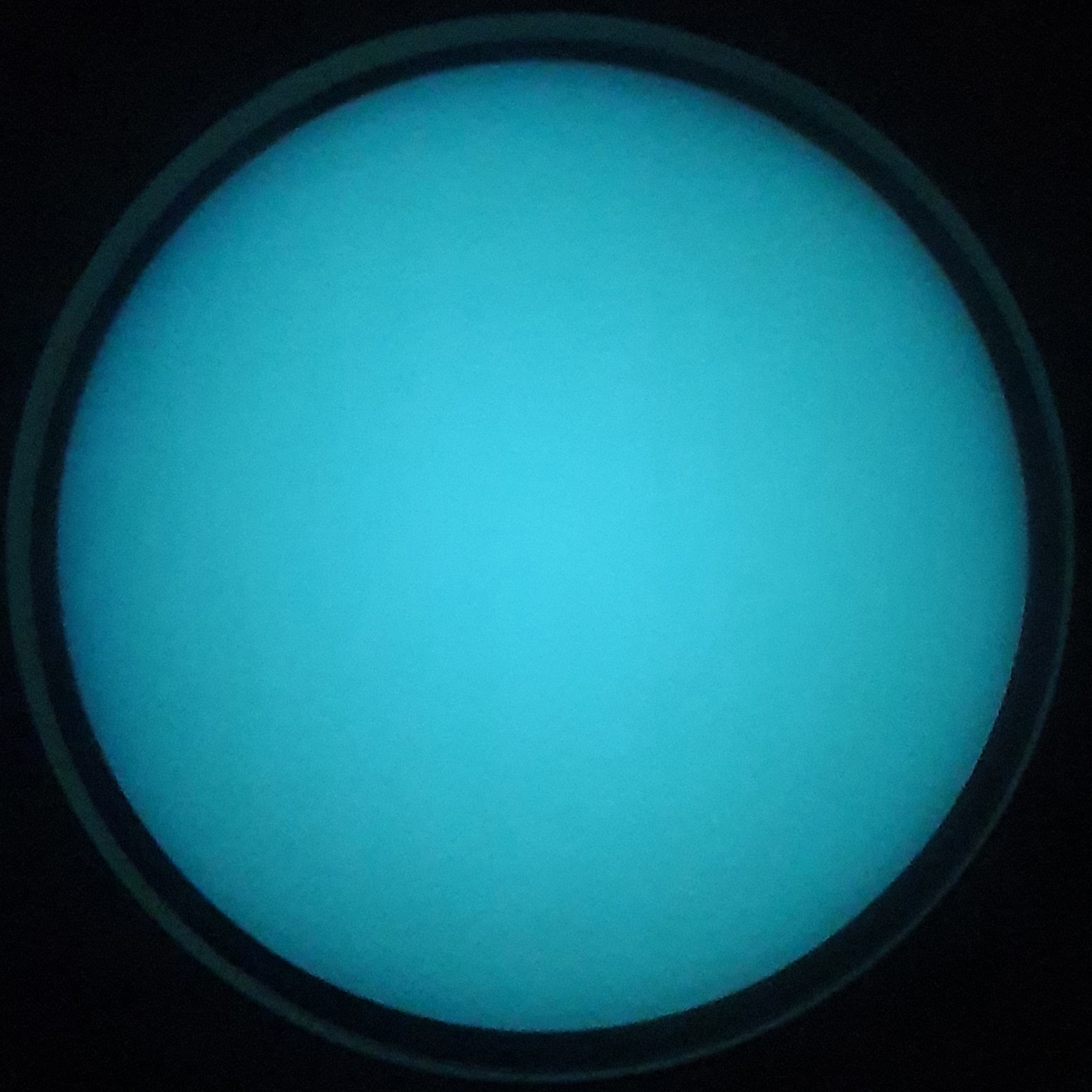

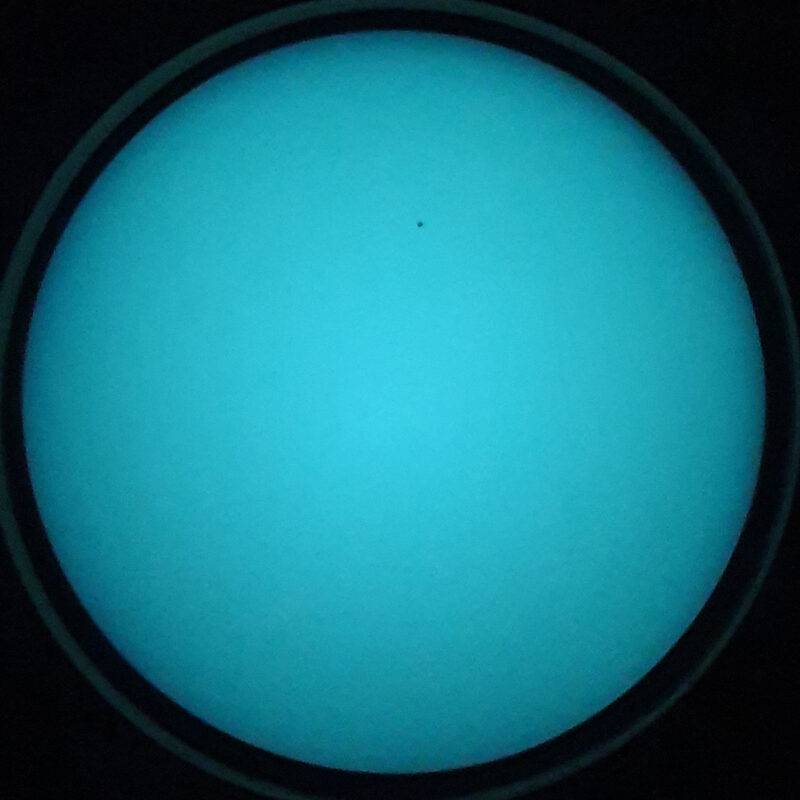

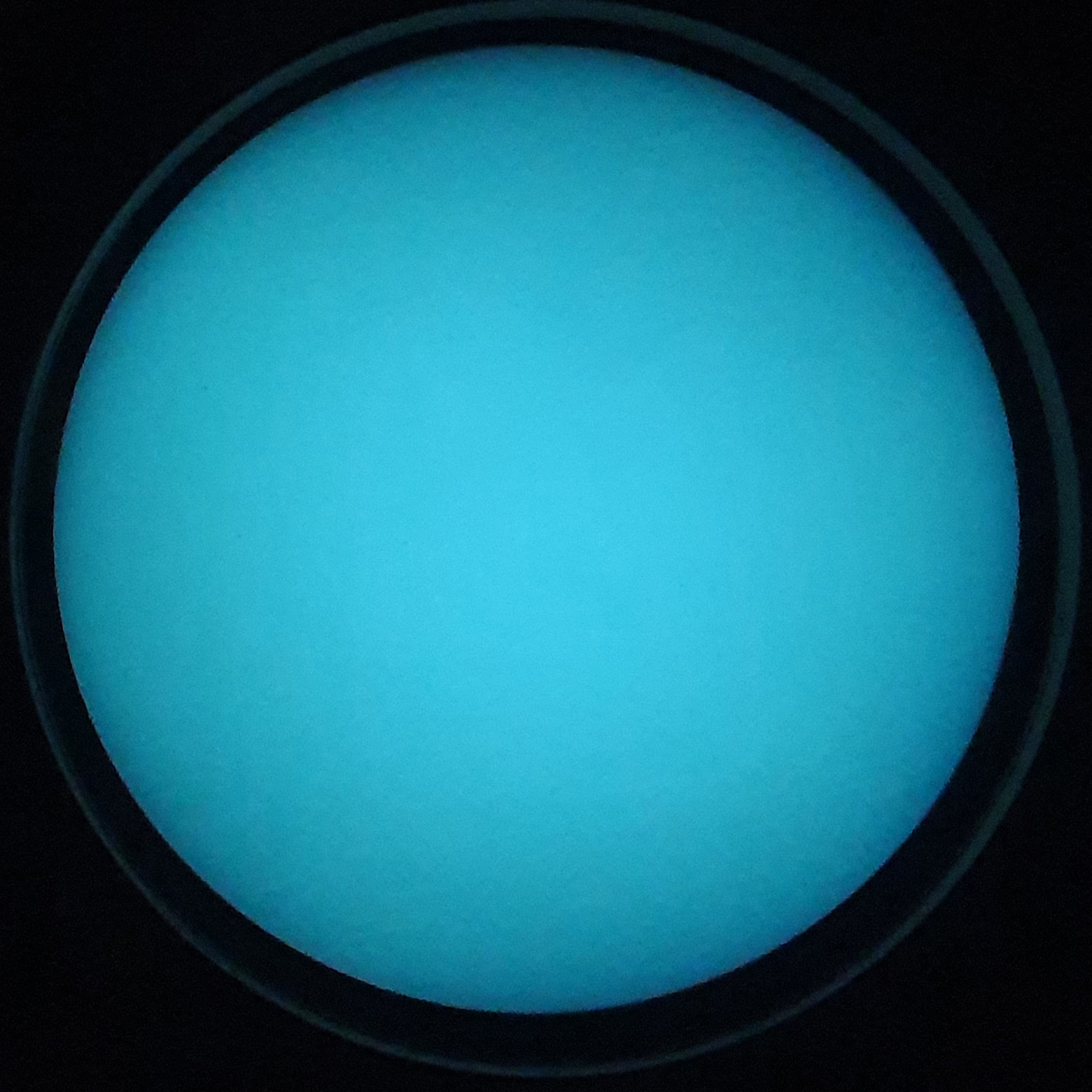

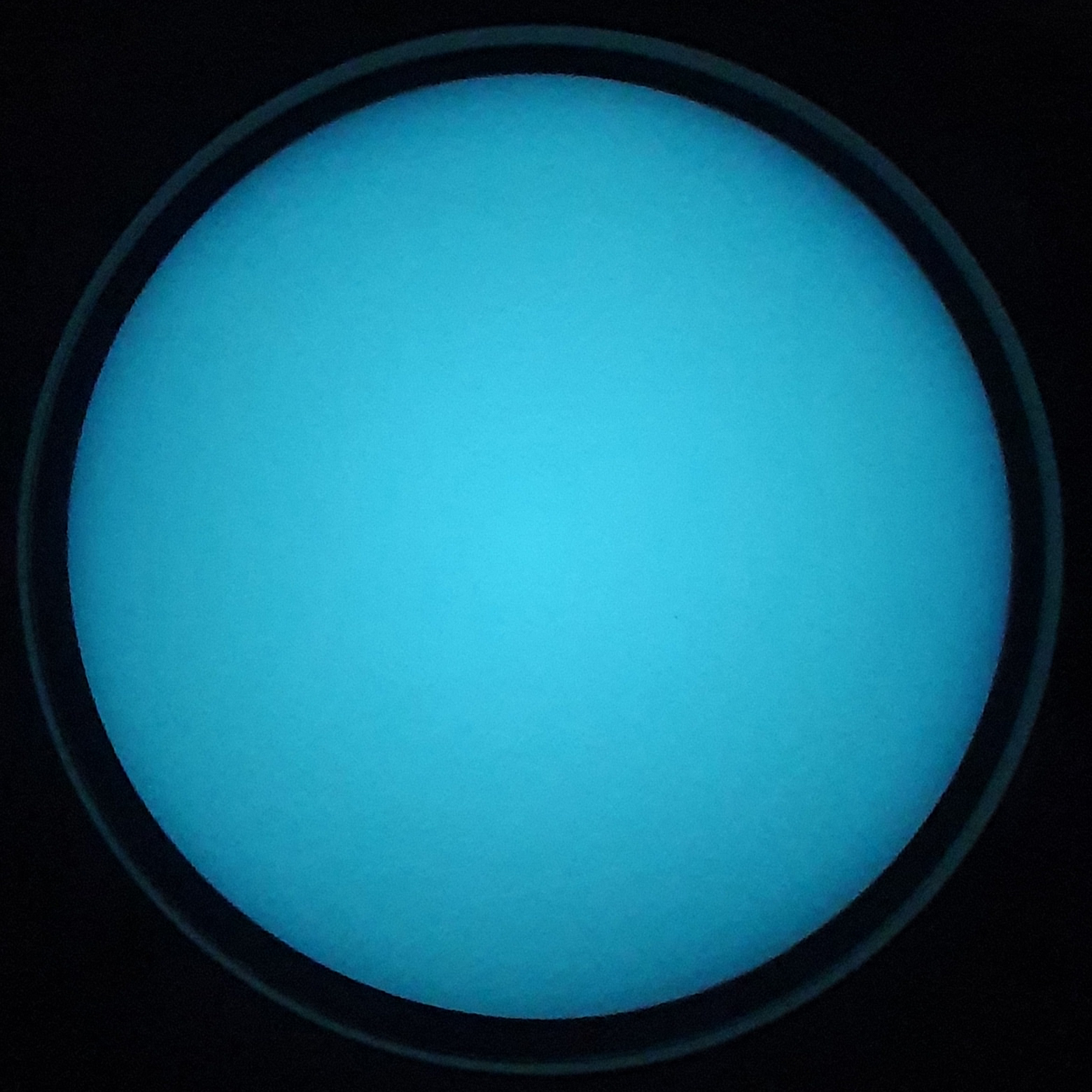

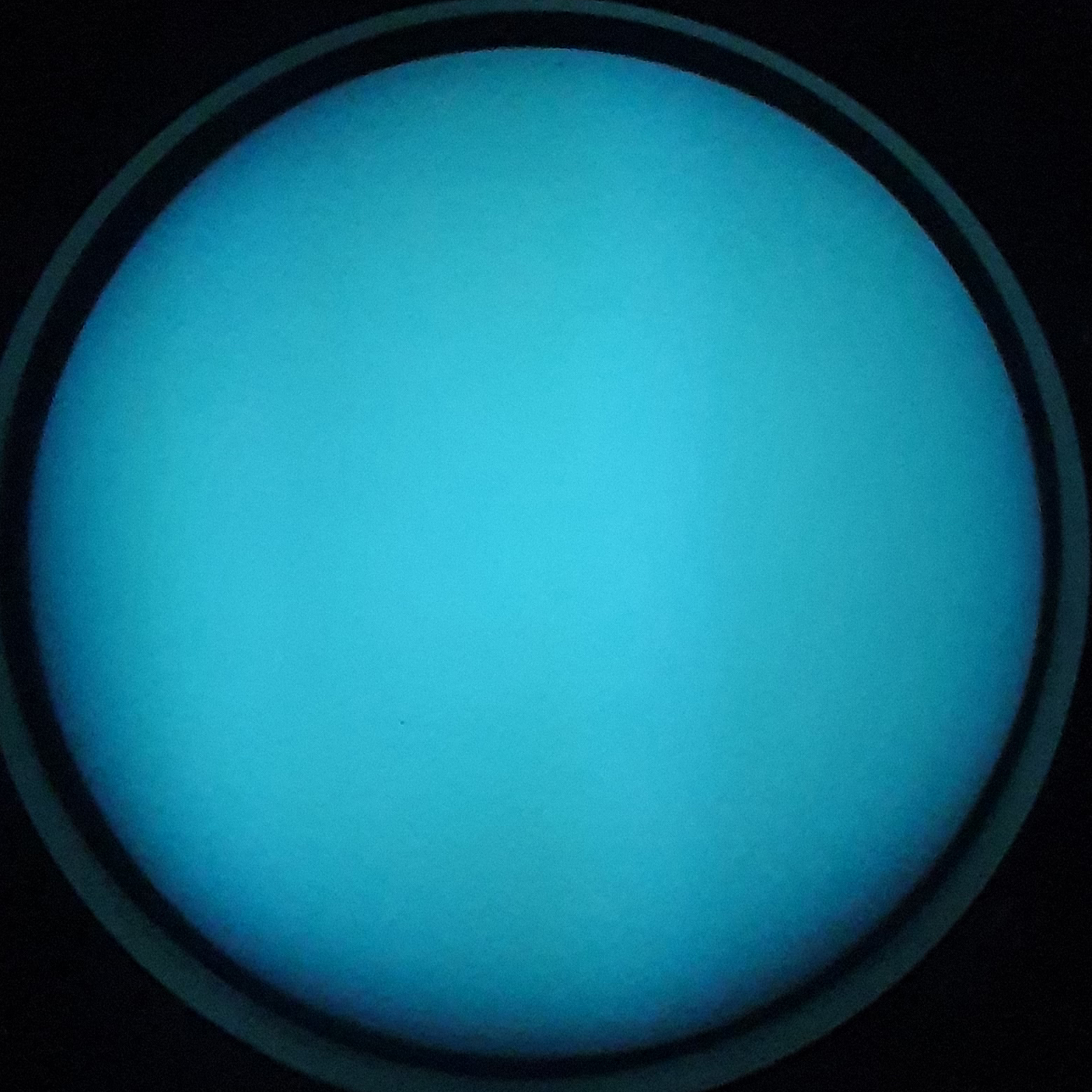

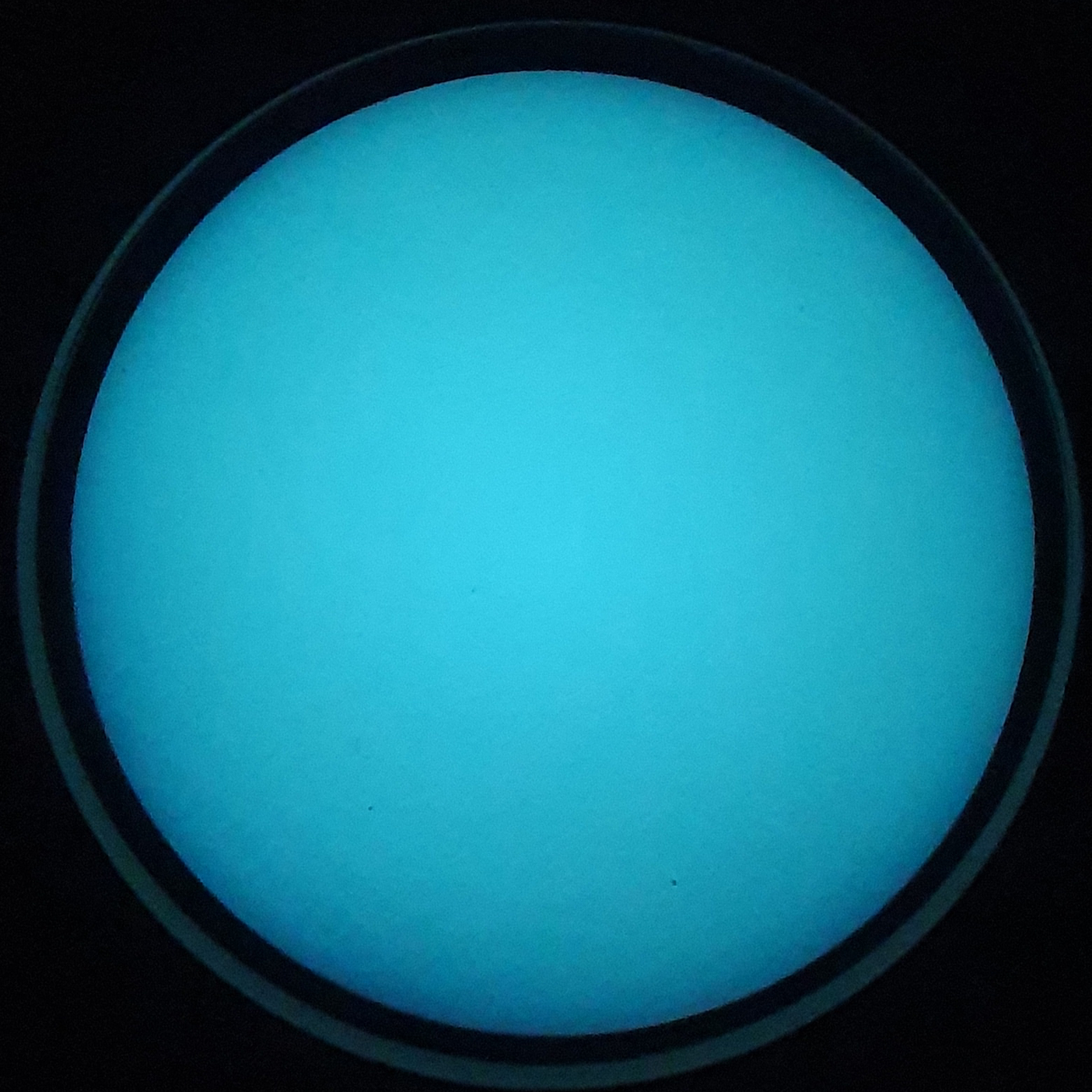

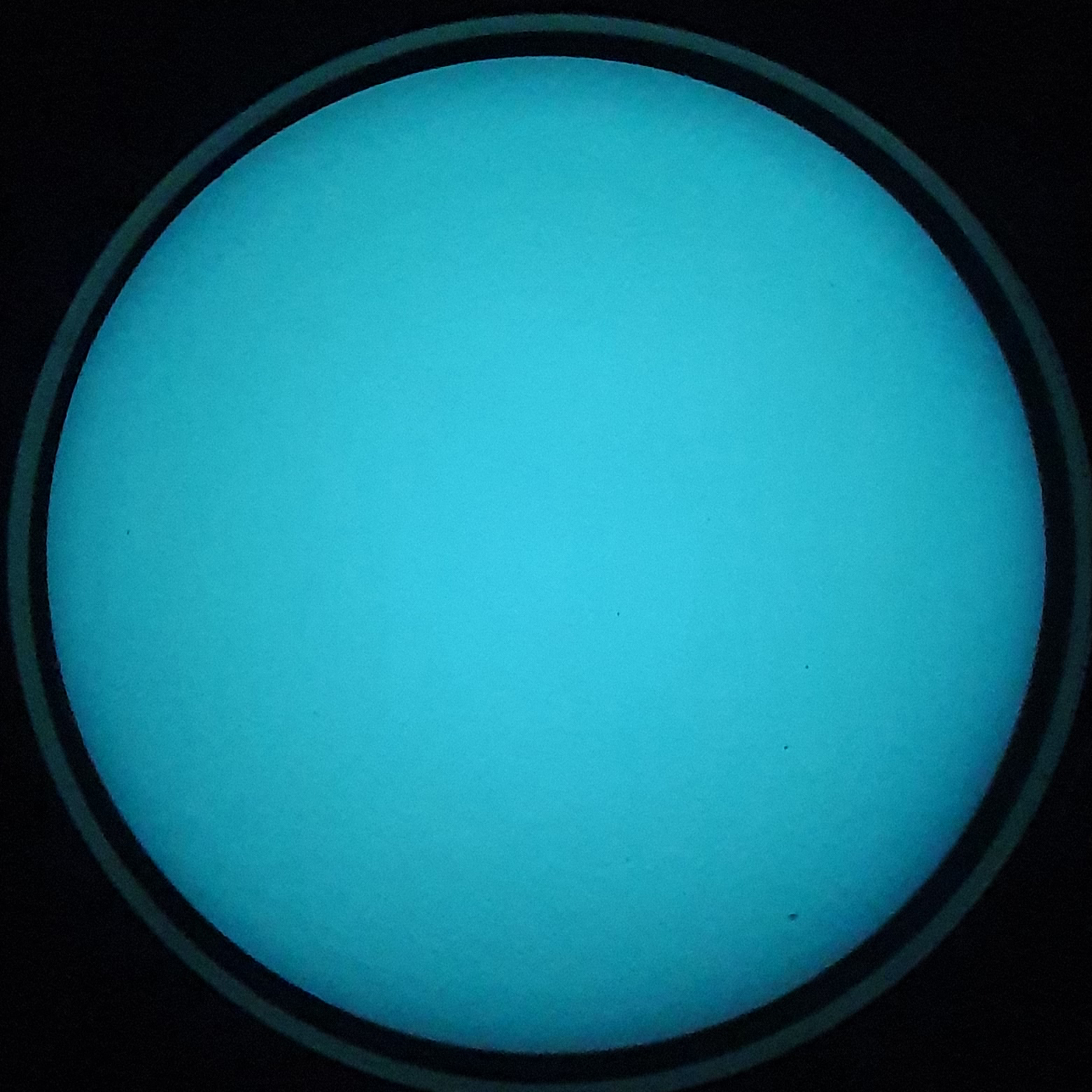

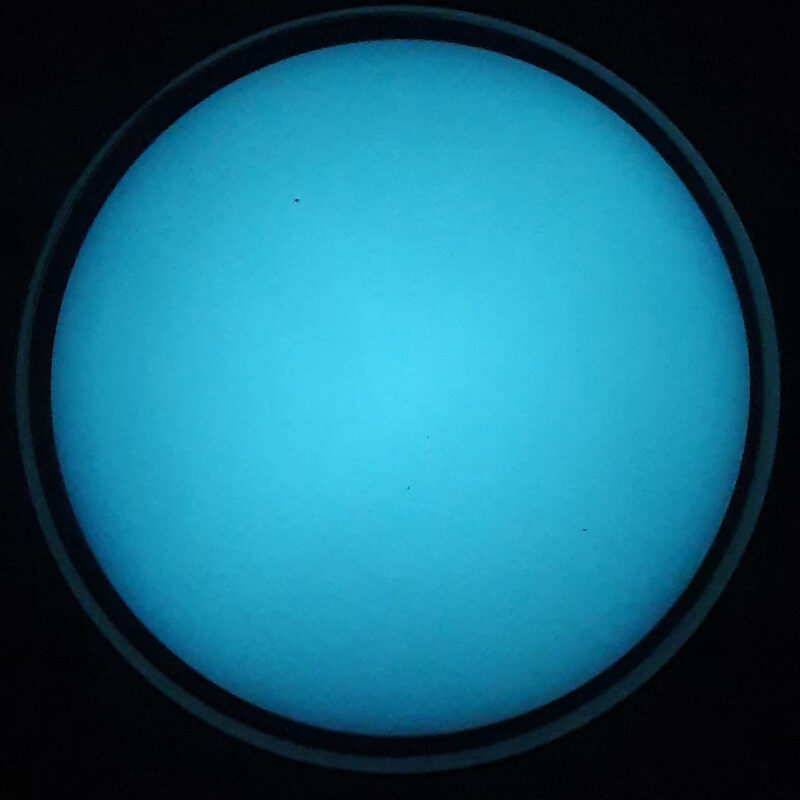

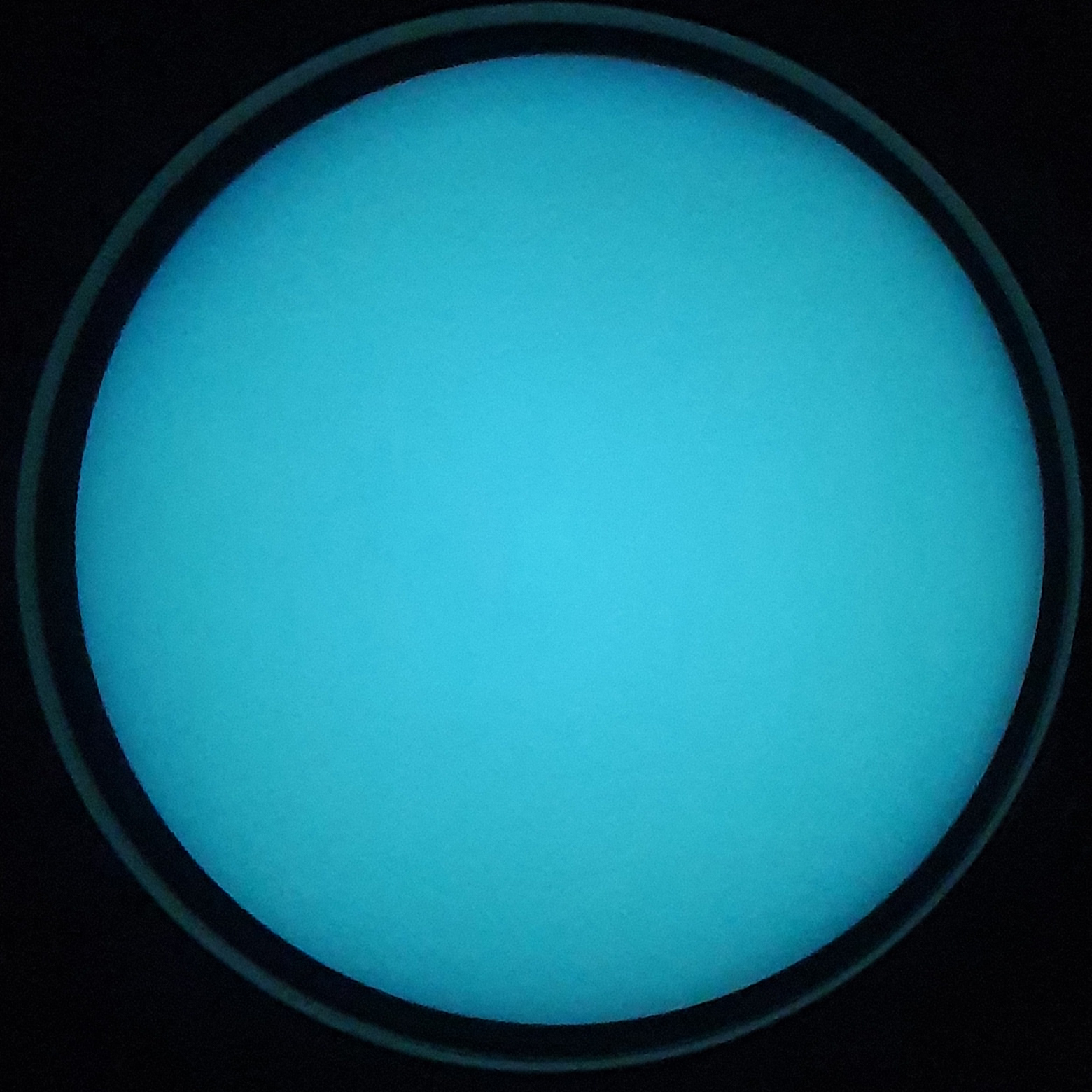

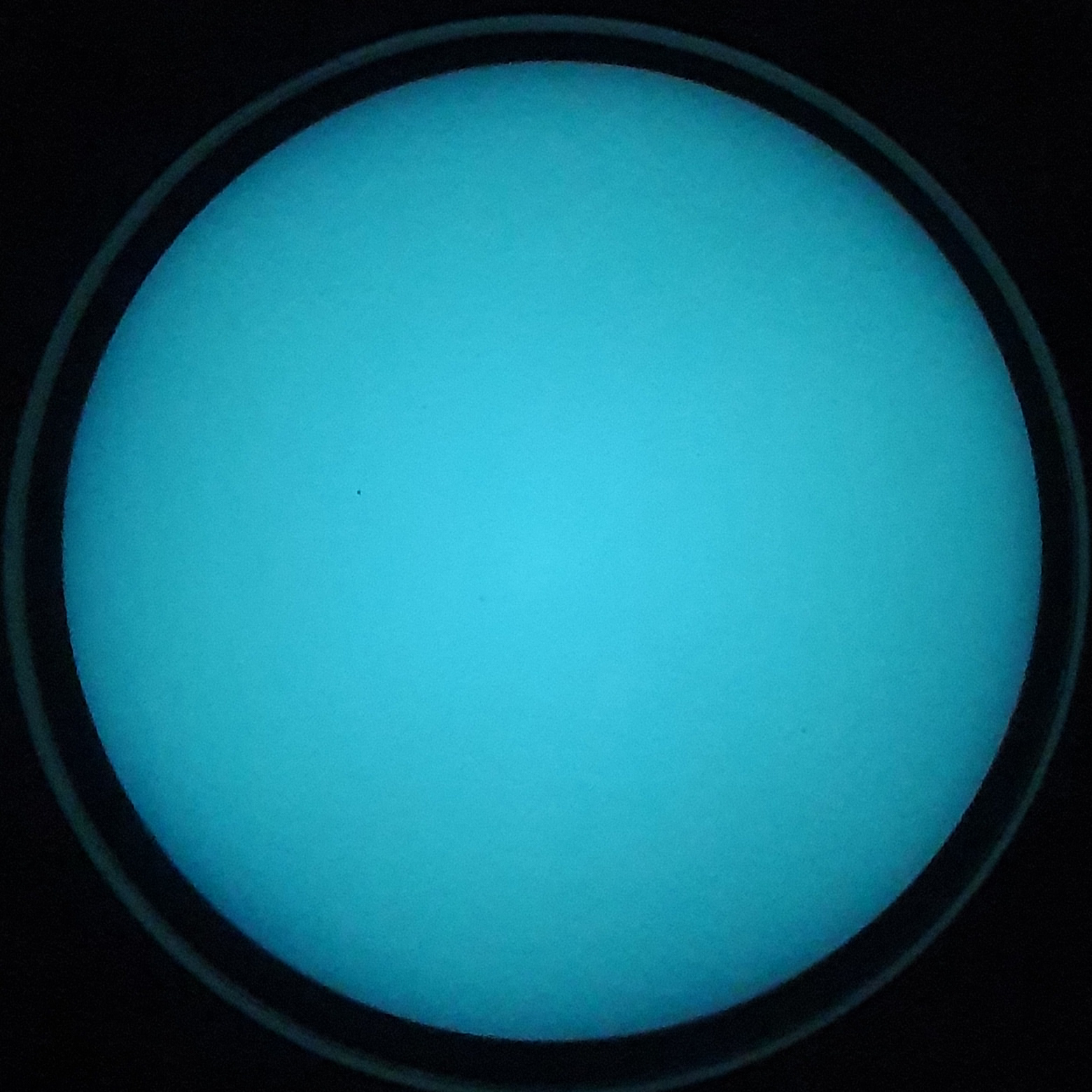

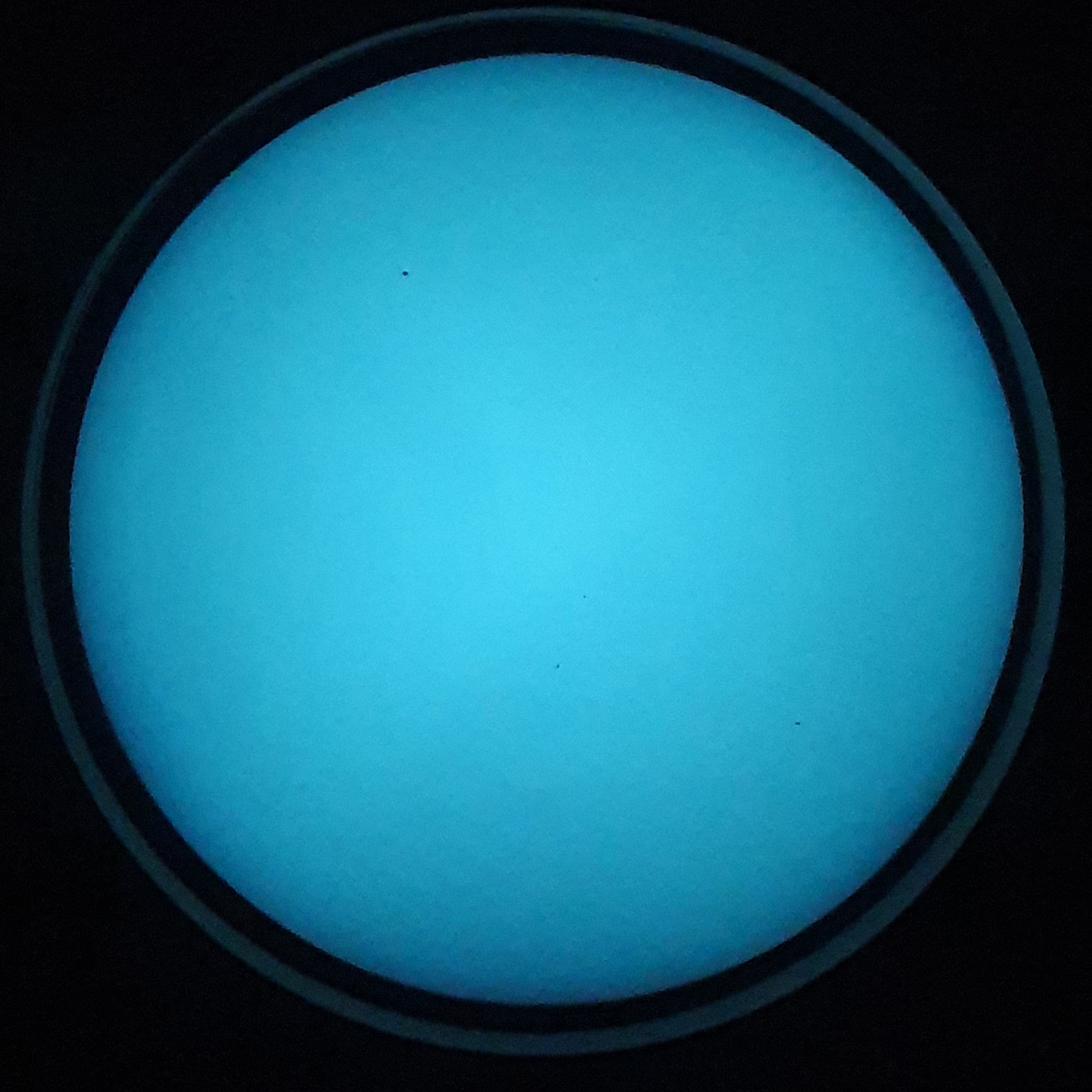

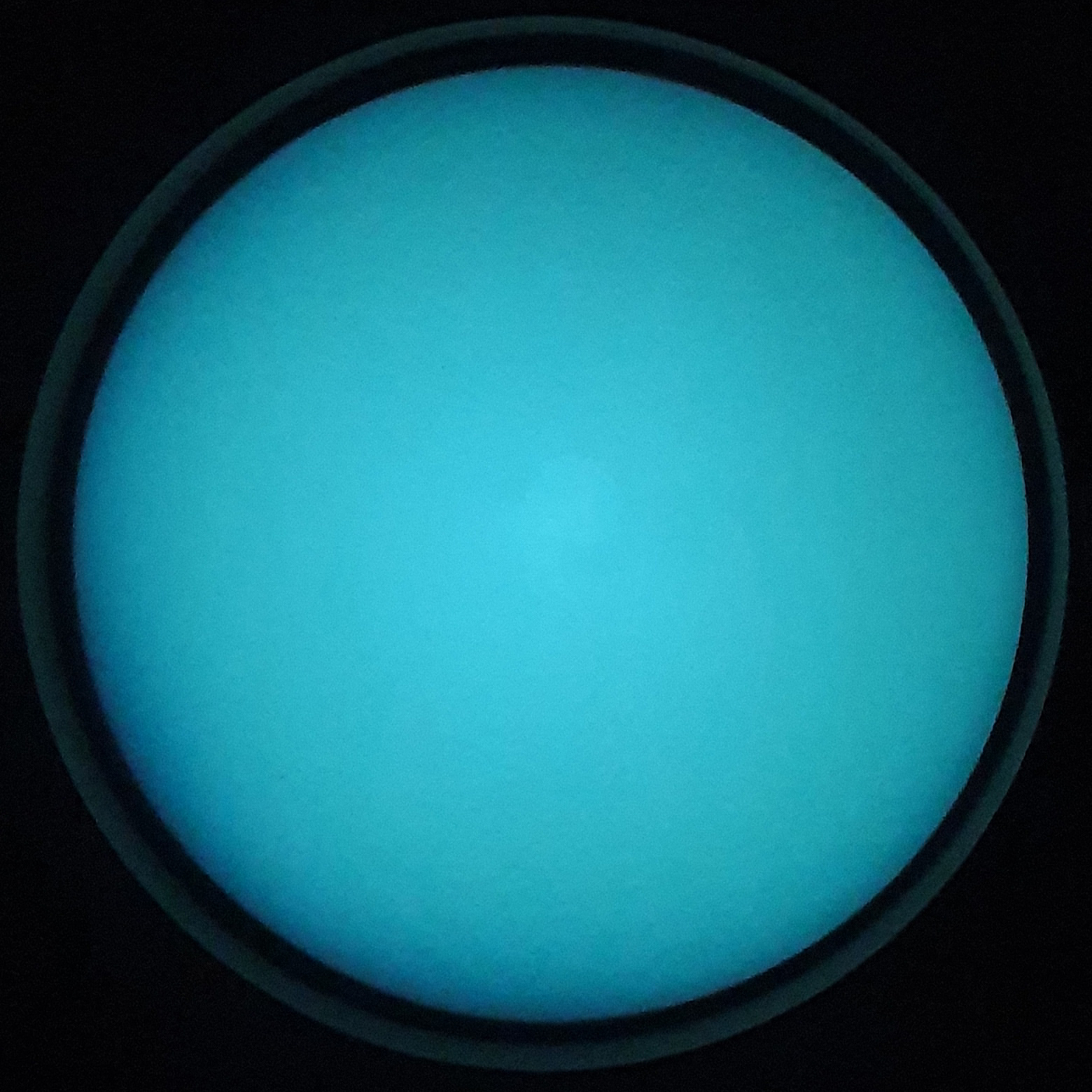

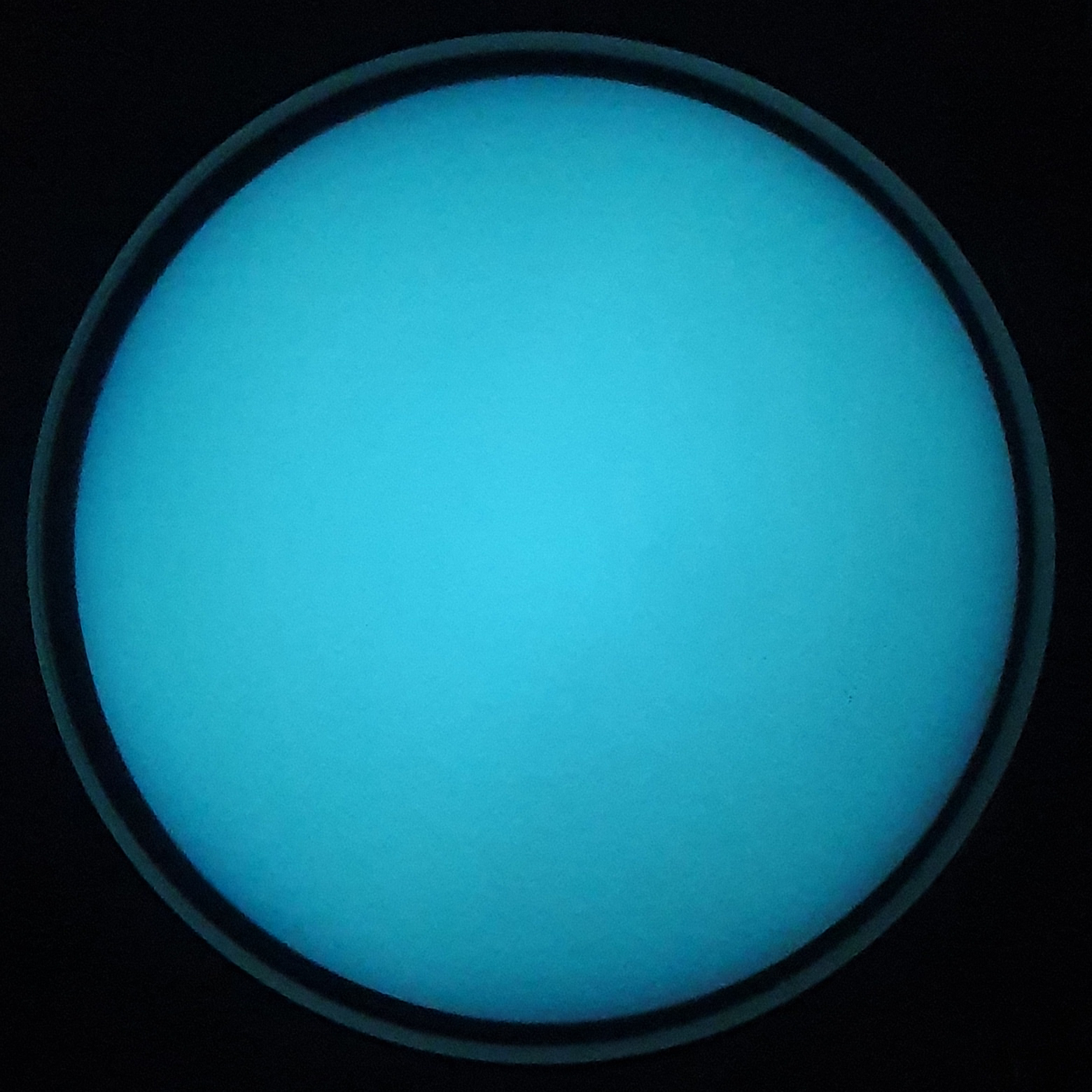

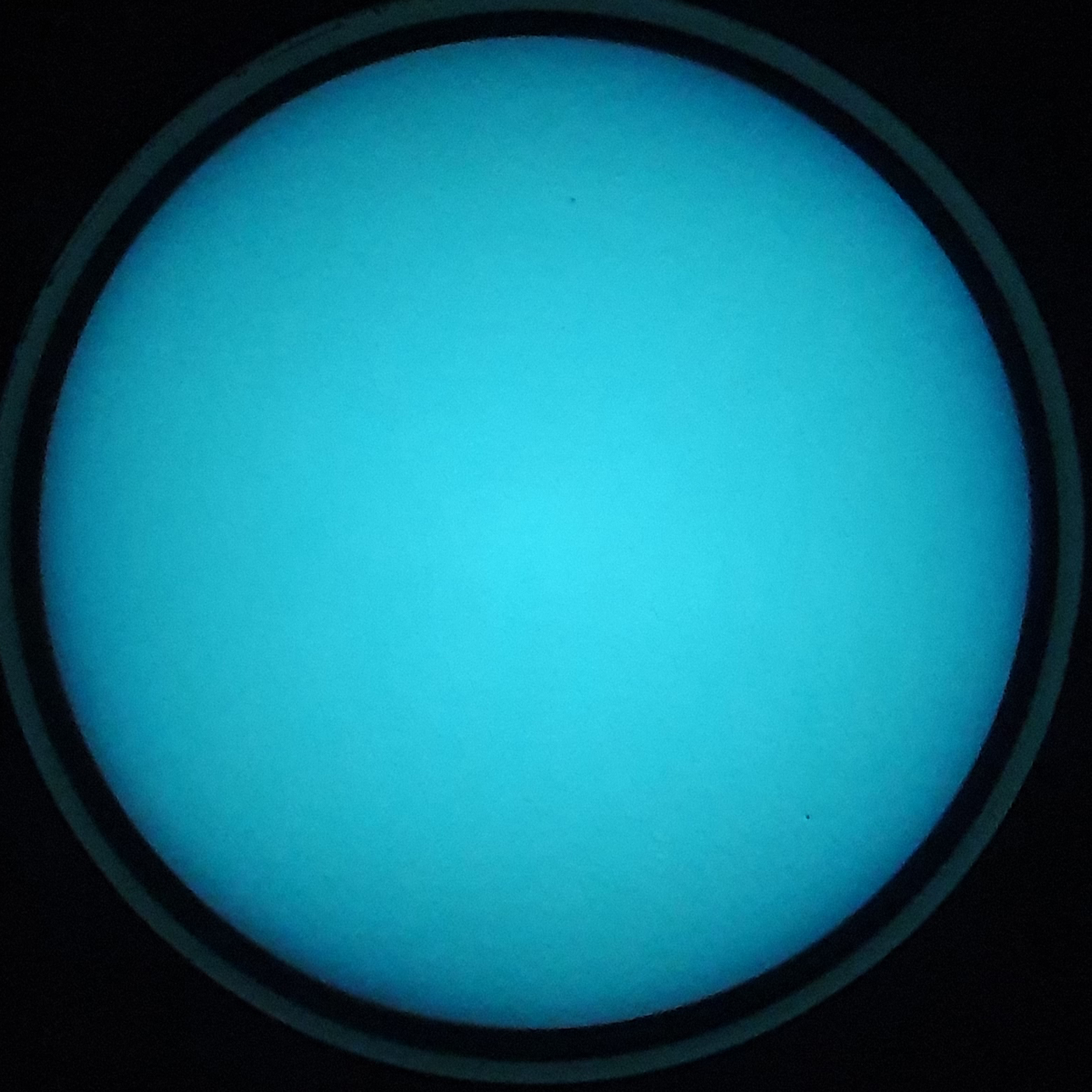

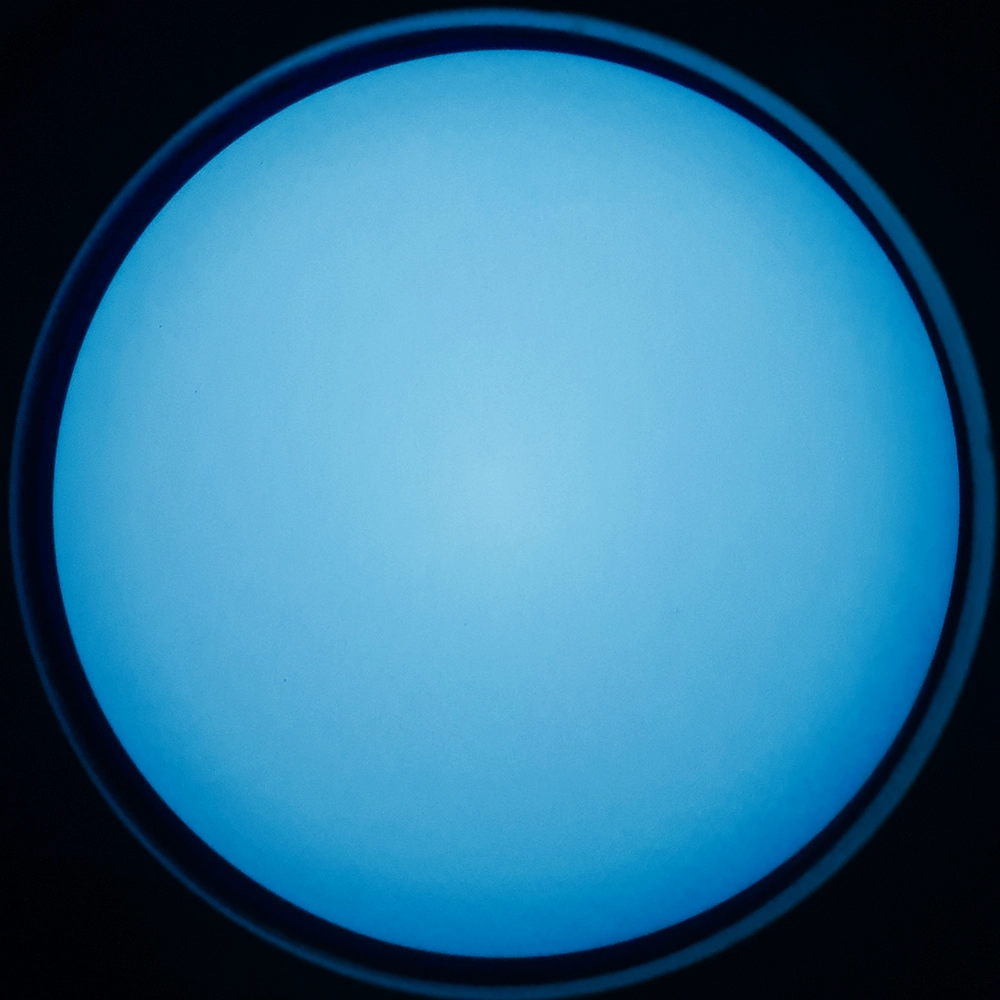

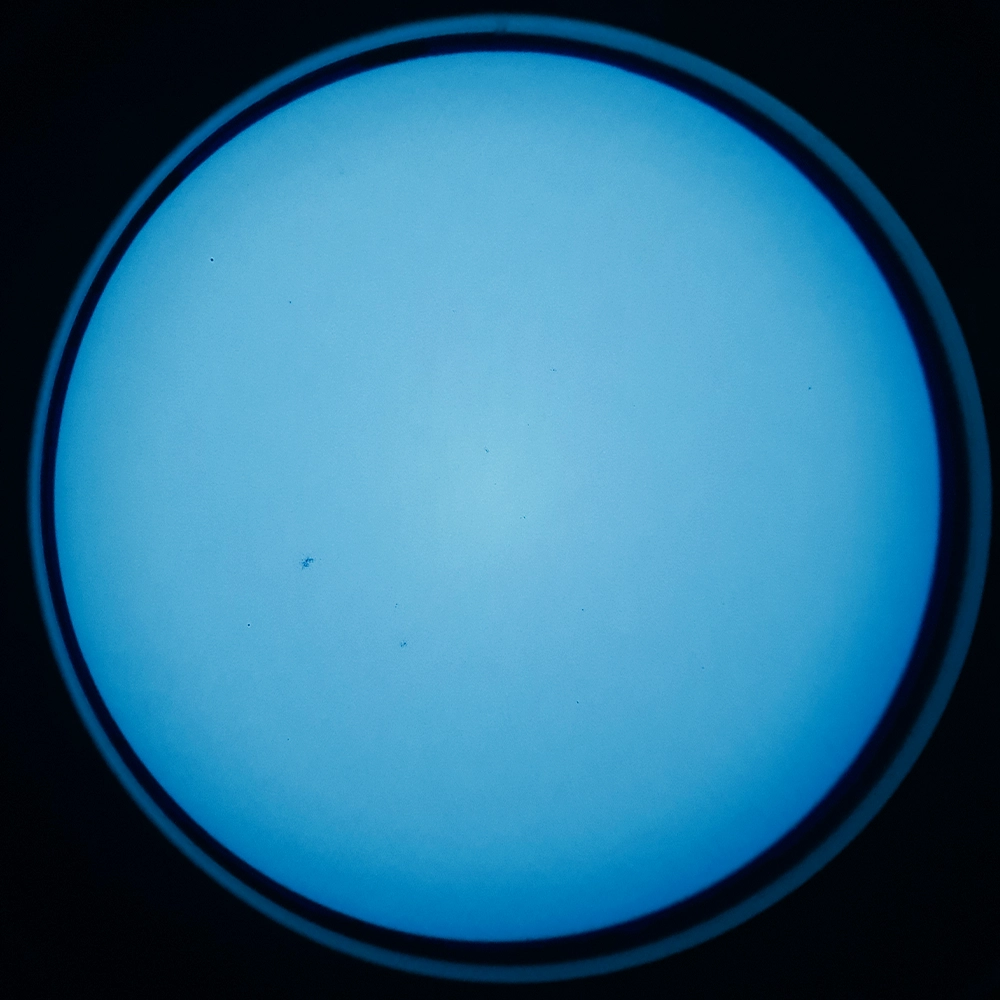

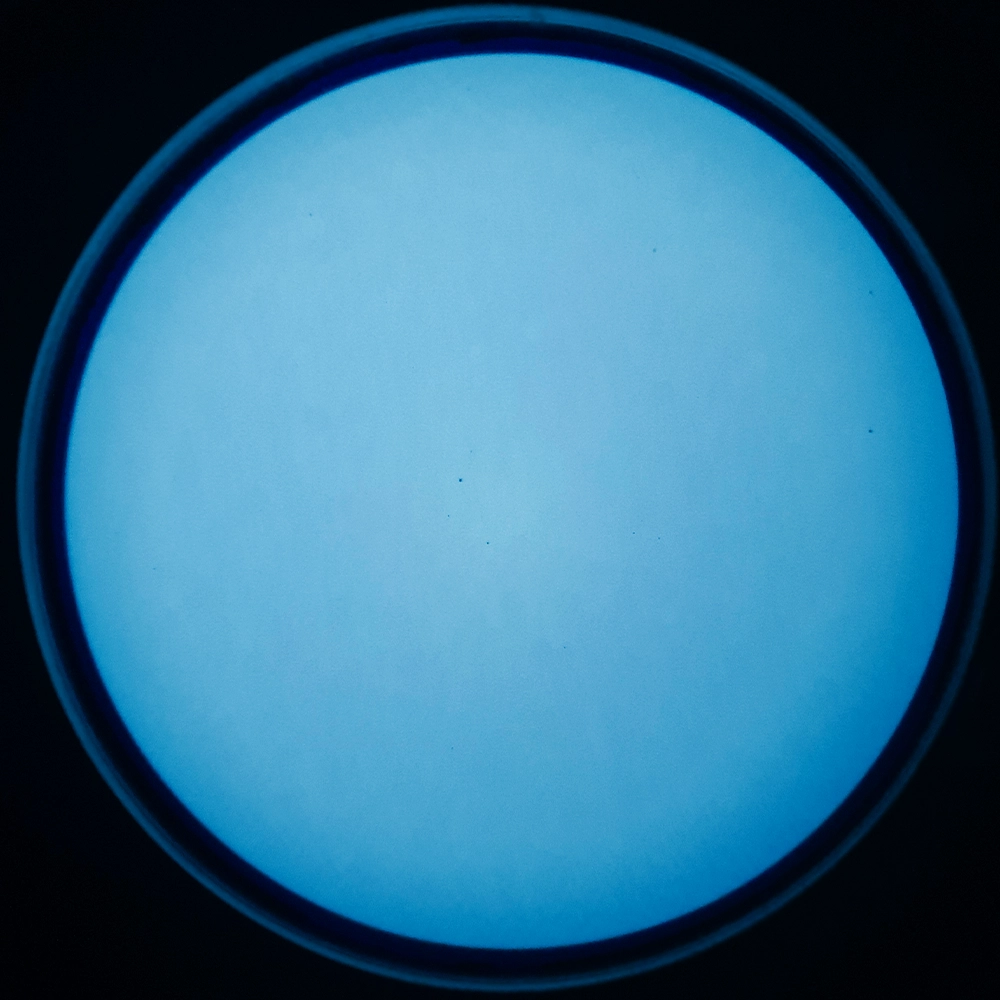

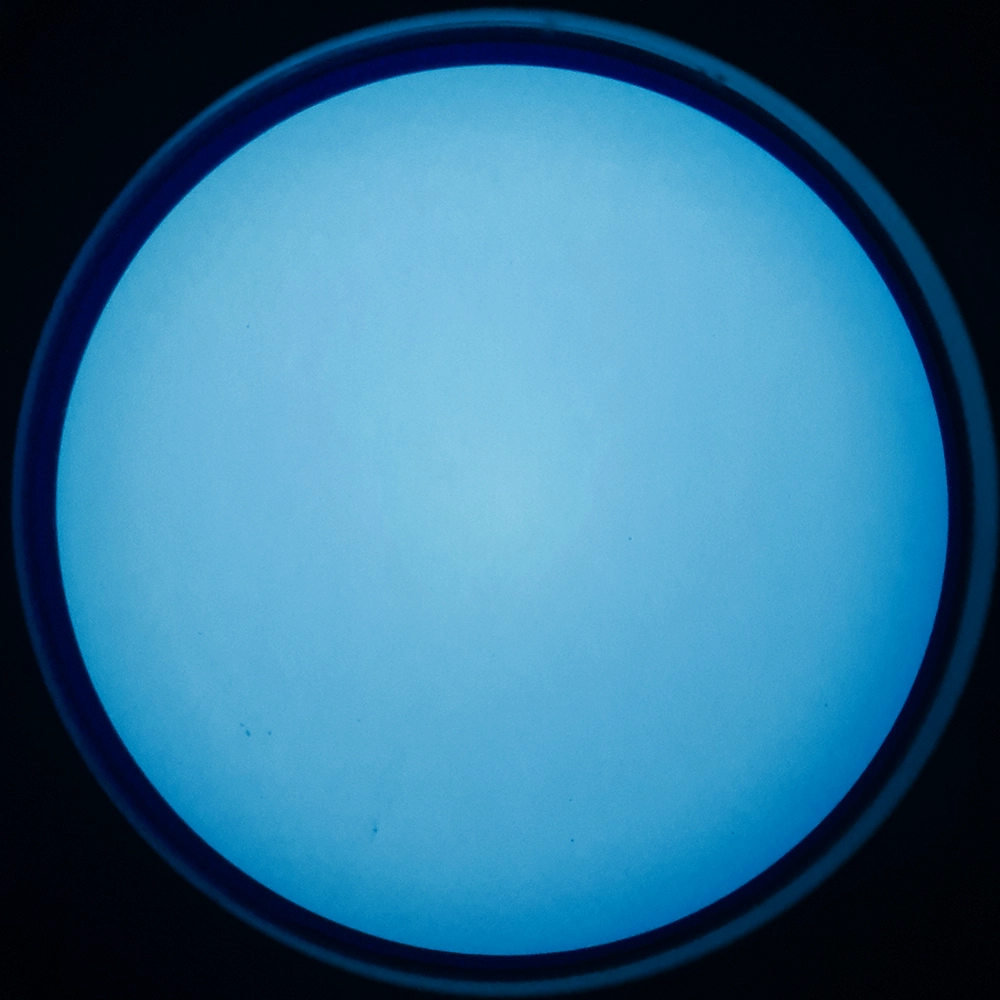

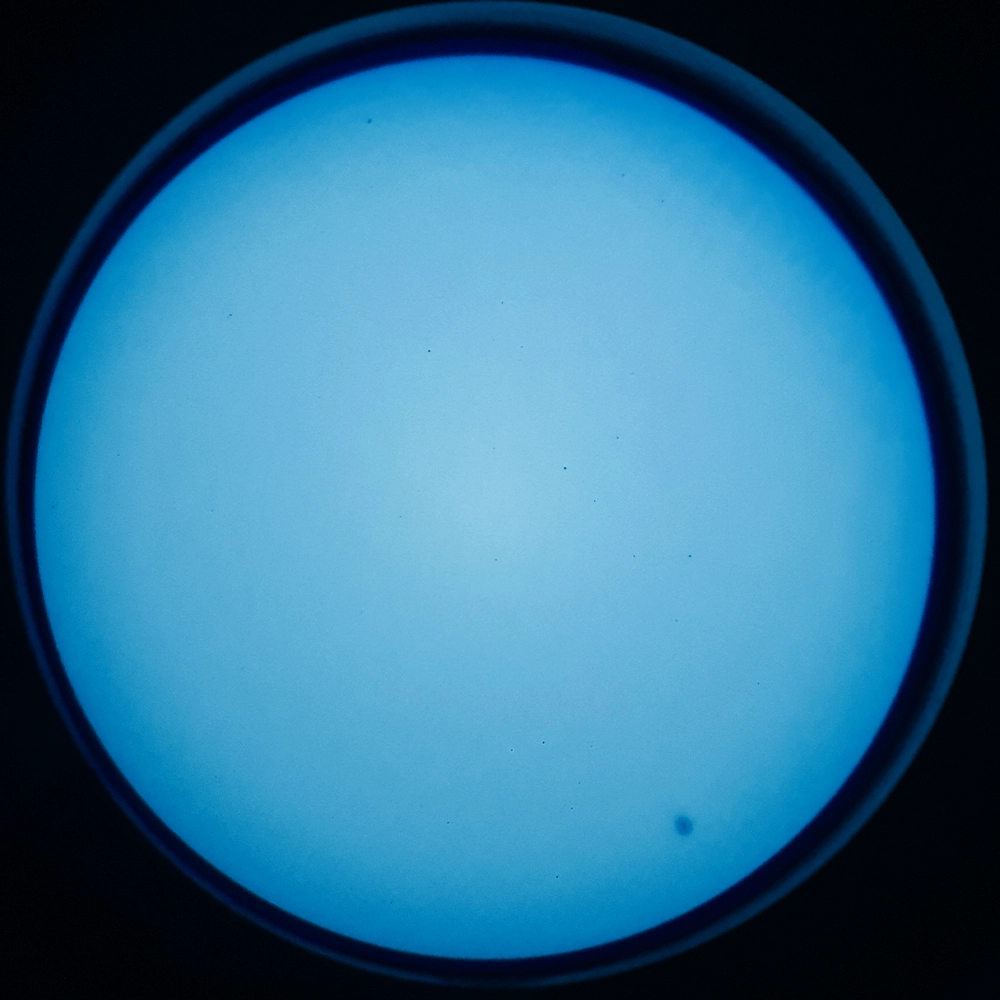

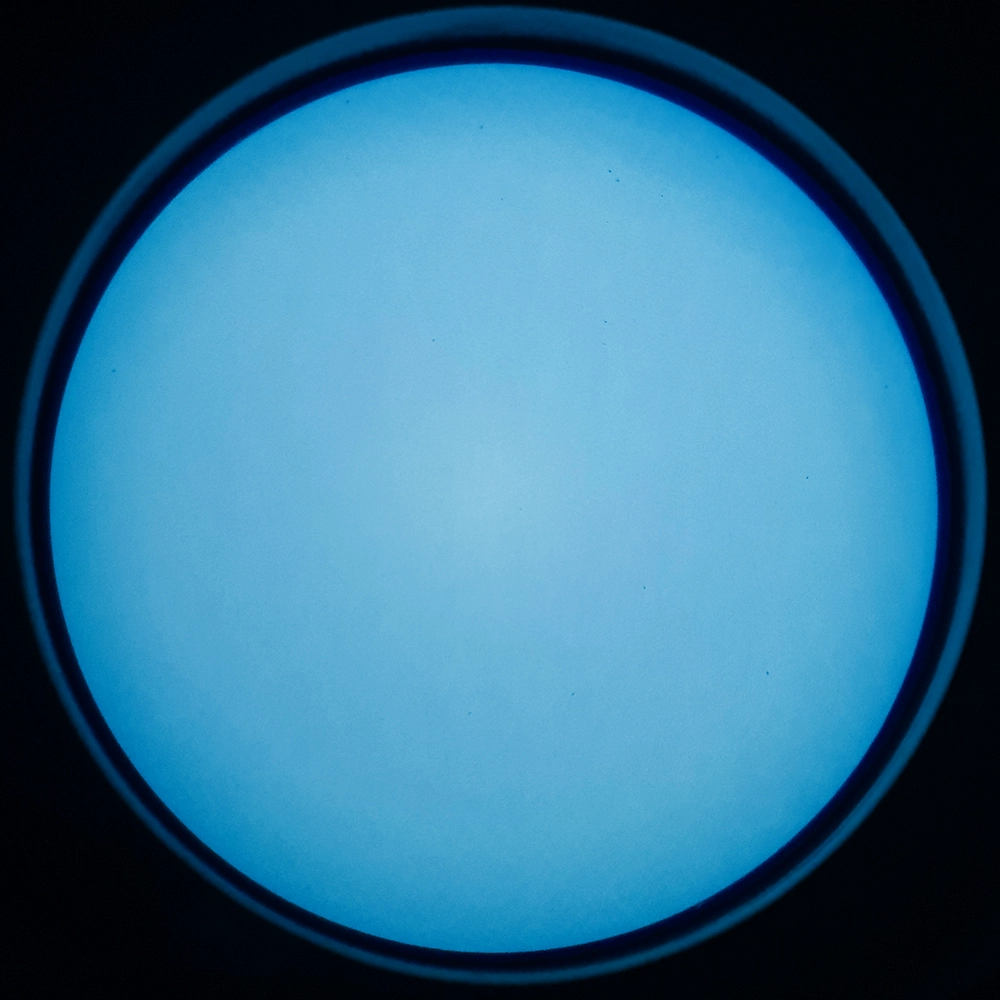

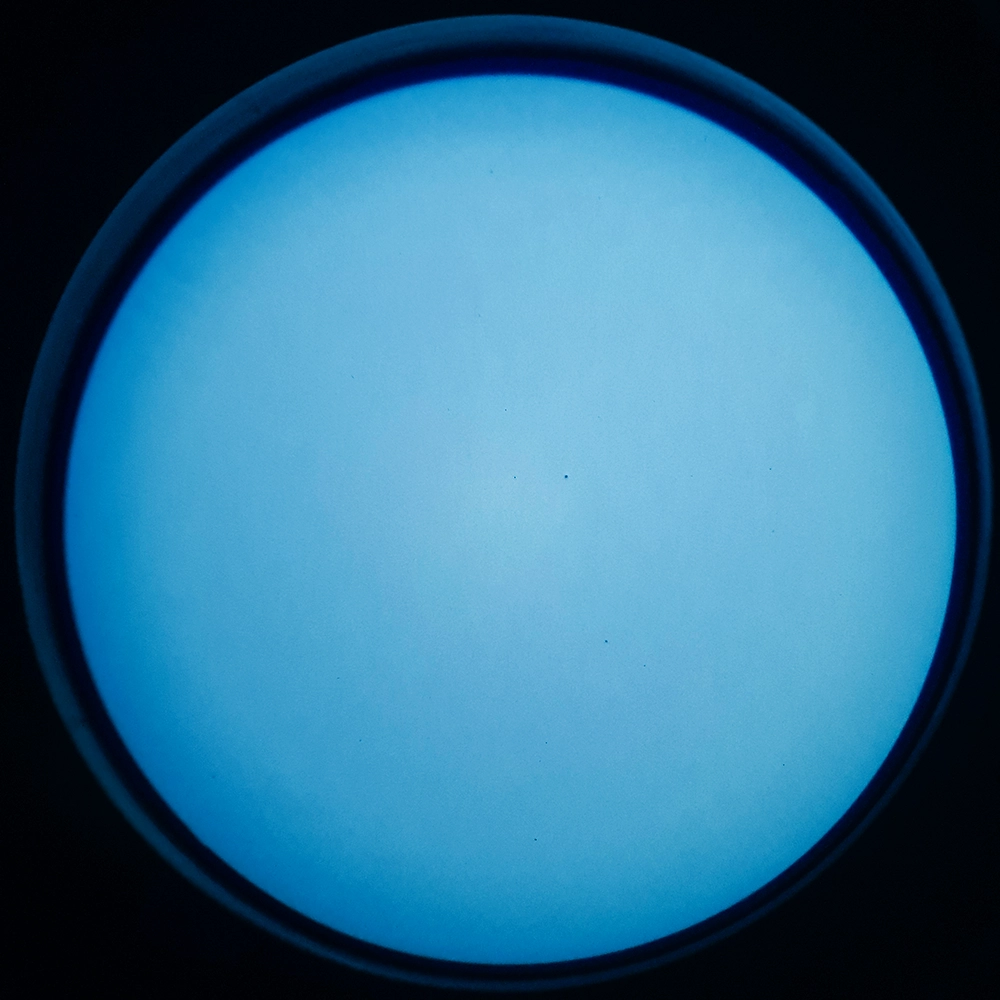

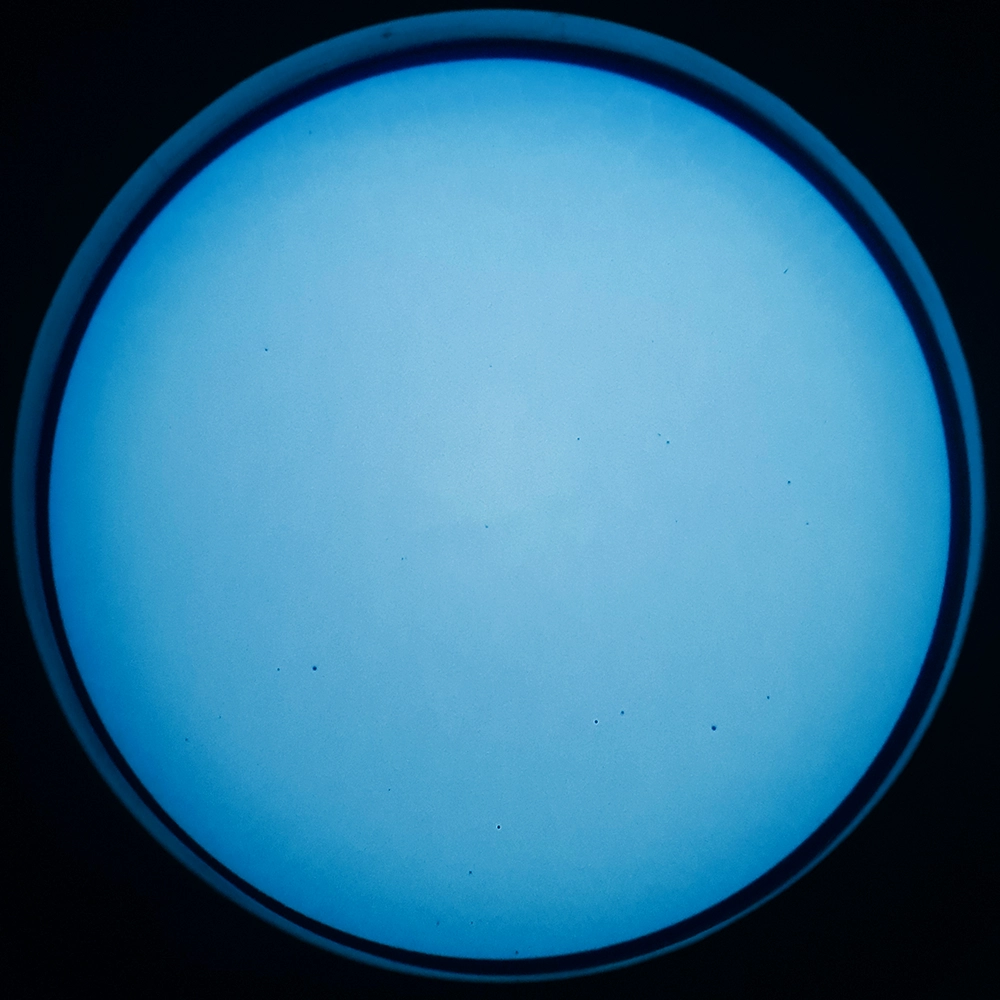

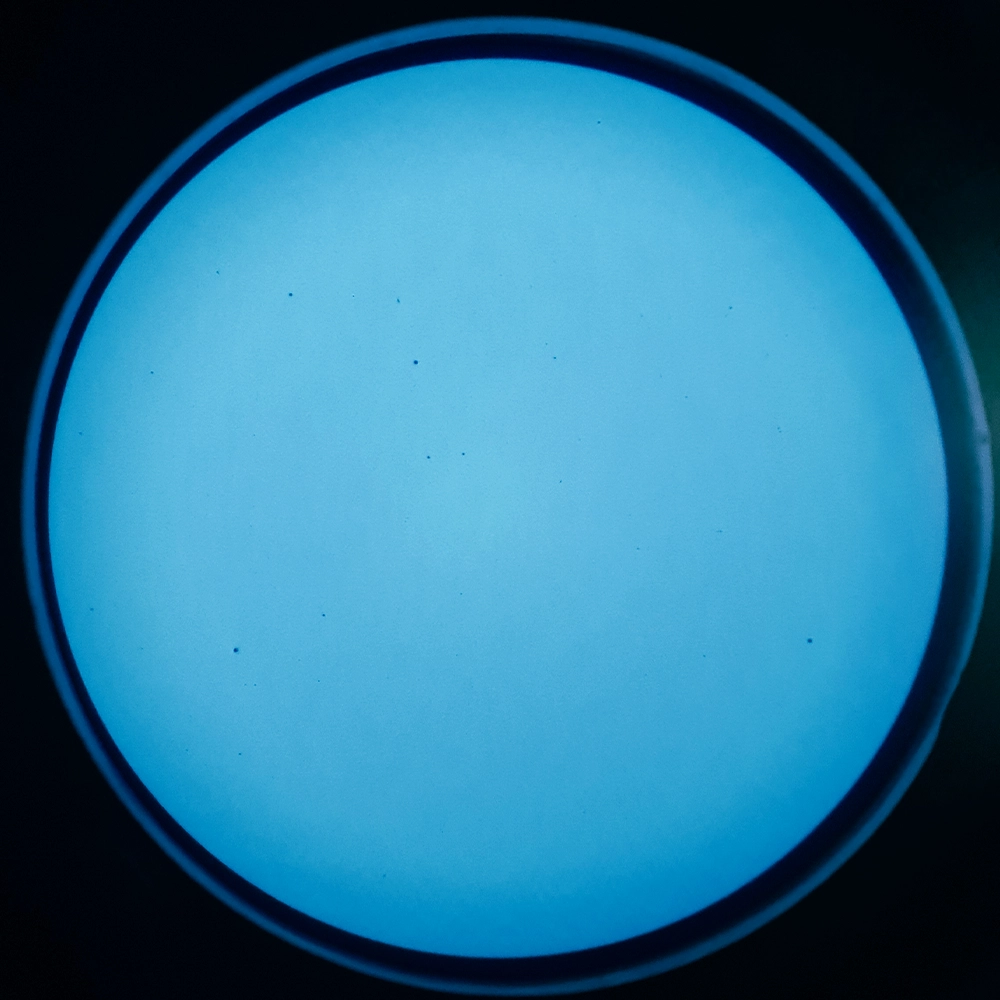

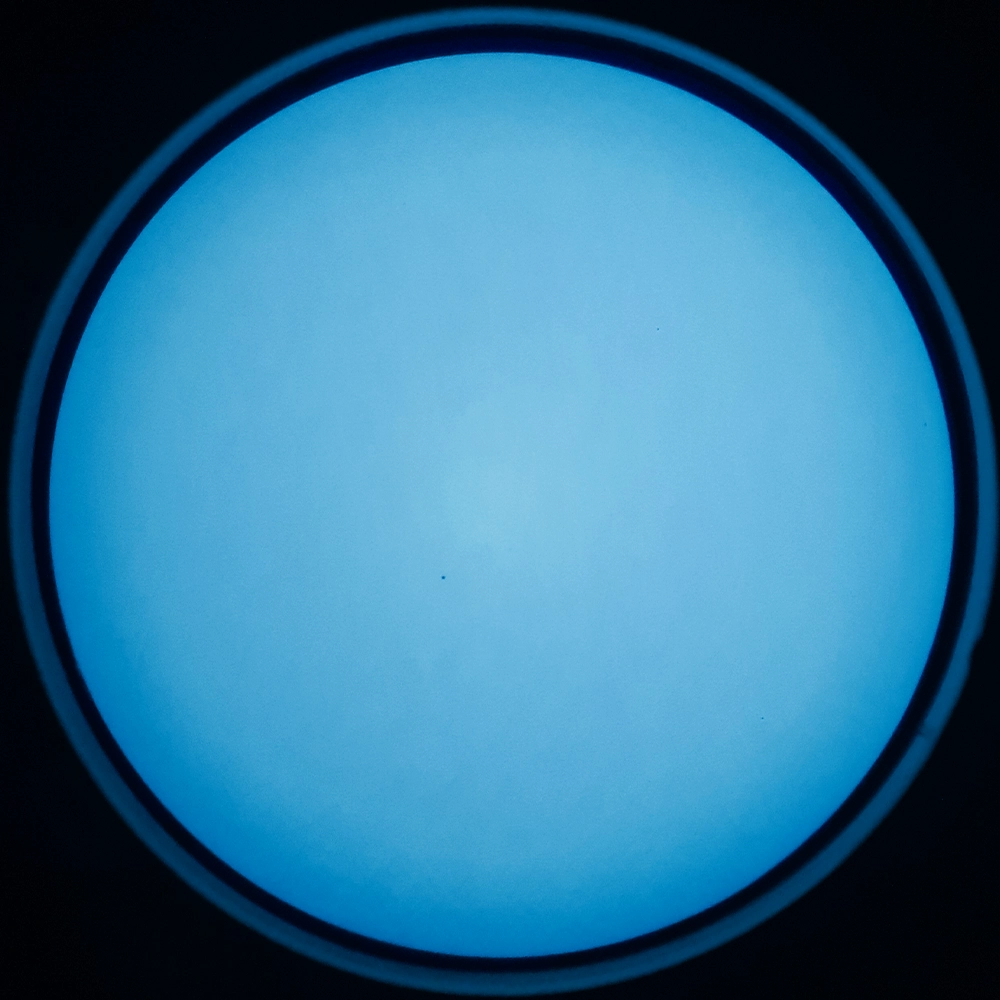

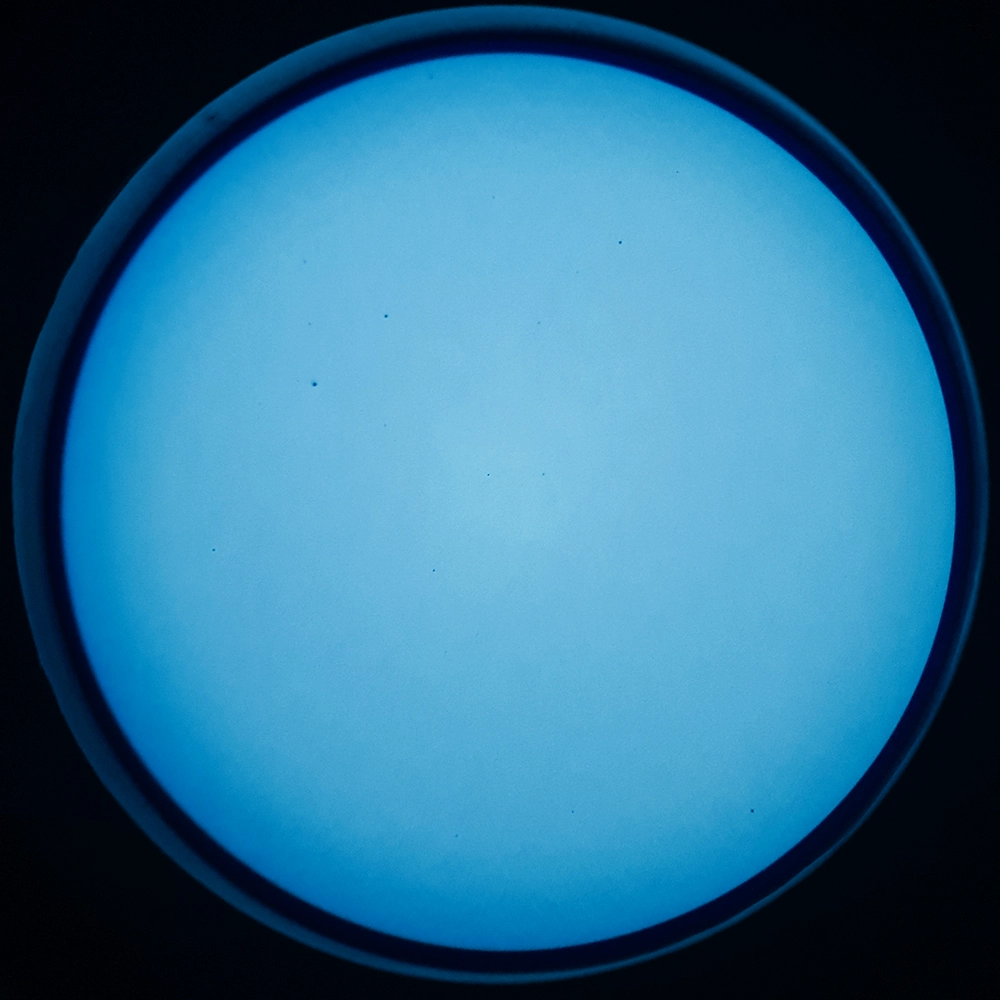

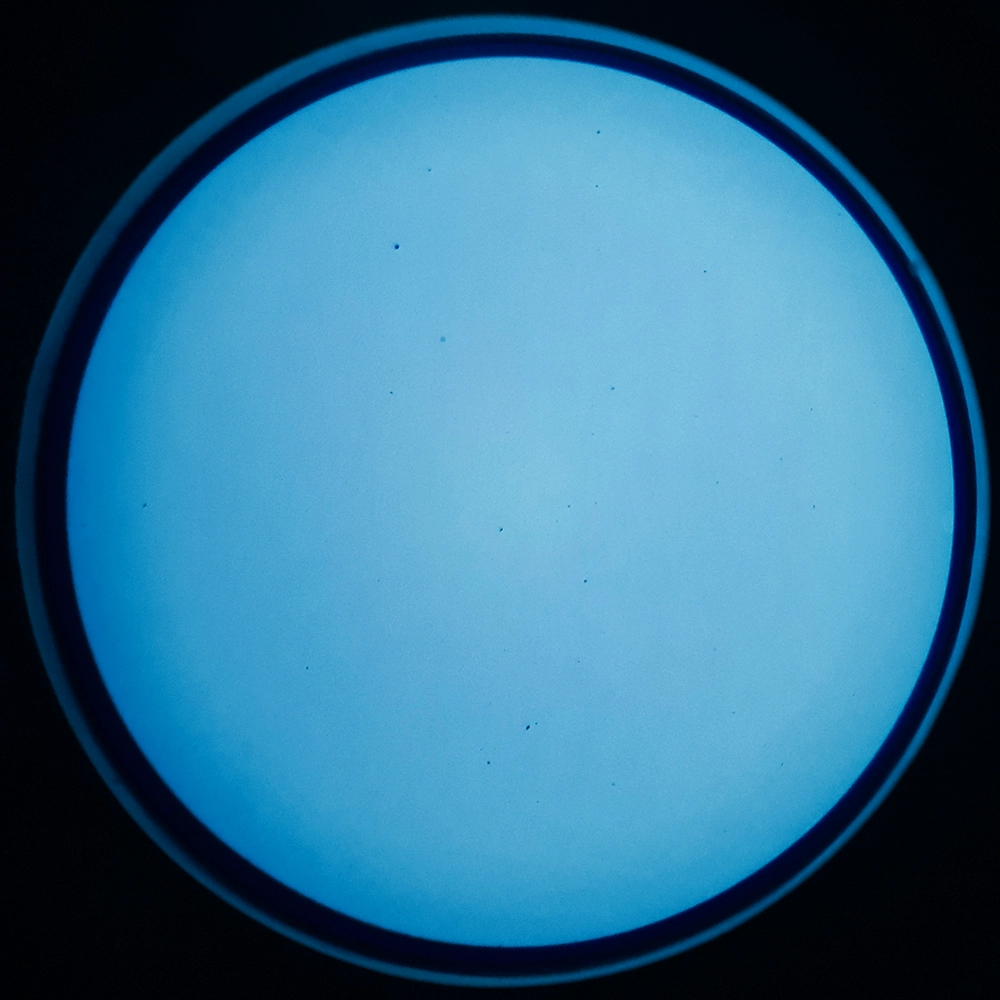

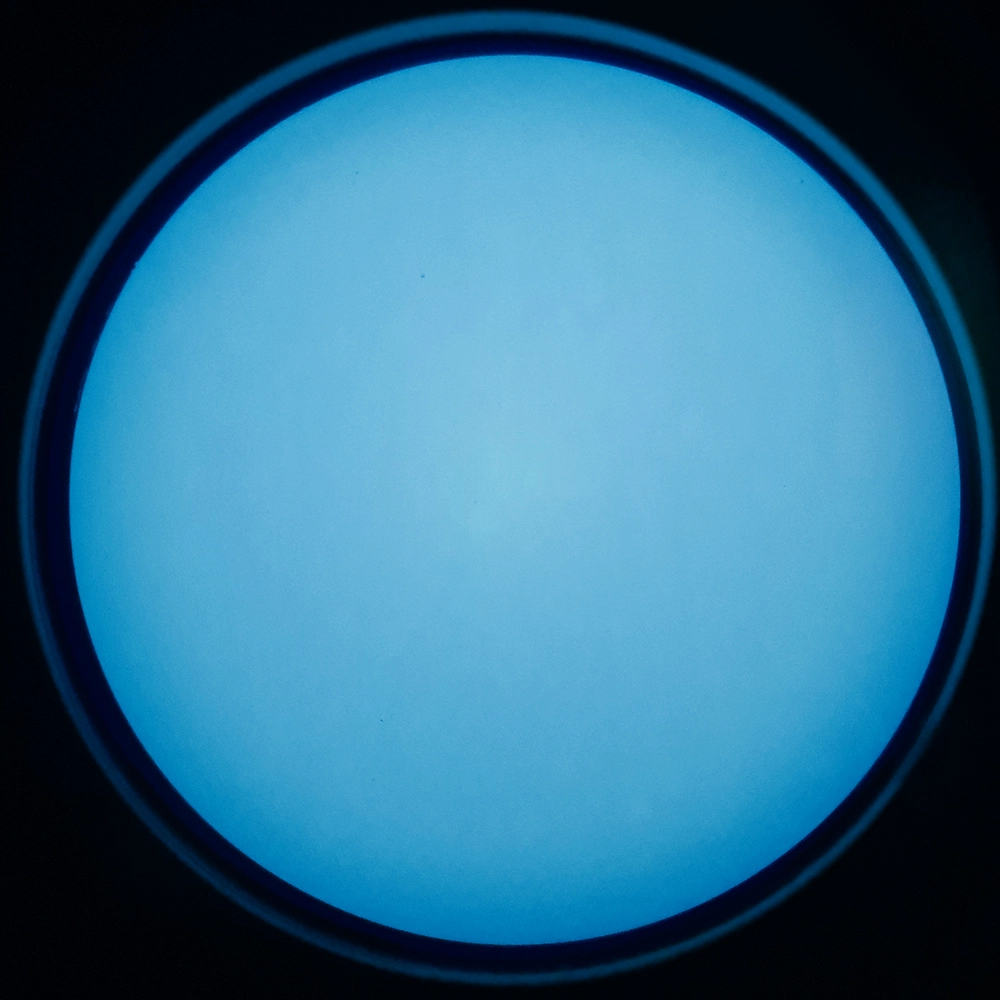

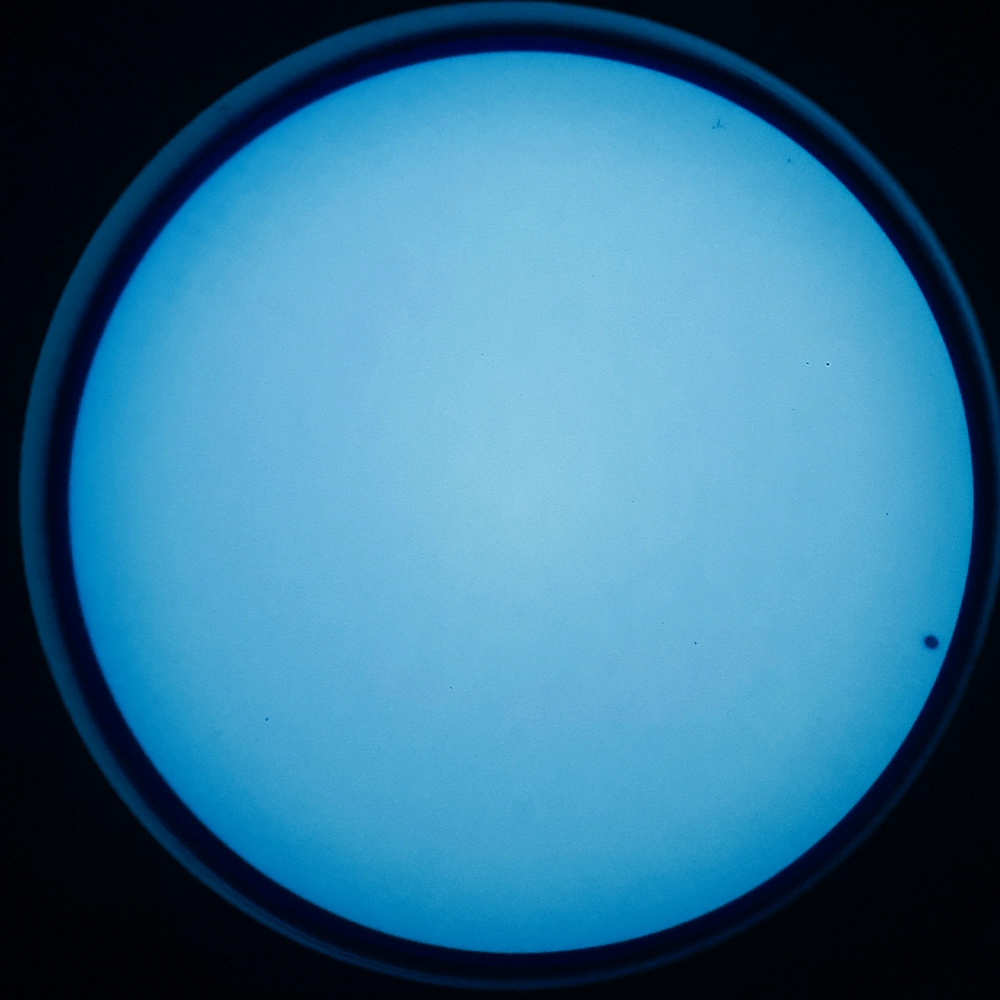

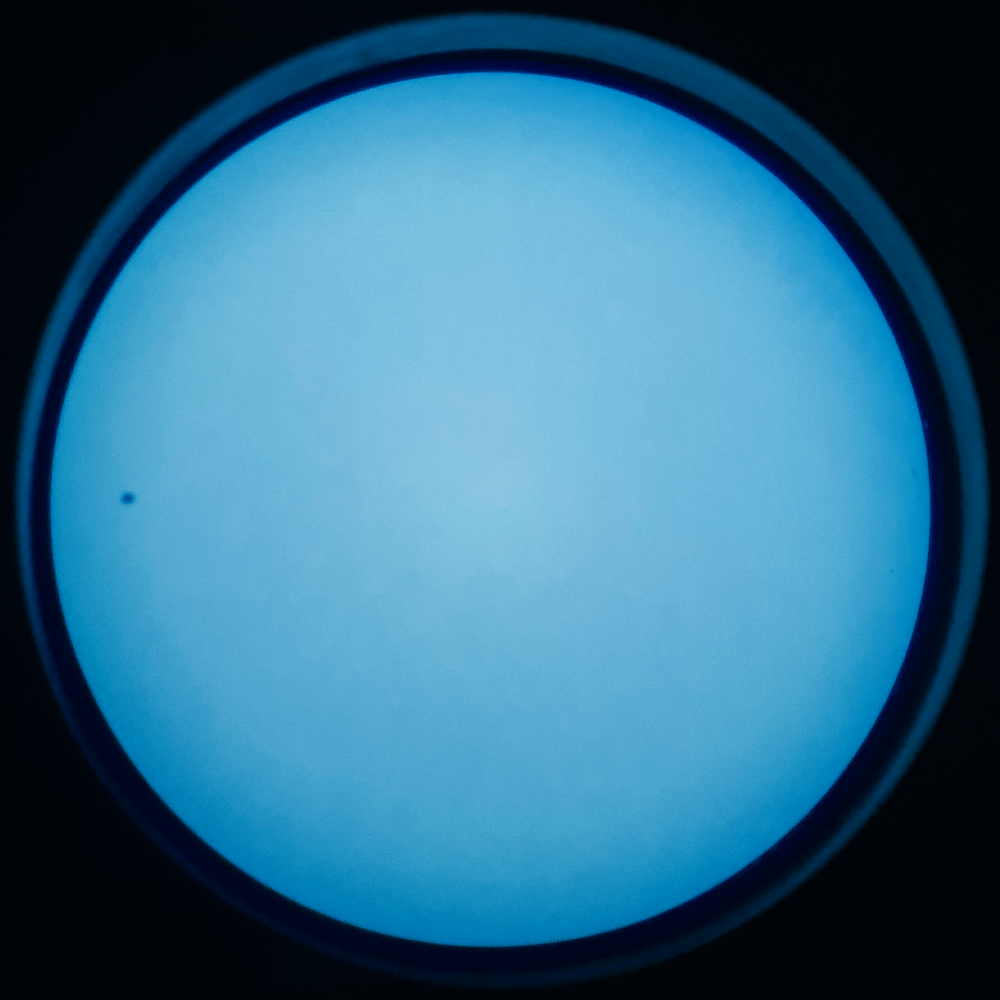

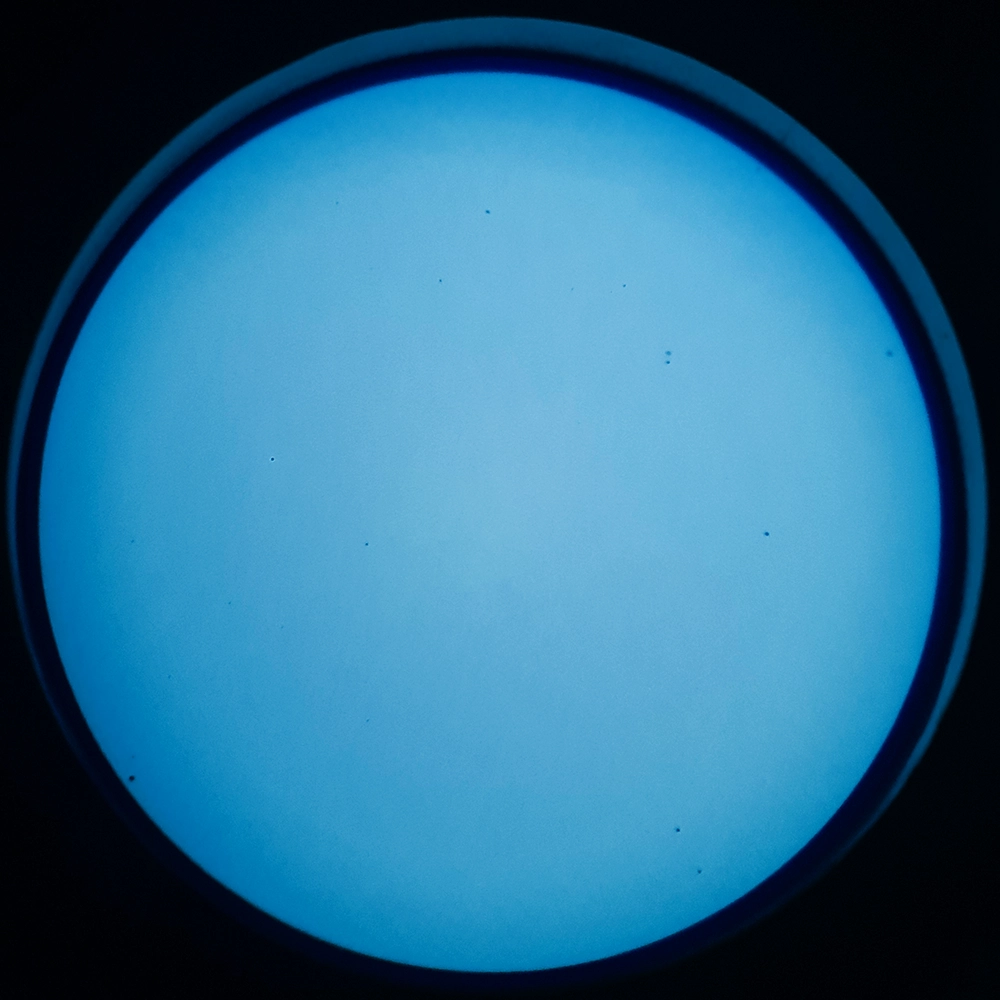

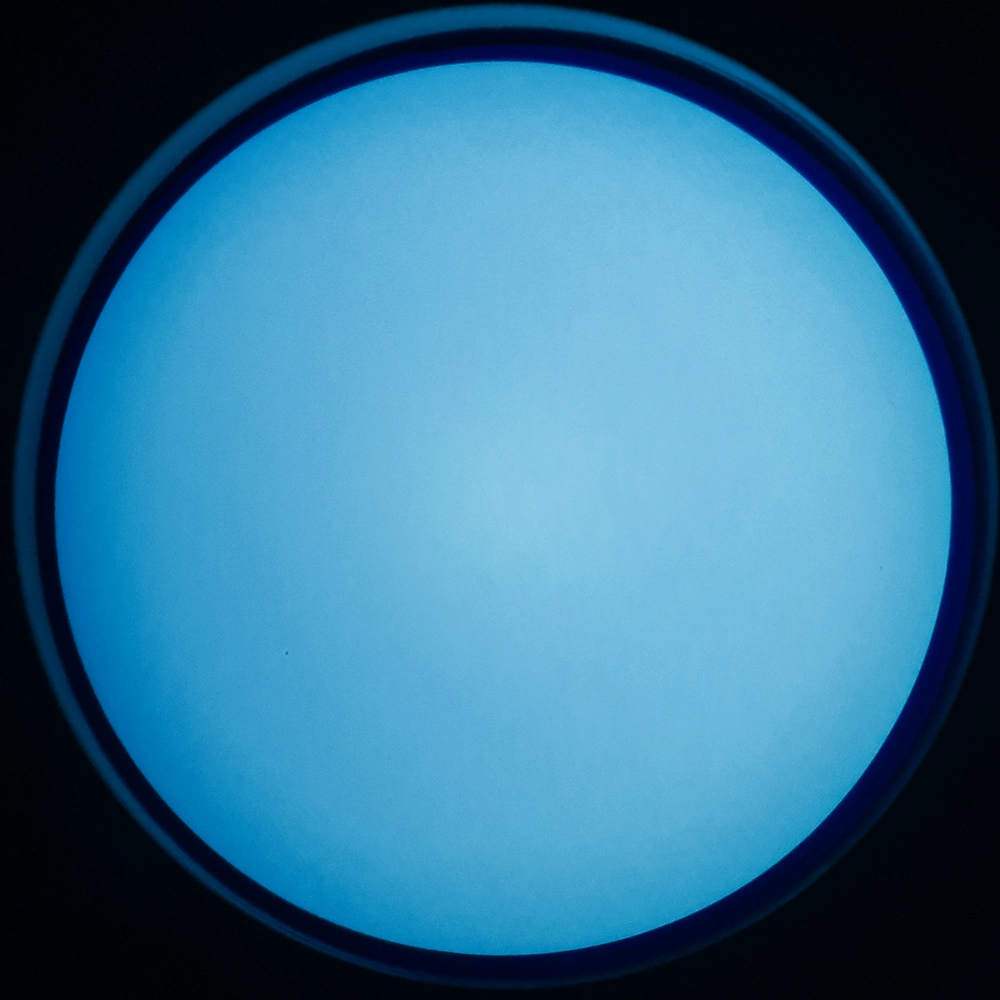

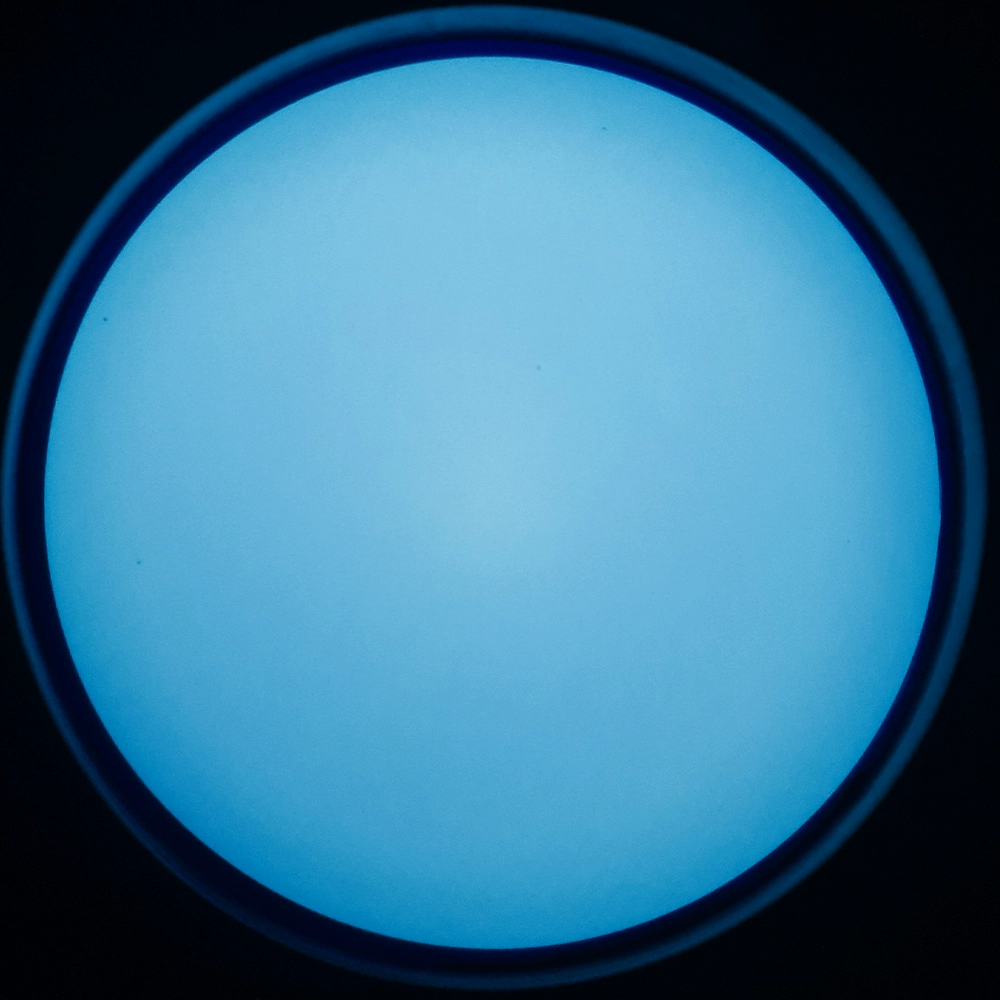

Since the difference between units can be pretty big (both FOM and the existence of black spots), we have decided to make public units specification and picture of the tube (to see black spots). Price depends on the quality of the tube. Please be aware that not all spots are visible on those pictures and in real life the spots appear to be bigger than on this picture. Spots score is our own metric to compare visibility of spots between tubes.
B0467
| FOM | 2189 |
| Gain | 9911 |
| Resolution | 76 |
| EBI | 0.19 |
| SN | 28.80 |
| IA | 0.04 |
| Price | 3950€ + VAT |
B0422
| FOM | 2117 |
| Gain | 10 258 |
| Resolution | 78 |
| EBI | 0.14 |
| SN | 27.14 |
| IA | 0.10 |
| Price | 3780€ + VAT |
B0450
| FOM | 2030 |
| Gain | 10 484 |
| Resolution | 64 |
| EBI | 0.13 |
| SN | 31.72 |
| IA | 0.13 |
| Price | 3925€ + VAT |
B0451
| FOM | 2140 |
| Gain | 10 322 |
| Resolution | 78 |
| EBI | 0.10 |
| SN | 27.44 |
| IA | 0.09 |
| Price | 3790€ + VAT |
B0439
| FOM | 2111 |
| Gain | 10 379 |
| Resolution | 75 |
| EBI | 0.04 |
| SN | 28.15 |
| IA | 0.10 |
| Price | 3810€ + VAT |
B0456
| FOM | 2028 |
| Gain | 10 275 |
| Resolution | 64 |
| EBI | 0.11 |
| SN | 31.69 |
| IA | 0.05 |
| Price | 3900€ + VAT |
B0411
| FOM | 2138 |
| Gain | 10 153 |
| Resolution | 80 |
| EBI | 0.09 |
| SN | 26.73 |
| IA | 0.08 |
| Price | 3600€ + VAT |
B0403
| FOM | 2109 |
| Gain | 9961 |
| Resolution | 76 |
| EBI | 0.2 |
| SN | 27.75 |
| IA | 0.08 |
| Price | 3755€ + VAT |

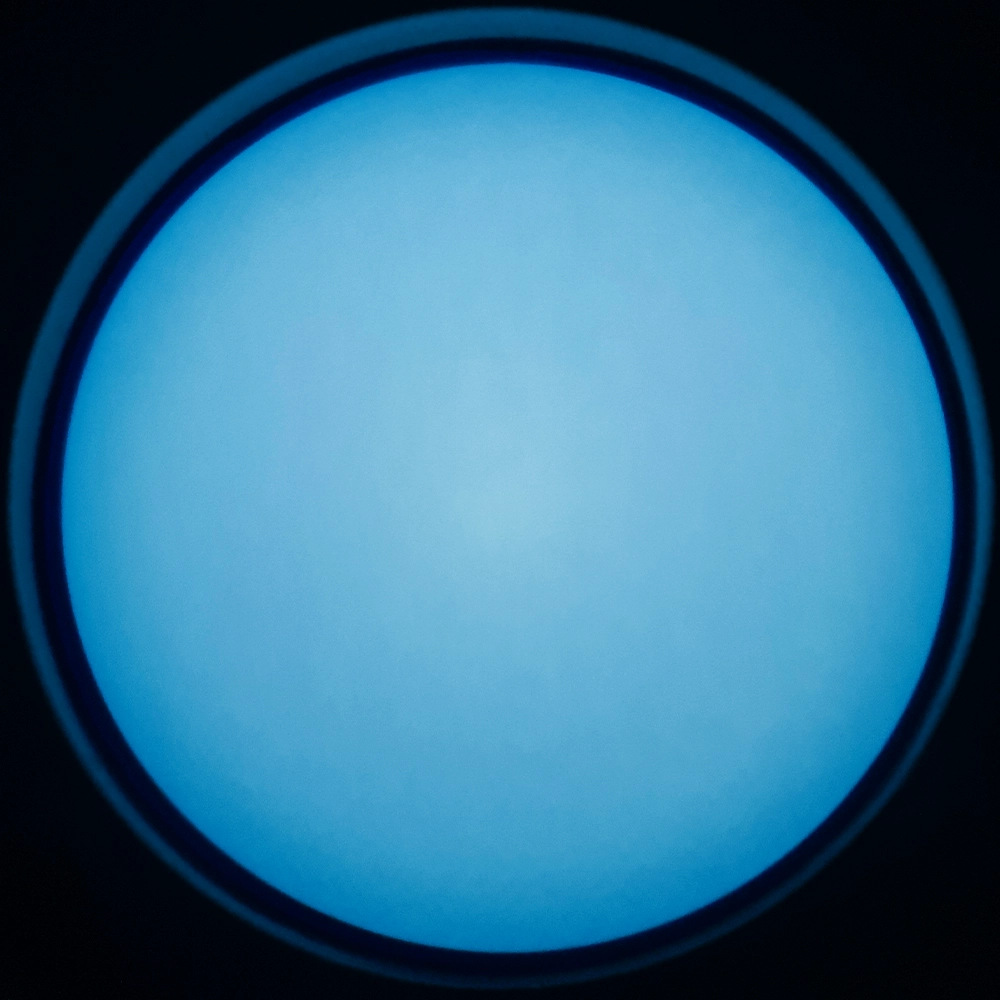

B0473
| FOM | 1913 |
| Gain | 9830 |
| Resolution | 60 |
| EBI | 0.15 |
| SN | 31.88 |
| IA | 0.07 |
| Price | 3820€ + VAT |
B0440
| FOM | 2136 |
| Gain | 10 110 |
| Resolution | 76 |
| EBI | 0.17 |
| SN | 28.10 |
| IA | 0.10 |
| Price | 3800€ + VAT |
B0461
| FOM | 2107 |
| Gain | 10 130 |
| Resolution | 76 |
| EBI | 0.16 |
| SN | 27.73 |
| IA | 0.11 |
| Price | 3900€ + VAT |
B0449
| FOM | 1829 |
| Gain | 10 025 |
| Resolution | 60 |
| EBI | 0.22 |
| SN | 30.49 |
| IA | 0.06 |
| Price | 3795€ + VAT |
B0435
| FOM | 1819 |
| Gain | 9962 |
| Resolution | 58 |
| EBI | 0.15 |
| SN | 31.37 |
| IA | 0.10 |
| Price | 3810€ + VAT |
B0436
| FOM | 1815 |
| Gain | 10 284 |
| Resolution | 62 |
| EBI | 0.18 |
| SN | 29.28 |
| IA | 0.09 |
| Price | 3780€ + VAT |
Housing
THE14 is ACT lightest PVS-14 type compatible monocular at 9 oz / 244g while still using standard 18mm image intensifier tubes. At no compromises in functionality it features manual gain, automatic flip up shut-off, IR illuminator, low battery indicator highlight cut-off while still utilize the same control pattern.
The monocular can be mounted to combat helmets or weapons, which enables night vision capabilities to daytime optical sights.
THE14 is certified to the MIL-STD-810G for environmental, drop and other relevant criteria. THE14 has a 66ft / 20m for 2h submersion rating.
THE14 is fully compatible to all PVS-14 type accessories, optics and image intensifier tubes, so it will not require replacement of existing accessories.
Image Intensifier Tube
Photonis ECHO WP C18W4E8 FOM range 1800-2200.
| Image Intensifier Tubes (IIT) | Photonis ECHO White Phosphor |
| Finish | Matte Black, Corrosion Resistant Fibre re-enforces polycarbonate body |
| Capability | Flip-Up On-Off Side Flip-Up On-Off Built-in IR LED with “IR-on” indicator in FOV Low battery indicator in FOV Waterproof: 20m (66ft) for 2 hours Corrosion Resistance against salt water |
| Magnification | 1x |
| Diopter compensation | -6 to +2 dpt |
| Battery Life | 40 h |
| Infrared illuminator | yes |
| Standards | Exceeding MIL-STD-810G |
| True field of view | 40° |
| Range of focus | 0.25 m to ∞ |
| Power Supply | 1x AA |
| Dimensions | 103 x 61 x 64 mm |
| Weight | 255 g |
Included accessories
- Hardcase
- Standard J-Arm (Bayonet)
- Sacrificial lens
- Demist shield
- Protective bikini cover
- Rubber eye-cup
- Objective lens cap
Included paperwork (original documentation is always included)
- Tube specification sheet
- Device birth certificate
- Falconclaw user manual
- Merchandise (patches, ACT lens cleaning paper)
- Note! Flip the hardcase top cover foam to find everything above
