ACT DTNVS v2 ECHO White Phosphor 16mm (2000-2100 FOM)

6 050.006 200.00

ACT DTNVS v2 Photonis 16mm ECHO White Phosphor, FOM 1600-1800, Autogated.

FREE Shipping

DTNVS V2 Photonis Echo
This item: ACT DTNVS v2 ECHO White Phosphor 16mm (2000-2100 FOM)
6 050.006 200.00
6 050.006 200.00
Original price was: €2 550.00.Current price is: €2 422.50.
Original price was: €625.00.Current price is: €593.75.
Original price was: €575.00.Current price is: €546.25.
2 × Infinity Iris V1 - Black

In stock

Original price was: €199.00.Current price is: €189.05.
S&S Precision Manta Strobe
1 × S&S Manta Strobe™

In stock

Original price was: €229.17.Current price is: €217.71.
GTIN: N/A SKU: DTNVS-V2-LWC40-ZSW1358D Categories: , Tags: , ,

Description

0466E

LEFTRIGHT
FOM20052079
Resolution6666
EBI0,160,24
SN30,3931,50
Gain85208607
Price6100€ + VAT

0541E

LEFTRIGHT
FOM21172005
Resolution6868
EBI0,100,08
SN31,1429,49
Gain85118904
Price6075€ + VAT

0542E

LEFTRIGHT
FOM20922039
Resolution6868
EBI0,100,13
SN30,7729,99
Gain83748725
Price6150€ + VAT

0547E

LEFTRIGHT
FOM20642094
Resolution6866
EBI0,210,12
SN30,3631,74
Gain88348471
Price6200€ + VAT

3039D

LEFTRIGHT
FOM20112086
Resolution7268
EBI0,210,15
SN27,9430,69
Gain85768800
Price6050€ + VAT

DTNVS V2 with 16mm Image Intensifiers - A high performing Bino system - Weighs as much as a monocular

16mm Image Intesifiers (tubes) combined with the new DNTVS V2 housing results in one of the most lightweight binocular nightvision system on the market.    The complete system (battery excl) weighs only 380g which is about 50 grams heavier than the average monocular.

The DTNVS V2 has an upgraded set of onboard electornics making it even more durable and lightweight than the previous DTNVS housing. Added features include manual gain and the option to adjust the brightness of the integrated IR flood.  +The ability for the manufacutrer to run better diagnostics such as read the devices run time.

We recognized the need on the market for a more budget-friendly high performing system and this is our answer.

The 16mm tubes provide an image with a FOV of 38° compared to 18mm 40°

All Act In Black devices are manufactured to the highest standards, going through a rigorous quality controll process of testing their structural strenght and performance in extreme temperatures and humidity. The DTNVS system is fielded and trusted by various SOF and Military units around the globe.

16mm vs 18mm Image Intensifier Tube

16mm ECHO tube

The DTNVS is a lightweight folding binocular built on proven technology and enhanced for greater reliability verse previous generations of Night Vision Binoculars. The DTNVS binocular combines lightweight materials and a low profile when folded to the helmet which reduces neck strain during extended missions.

The DTNVS binocular has a full feature set with individual sideways ON/OFF for each eyepiece and Flip-Up ON/OFF when folded up preventing backsplash on the helmet. To complete the DTNVSs’ features it incorporates built-in IR LED for close quarter missions with separate IR-ON indicator and low battery indicator in the field of view.

No external battery port – Why? The DTNVS uses standard CR123A batteries as commonly found in lasers or flashlights. A single battery provides over 25h run time. However, as the pods shut off when flipped up and therefore halve the power consumption, most users report up to 35h on a single battery.

Image Intensifier Tubes (IIT) Photonis ECHO White Phosphor 16mm
Finish Matte Black, Corrosion Resistant
Fibre re-enforces polycarbonate body
Capability Flip-Up On-Off
Side Flip-Up On-Off
Built-in IR LED with “IR-on” indicator in FOV
Low battery indicator in FOV
Waterproof: 20m (66ft) for 2 hours
Corrosion Resistance against salt water
Magnification 1x
Diopter compensation -6 to +2 dpt
Battery Life 25 h
Infrared illuminator yes
Standards Exceeding MIL-STD-810G
True field of view 40°
Close focus limit 0.25 m to ∞
Power Supply 1x CR123
Dimensions 76 x 105 x 111 mm
Weight 379 g (50 grams heavier then an PVS-14)

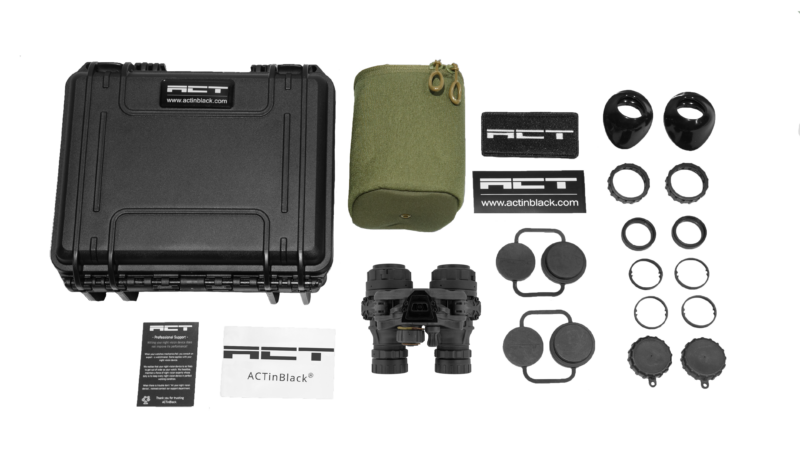

Included accessories
  • Hardcase
  • Molle pouch
  • Sacrificial lenses
  • Demist shields
  • Protective bikini covers
  • Rubber eye-cups
  • Objective lens caps
Included paperwork (original documentation is always included)
  • Tube specification sheet
  • Device birth certificate
  • Falconclaw user manual
  • Merchandise (patches, ACT lens cleaning paper)
  • Note! Flip the hardcase top cover foam to find everything above

0428E

LEFTRIGHT
FOM19591959
Resolution6868
EBI0,210,23
SN28,8228,82
Gain85518643
Price5850€ + VAT

0442E

LEFTRIGHT
FOM18931906
Resolution6868
EBI0,180,11
SN27,8428,04
Gain84798434
Price5650€ + VAT

2745A

LEFT RIGHT
FOM 1988 1837
Resolution 68 70
EBI 0,14 0,11
SN 29,24 26,25
Gain 8892 8410
Price 5725€ + VAT

0458E

LEFTRIGHT
FOM21232161
Resolution6868
EBI0,120,14
SN31,2331,78
Gain85728769
Price5725€ + VAT

0461E

LEFTRIGHT
FOM21522125
Resolution6868
EBI0,200,20
SN31,6631,25
Gain85298812
Price5850€ + VAT

0463E

LEFTRIGHT
FOM21242144
Resolution6868
EBI0,220,14
SN31,2431,54
Gain85008731
Price5650€ + VAT

Additional information

DTNVS V2 16mm 2000-2100

0466E, 0541E, 0542E, 0547E, 3039D

Brand

ACT

From 2013 ACTinBlack (ACT) was founded out of the drive to develop better, lighter and more user focused night vision systems – together with users from across the globe. The introduction of the DTNVG in 2016 created a (now) classic night vision binocular that proved itself in the harshest environments. To add to its legacy the introduction of the successor, the DTNVS, in 2020 created a milestone to ACT’s product line with a product that found immediate success by military and law enforcement user across the world. See more at https://actinblack.com/us/
