Norotos Rhino Mount For Bayonet
Original price was: €384.40.€285.20Current price is: €285.20.
Argus Panoramic Night Vision Goggle (APNVG) 2200+ FOM
Argus Panoramic Night Vision Goggle (APNVG) 2200+ FOM
FREE Shipping
€20 460.00
Discover frequently bought together:
This item: Argus Panoramic Night Vision Goggle (APNVG) 2200+ FOM
FC-Q-003
€20 460.00
€20 460.00
1 × Jerry C5 Clip-On-Thermal Imager
Out of stock
Original price was: €3 162.00.€3 003.90Current price is: €3 003.90.
FC-Q-003
Far Left
| FOM | 2207 |
| Gain | 11 300 |
| Resolution | 68 |
| SNR | 32.47 |
Left
| FOM | 2200 |
| Gain | 9900 |
| Resolution | 68 |
| SNR | 32.36 |
Right
| FOM | 2203 |
| Gain | 10 900 |
| Resolution | 68 |
| SNR | 32.41 |
Far Right
| FOM | 2207 |
| Gain | 11 300 |
| Resolution | 68 |
| SNR | 32.47 |
100° FOVpanoramic awareness
4 Tubeswider view, no resolution loss
2 m / 30 minwaterproof rating
1100 gdevice + battery pack
100 hextended runtime
1×true magnification
- Panoramic vision: increases field of view from the typical 40° to 100°.
- Four-tube system: uses four image intensifier tubes to expand FOV without decreasing system resolution or compromising collimation.
- Stereoscopic center: two forward, parallel center tubes provide depth perception and increased perceived resolution/acuity.
- Peripheral extension: outboard tubes add vision to each side; users perceive three circular fields of view.
- Optics: high-resolution, fully collimating lens system.
- Flip-up auto on/off and adjustable pupillary distance for convenience and comfort.
- Power: external battery pack with 4× AA cells for up to 100 hours runtime.
Specifications
- Field of View
- 100° panoramic (vs. ~40° typical NVG)
- Tube Configuration
- 4 × image intensifier tubes (IIT)
- Image Intensifier Tubes (IIT)
- NNVT
- Lens System
- High-resolution; fully collimating
- Resolution & Collimation
- No decrease in system resolution; collimation maintained
- Depth Perception
- Stereoscopic via forward, parallel center tubes
- Perceived Image Geometry
- Three circular fields of view (center overlap + left/right periphery)
- Waterproof Rating
- 2 m submersion for 30 minutes
- Features
- Flip-up on/off; adjustable pupillary distance
- Magnification
- 1× (true magnification)
- Battery Life
- Up to 100 hours
- Power Supply
- 4× AA batteries (external battery pack)
- Dimensions
- 220 × 100 × 90 mm
- Weight
- 1100 g (device + battery pack)
- Warranty
- 1 year (manufacturing defects only)
What It Looks Like Through Panoramic Night Vision
- Center View
- The two center tubes overlap to provide stereoscopic vision, giving depth perception and increased perceived acuity.
- Peripheral View
- The outboard tubes extend vision to each side, adding peripheral awareness without reducing center clarity.
- Overall Sight Picture
- You perceive three circular fields: a sharp, depth-capable central image and two peripheral circles to the left and right.
Many buyers find themselves asking the same question: “For the same price, should I choose 4G 2500 FOM DTNVS or 2000 FOM NNVT Panoramic Goggles?” At first glance, the DTNVS offers higher figure of merit (FOM), while the Panos trade some FOM for a significantly wider field of view. The real decision point comes down to your intended use.
DTNVS4G, ~2500 FOM
NNVT Panos~2000 FOM
Pricesimilar for both
Key TradeoffFOM vs wider FOV
The Dilemma
- DTNVS 4G (~2500 FOM)
- Higher performance tubes, excellent resolution, lightweight dual-tube system. Great all-rounder for most environments.
- NNVT Panoramic (~2000 FOM)
- Quad-tube design with a panoramic 100° field of view. Slightly lower FOM, but offers a completely different situational awareness experience.
- Decision Factor
- What matters most to you: higher tube performance (DTNVS) or dramatically wider FOV (Panos)?
Where Panos Truly Shine
- CQB / Urban Operations
- Panoramic vision allows faster corner checks, reduced head movement, and better situational awareness. In close-quarters, this can be a game changer.
- Driving (Car, ATV, Dirt Bike)
- You can drive with a monocular, but the difference compared to Panos is “night and day.” The added peripheral vision makes driving/riding safer, smoother, and faster.
Bottom Line
- If You Value Wider Awareness
- Choose NNVT Panos — the panoramic FOV will give you an operational edge in CQB and mobility.
- If You Prefer Higher FOM & Versatility
- Go with DTNVS 4G — a lighter, simpler system with superior tube performance.
Complete Kitready to deploy
Protective Casescarry & travel
Battery PackUSBP included
MountArgus A4 lightweight NV mount

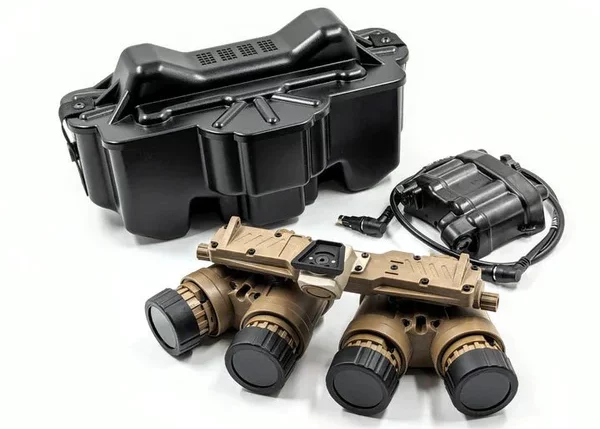

Included Accessories
- Main Device
- Panoramic Night Vision Goggle (APNVG)
- Protective Storage
- Plastic Carry Case + Travel Case
- Optics Protection
- 4× Filtered Objective Lens Caps
- Power
- Argus USBP (Universal Strobe Battery Pack) & Cable
- Mount
- Argus A4 Lightweight Night Vision Mount
- Documentation
- Tube Specification Sheets
- Other
- Velcro Sticker for Battery Pack
| APNVG |
FC-Q-003 |
|---|
Brand
Argus
