Jerry-YM 2.0

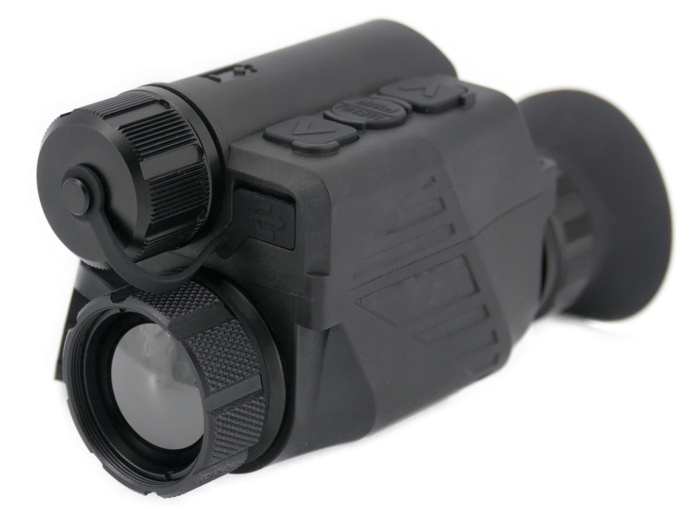

Jerry – YM Thermal Imager with 640×512 50hz thermal sensor, netd <30mK. Weighs only 230g. Helmet mountable.

Read full description

€2 885.00

In stock

Request a Quote / Demo
Compare
Add to wishlist
SKU: J-YM2 Categories: , , ,

Discover frequently bought together:

Jerry-YM 2.0
This item: Jerry-YM 2.0

In stock

€2 885.00
€2 885.00
Falconclaw - QDF
1 × Falconclaw - QDF

In stock

Original price was: €545.00.Current price is: €408.75.
Falconclaw - QDB
1 × Falconclaw - QDB

In stock

Original price was: €445.00.Current price is: €333.75.
Falconclaw QDA (J-YM)
1 × Falconclaw QDA (J-YM)

In stock

Original price was: €80.00.Current price is: €60.00.
Aspis for J-YM
1 × Aspis for J-YM

In stock

Original price was: €55.00.Current price is: €52.25.
Falconclaw MLB - YM Arm
1 × Falconclaw MLB - YM Arm

Out of stock

Original price was: €48.75.Current price is: €43.88.
Falconclaw MLB - Modular Lightweight Bridge
1 × Falconclaw MLB - Modular Lightweight Bridge

In stock

Original price was: €248.68.Current price is: €223.81.
640×512 · 12 µm thermal sensor
26.7 mm F/1.0 objective lens
50 Hz smooth refresh
≥ 6 h 18650 runtime
270 g lightweight
IP67 sealed housing
  • New in J-YM 2.0: Red-Hot (adjustable threshold), Green-Hot for bridging with green-phosphor NV, Outline mode, Clip-On mode, improved collimation, and enhanced image processing.

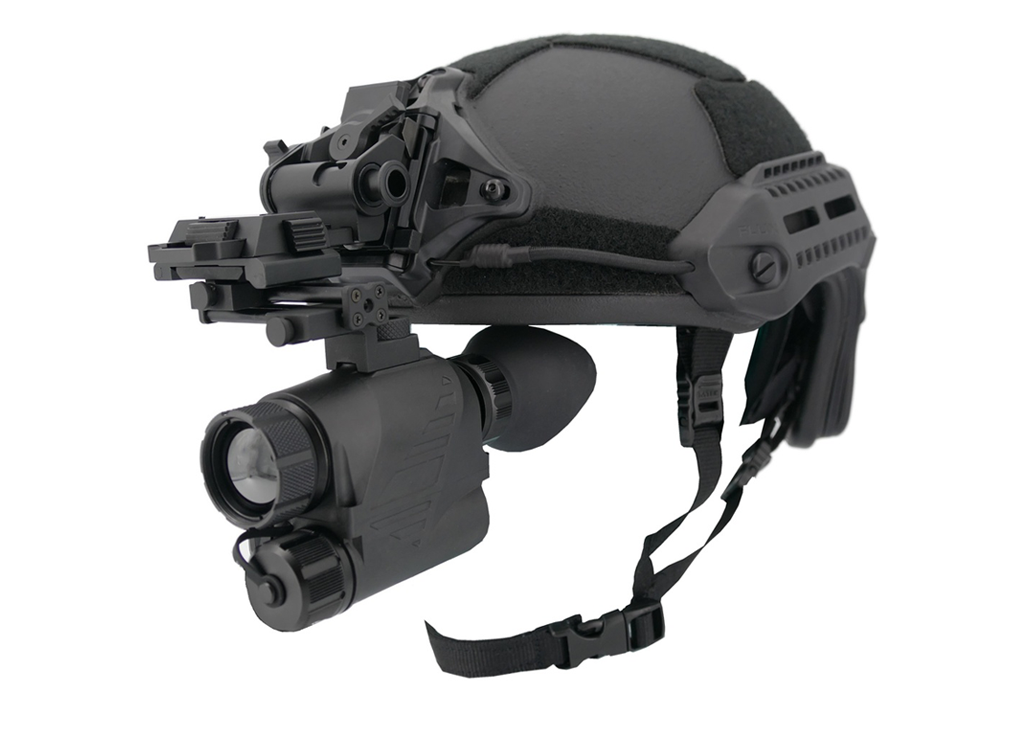

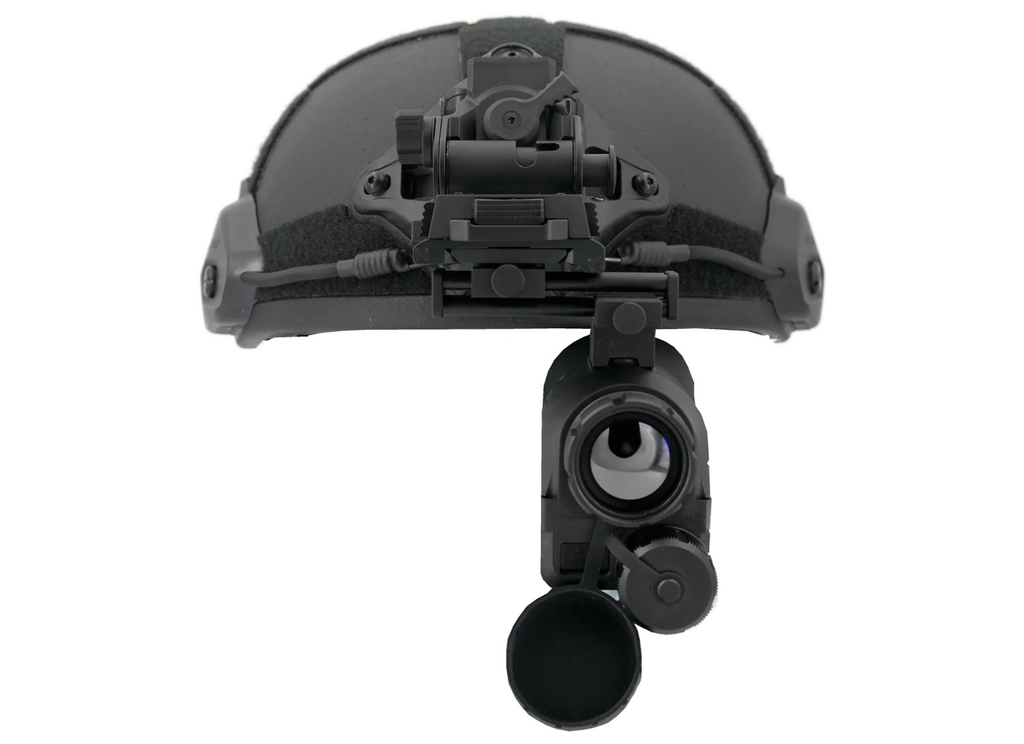

  • Multi-role: handheld, helmet-mounted, or clip-on with Picatinny mount (standard micro-dot height similar to Aimpoint/Holosun).
  • Smart tools: Picture-in-Picture, motion-assisted forward image, brightness/contrast/sharpness adjustment.
  • Power: 1× 18650 (3.7 V) plus USB-C external power/data.
Overview
Product
J-YM 2.0 Thermal Monocular / Clip-On
Use Cases
Observation, target search, helmet or clip-on; outdoor, LE/Mil, hunting, SAR
Weight
270 g
Power
1× 18650 (3.7 V) • USB-C external power/data
Performance
Detector
640×512 / 12 µm
NETD
≤ 30 mK
Frame Rate
50 Hz
Lens
26.7 mm F/1.0
FOV
16.3° × 12.3°
Detection / Rec / ID*
Human: 1800 m / 630 m / 310 m
Zoom
1× optical • 2× / 4× / 6× electronic
Diopter
−5 to +2 dpt
Recoil Proof
.223 Rem / 5.56 NATO
* Manufacturer figures under standard test conditions.
SVT_3890
SVT_3894
Imaging & Modes
Image Modes
Black-Hot, White-Hot, Iron, Rainbow, Outline, Green-Hot, Red-Hot (adjustable threshold)
Processing
Brightness / Contrast / Sharpness • Enhanced pipeline (v2.0)
PIP
Picture-in-Picture
Motion Sensor
Assists forward image stability
Clip-On & Collimation
For bridging or clip-on alignment
Display
1024×768 OLED
Power & Connectivity
Battery
1× 18650 (3.7 V)
Battery Life
≥ 6 h
Internal Recording
Yes — 64 GB internal memory
Wi-Fi
Supported
USB-C
Power delivery & data
Build
Mounting
Handheld • Helmet • Clip-On (Picatinny mount included)
Dimensions
113 × 70 × 48 mm
Ingress Protection
IP67
Operating Temp
−20 °C to +50 °C
Storage Temp
−20 °C to +50 °C

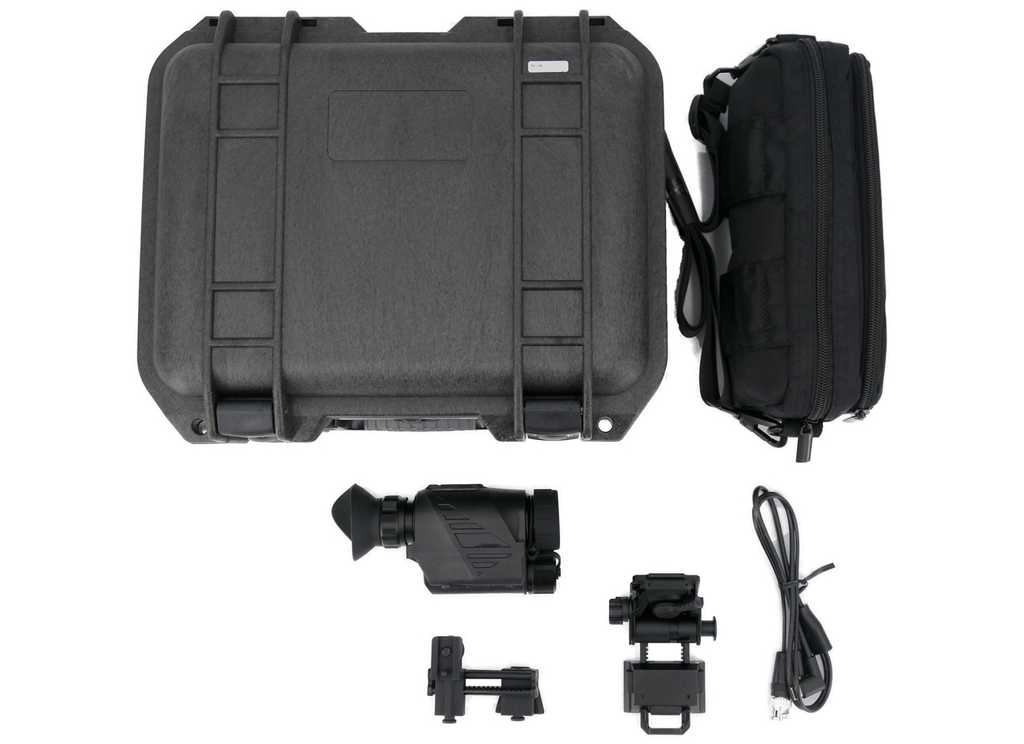

Included Accessories
Soft Carry Case
Protective storage
Data / Power Cable
USB-C

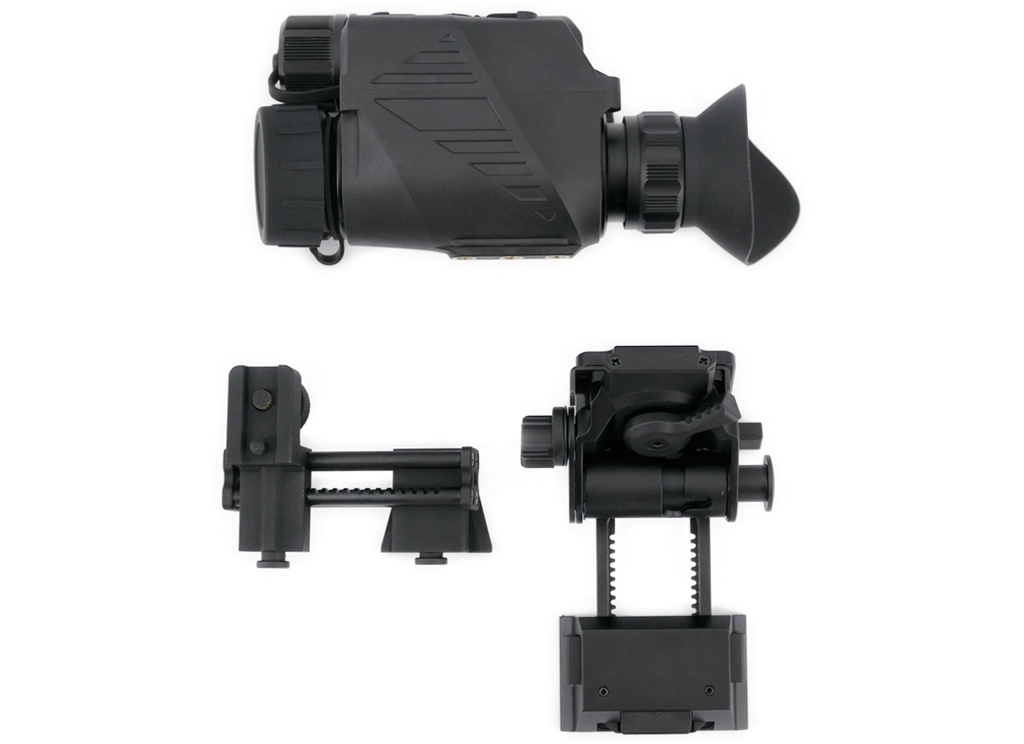

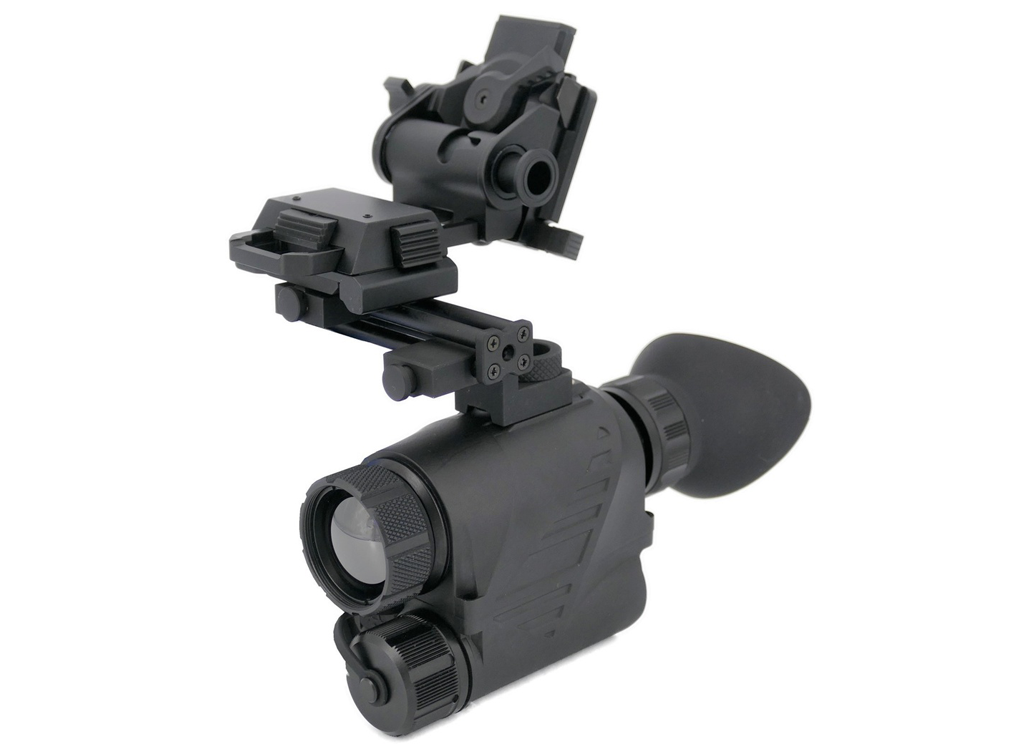

Adjustable Mounting Arm
Device interface
Helmet Mount
Head-borne use
Picatinny Mount
Clip-on / rail use
Hard Case
Transport protection
User Manual
Setup & operation

Brand

InfiRay
