ACT LWT DTNVS 4G White Phosphor

12 595.0012 730.00

ACT DTNVS Photonis 4G White Phosphor, Autogated, Ultralight RPO Optics.

FREE Shipping

12 595.0012 730.00

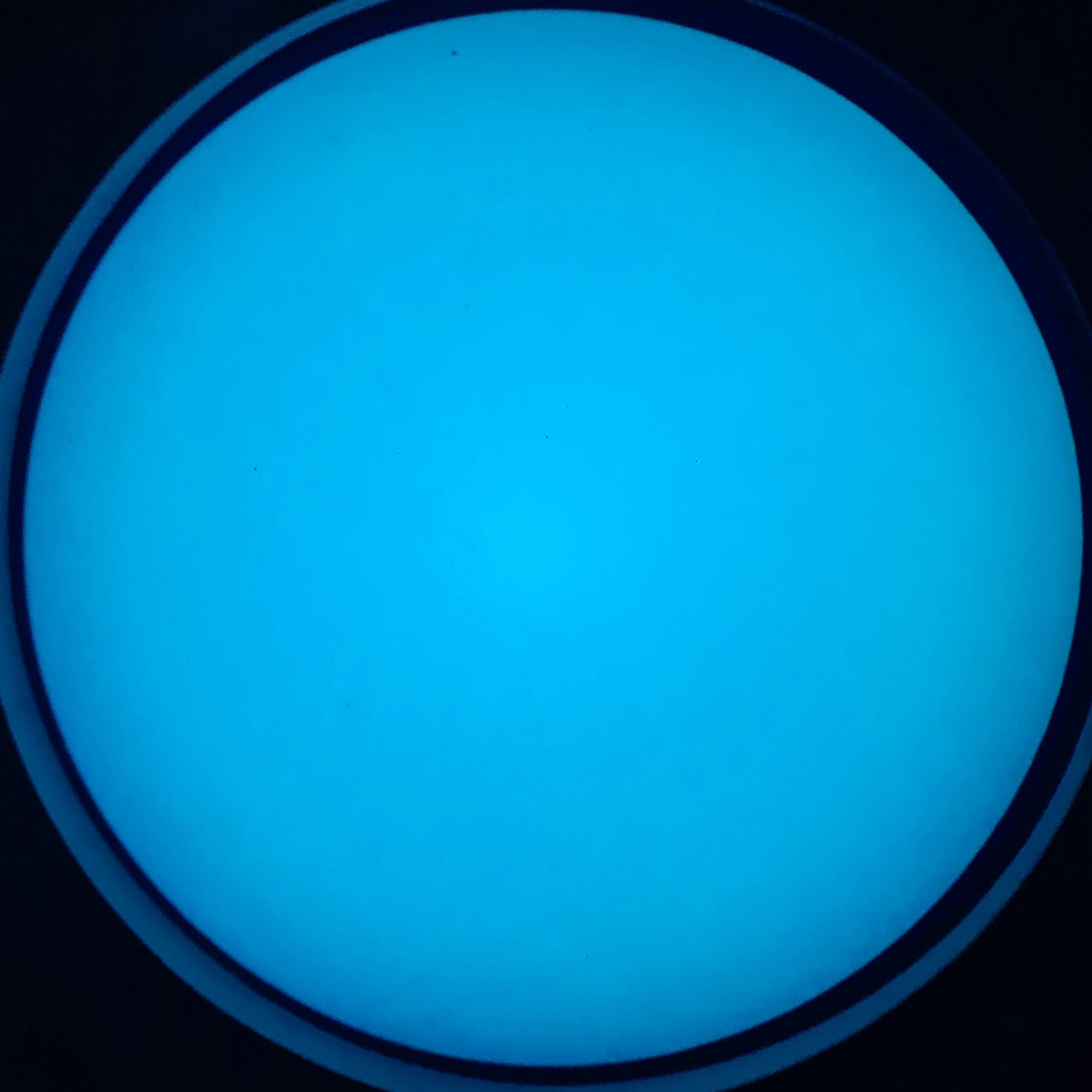

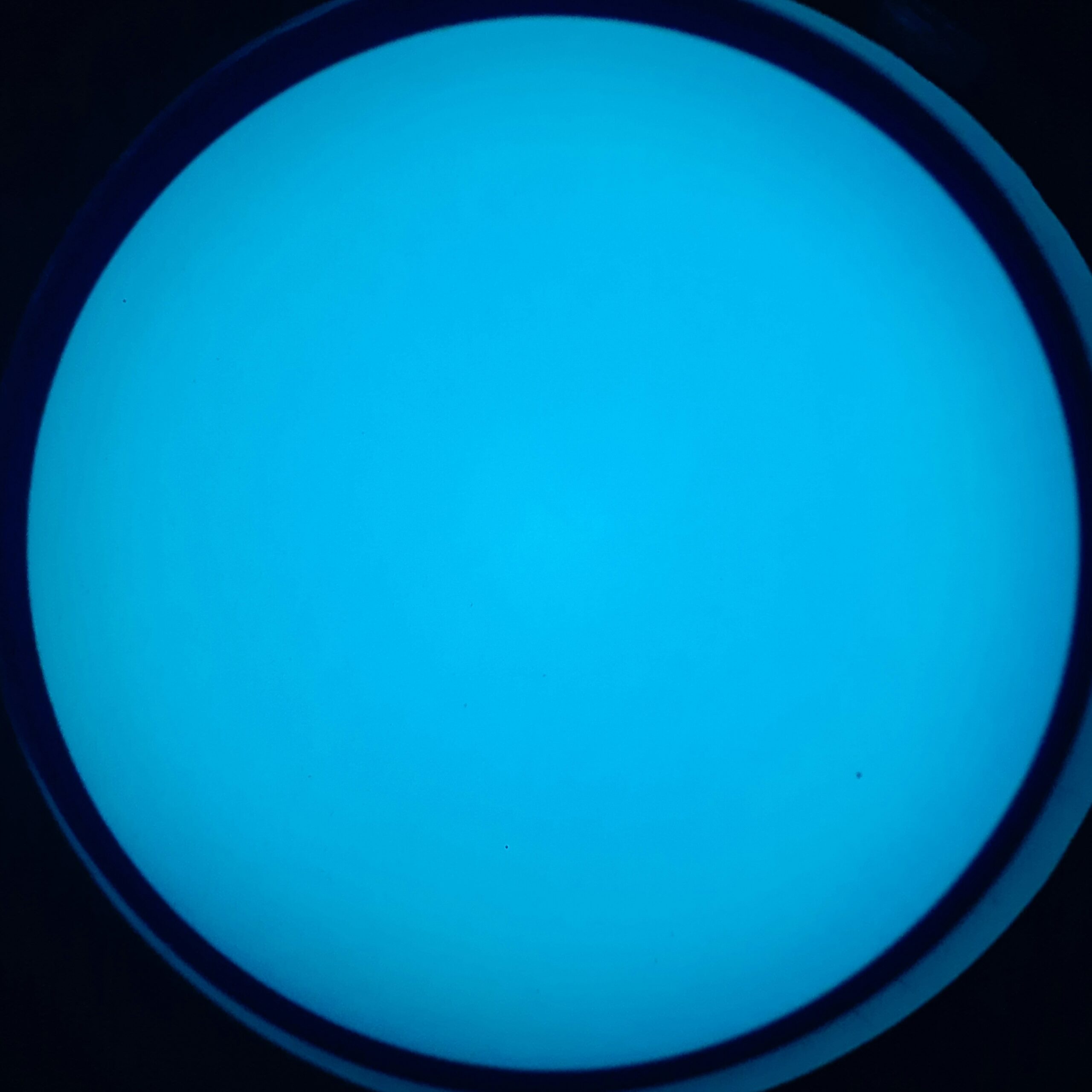

ACT LWT DTNVS 4G White Phosphor 2289A 2294A
Clear selection
GTIN: N/A SKU: DTNVS-14-LWT40-XW3140BG Categories: , Tags: ,



Price12 595€ + VAT

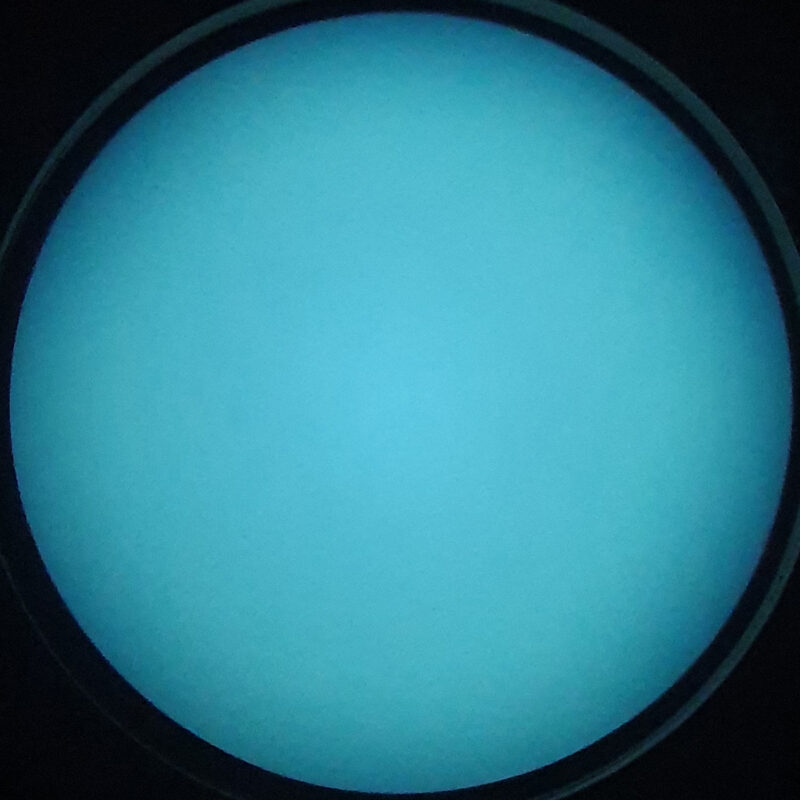

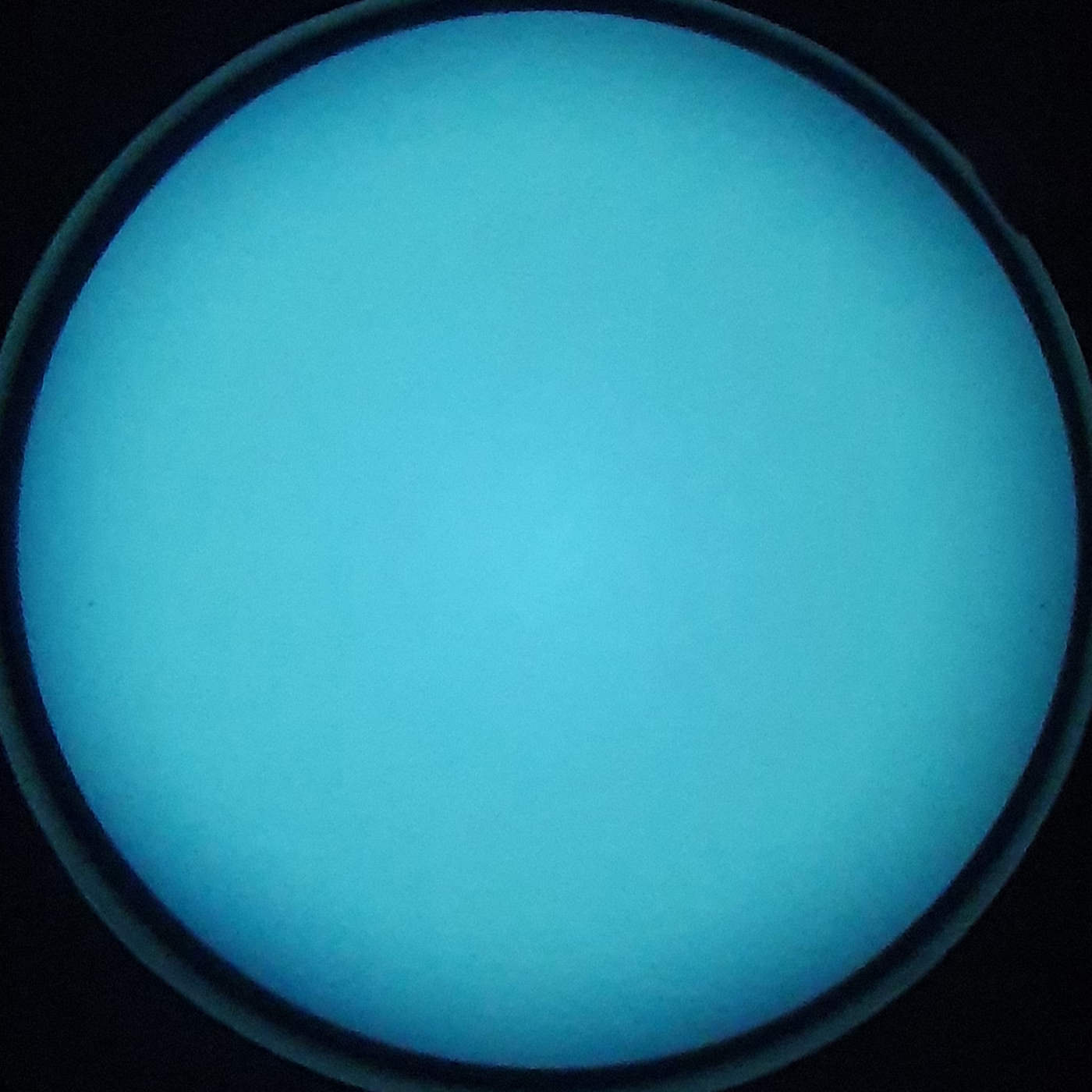

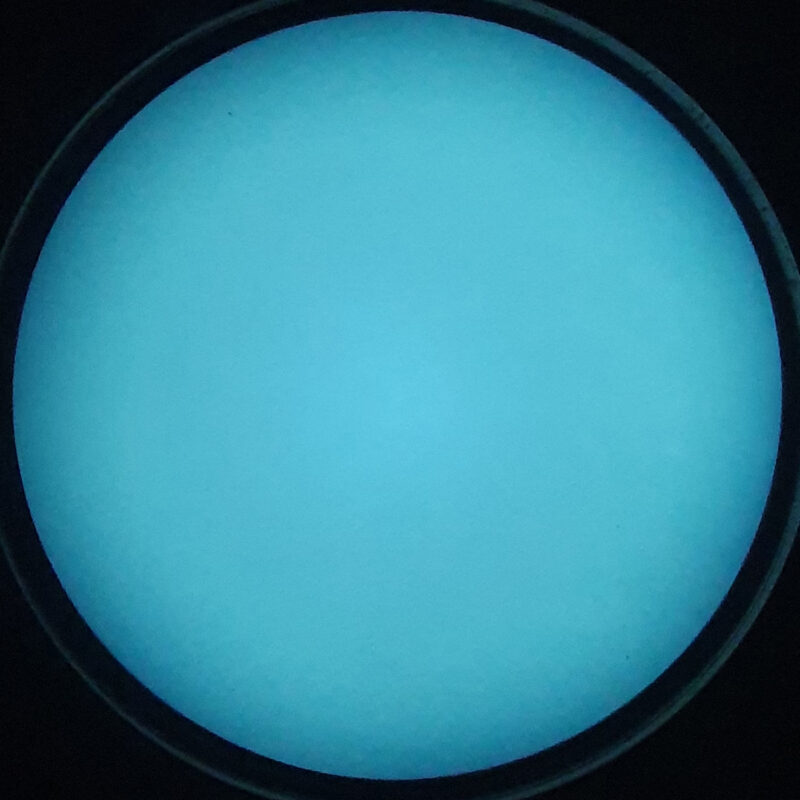

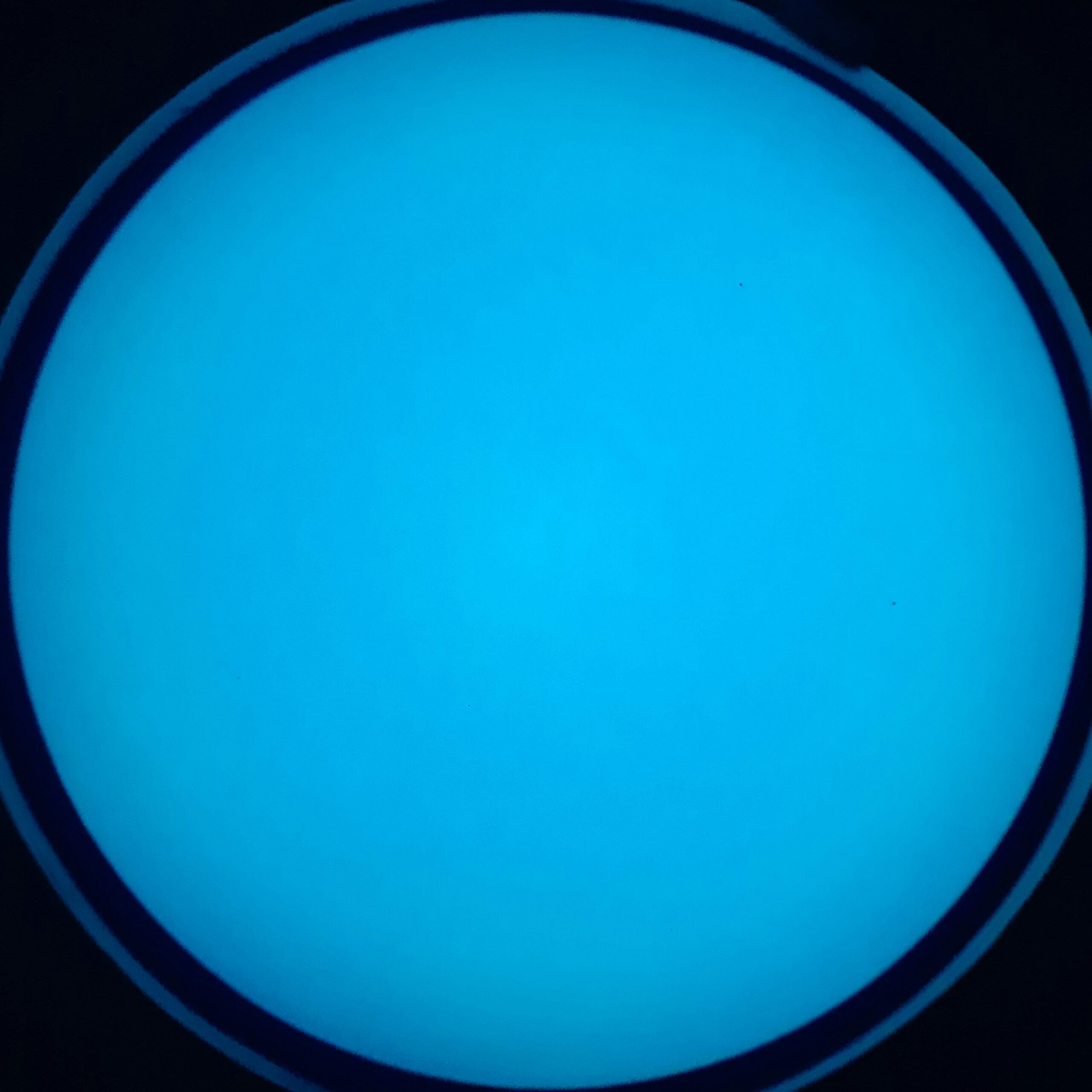

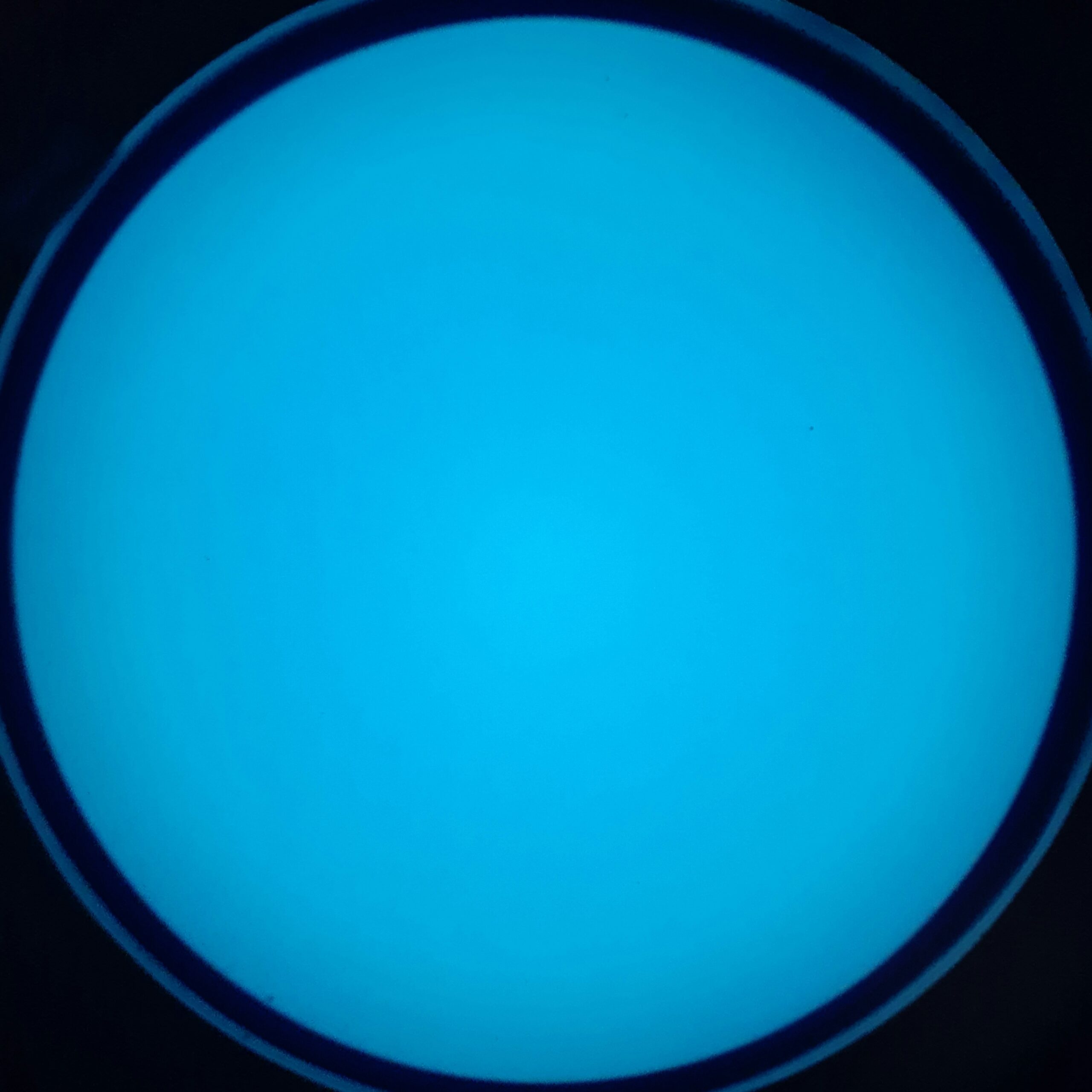

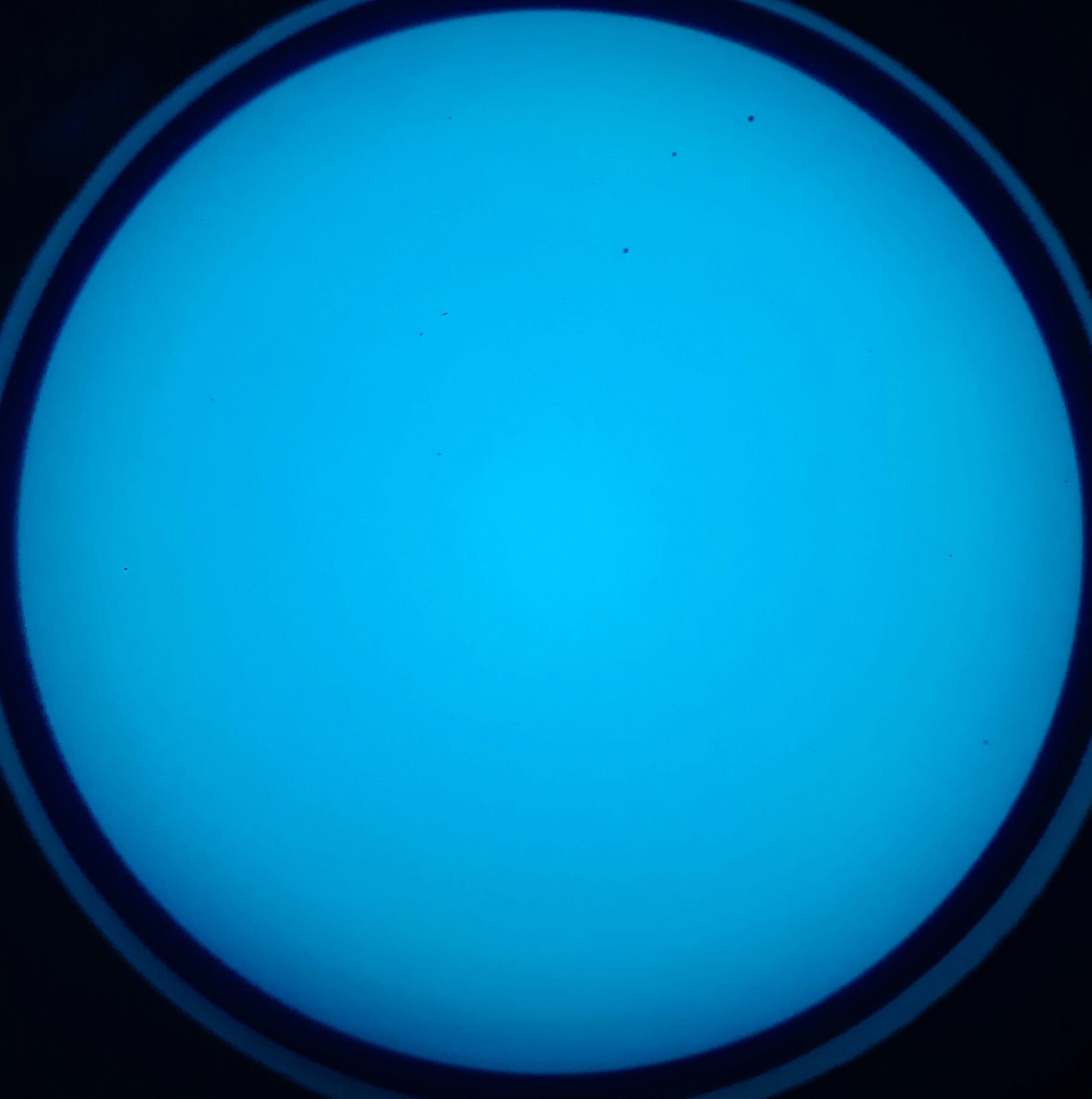

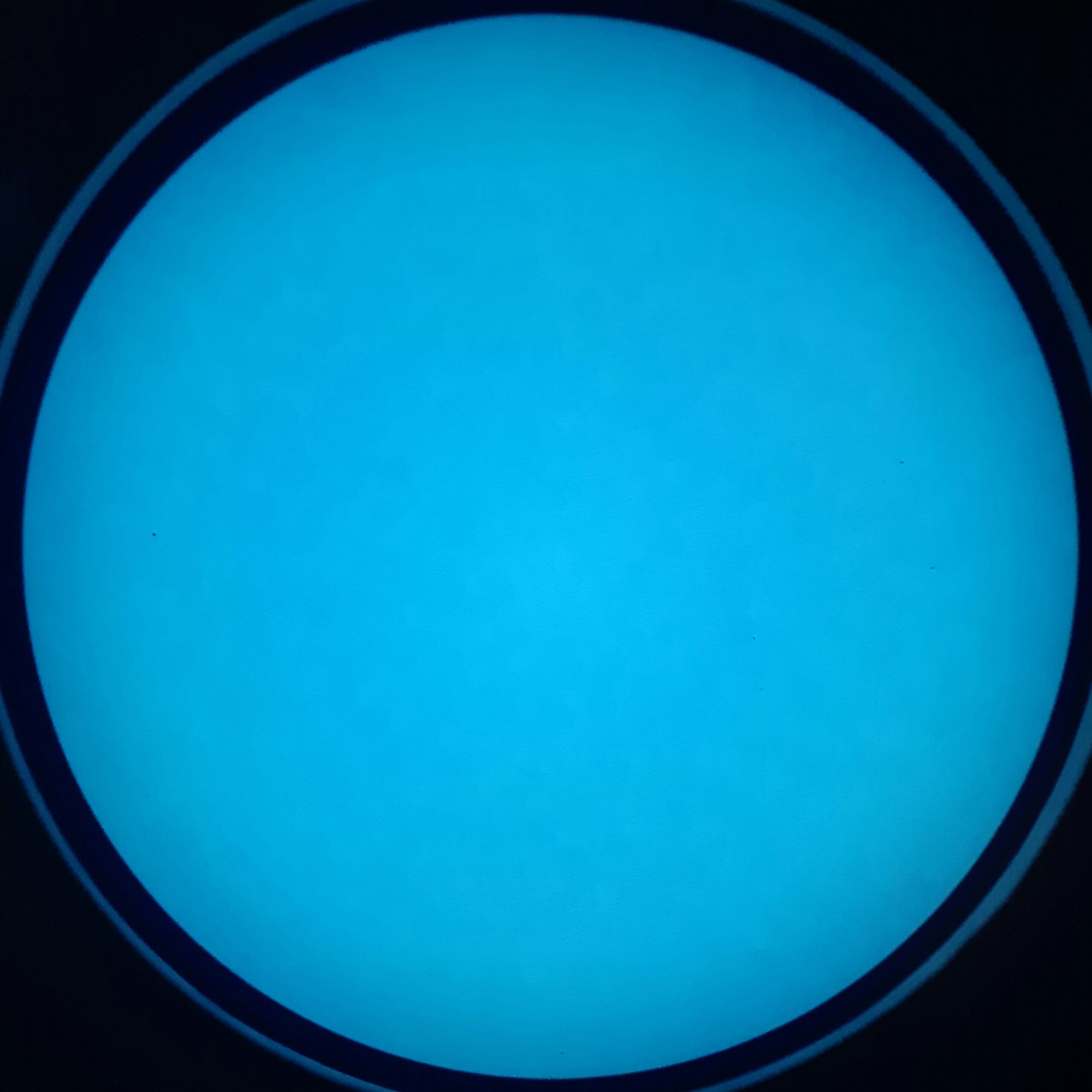

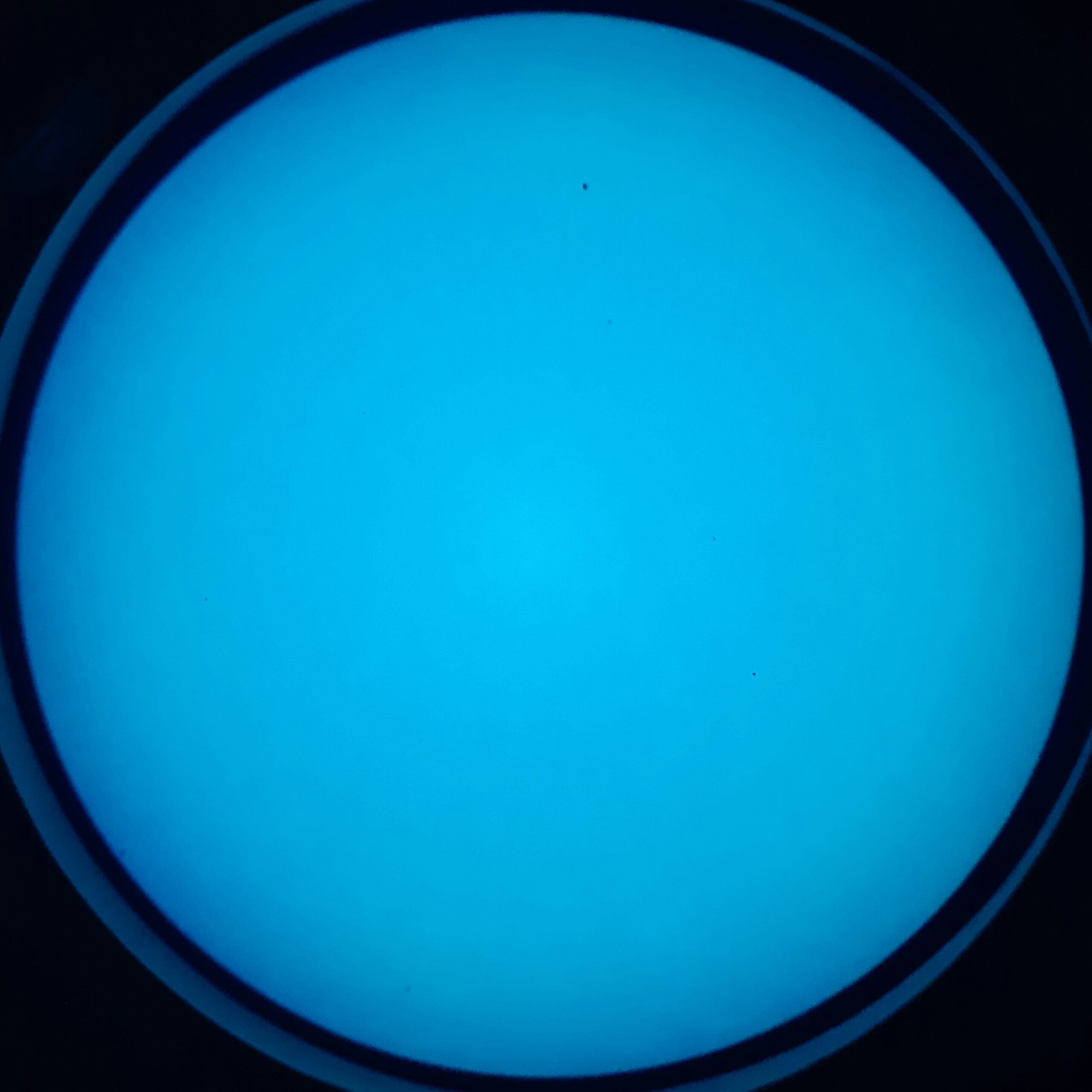

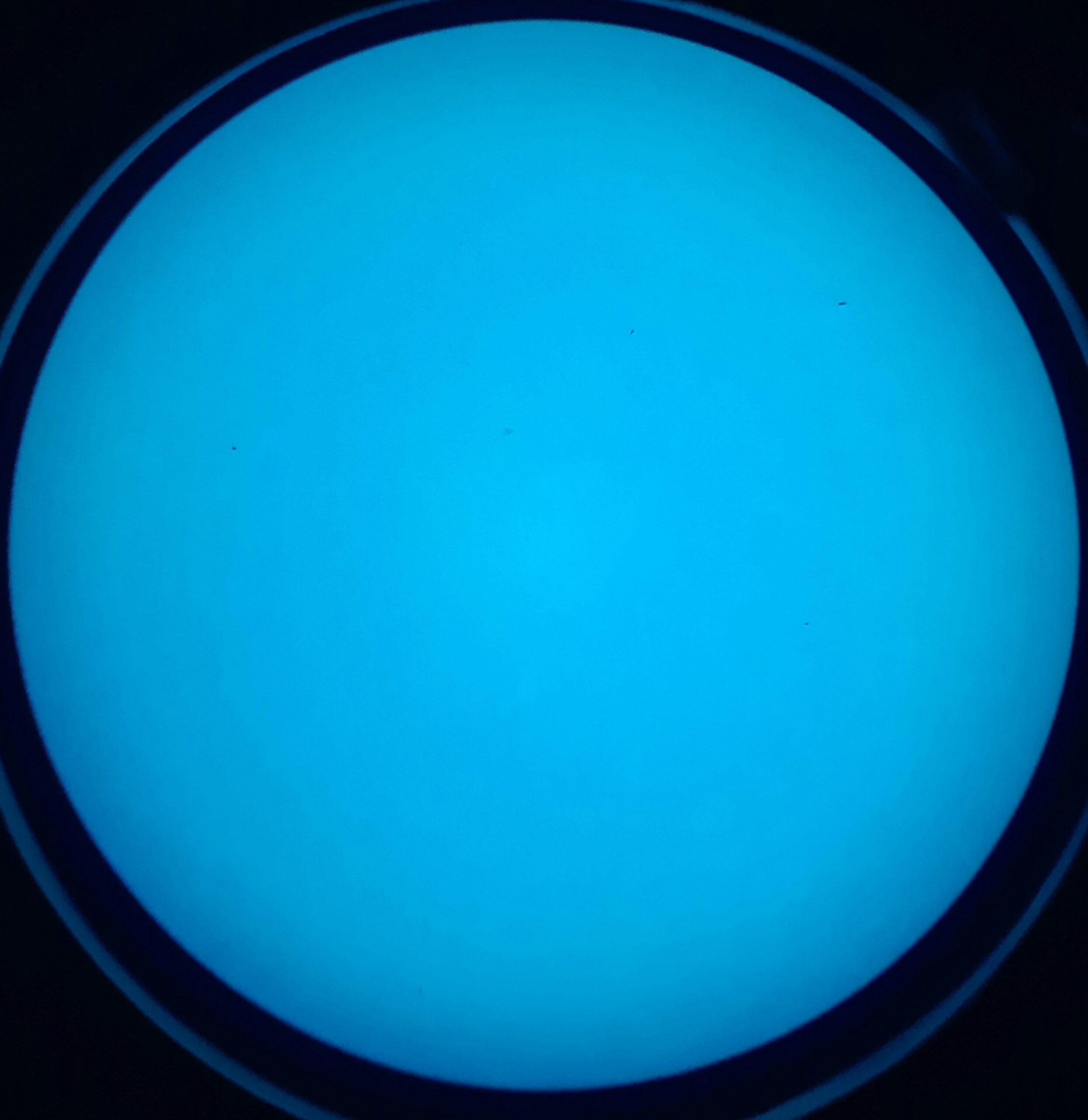

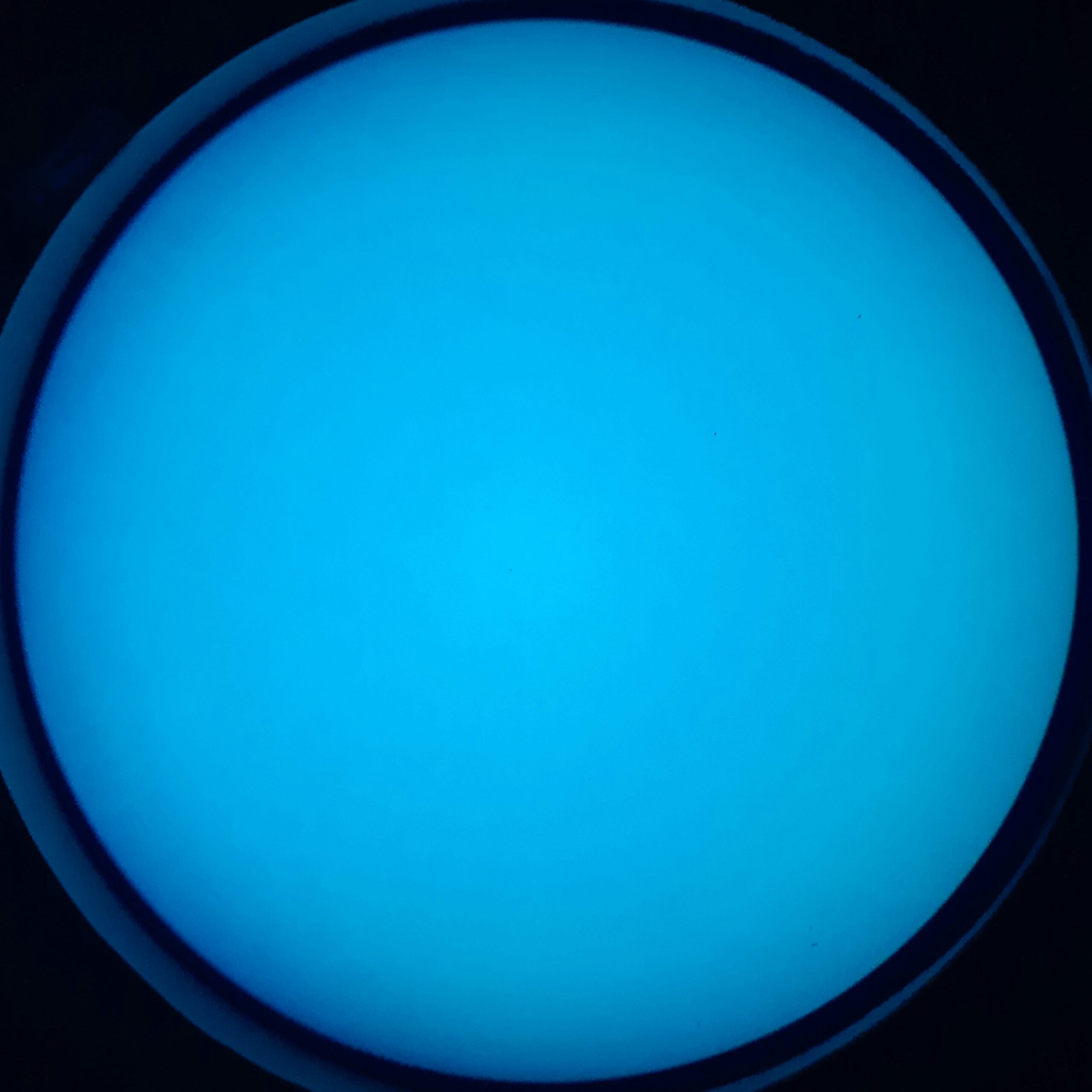

FOM 2545 2594
Resolution 78 78
EBI 0,17 0,19
SN 32,63 33,26
Gain 12404 12708
Price 12 730€ + VAT

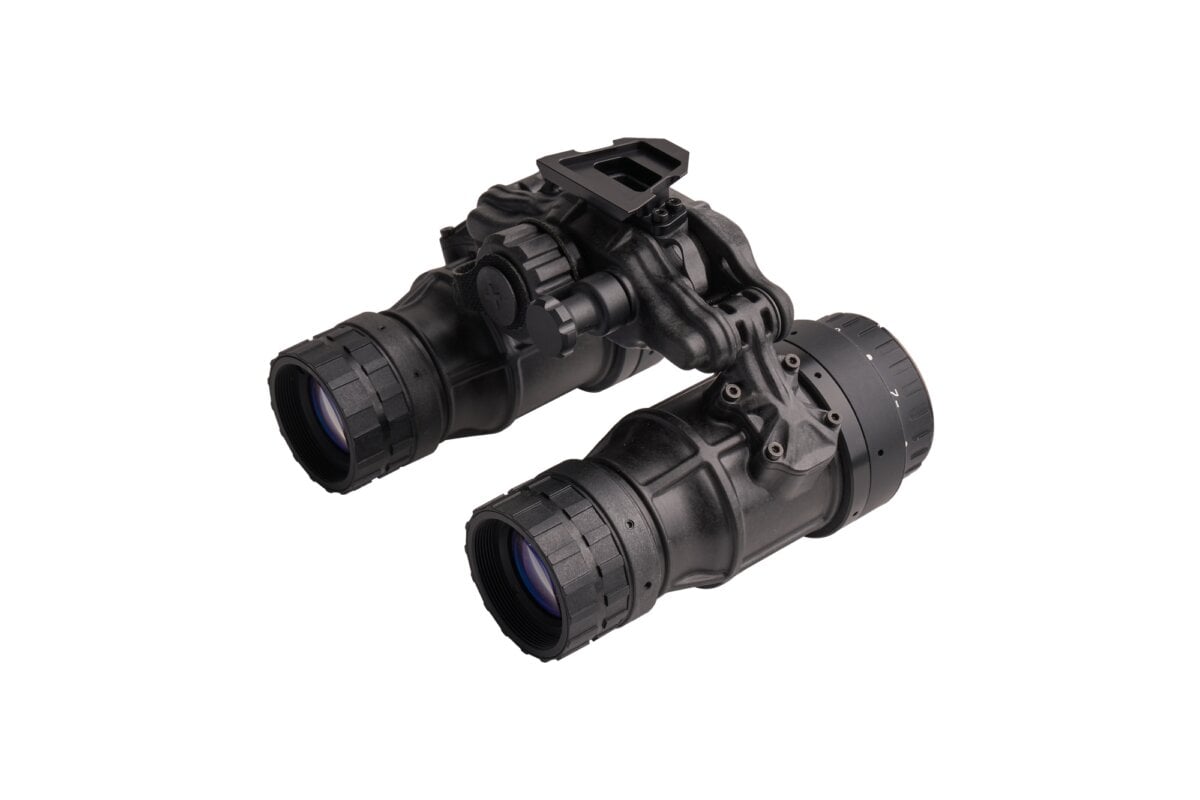

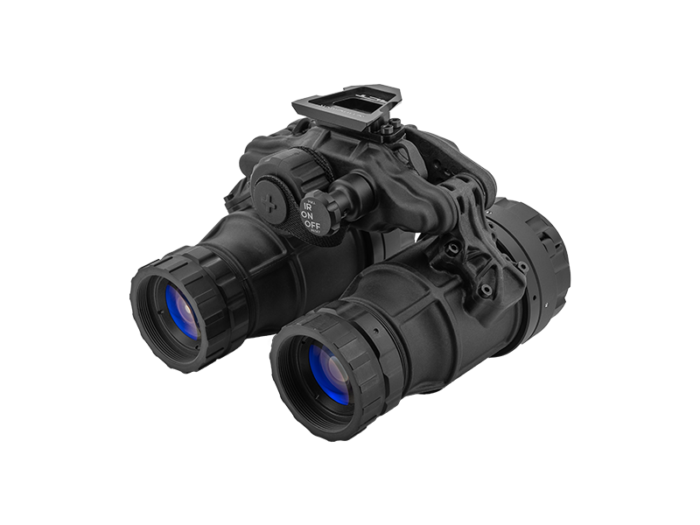

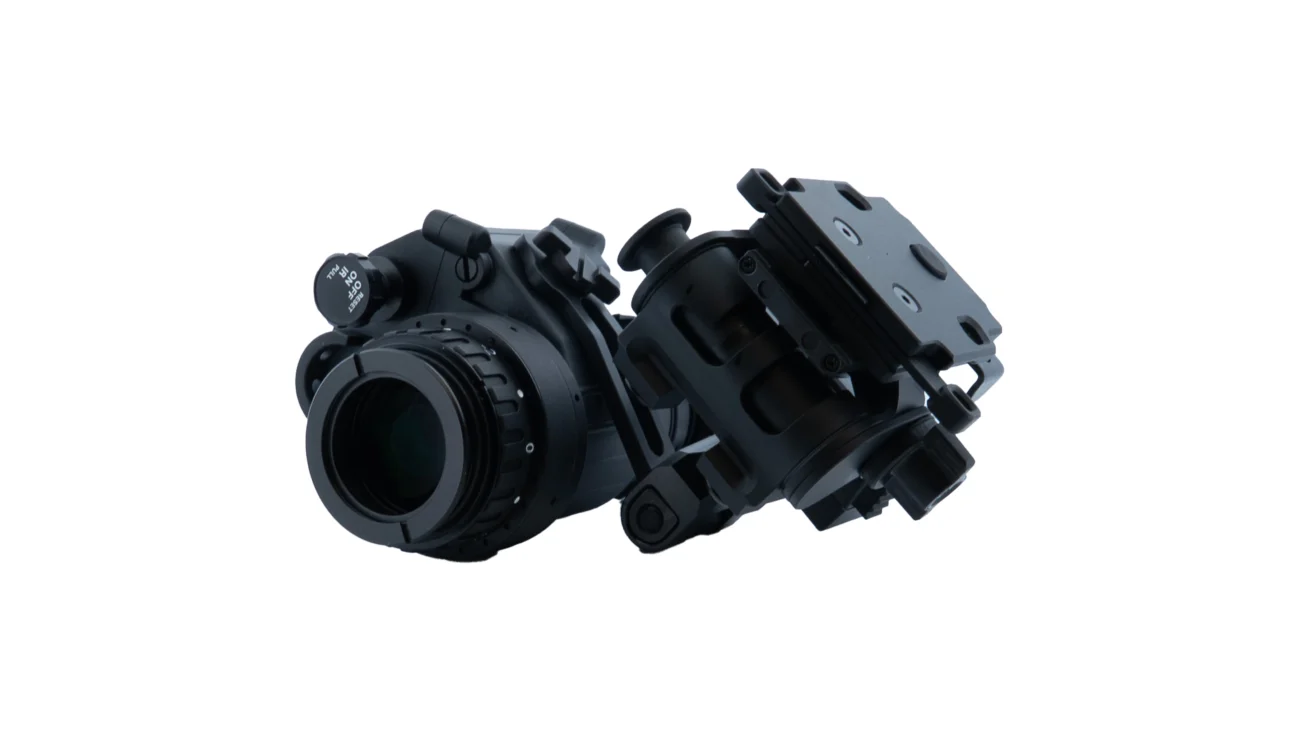

The DTNVS is a lightweight folding binocular built on proven technology and enhanced for greater reliability verse previous generations of Night Vision Binoculars. The DTNVS binocular combines lightweight materials and a low profile when folded to the helmet which reduces neck strain during extended missions.

The DTNVS binocular has a full feature set with individual sideways ON/OFF for each eyepiece and Flip-Up ON/OFF when folded up preventing backsplash on the helmet. To complete the DTNVSs’ features it incorporates built-in IR LED for close quarter missions with separate IR-ON indicator and low battery indicator in the field of view.

No external battery port – Why? The DTNVS uses standard CR123A batteries as commonly found in lasers or flashlights. A single battery provides over 25h run time. However, as the pods shut off when flipped up and therefore halve the power consumption, most users report up to 35h on a single battery.

Image Intensifier Tubes (IIT) Photonis 4G
Finish Matte Black, Corrosion Resistant
Fibre re-enforces polycarbonate body
Capability Flip-Up On-Off
Side Flip-Up On-Off
Built-in IR LED with “IR-on” indicator in FOV
Low battery indicator in FOV
Waterproof: 20m (66ft) for 2 hours
Corrosion Resistance against salt water
Magnification 1x
Diopter compensation -6 to +2 dpt
Battery Life 25 h
Infrared illuminator yes
Standards Exceeding MIL-STD-810G
True field of view 40°
Close focus limit 0.25 m to ∞
Power Supply 1x CR123
Dimensions 76 x 105 x 111 mm
Weight 450 g

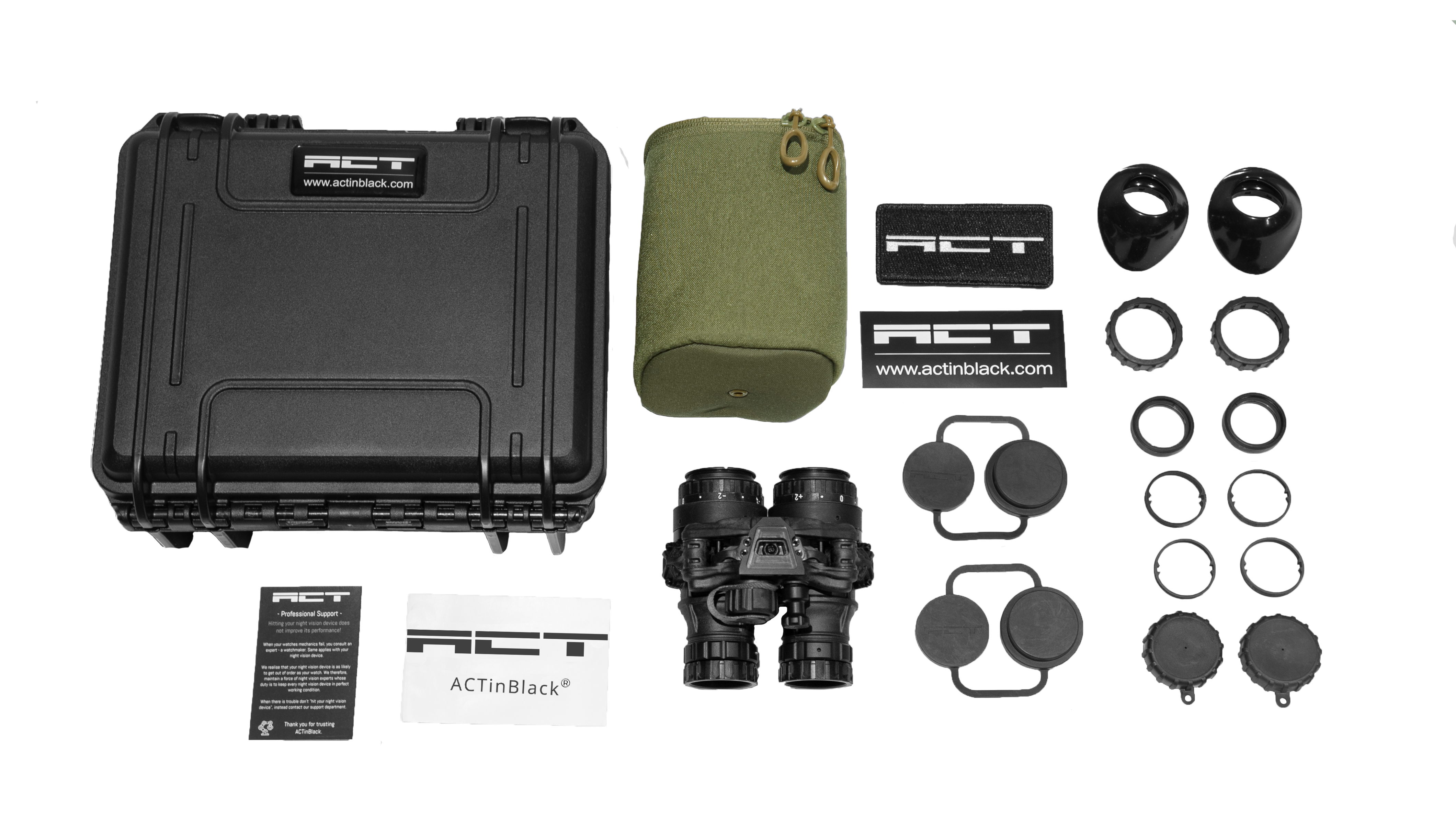

Included accessories
  • Hardcase
  • Molle pouch
  • Sacrificial lenses
  • Demist shields
  • Protective bikini covers
  • Rubber eye-cups
  • Objective lens caps
Included paperwork (original documentation is always included)
  • Tube specification sheet
  • Device birth certificate
  • Falconclaw user manual
  • Merchandise (patches, ACT lens cleaning paper)
  • Note! Flip the hardcase top cover foam to find everything above

Additional information

ACT LWT DTNVS 4G White Phosphor

2289A, 2294A



From 2013 ACTinBlack (ACT) was founded out of the drive to develop better, lighter and more user focused night vision systems – together with users from across the globe. The introduction of the DTNVG in 2016 created a (now) classic night vision binocular that proved itself in the harshest environments. To add to its legacy the introduction of the successor, the DTNVS, in 2020 created a milestone to ACT’s product line with a product that found immediate success by military and law enforcement user across the world. See more at


Photonis Defense image intensifier tubes are the world’s best-selling tubes for night vision use. Supling 68% of the world’s market for image intensifier tubes for a reason – first-tier military forces rely upon and trust Photonis Defense to satisfy their mission-critical needs under dynamic lighting conditions. Their image intensifier tubes enable you to see 30% more light spectrum from below 400nm to above 1000nm while delivering exceptional contrast and superior clarity at all light levels. See more at
