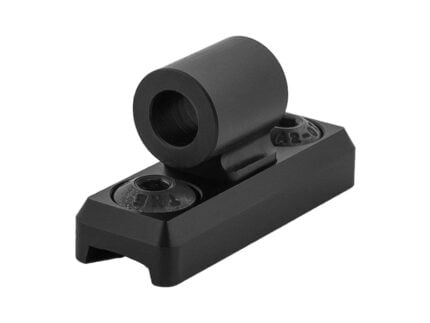

Falconclaw MLB - YM Arm
1 × Falconclaw MLB - YM Arm

Out of stock

Original price was: €48.75.Current price is: €34.13.
Falconclaw Dovetail J-Arm for THE14/PVS-14
Original price was: €131.00.Current price is: €91.70.
Jerry C5 Clip-On-Thermal Imager
Original price was: €2 550.00.Current price is: €2 422.50.
Infinity Iris V1 - PVS-14 / DTNVS - Black
Original price was: €180.00.Current price is: €171.00.
Available models

Since the difference between units can be pretty big (both FOM and the existence of black spots), we have decided to make public units specification and picture of the tube (to see black spots). Price depends on the quality of the tube. Please be aware that not all spots are visible on those pictures and in real life the spots appear to be bigger than on this picture. Spots score is our own metric to compare visibility of spots between tubes.

B0307

FOM 2096
Gain 9093
Resolution 67
EBI 0,14
SN 31,29
IA 0,11
Price 4800€ + VAT SALE 4300€ + VAT

B0328

FOM 2050
Gain 8927
Resolution 67
EBI 0,11
SN 30,59
IA 0,06
Price 4800€ + VAT SALE 4300€ + VAT

B0312

FOM 2043
Gain 8898
Resolution 67
EBI 0,11
SN 30,49
IA 0,05
Price 4600€ + VAT SALE 4300€ + VAT
Housing

THE14 is ACT lightest PVS-14 type compatible monocular at 9 oz / 255g while still using standard 18mm image intensifier tubes. At no compromises in functionality it features manual gain, automatic flip up shut-off, IR illuminator, low battery indicator highlight cut-off while still utilize the same control pattern.

The monocular can be mounted to combat helmets or weapons, which enables night vision capabilities to daytime optical sights.

THE14 is certified to the MIL-STD-810G for environmental, drop and other relevant criteria. THE14 has a 66ft / 20m for 2h submersion rating.

THE14 is fully compatible to all PVS-14 type accessories, optics and image intensifier tubes, so it will not require replacement of existing accessories.

Image Intensifier Tube

Photonis ECHO+ WP ZW0973D FOM range 2000+




Download User Manual






Image Intensifier Tubes (IIT) Photonis ECHO+ White Phosphor
Finish Matte Black, Corrosion Resistant
Fibre re-enforces polycarbonate body
Capability Flip-Up On-Off
Side Flip-Up On-Off
Built-in IR LED with “IR-on” indicator in FOV
Low battery indicator in FOV
Waterproof: 20m (66ft) for 2 hours
Corrosion Resistance against salt water
Magnification 1x
Diopter compensation -6 to +2 dpt
Battery Life 40 h
Infrared illuminator yes
Standards Exceeding MIL-STD-810G
True field of view 40°
Range of focus 0.25 m to ∞
Power Supply 1x AA
Dimensions 103 x 61 x 64 mm
Weight 255 g


Included accessories
  • Hardcase
  • Standard J-Arm (Bayonet)
  • Sacrificial lens
  • Demist shield
  • Protective bikini cover
  • Rubber eye-cup
  • Objective lens cap


Included paperwork (original documentation is always included)
  • Tube specification sheet
  • Device birth certificate
  • Falconclaw user manual
  • Merchandise (patches, ACT lens cleaning paper)
  • Note! Flip the hardcase top cover foam to find everything above
THE-14 LWT Echo+

B0307

,

B0328

,

B0312

Brand

ACT

From 2013 ACTinBlack (ACT) was founded out of the drive to develop better, lighter and more user focused night vision systems – together with users from across the globe. The introduction of the DTNVG in 2016 created a (now) classic night vision binocular that proved itself in the harshest environments. To add to its legacy the introduction of the successor, the DTNVS, in 2020 created a milestone to ACT’s product line with a product that found immediate success by military and law enforcement user across the world. See more at https://actinblack.com/us/
