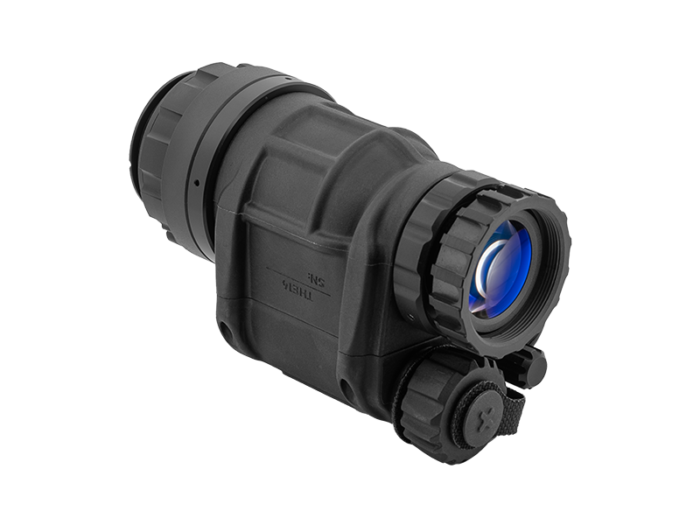

ACT THE14 LWT40 4G White Phosphor
THE-14 night vision monocular with LWT40 optics package. Manual Gain. Photonis Autogated 4G White Phosphor Image Intensifiers FOM 2200+ Free Shipping.
Price range: €8 866.00 through €9 114.00
Discover frequently bought together:
This item: ACT THE14 LWT40 4G White Phosphor
B0555
B0560
B0617
Price range: €8 866.00 through €9 114.00
Price range: €8 866.00 through €9 114.00
1 × Jerry C5 Clip-On-Thermal Imager
Out of stock
Original price was: €3 162.00.€3 003.90Current price is: €3 003.90.
Original price was: €713.00.€677.35Current price is: €677.35.

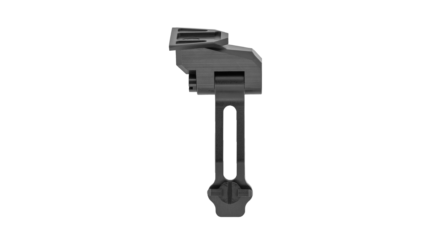

1 × Falconclaw Dovetail J-Arm for THE14/PVS-14
In stock
Original price was: €162.44.€113.71Current price is: €113.71.

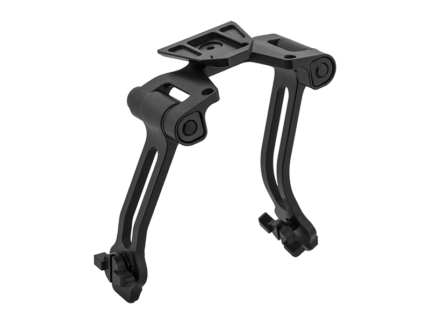

1 × Falconclaw MLB - Modular Lightweight Bridge
In stock
Original price was: €308.36.€231.27Current price is: €231.27.
1 × Infinity Iris V1 - PVS-14 / DTNVS - Black
In stock
Original price was: €223.20.€212.04Current price is: €212.04.
Image Intensifier Tube
Photonis 4G WP XW3140BG with FOM range starting from 2500+ tube that exceeds requirements defined by military specifications. Although ECHO and 4G tubes comes from the same line, the tube is classified as ECHO when it’s either does not pass the test(s) or does not meet the minimum specifications. Photonis 4G is produced for users who need a reliable night vision device and do not compromise with quality or durability. All Photonis 4G tubes have expected lifespan greater than 7500 hours and work at extreme temperatures -32 to +49 for seven days (for ECHO is 4 hours).
When comparing the performance of a 4G and ECHO, even with similar attributes, you can expect a lot longer lifetime and durability with 10-15% higher performance on the 4G, since not all the characteristics (like Sensitivity) are displayed on a tube datasheet.
B0555
| FOM | 2581 |
| Gain | 12 525 |
| Resolution | 78 |
| EBI | 0,21 |
| SN | 33,09 |
| Price | 7150 €+ VAT |
B0560
| FOM | 2673 |
| Gain | 11 823 |
| Resolution | 80 |
| EBI | 0,13 |
| SN | 33,42 |
| Price | 7250 €+ VAT |
B0617
| FOM | 2668 |
| Gain | 13 232 |
| Resolution | 78 |
| EBI | 0,15 |
| SN | 34,41 |
| Price | 7350 €+ VAT |

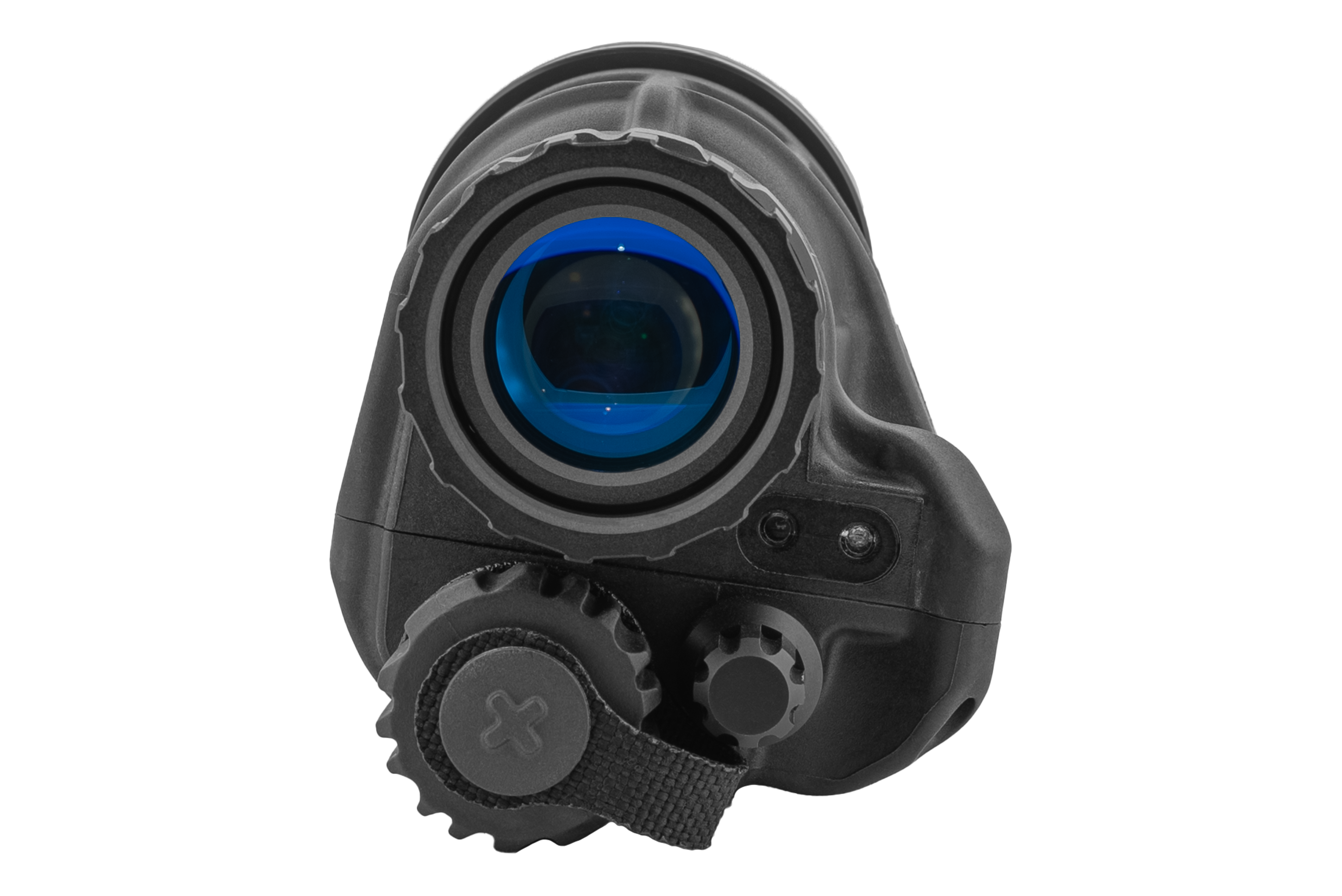

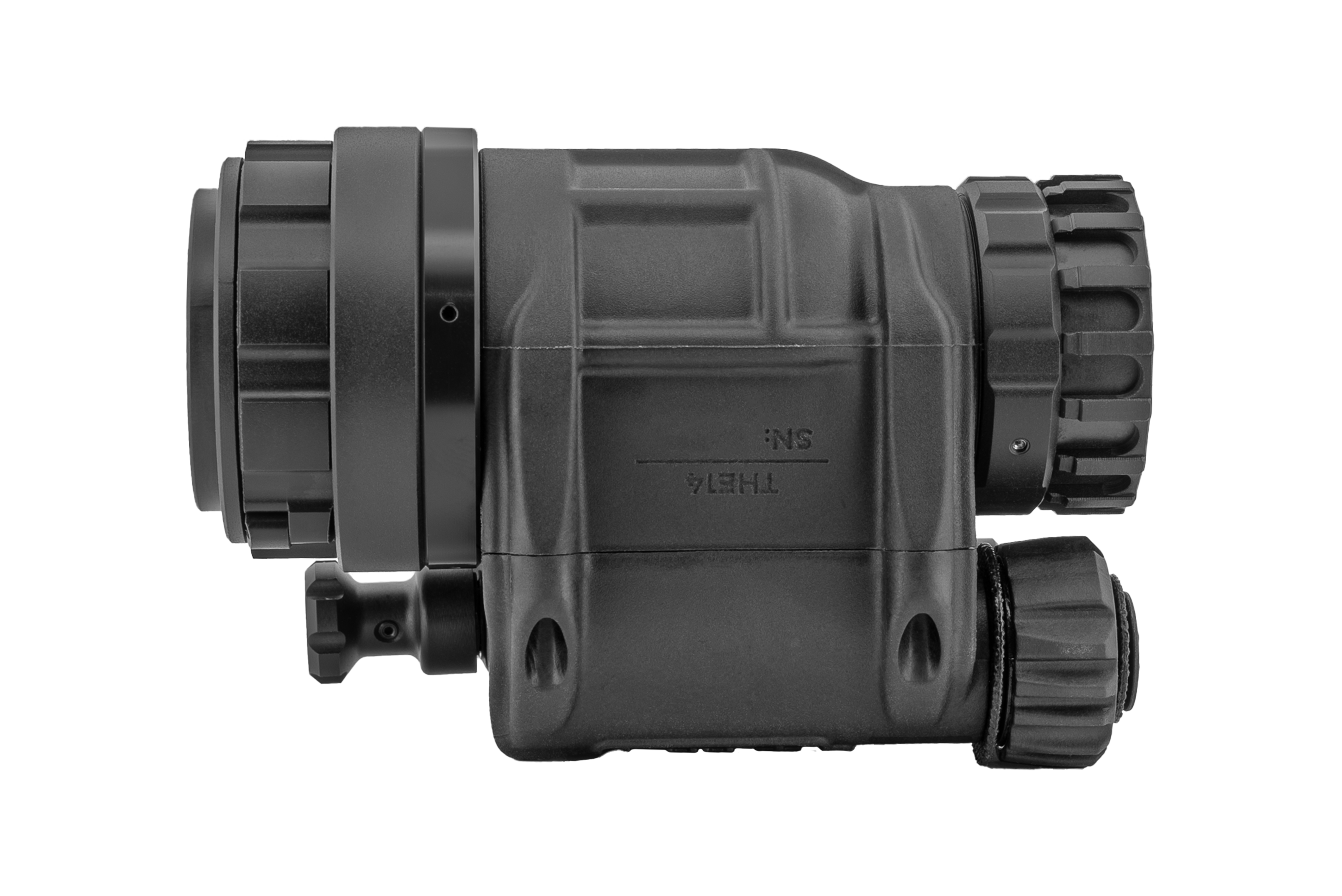

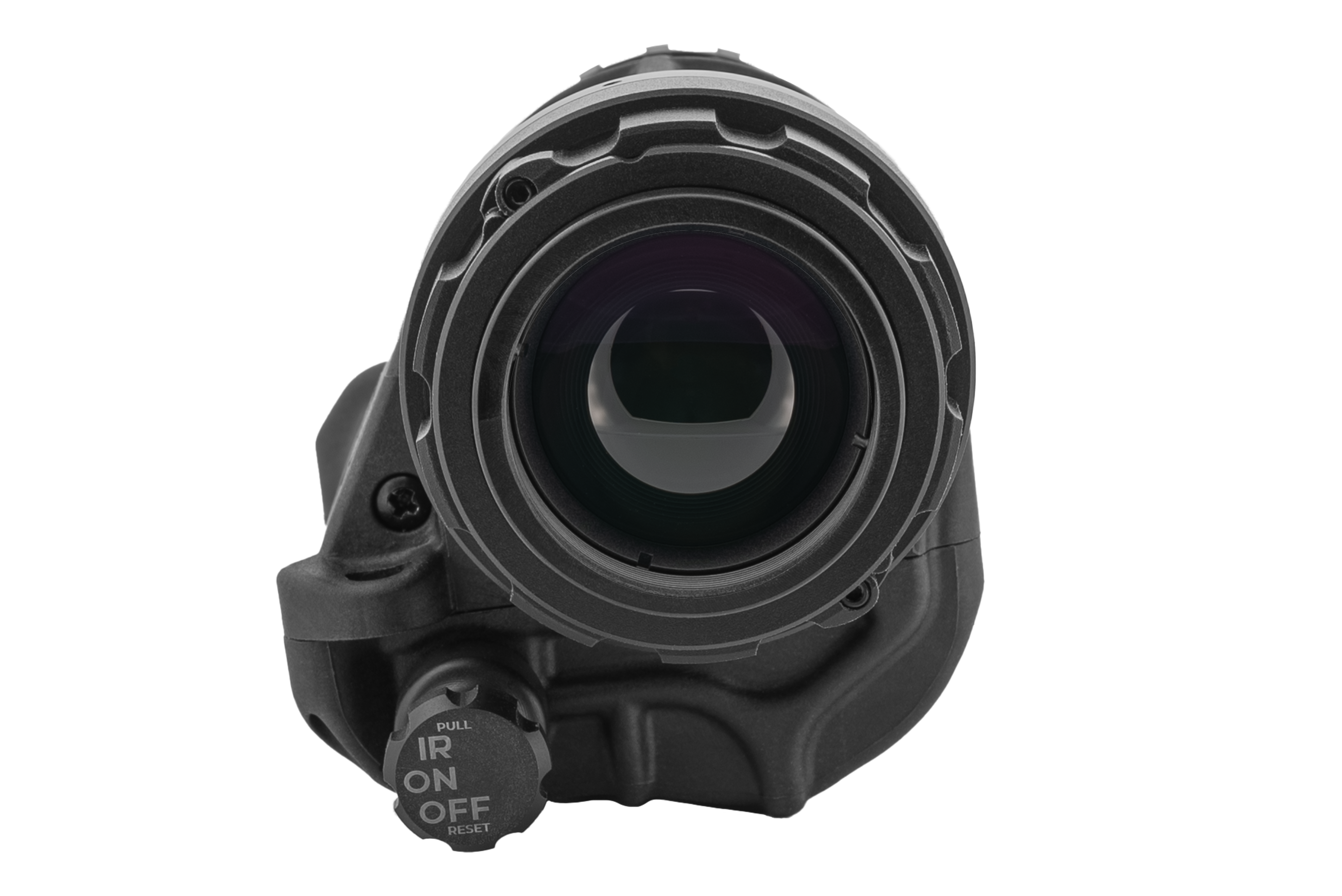

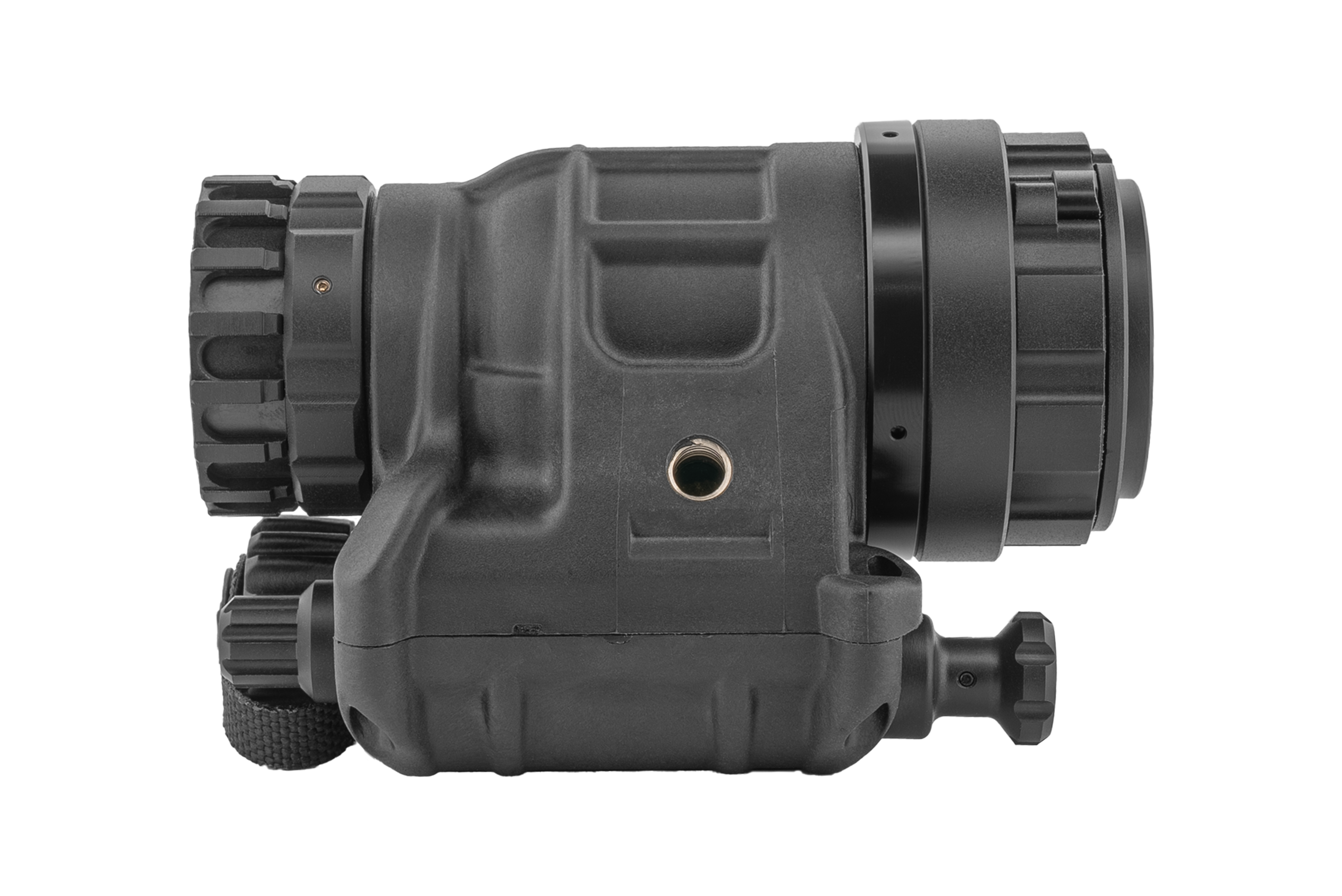

Housing & Optics
THE14 is ACT lightest PVS-14 type compatible monocular at 9 oz / 255g while still using standard 18mm image intensifier tubes. At no compromises in functionality it features manual gain, automatic flip up shut-off, IR illuminator, low battery indicator highlight cut-off while still utilize the same control pattern.
The low profile, polymer construction optics are produced by RPO (Rochester Precision Optics) and are well known for excellent quality and extreme light weight.
The monocular can be mounted to combat helmets or weapons, which enables night vision capabilities to daytime optical sights.
THE14 is certified to the MIL-STD-810G for environmental, drop and other relevant criteria. THE14 has a 66ft / 20m for 2h submersion rating.
THE14 is fully compatible to all PVS-14 type accessories, optics and image intensifier tubes, so it will not require replacement of existing accessories.
| Image Intensifier Tubes (IIT) | Photonis 4G White Phosphor |
| Finish | Matte Black, Corrosion Resistant
Fibre re-enforces polycarbonate body |
| Capability | Flip-Up On-Off
Side Flip-Up On-Off Built-in IR LED with “IR-on” indicator in FOV Low battery indicator in FOV Waterproof: 20m (66ft) for 2 hours Corrosion Resistance against salt water |
| Magnification | 1x |
| Diopter compensation | -6 to +2 dpt |
| Battery Life | 40 h |
| Infrared illuminator | yes |
| Standards | Exceeding MIL-STD-810G |
| True field of view | 40° |
| Range of focus | 0.25 m to ∞ |
| Power Supply | 1x AA |
| Dimensions | 103 x 61 x 64 mm |
| Weight | 255 g |

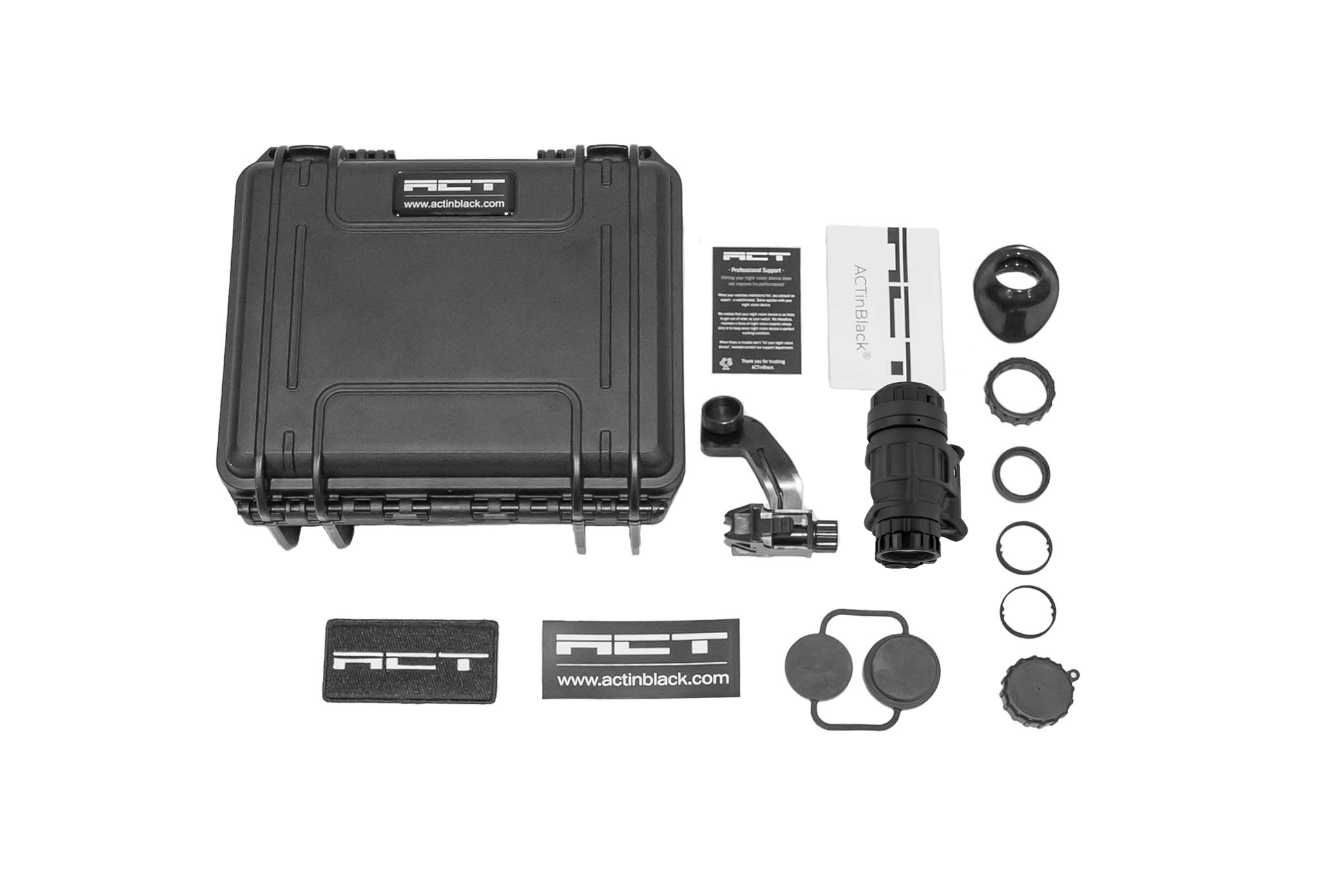

Included accessories
- Hardcase
- Standard J-Arm (Bayonet)
- Sacrificial lens
- Demist shield
- Protective bikini cover
- Rubber eye-cup
- Objective lens cap
Included paperwork (original documentation is always included)
- Tube specification sheet
- Device birth certificate
- Falconclaw user manual
- Merchandise (patches, ACT lens cleaning paper)
- Note! Flip the hardcase top cover foam to find everything above
| ACT THE-14 4G |
B0555 ,B0560 ,B0617 |
|---|
Brand
ACT
From 2013 ACTinBlack (ACT) was founded out of the drive to develop better, lighter and more user focused night vision systems – together with users from across the globe.
The introduction of the DTNVG in 2016 created a (now) classic night vision binocular that proved itself in the harshest environments. To add to its legacy the introduction of the successor, the DTNVS, in 2020 created a milestone to ACT’s product line with a product that found immediate success by military and law enforcement user across the world.
See more at https://actinblack.com/us/
