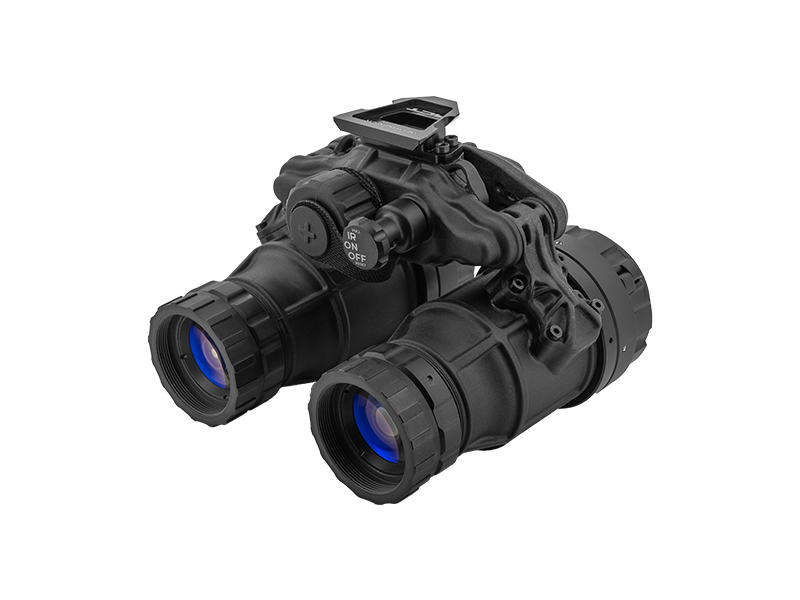

ACT LWT DTNVS ECHO White Phosphor
ACT DTNVS Photonis ECHO White Phosphor, FOM 1800-2200, Autogated. Ultralight RPO Optics
FREE Shipping
€7 750.00
Discover frequently bought together:
This item: ACT LWT DTNVS ECHO White Phosphor
2441E
2446E
2452E
2453E
2455E
€7 750.00
€7 750.00
1 × HLAD-3G Visible Green Laser/IR Laser/IR Illuminator
Out of stock
Original price was: €1 220.00.€1 098.00Current price is: €1 098.00.

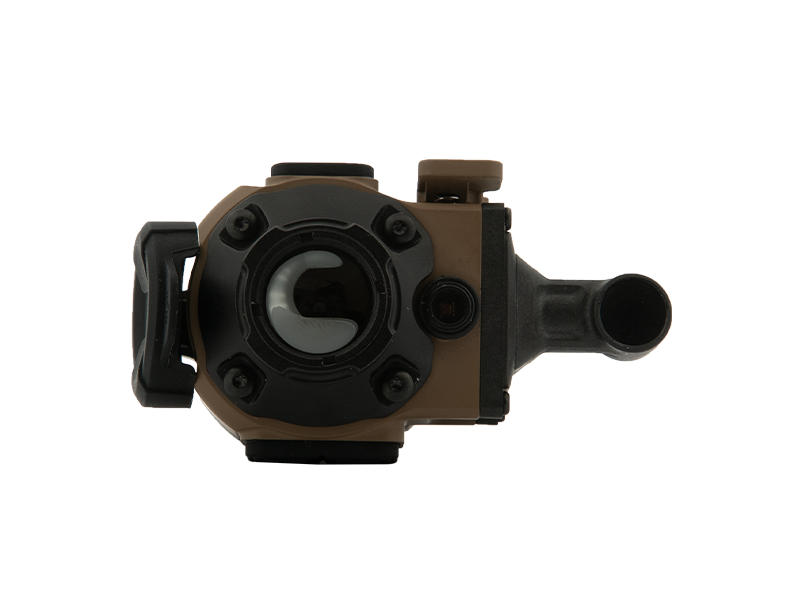

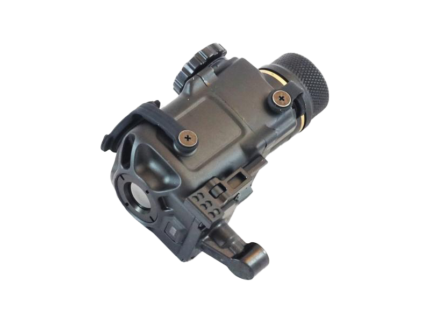

1 × Jerry C5 Clip-On-Thermal Imager
Out of stock
Original price was: €2 550.00.€1 995.12Current price is: €1 995.12.

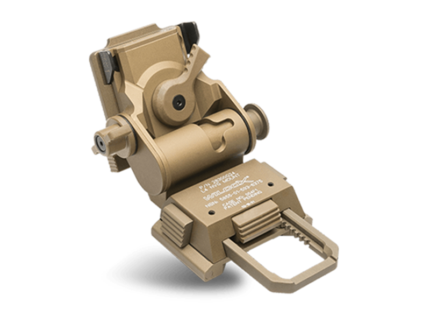

1 × Wilcox G24 Breakaway Dovetail Mount (Tan)
In stock
Original price was: €650.00.€617.50Current price is: €617.50.
Original price was: €575.00.€546.25Current price is: €546.25.
2 × Infinity Iris V1 - PVS-14 / DTNVS - Black
In stock
Original price was: €180.00.€171.00Current price is: €171.00.
2453E
 |
 |
| LEFT | RIGHT | ||
| FOM | 2063 | 2077 | |
| Resolution | 66 | 66 | |
| EBI | 0,15 | 0,16 | |
| SN | 31,25 | 31,47 | |
| Gain | 10 689 | 10 823 | |
| Price | 7650€+ VAT | ||
2452E
 |
 |
| LEFT | RIGHT | ||
| FOM | 2108 | 2078 | |
| Resolution | 67 | 66 | |
| EBI | 0,11 | 0,08 | |
| SN | 31,47 | 31,48 | |
| Gain | 11 126 | 10 905 | |
| Price | 7700€+ VAT | ||
2455E
 |
 |
| LEFT | RIGHT | ||
| FOM | 2153 | 2111 | |
| Resolution | 67 | 67 | |
| EBI | 0,07 | 0,11 | |
| SN | 32,14 | 31,51 | |
| Gain | 10 688 | 10 041 | |
| Price | 7700€+ VAT | ||
2446E
 |
 |
| LEFT | RIGHT | ||
| FOM | 1940 | 1970 | |
| Resolution | 67 | 67 | |
| EBI | 0,17 | 0,16 | |
| SN | 28,96 | 29,4 | |
| Gain | 11 005 | 10 761 | |
| Price | 7650€+ VAT | ||
The DTNVS is a lightweight folding binocular built on proven technology and enhanced for greater reliability verse previous generations of Night Vision Binoculars. The DTNVS binocular combines lightweight materials and a low profile when folded to the helmet which reduces neck strain during extended missions.
The DTNVS binocular has a full feature set with individual sideways ON/OFF for each eyepiece and Flip-Up ON/OFF when folded up preventing backsplash on the helmet. To complete the DTNVSs’ features it incorporates built-in IR LED for close quarter missions with separate IR-ON indicator and low battery indicator in the field of view.
No external battery port – Why? The DTNVS uses standard CR123A batteries as commonly found in lasers or flashlights. A single battery provides over 25h run time. However, as the pods shut off when flipped up and therefore halve the power consumption, most users report up to 35h on a single battery.
Download User Manual
| Image Intensifier Tubes (IIT) | Photonis ECHO White Phosphor |
| Finish | Matte Black, Corrosion Resistant
Fibre re-enforces polycarbonate body |
| Capability | Flip-Up On-Off
Side Flip-Up On-Off Built-in IR LED with “IR-on” indicator in FOV Low battery indicator in FOV Waterproof: 20m (66ft) for 2 hours Corrosion Resistance against salt water |
| Magnification | 1x |
| Diopter compensation | -6 to +2 dpt |
| Battery Life | 25 h |
| Infrared illuminator | yes |
| Standards | Exceeding MIL-STD-810G |
| True field of view | 40° |
| Close focus limit | 0.25 m to ∞ |
| Power Supply | 1x CR123 |
| Dimensions | 76 x 105 x 111 mm |
| Weight | 510 g |

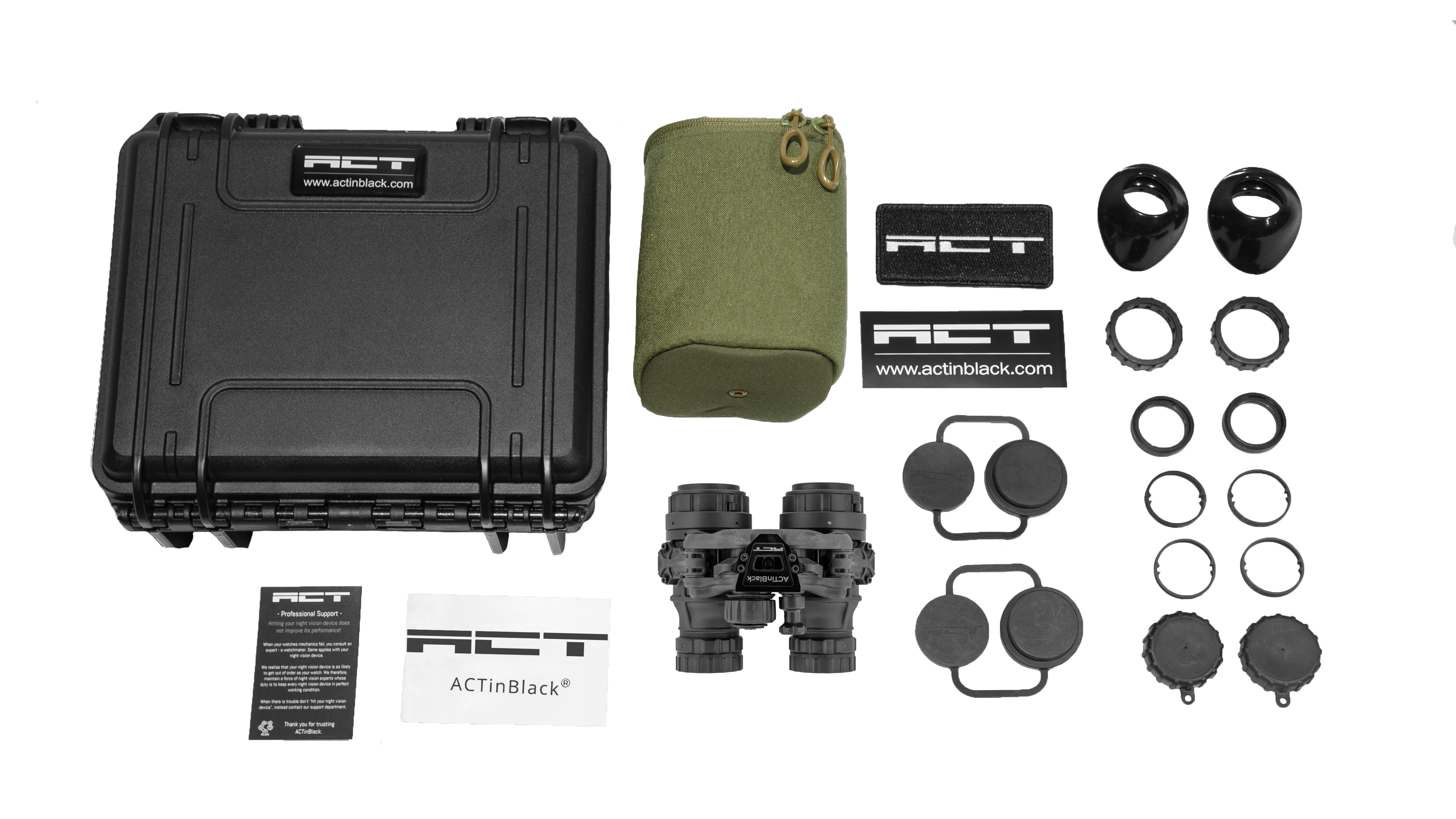

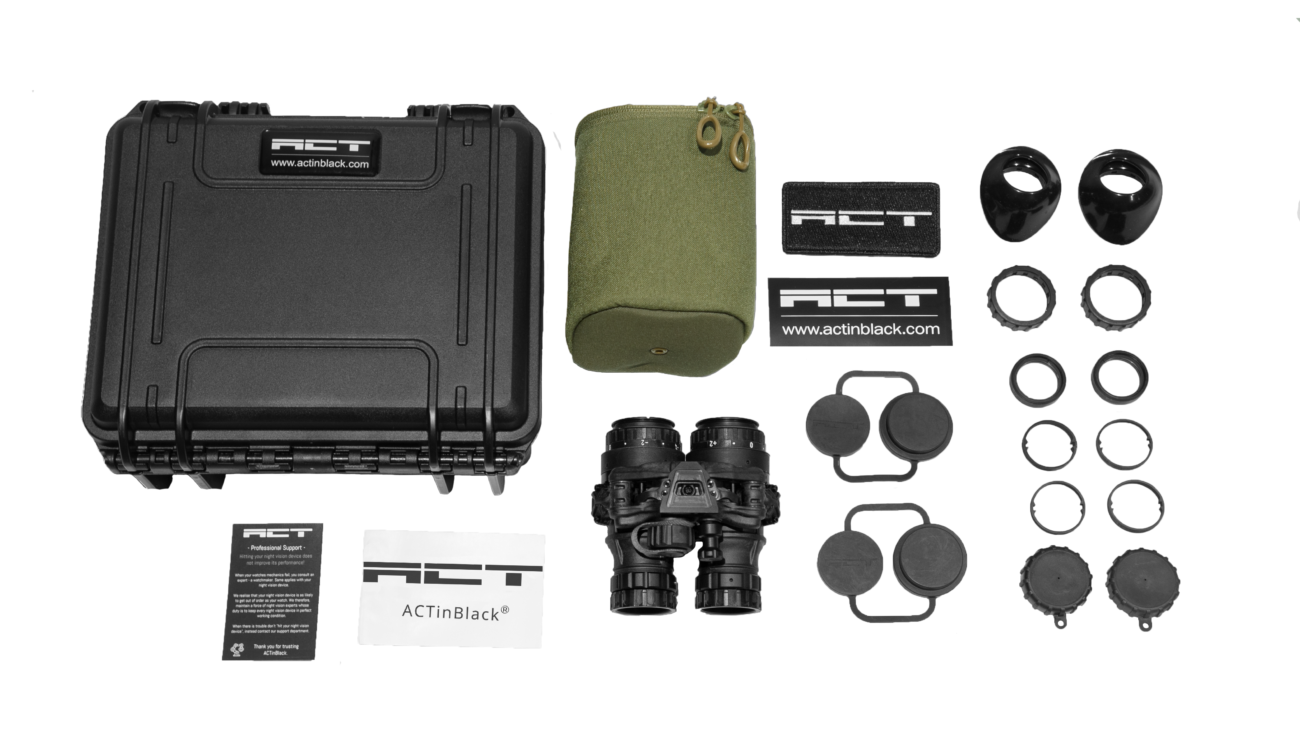

Included accessories
- Hardcase
- Molle pouch
- Sacrificial lenses
- Demist shields
- Protective bikini covers
- Rubber eye-cups
- Objective lens caps
Included paperwork (original documentation is always included)
- Tube specification sheet
- Device birth certificate
- Falconclaw user manual
- Merchandise (patches, ACT lens cleaning paper)
- Note! Flip the hardcase top cover foam to find everything above
| DTNVS ECHO WP Tube |
2441E ,2446E ,2452E ,2453E ,2455E |
|---|
Brand
ACT
From 2013 ACTinBlack (ACT) was founded out of the drive to develop better, lighter and more user focused night vision systems – together with users from across the globe.
The introduction of the DTNVG in 2016 created a (now) classic night vision binocular that proved itself in the harshest environments. To add to its legacy the introduction of the successor, the DTNVS, in 2020 created a milestone to ACT’s product line with a product that found immediate success by military and law enforcement user across the world.
See more at https://actinblack.com/us/
RELATED PRODUCTS

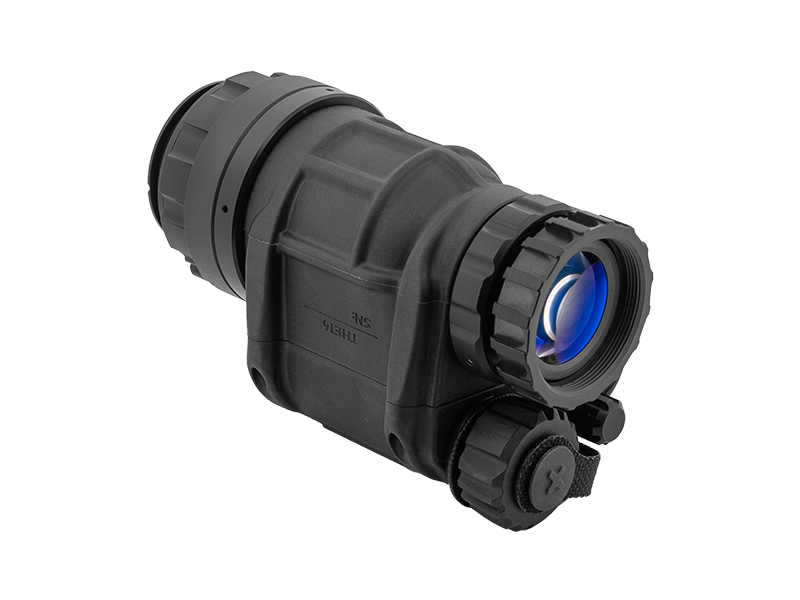

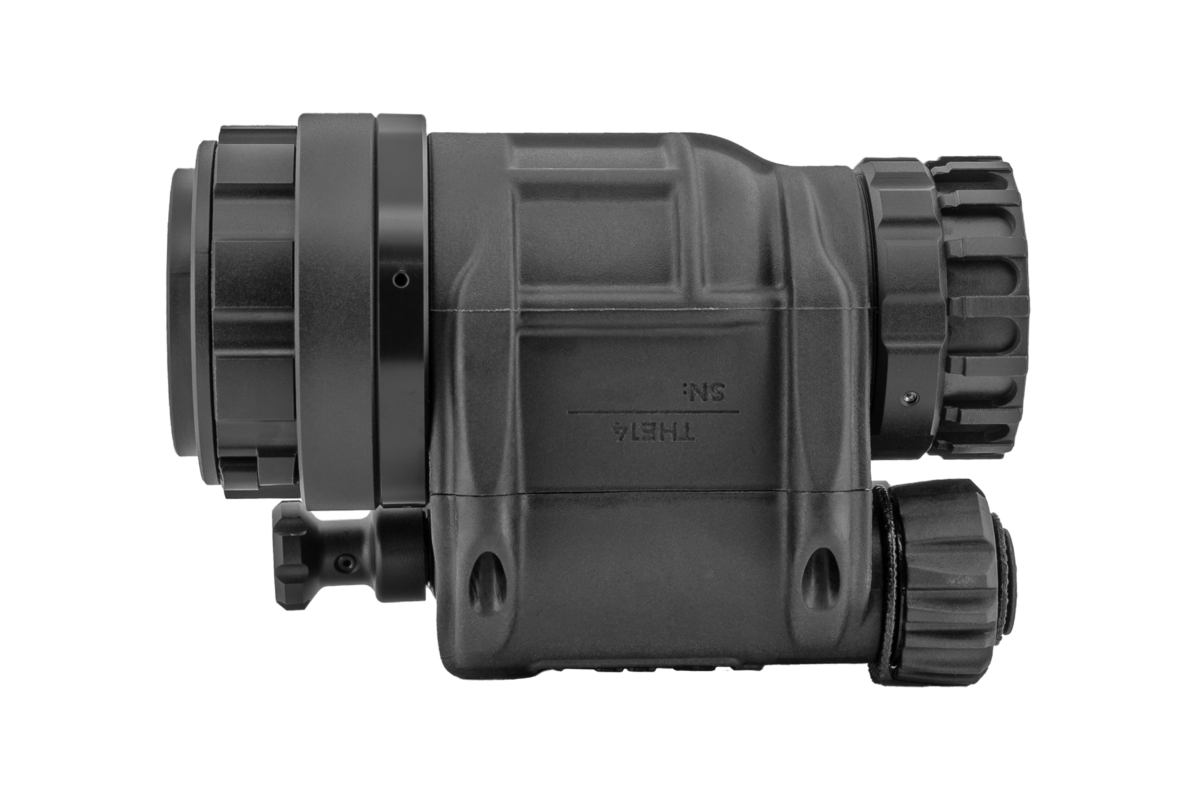

ACT THE14 LWT40 ECHO+ White Phosphor
