LRSold out4921E
FOMGAINRESSNRL237911 9397631.31R237811 5067631.30
ACT LWT DTNVS 4G White Phosphor
Tax included.
SETUP
HELMET MOUNT
No helmet mount
€0,00
Wilcox G24 Breakaway Dovetail Mount
the premium breakaway mount
€775,00€620,00
UDAPT F25 Low Profile Helmet Mountthe UDAPT F25 low-profile dovetail mount - the mount we recommend for the DTNVS
€434,00€347,20
A4 LWNVM - Light Weight Night Vision Mount
the lighter budget mount
€186,00€148,80
HELMET MOUNT
No helmet mount
€0,00
Wilcox G24 Breakaway Dovetail Mount
the premium breakaway mount
€775,00€620,00
UDAPT F25 Low Profile Helmet Mountthe UDAPT F25 mount we recommend for the DTNVS
€434,00€347,20
A4 LWNVM - Light Weight Night Vision Mount
the lighter budget mount
€186,00€148,80
THERMAL
No thermal
€0,00
FTO Falconclaw Thermal Overlay 640 (COTI)fits the DTNVS with its included PVS-14-type lens-mount bracket - no extra parts
€3.899,80€3.509,82
This setup ships complete - no add-ons needed.
Own warehouse in Estonia. Orders out within 2-3 business days.
Sold out right now. Get an e-mail the moment it is back in stock:

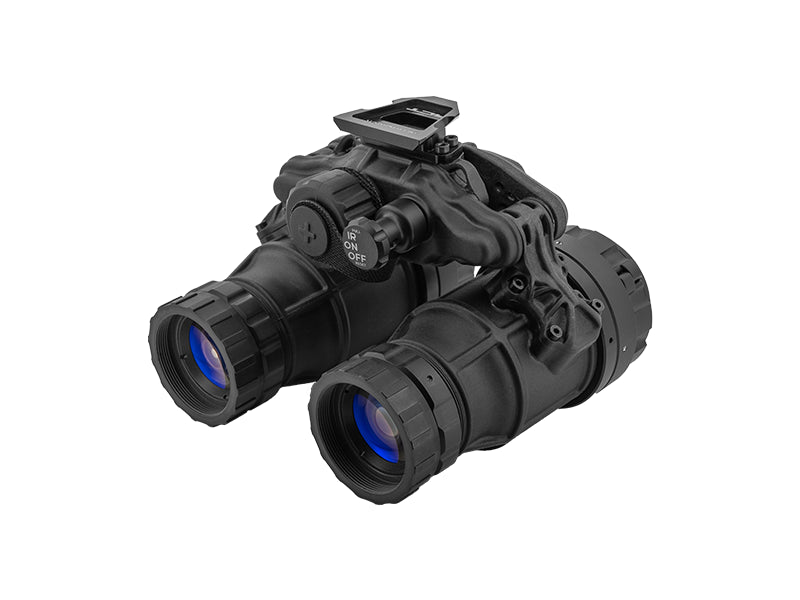

ACT LWT DTNVS 4G White Phosphor
Sale price€16.740,00 EUR
ACTinBlack - DTNVS 4G
The mil-spec tube. The maximum this housing delivers.
A Photonis tube earns the 4G label only if it clears mil-spec on every attribute. The DTNVS 4G is the same dual-tube binocular fitted with the tube that passed the higher bar.
From this device's spec sheet
40°
Field of viewtrue, 1x magnification
25 h
Runtimenominal, one CR123A
20 m
Submersionwaterproof, 2 hours
430 g
Weightcomplete binocular
Same DTNVS body. The mil-spec tube.
Why the 4G
Same DTNVS dual-tube housing and LWT40 optics as the Echo+. The 4G grade is not different technology: it is the tube that cleared mil-spec on every attribute during testing. Top of the Photonis bin, in a mil-grade body.
Mil-spec Photonis 4G tubes
Autogated white phosphor. A tube is labelled 4G only if it passes mil-spec on every attribute; miss one and it ships as Echo. This is the tube that cleared the bar.
Top-bin gain and sensitivity
Higher gain and sensitivity than the Echo grade, so it pulls more from less light. Per Photonis, the 4G bin runs roughly 15 percent ahead.
Tight halo
A tighter halo around bright sources than the Echo grade, so streetlights and muzzle flash bloom less across the image.
Longest rated tube life
The 4G bin carries the longest rated tube life in the Photonis line, so the device holds its grade over more hours of use.
Echo+ or 4G?
Pick the 4G
You want the maximum this housing can deliver: the mil-spec tube, top-bin gain and sensitivity, the tightest halo and the longest rated life.
Pick the Echo+
You want a true ACTinBlack dual-tube on the high-FOM commercial bin, for less than the 4G. Same housing, same LWT40 optics, the value-grade tube.
The numbers
Product Specs
Optics & Sensor
Image Intensifier TubesPhotonis 4G (White Phosphor)
Magnification1x
True Field of View40°
Close Focus Limit0.25 m to ∞
Diopter Compensation-6 to +2 dpt
Performance
AutogatingYes (tube-level protection)
Infrared IlluminatorYes, onboard
Flip-Up SensorAuto shut-off when flipped up
IndicatorsIR-ON & low-battery indicators in FOV
Power & Battery
Power Supply1x CR123A
Battery Life25 h nominal / up to ~35 h typical use
External Battery PortNo
Build & Durability
FinishMatte Black, corrosion resistant
HousingFibre reinforced polycarbonate body
Waterproof20 m (66 ft) for 2 hours
StandardsExceeding MIL-STD-810G
Dimensions76 x 105 x 111 mm
Weight430 g
Build your kit
Compatibility
Build it as a kit: -20% on mounts and bridges, -10% on a second optic. Applied in cart automatically. Run the DTNVS solo on a helmet mount, fuse a thermal overlay on top, or armor it with a Falconwrap skin. 3 ways to run it - pick your setup.
STANDALONE
View setup
Selected
Your STANDALONE build
What you need for this setup
The DTNVS on the helmet via a UDAPT F25 mount. Passive, lightweight, binocular depth straight out of the box.
UDAPT
UDAPT F25 Low Profile Helmet Mount
Sale price€434,00 EUR
€434,00
€347,20
THERMAL OVERLAY - COTI
View setup
Selected
Your THERMAL OVERLAY - COTI build
What you need for this setup
Clip the FTO 640 thermal overlay onto the DTNVS to fuse heat detection over the night-vision image. Spot warm targets the tubes alone miss.
Falconclaw
FTO Falconclaw Thermal Overlay 640 (COTI)
Sale price€3.899,80 EUR
€3.899,80
€3.509,82
UDAPT
UDAPT F25 Low Profile Helmet Mount
Sale price€434,00 EUR
€434,00
€347,20
PROTECTION LAYER
View setup
Selected
Your PROTECTION LAYER build
What you need for this setup
Wrap the DTNVS housing in a Falconwrap - a precut adhesive skin that cuts shine and signature and shields the body from knocks and abrasion.
Serial-matched inventory
Available Units
Every tube: Photonis 4G White Phosphor · autogated · individually data-sheeted
LRSold out
LRSold out4920E
FOMGAINRESSNRL230611 9987630.35R236512 3777631.13
LRSold out4919E
FOMGAINRESSNRL233411 7877630.72R233411 5427630.72
LRSold out4922E
FOMGAINRESSNRL248311 2257632.68R249511 2137632.83
LRSold out4899E
FOMGAINRESSNRL249911 9647832.04R249412 1417831.98
LRSold out4918E
FOMGAINRESSNRL247511 4287632.57R249211 2887632.80
Every order

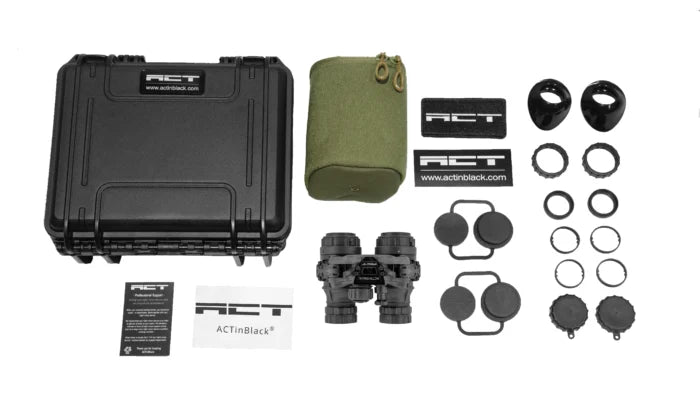

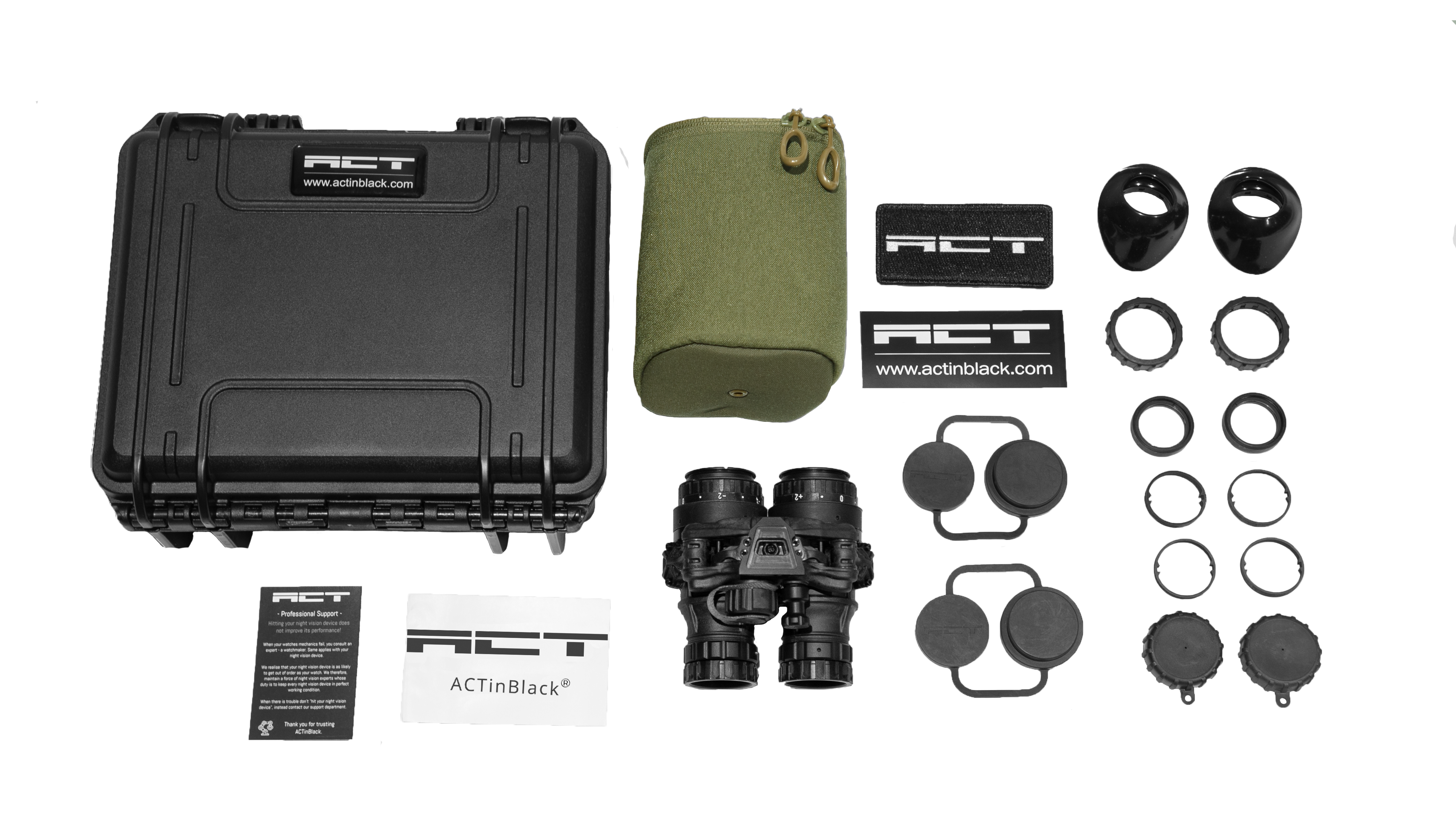

What's in the Box
Box contents · 11 items
- DTNVS unit with both pods factory collimated
- Hardcase
- Molle pouch
- Sacrificial lenses x2
- Demist shields x2
- Protective bikini covers
- Rubber eye-cups
- Objective lens caps
- Tube specification sheet
- Birth certificate
- Falconclaw user manual
No helmet mount included a DTNVS mounts straight to a dovetail helmet mount (no J-arm) - see the kit options above
Export control
Shipping & Export
This item is shipped
EU - SHIPS FREELY, ZERO PAPERWORKAll 27 EU countries. Order online, we dispatch next business day.
Ships free
EU001 - WE HANDLE EXPORT, YOU HANDLE IMPORTUK, Norway, Switzerland, Liechtenstein, Iceland, Canada, Australia, New Zealand, Japan. Dispatched under EU General Authorisation EU001.
We export
OTHER COUNTRIES - EXPORT LICENCE REQUIREDIndividual export licence to most other destinations (+€250). Contact us first.
Licence +€250
NOT AVAILABLE TO THE UNITED STATESWe cannot ship the ACT LWT DTNVS 4G White Phosphor to the USA.
No US shipping
