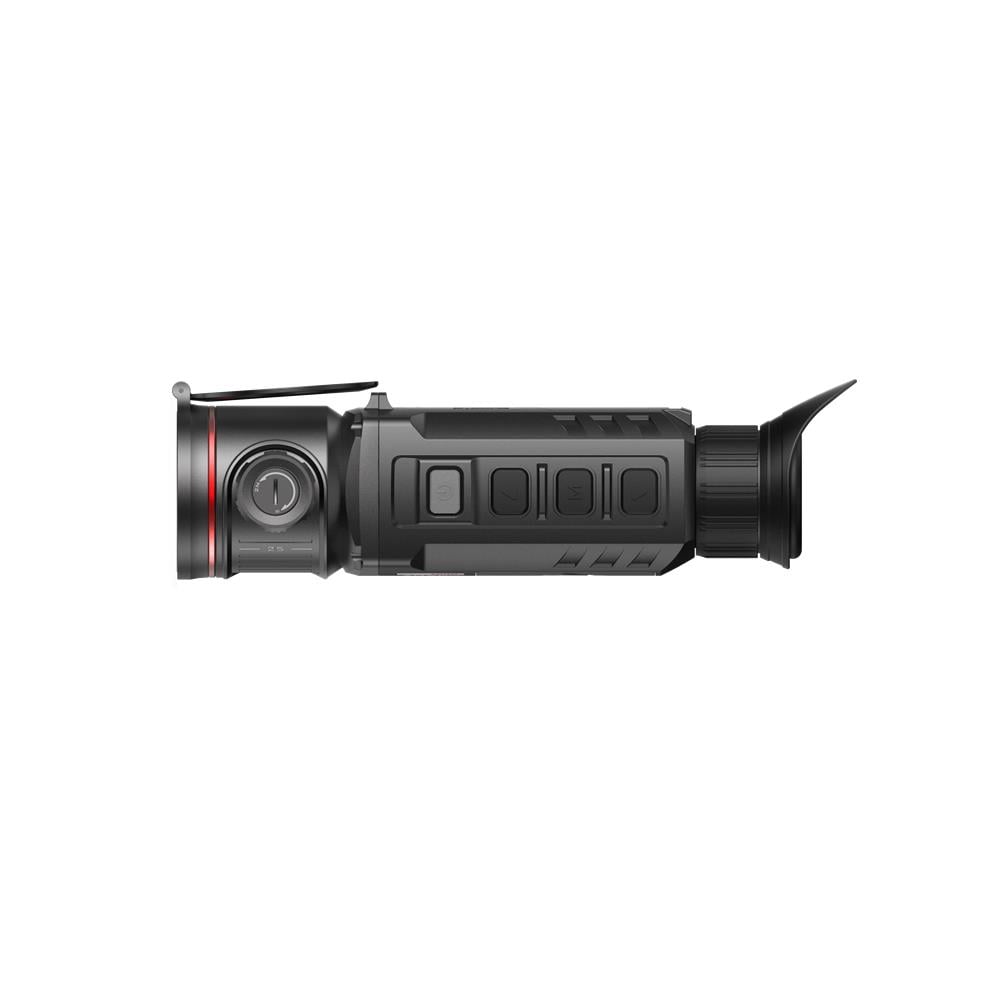

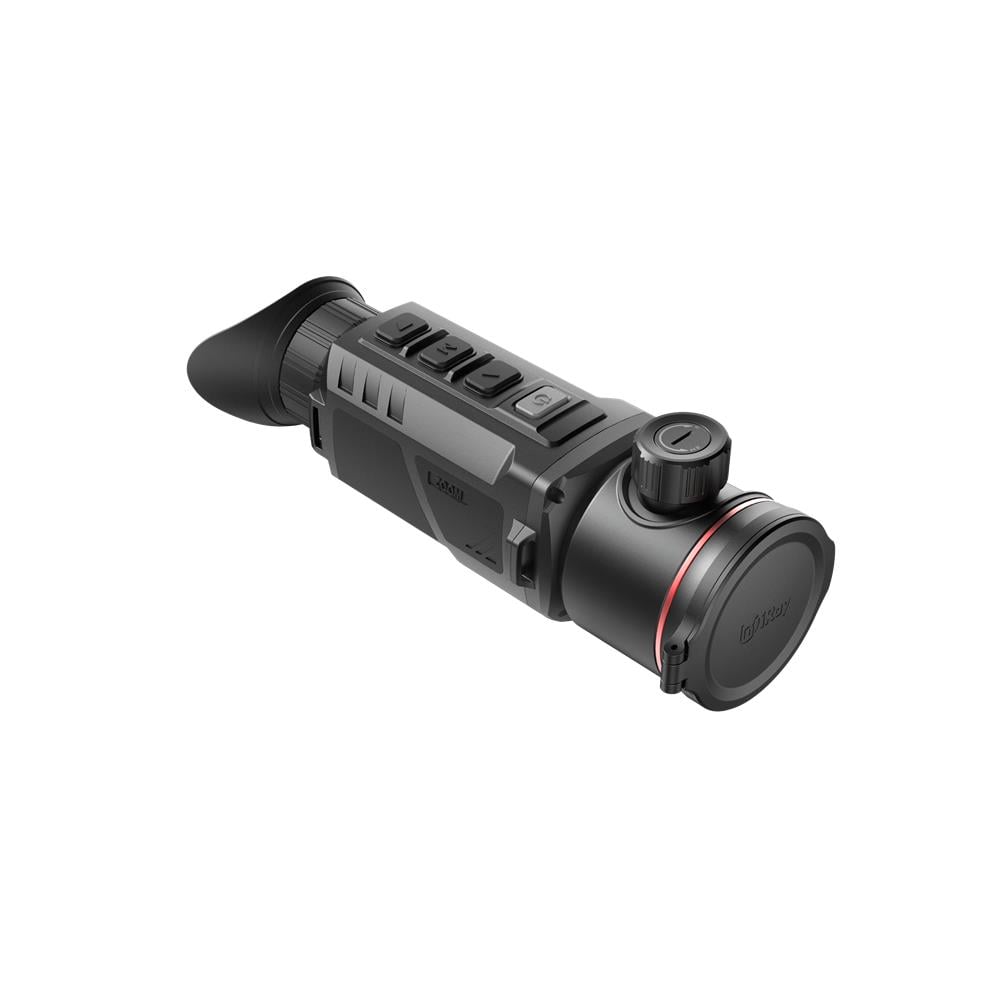

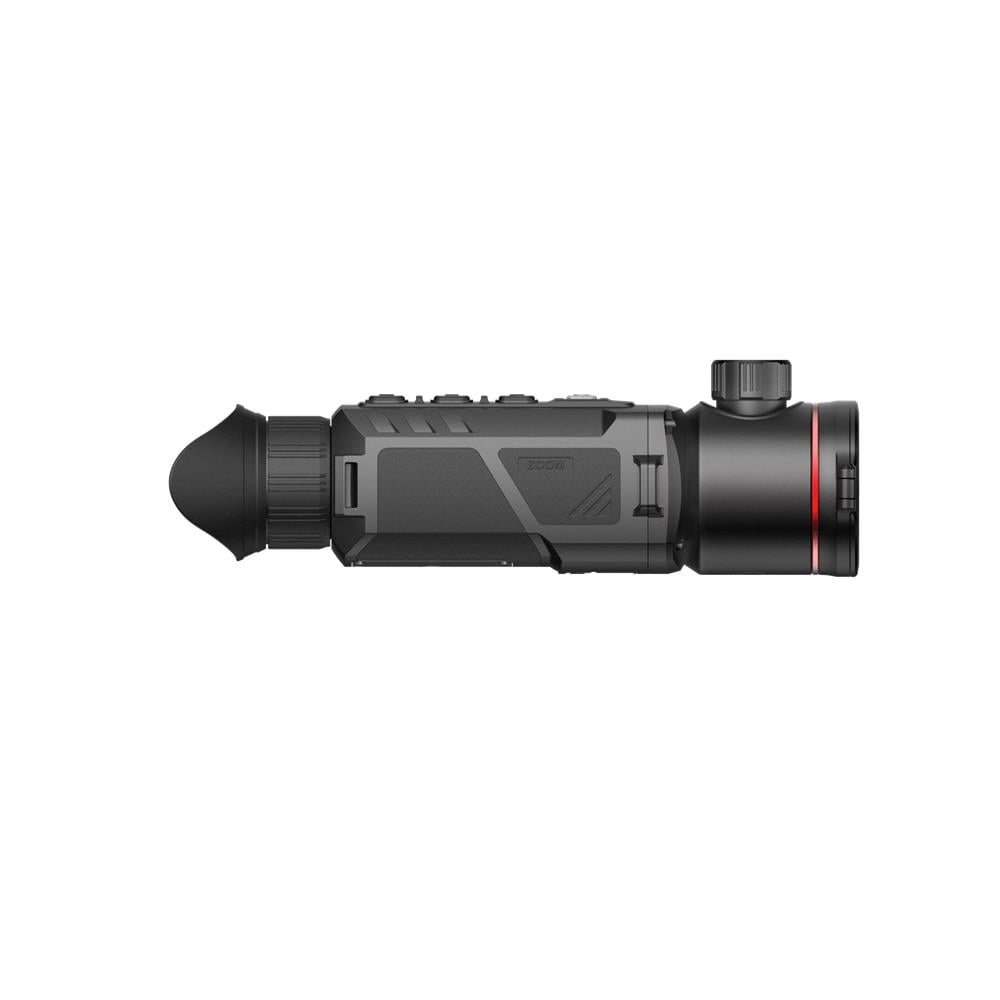

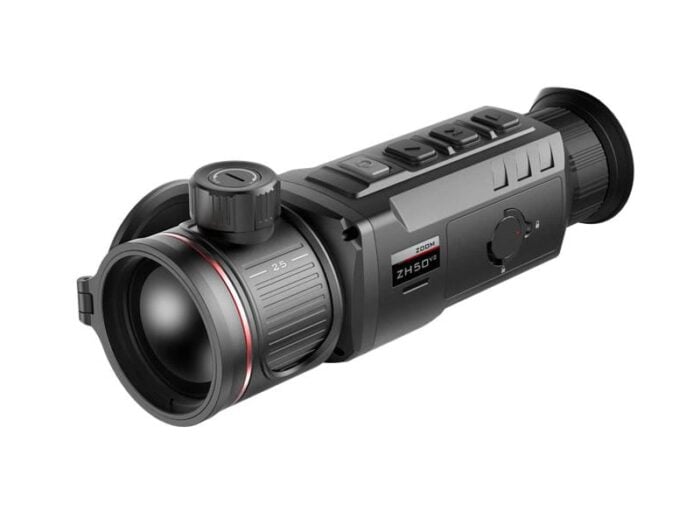

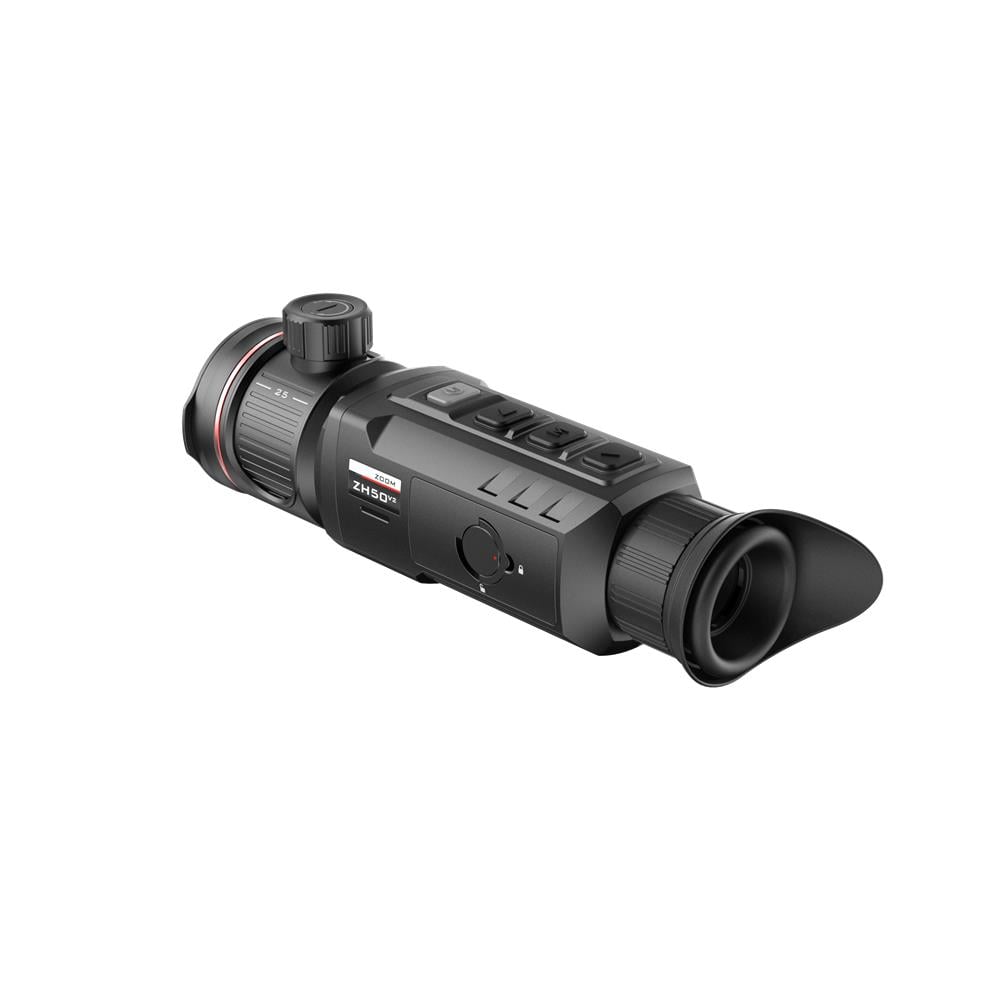

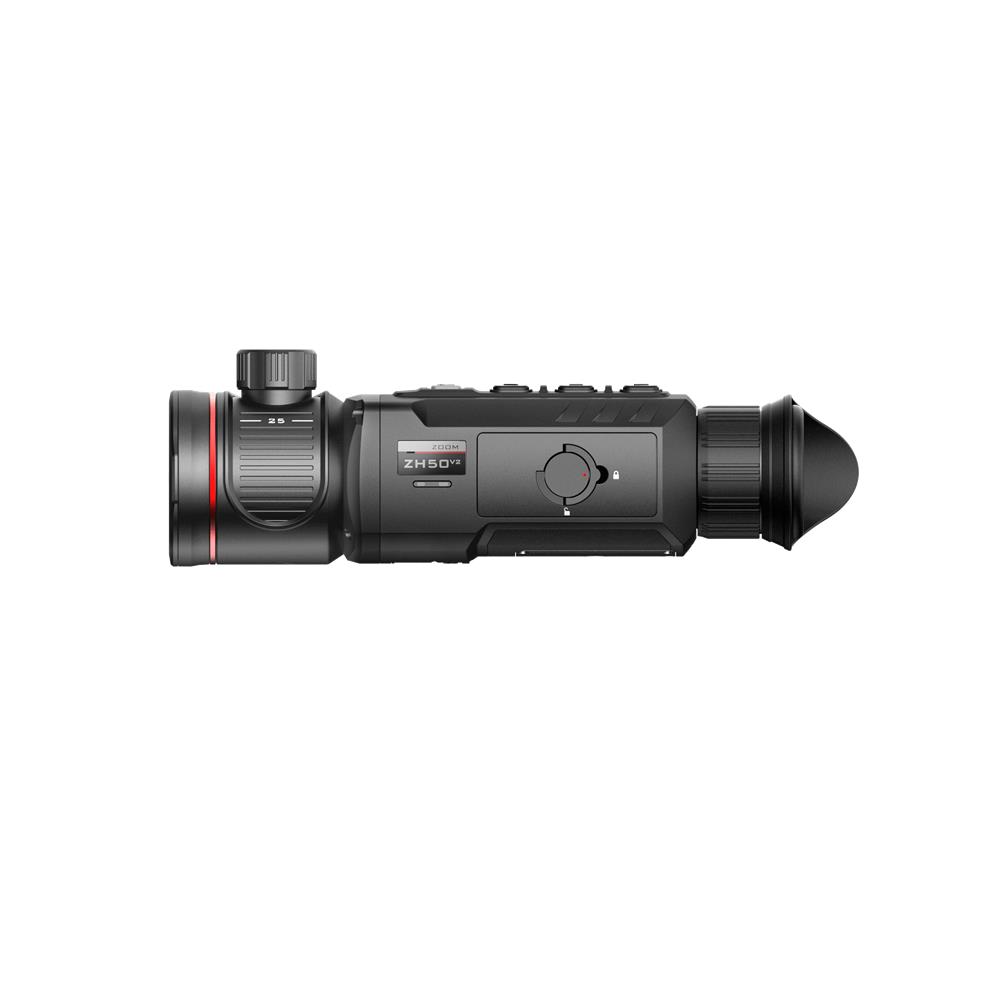

ZH50 V2 – Thermal Imaging Monocular
A top-end thermal monocular with the first of it’s kind dual field of view (FOV).
High end display resolution – 1440×1080 AMOLED and shutterless technology.
Original price was: €2 700.00.€2 100.00Current price is: €2 100.00.
Out of stock
Email when stock available
Discover frequently bought together:
Description
The new ZOOM Thermal Core module incorporates InfiRay’s new Shutterless technology, nullifying the traditional shutter calibration to simplify operation, lower energy consumtion making the imaging quieter.
System functions:
- First of it’s kind dual field of view (FOV).
- The Infiray Zoom ZH50-V2 thermal imager is provided with the latest 12 micron thermal technology with 640×512 resolution and sub 25mK NETD sensitivity. With this new powerful sensor and image algorithm, the best possible image quality is observed.
- High end display resolution – 1440×1080 AMOLED and shutterless technology.
- Full Colour High Definition display, up to 16x magnification with the adjustable eyepiece
- Picture-in-Picture function
- 32Gb of built-in memory to store photos & video footage of all your outdoor experiences
- built in “Ultra Clear” mode – the Zoom ZH50-V2 is designed for use in the harshest weather providing a high quality image in all weather conditions. Ultra clear mode results in a more detailed field of view and enhanced object identification capabilities.
Download User Manual
| Detector | 640 x 512 /12um |
| Lens | 25/50mm |
| Detective range | 1298 m / 2596 m (meters) |
| NETD | ≤25mK |
| Frame rate | 50Hz |
| FOV | 23°x17.4° / 11.5°x8.7° |
| Objective Lens | 25/50mm |
| Laser pointer | No |
| Diopter compensation | -5 to +5 dpt |
| Optical zoom | Variable optical zoom (25mm to 50mm) |
| Electronic zoom | 1 – 4x |
| Battery life | ≥ 10h |
| Battery type | Li-on battery pack / 4400mAh / DC 3.7V |
| Display | 1440×1080 AMOLED |
| Storage | 32 GB |
| Recoil proof | No |
| Mounting options | Handheld |
| Weight | 650 g |
| Dimentsions | 190 x 65 x 61 mm |
| IP raiting | IP66 |
| Operating temperature | -20°C to + 50°C |
| Storge temperature | -20°C to + 50°C |
| Other characteristics |
|
