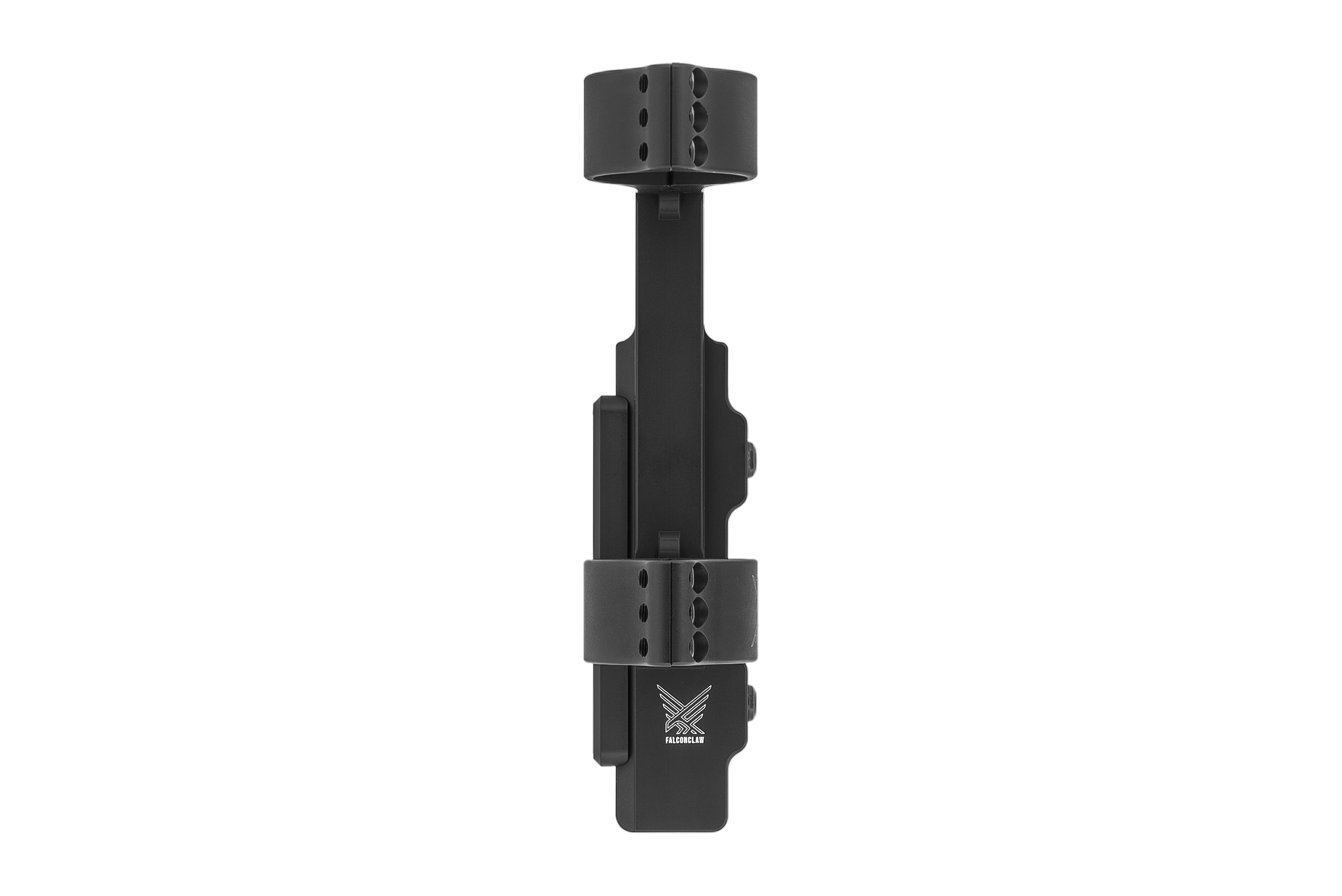

Falconclaw LPVO Mount
.%20Since%20there%20aren%E2%80%99t%20many%20LPVO%20rings%20t...
){kind=link}
Falconclaw Mounts
Minimum height, QDF-ready
Made because the right height did not exist
Why the LPVO Mount
LPVO users kept asking how to run a low optical height and still fit the Falconclaw QDF flip-to-side mount. Few rings sat at the right height, so Falconclaw machined a set that does. It sets the optical centerline at 1.7 in / 43.18 mm with a 4 mrad cant, aligning the PFN640+, Falcon 640+ V2 and RH25 thermals to the correct height. 7075-T6 aluminum with steel Helicoil thread inserts. Available for 30mm or 34mm tubes.
QDF-ready
Room for the flip mount
Machined low enough to run the Falconclaw QDF flip-to-side mount alongside your LPVO.
Correct height
Aligns your thermal
Sets the centerline to align the PFN640+ V1, Falcon 640+ V2, RH25 and RH25 V2 to the right height.
Build
Light and strong
7075-T6 aluminum throughout, with steel Helicoil inserts reinforcing every thread.
Precision
Torque-spec'd
A 4 mrad cant built in. Torque to spec: M4 1.8-2.0 Nm, lower M3 1.0 Nm, upper M3 0.9 Nm.
The numbers
Product Specs
Every order
What's in the Box
- Falconclaw LPVO rings (30mm or 34mm)
