InfiRay PFN 640+ Multi-functional Thermal monocular

4 296.00

Four functions in one camera: Handheld/CLIP-ON/Standalone/Helmet mountable. 640×512 50hz, 25mm objective, Detection Range 600-1070 meters

In stock

GTIN: N/A SKU: IRAY-PFN-640+ Categories: , , , ,


Meet PFalcon (EU) & Rico RH 25 (US) Series  , the Multi-functional thermal imager monocular. Handheld, helmet, clip-on, direct aim multi-purpose equipment, which is used for individual reconnaissance. Lighweight, small in size, easy to carry, and has the characteristics of long working time and good concealment.

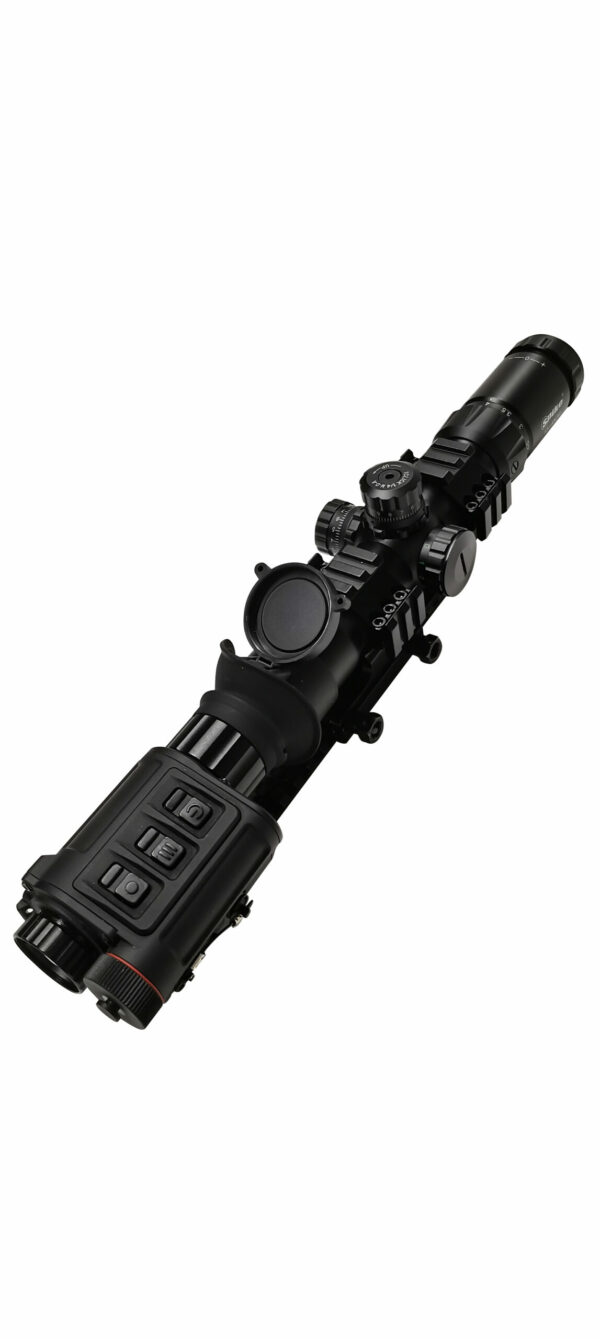

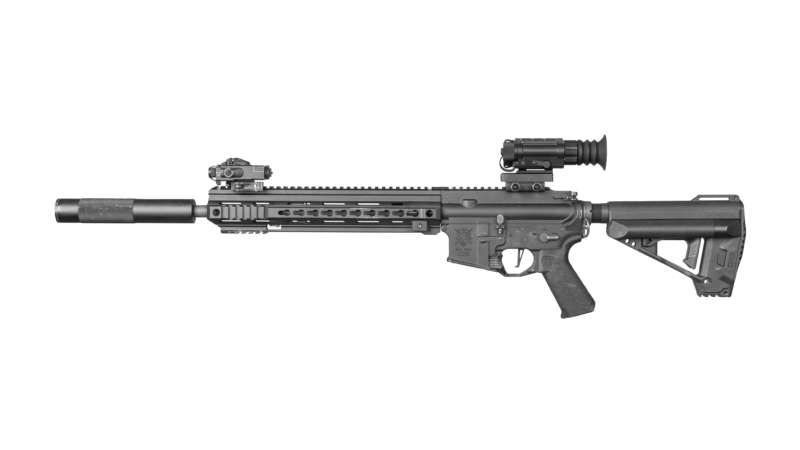

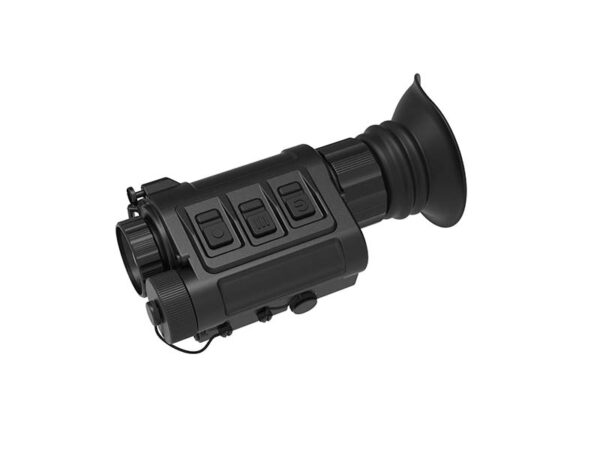

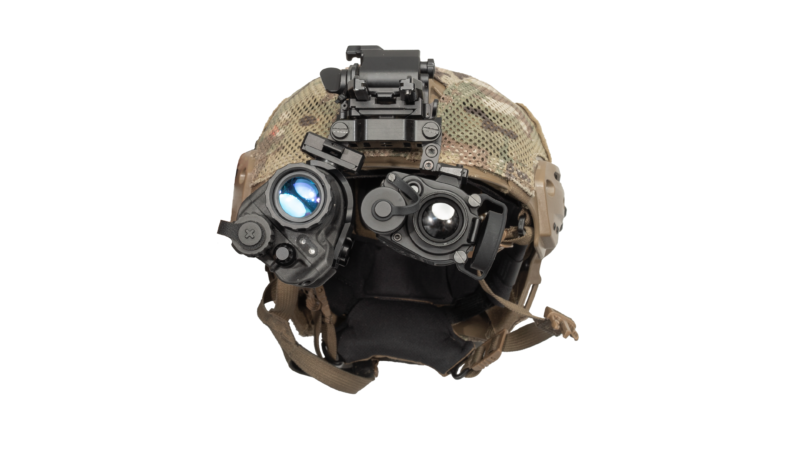

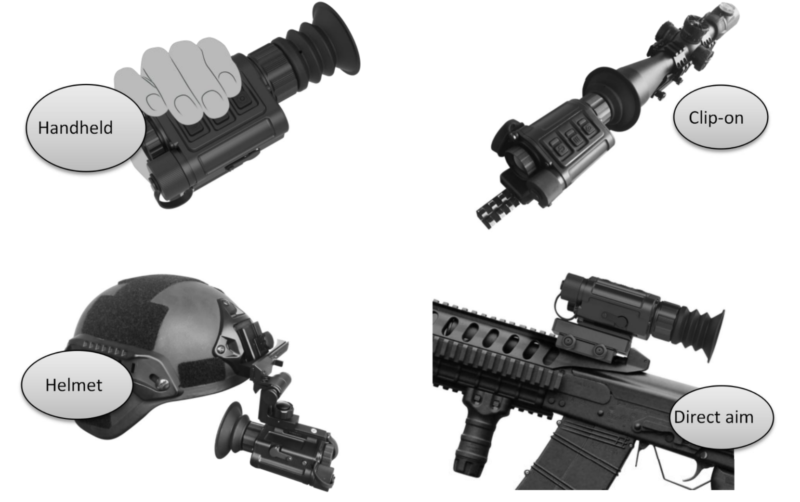

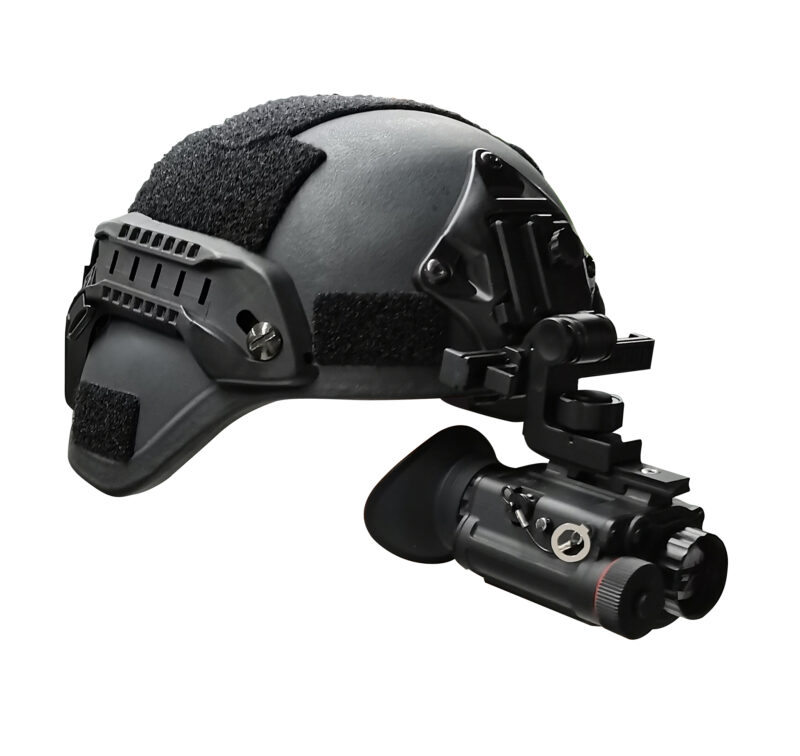

  • Support 4 modes of use: handheld, helmet, clip-on and direct aim;
  • High performance 12μm VOx detectors: provide clear images at night and in harsh weather conditions;

DISCLAIMER: By default the reticle is disabled on every PFN640+ unit. Unit can be still used as a hand-held monocular, but reticle function is not accessable. If your countries laws* allow using mounted thermal, the lock on reticle function can be lifted. Please contact Falconclaw for more guidance.

* Falconclaw can guide on how to remove the lock, but is not responsible for any restrictions you might have in your country. The buyer is responsible for underanding the law in his country.

The RH25 / PFN640+ is equipped with two lengths of battery cover, which can be adapted to batteries with two lengths of 65mm and 70mm.


Human recognition600m
Vehicle recognition1070m
Frame rate50Hz
Ocular Lens14
Laser pointerNo
Diopter compensation-4 to +4 dpt
Optical zoom1x
Electonic zoom1 – 4x
Battery life≥ 4h
Battery type1x 18650 (Rechargeable battery)
Display1024×768 AMOLED
Storage64 GB
Recoil proofYes
Mounting optionsHandheld, helmet, clip-on, direct aim
Weight355 g
Dimensions105 x 65 x 48 mm
IP raitingIP67
Operating temperature-40°C to + 55°C
Storge temperature-55°C to + 70°C
Other characteristics
  • Wi-Fi program update, transfer files;
  • Up to 1600 images and 40 hours of video on 64G internal memory;
  • 3 types of calibration presets, support custom calibration distance;
  • The vibration absorbing bracket is connected to absorb shock vibration, and the image is more stable;

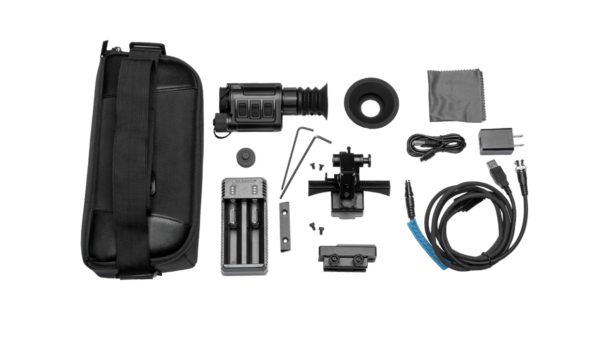

Included accessories
  • Soft carry-on bag
  • Eye-cup (2 – one picatinny mount, other for helmet mount & as clip-on)
  • Helmet mount (minirail)
  • Charging and data transfer cables
  • USB Power adapter (USA)
  • Battery charger
  • Battery cap for 18650 & 18700
  •  Picatinny mount
  • Connector between PFalcon and helmet mount
  • Microfiber cloth
  • Tool kit
  • Screws (blunt tip for helmet mount / triangle tip for picatinny mount)

Additional information

Weight 2.088 kg
