Description

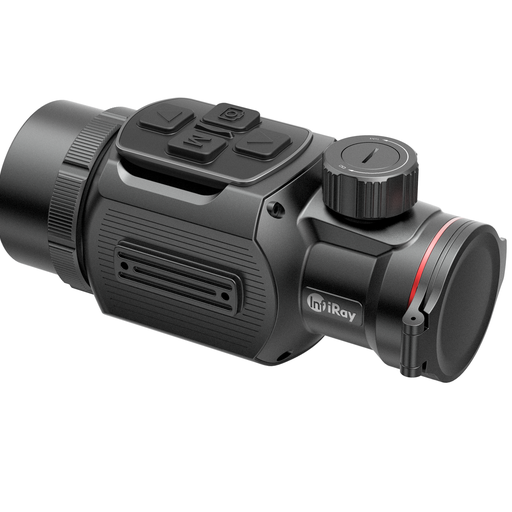

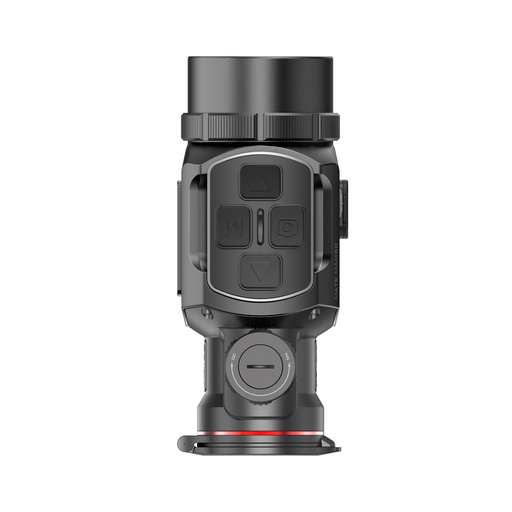

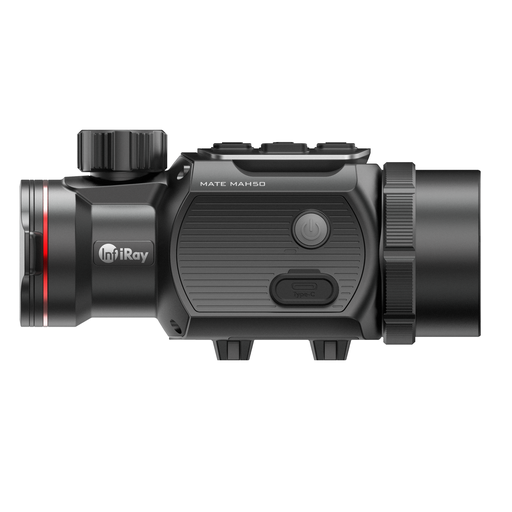

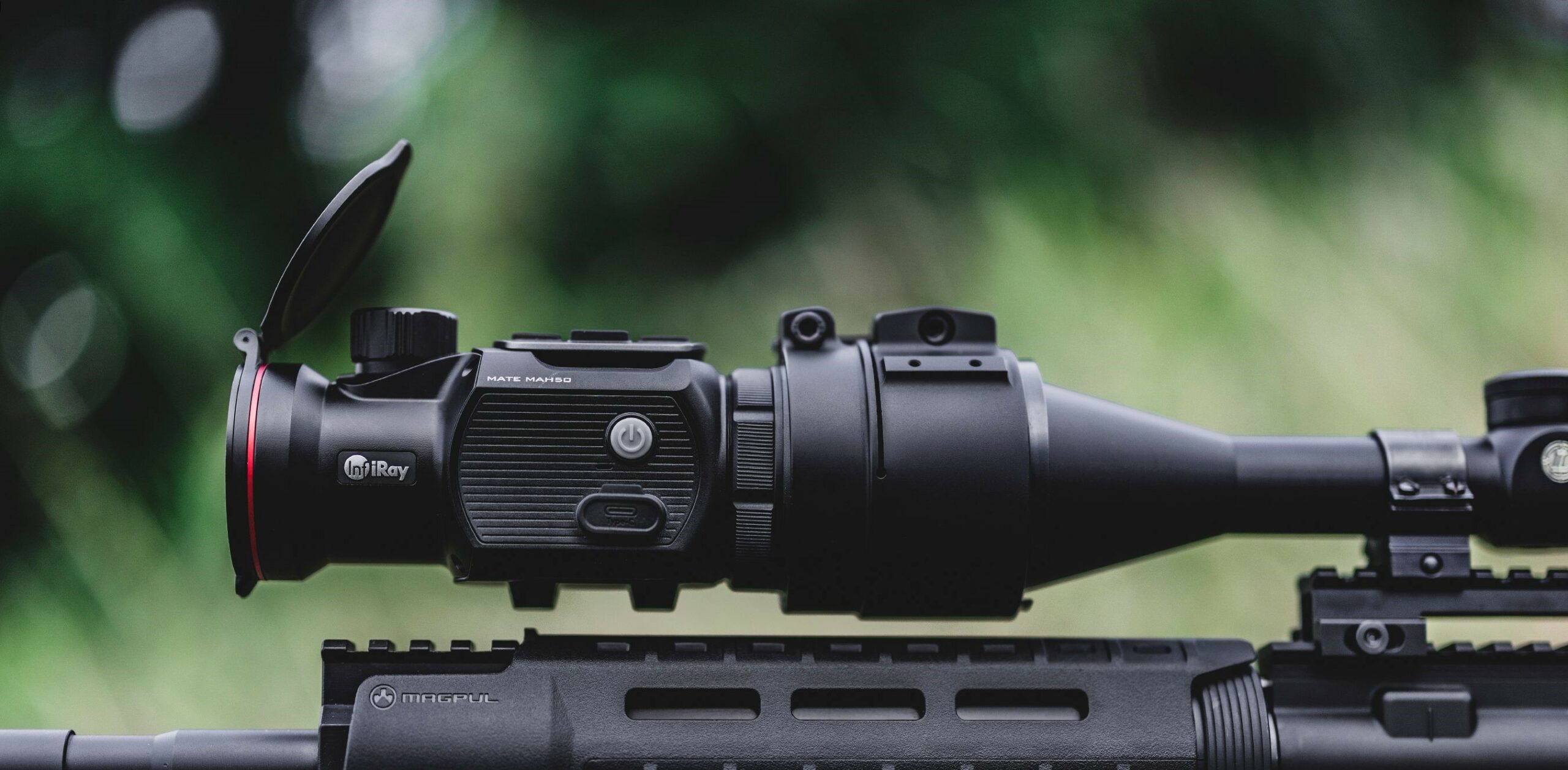

The Mate Series is designed as an attachment for any type of the standard day sight. NO REZEROING is needed just CLAMP & SHOOT.
It combines and incorporates features from InfiRay’s years of experience in clip-on development. The device offers ultra-precise adjustability in the X and Y axis and score a guaranteed value of 1 MOA in terms of accuracy, surpassing all previous devices from the manufacturer.
The magnesium alloy housing reduces the weight by up to 50% from previous thermal attachments.
System functions:
- 384*288, 12μm detector with NETD less than 30mk
- Sense-based algorithms improve image quality by setting suitable preset parameters based on different environments, forest, plain, and city
- A high-quality optical imaging system offers a distortion-free image with up to 8 times power daytime scope.
- High contrast OLED display with HD resolution offers crisp images and vivid colors.
- MAL38 meets the high-precision requirement of “POI=1MOA” even by matching it with high-caliber rifles
- Removable buttons acting as a remote can be fixed near the trigger or any place of shooters liking.
| Detector | 384 x 288 /12um |

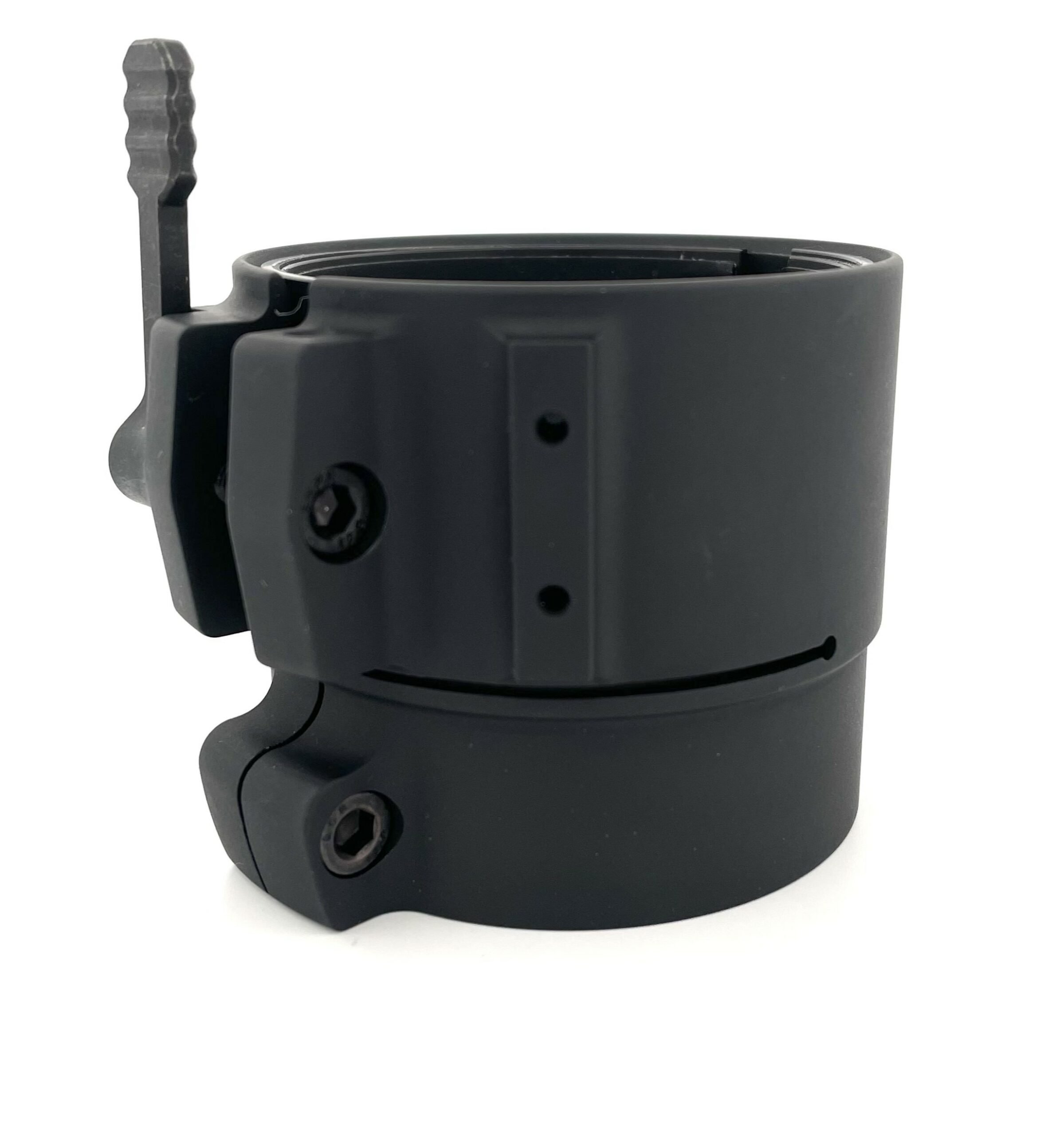

| Adapter Ring | M52x0.75 |
| Human recognition | 1948 m |
| Frame Rate, HZ | 50 |
| NETD | ≤30mK |
| Frame rate | 50Hz |
| FOV | 8.8°x7° |
| Objective Lens | 38mm |
| Laser pointer | No |
| Diopter compensation | N/A |
| Optical zoom | 1x |
| Electonic zoom | 1 – 4x |
| Battery life | 5h +7.5h |
| Battery type | Built-in Battery + Infiray Battery Pack |
| Display | 1024×768 OLED |
| Storage | 32GB |
| Recoil proof | Yes, 8000J |
| Mounting options | Handheld, scope-mounted |
| Weight | 530 g |
| Dimensions | 138 x 62 x 71 mm |
| IP rating | IP67 |
| Operating temperature | -10°C to + 50°C |
| Storge temperature | -10°C to + 50°C |
| Other characteristics |
|
