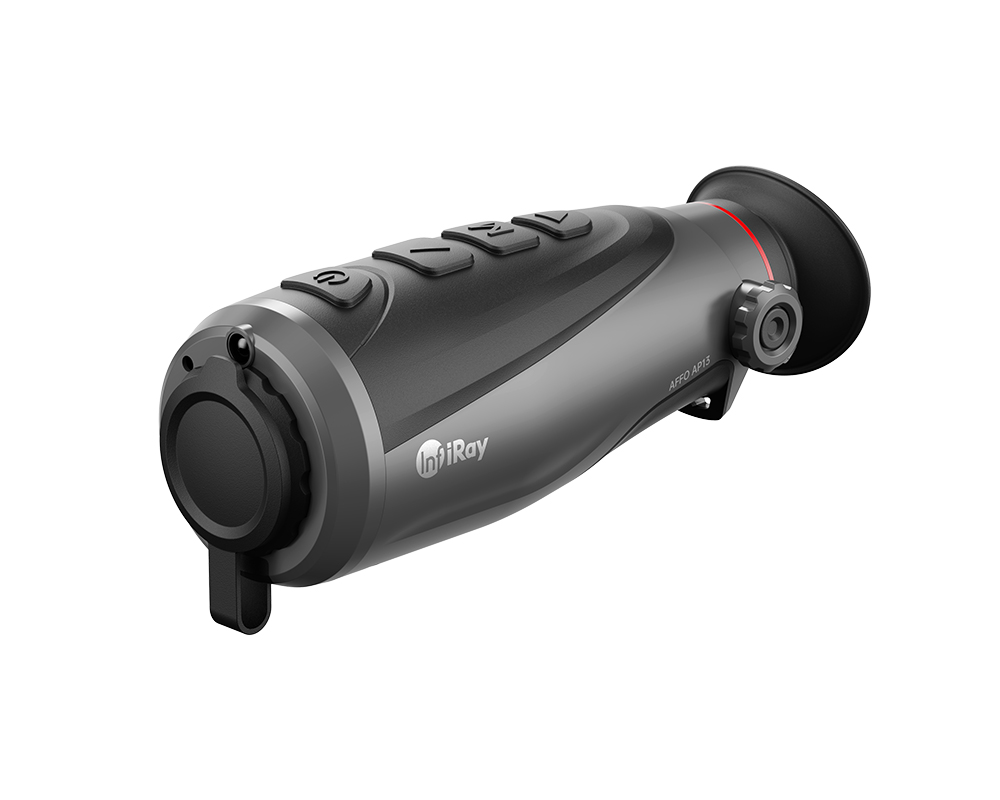

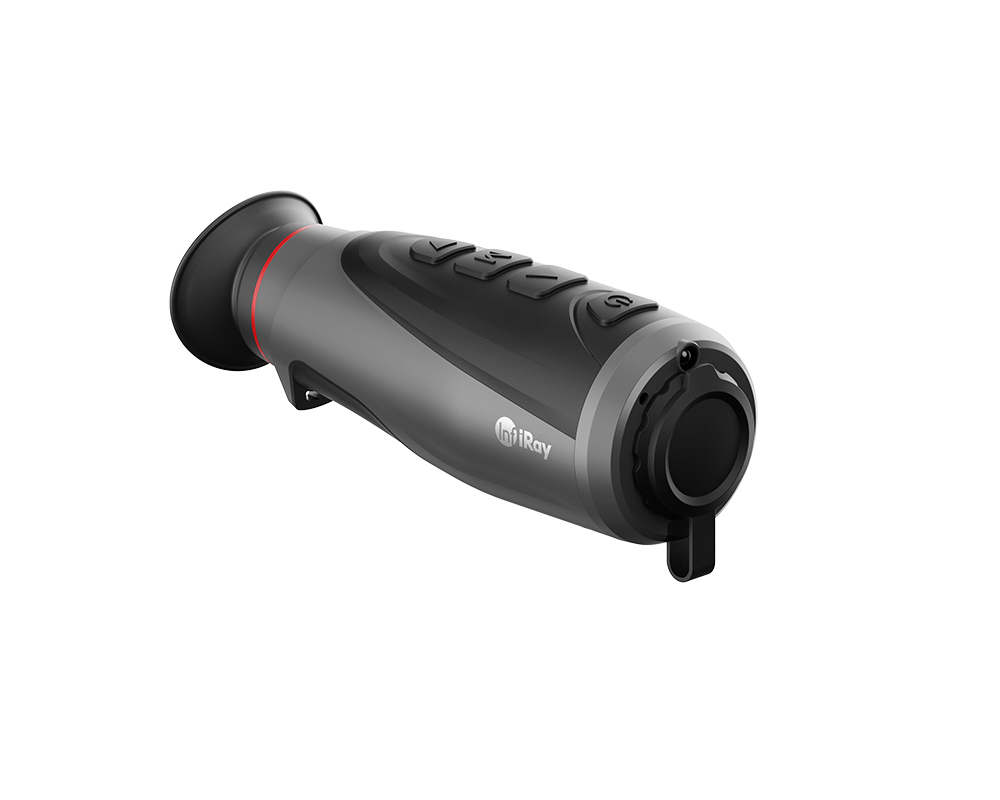

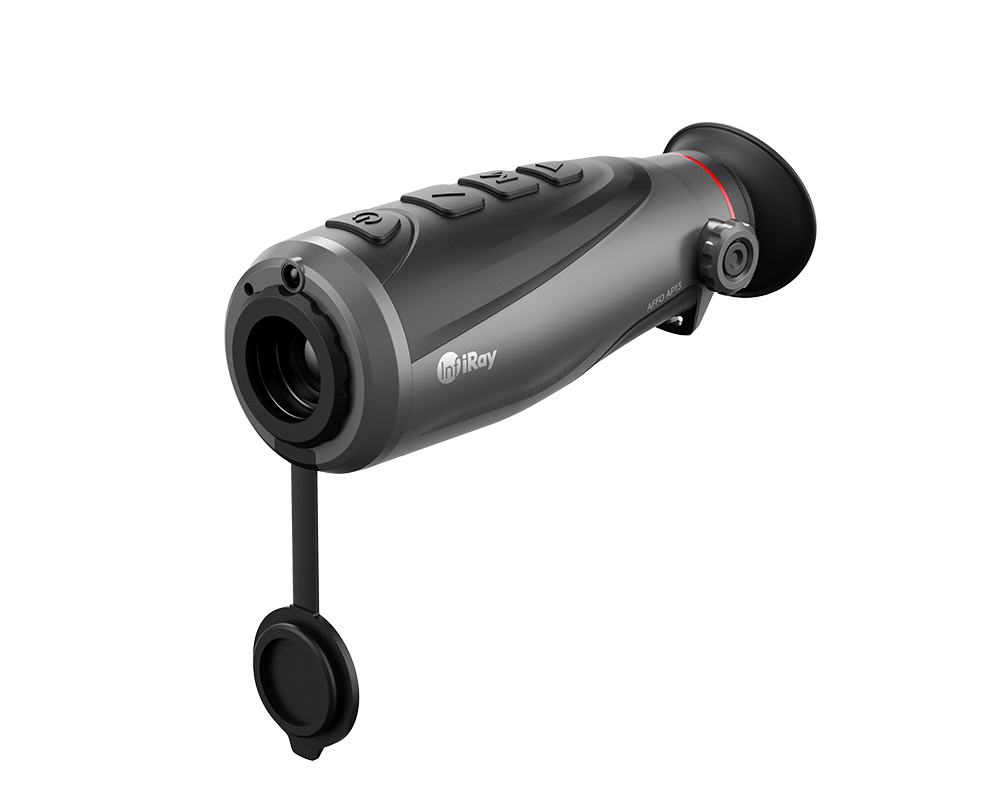

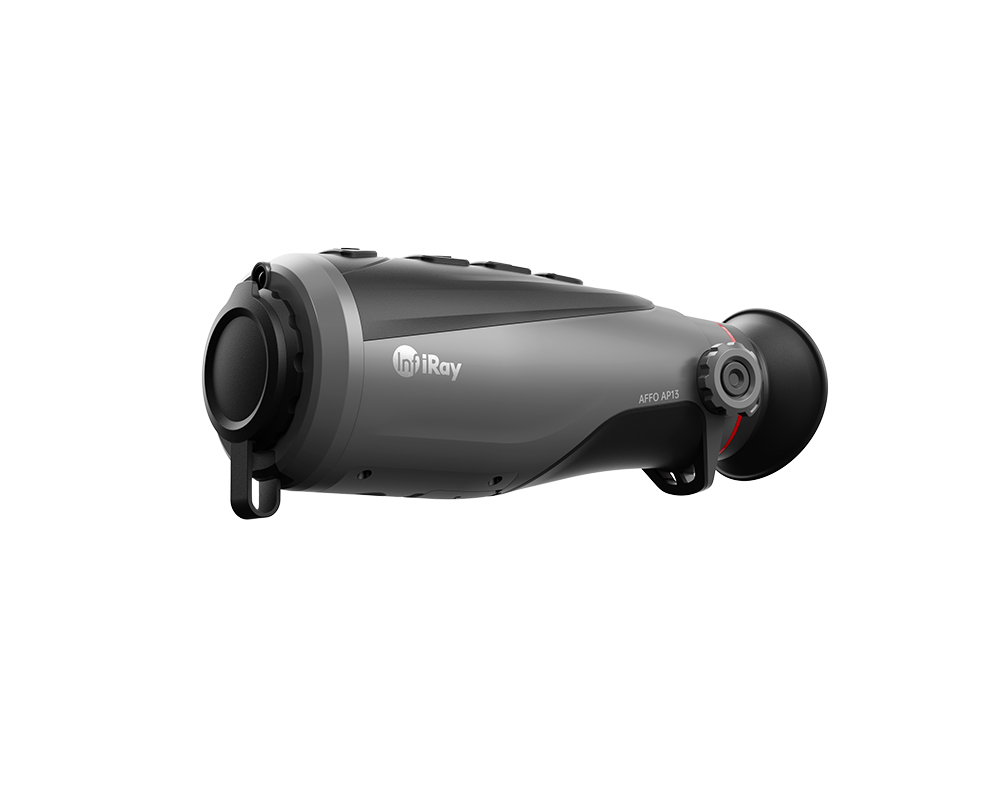

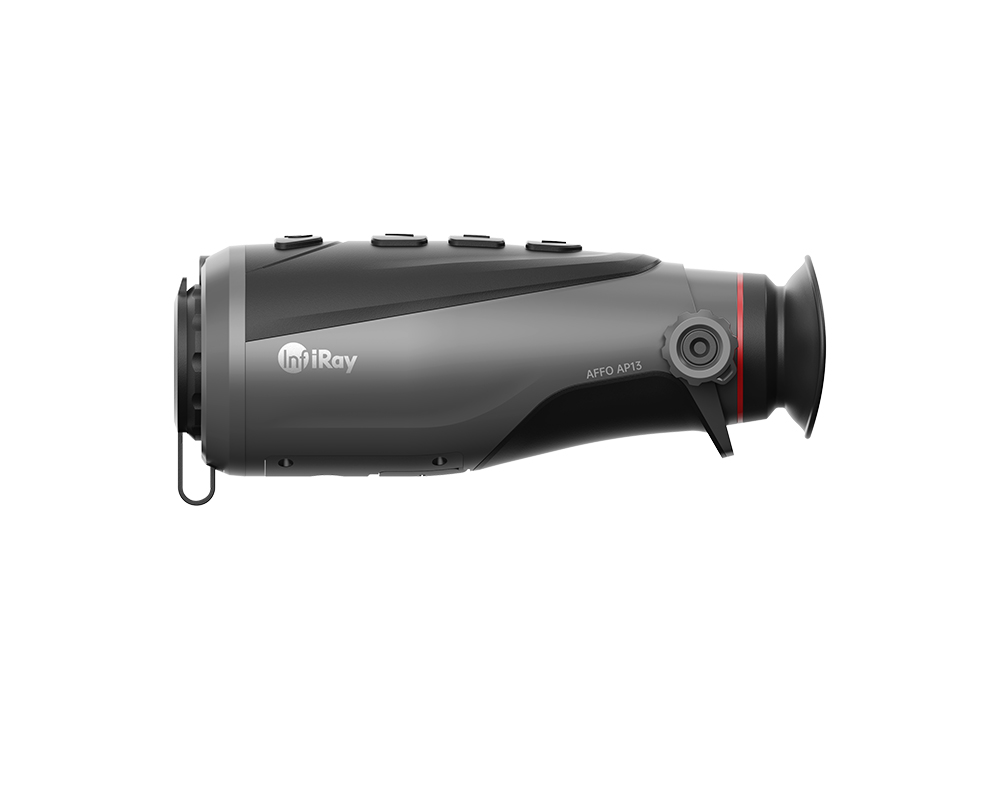

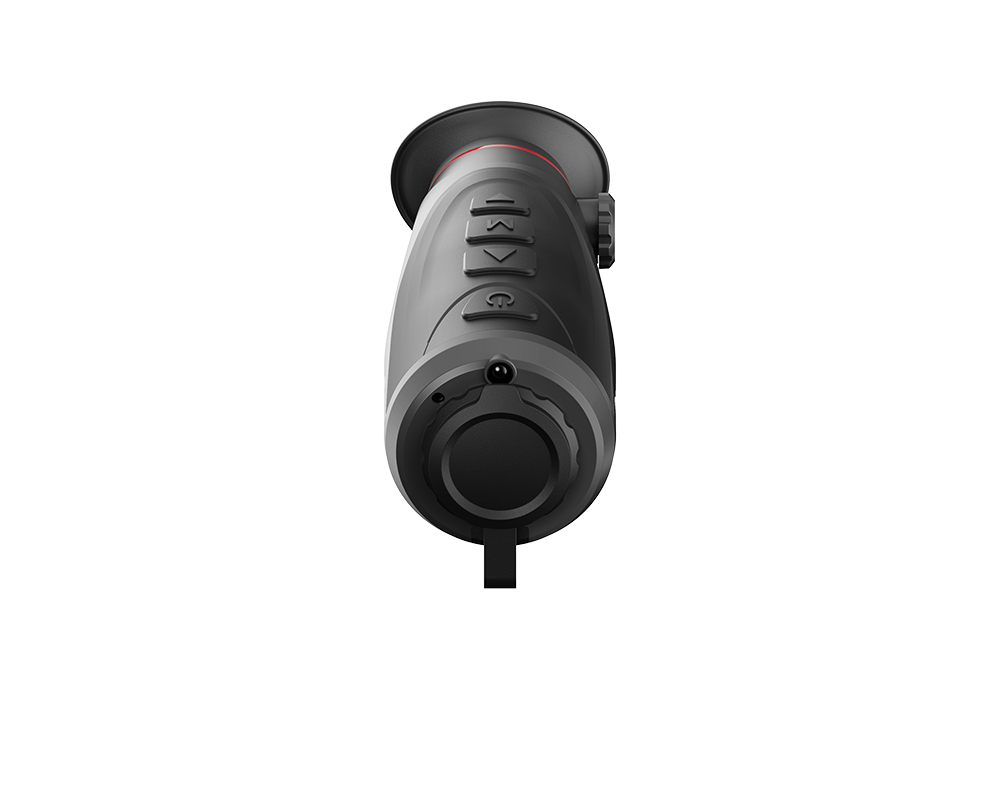

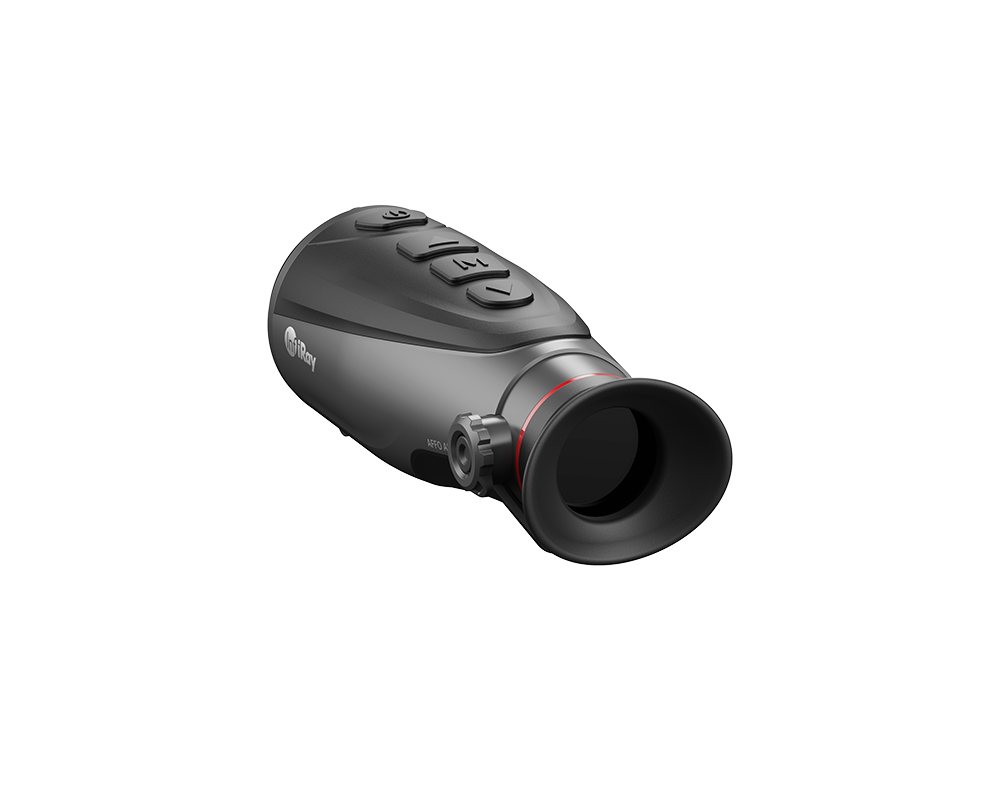

InfiRay AP13


AP13 adopts a self-developed 12μm sensor at 256×192 resolution with an 13mm objective lens. The device supports picture taking and video recording function. built-in 32GB storage capacity.

In stock

GTIN: N/A SKU: IRAY-AP13 Categories: ,


The AFFO series thermal imaging monocular is a versatile device designed for outdoor use. It works effectively during both day and night, as well as in challenging weather conditions like rain, snow, fog, and haze. It operates without relying on external light sources and enables observation of concealed targets behind obstacles such as branches, grass, and shrubs. This compact and lightweight monocular offers convenient single-hand operation, comfortable use, and a wide range of functions.

  • 12μm detector
  • Lightweight and compact
  • Bang for buck
Human recognition400m
Vehicle recognition600m
Frame rate25Hz
Laser pointerNo
Diopter compensation-3 to +1 dpt
Optical zoom1x
Electronic zoom1 – 2x
Battery life≥ 9h
Battery typeBuilt-in li-ion battery/3.6Ah/3.6V
Display720×540 LCOS
Storage32 GB
Recoil proofNo
Mounting optionsHandheld
Weight340 g
IP raitingIP67
Operating temperature-10°C to + 50°C
Storge temperature-10°C to + 50°C
Other characteristics
  • Wi-Fi program update, transfer files;
  • Up to 800 images and 20 hours of video on 32GB internal memory;
Included accessories
  • AFFO AP13
  • Drawstring Bag
  • Neck strap
  • Charging and data transfer cable
  • USB Power adapters
  • Microfiber cloth
  • User manual
