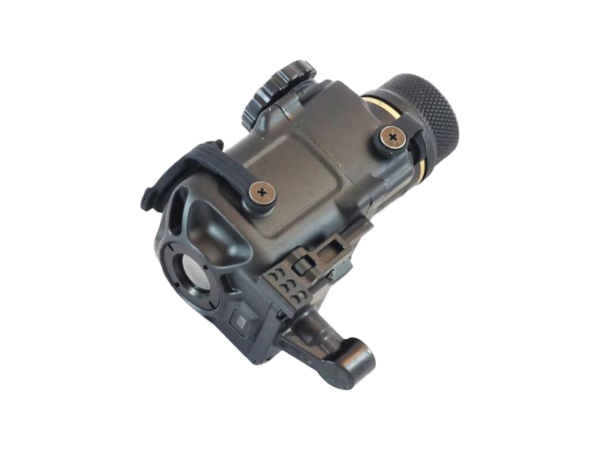

Infiray Jerry C5 Clip-On-Thermal Imager

3 750.00

640×512, 12um VOx, 11.52mm lens supports CR123 & 18650 battery.

Out of stock

Email when stock available

GTIN: N/A SKU: IRAY-C5 Categories: ,


To make up for the limited performance of the low light level and low illumination night vision devices under the extreme environment

Jerry-C is a thermal imaging enhancement attachment designed for the rapid upgrade, front-fusion, and multi-mode display of equipment in service. It can enhance the
user’s night perception ability to ensure the absolute tactical advantages to priorly identify the potential enemies.

This model has extrernal battery back that takes 2x 18650 rechargable batteries.

System functions:

  • Image calibration: Background calibration/Shutter calibratiom
  • Image brightness/contrast adjustment
  • Threshold Adjustment
  • Menu rollover

Low light mode

Highlight mode

Outline Mode

Detector 640 x 512 /12um
Lens f25mm
Human recognition 1088m
Vehicle recognition 1472 m
NETD ≤60mK
Frame rate N/A
FOV 30.5°
Objective Lens
Laser pointer No
Diopter compensation N/A
Optical zoom 1x
Electonic zoom N/A
Battery life ≥
Battery type1 x 18650 battery
Display Supported modes: Whit hot/Highlight/Outline
Storage N/A
Recoil proof No
Mounting options Clip-on: NVD mounted
Weight 110 g
IP raiting IP67
Operating temperature -40°C to + 60°C
Storge temperature -40°C to + 60°C
Other characteristics
  • Shuttered and brightness calibration
  • Fusion display, fast recognition

NOTE! Originally C5 does not include external battery pack, but it supports it. If you want to connect battery pack, keep in mind – battery pack supports the battery length of 64~66mm, flat head. If the battery is longer than 66mm, the battery cap could not cover enough.

Included in the package

Jerry C5

Hard Case

Battery Cap Extender
