FC-BR 1800+ ECHO White Phosphor
Tax included.
SETUP
HELMET MOUNT
No helmet mount
€0,00
Wilcox G24 Breakaway Dovetail Mountthe premium breakaway mount
€775,00€697,50
UDAPT F25 Low Profile Helmet Mountthe UDAPT F25 mount we recommend for the FC-BR
€434,00€347,20
A4 LWNVM - Light Weight Night Vision Mountthe lighter budget mount
€186,00€148,80
HELMET MOUNT
No helmet mount
€0,00
Wilcox G24 Breakaway Dovetail Mountthe premium breakaway mount
€775,00€697,50
UDAPT F25 Low Profile Helmet Mountthe UDAPT F25 mount we recommend
€434,00€347,20
A4 LWNVM - Light Weight Night Vision Mountthe lighter budget mount
€186,00€148,80
THERMAL
No thermal
€0,00
FTO Falconclaw Thermal Overlay 640 (COTI)fits the FC-BR
€3.899,80€3.509,82
PROTECTION
No protection
€0,00
Infinity Iris V2.5 - PVS-14 / DTNVS×2not compatible with FTO - the FC-BR has two objectives, so the pair ships as standard
+€493,52
Own warehouse in Estonia. Orders out within 2-3 business days.
FC-BR 1800+ ECHO White Phosphor
Sale price€12.375,20 EUR

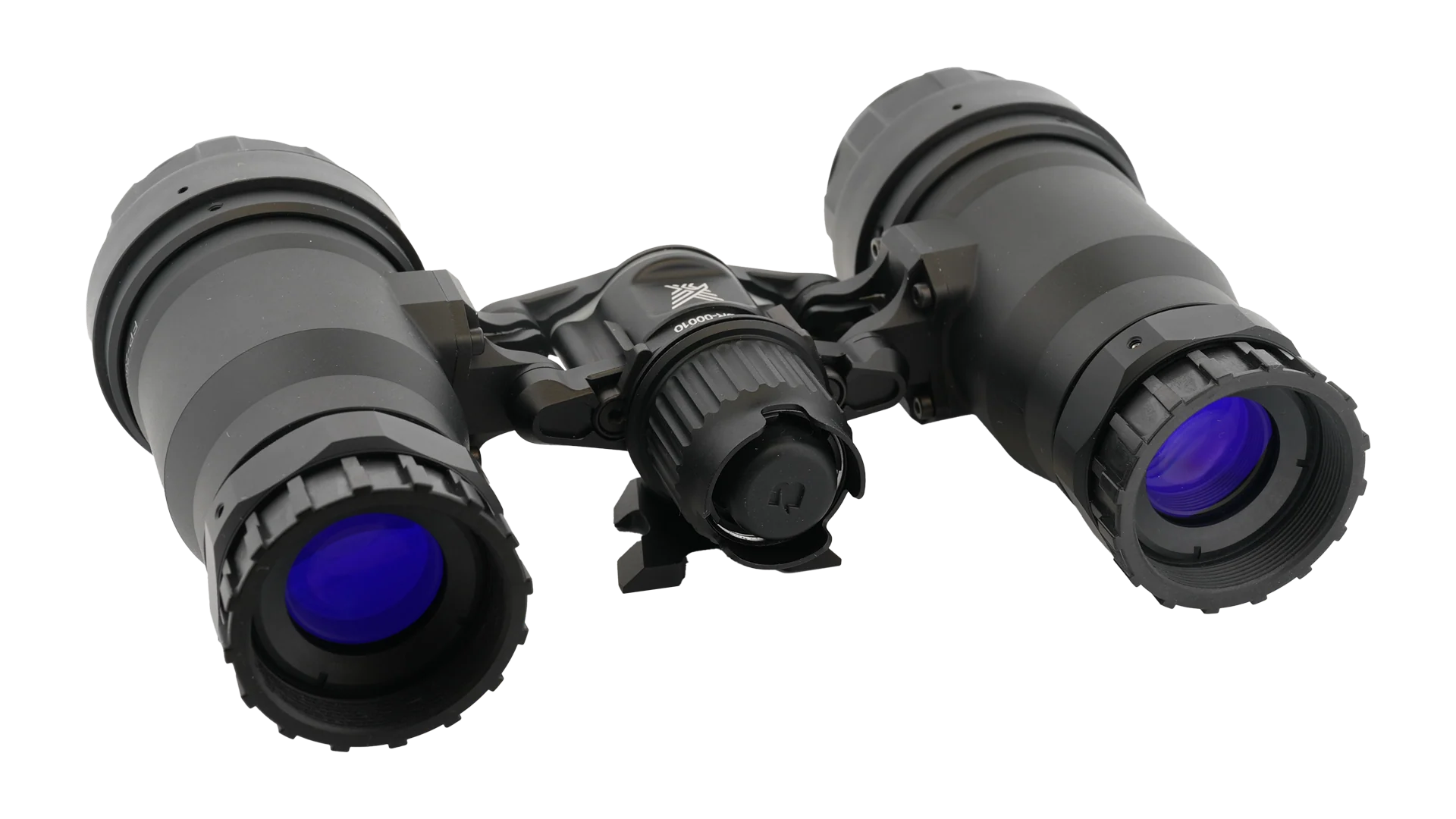

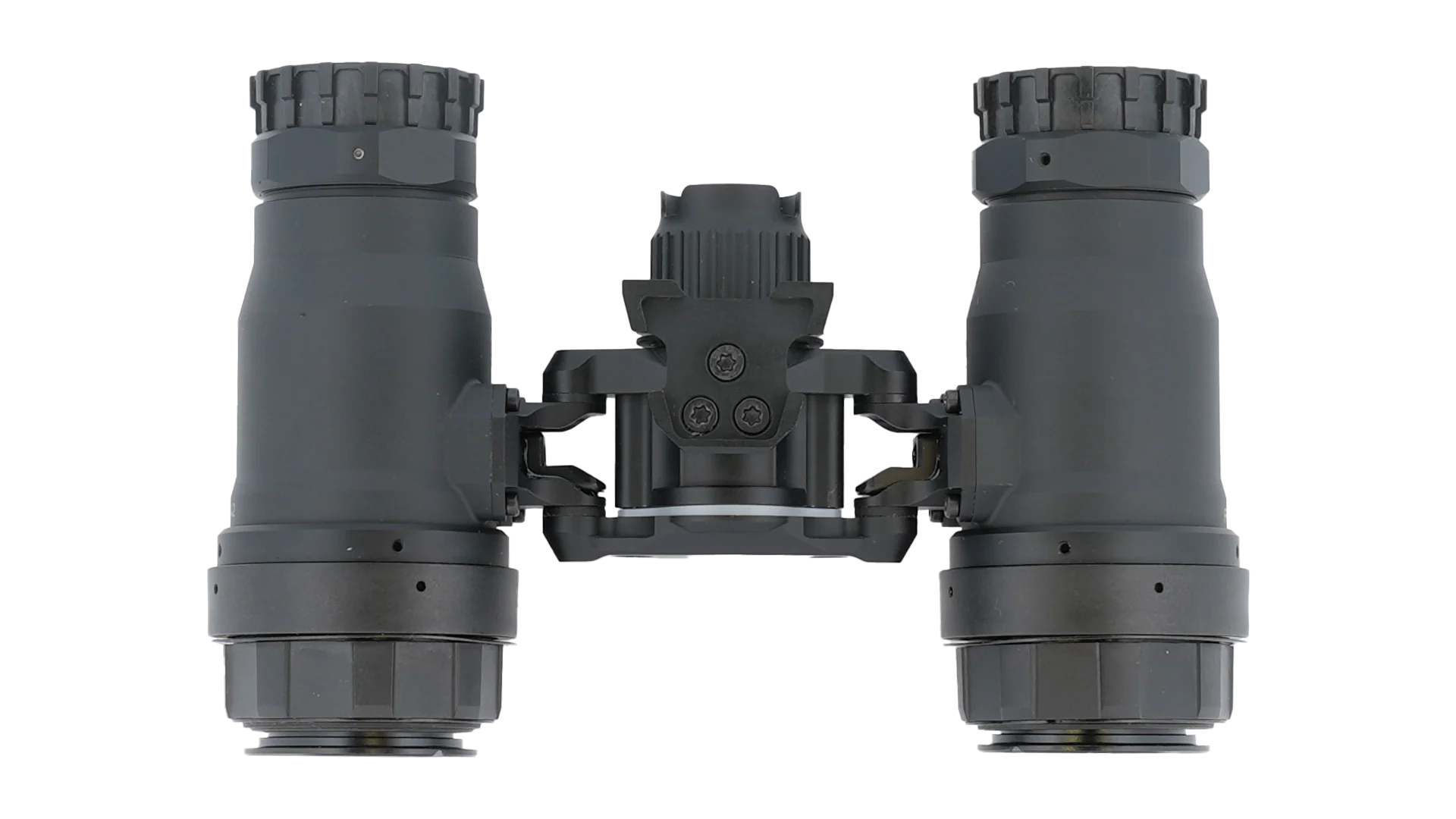

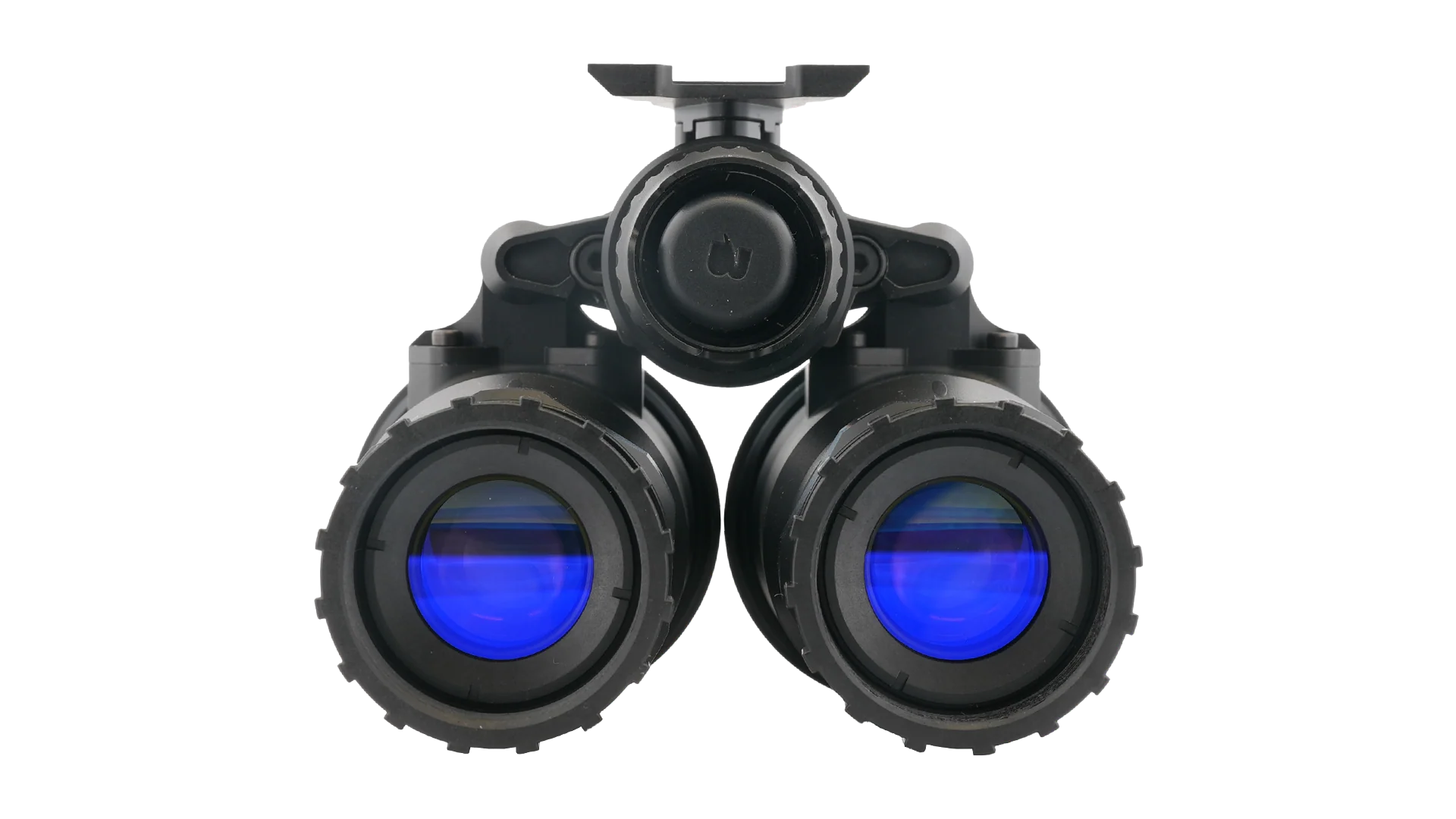

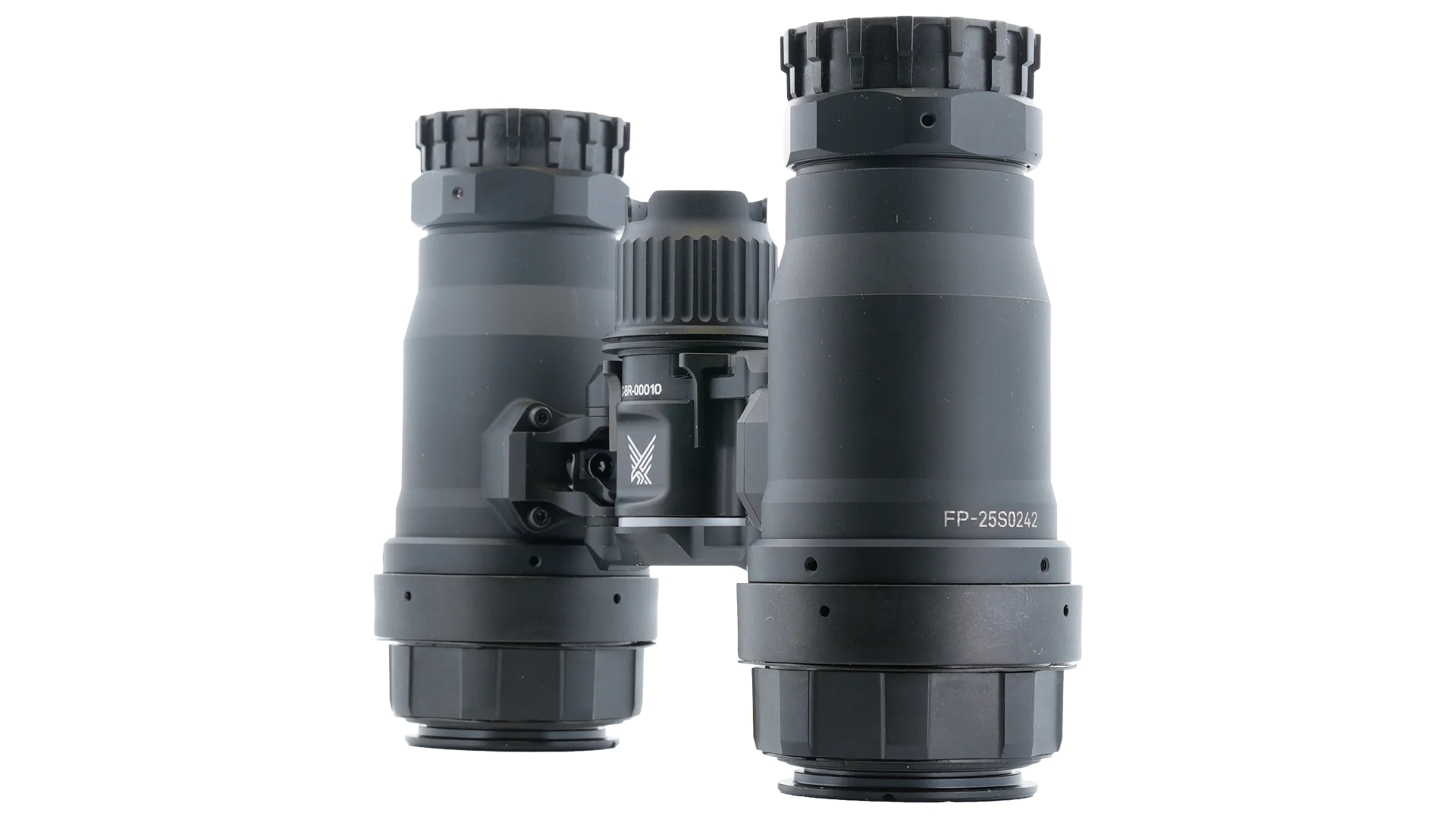

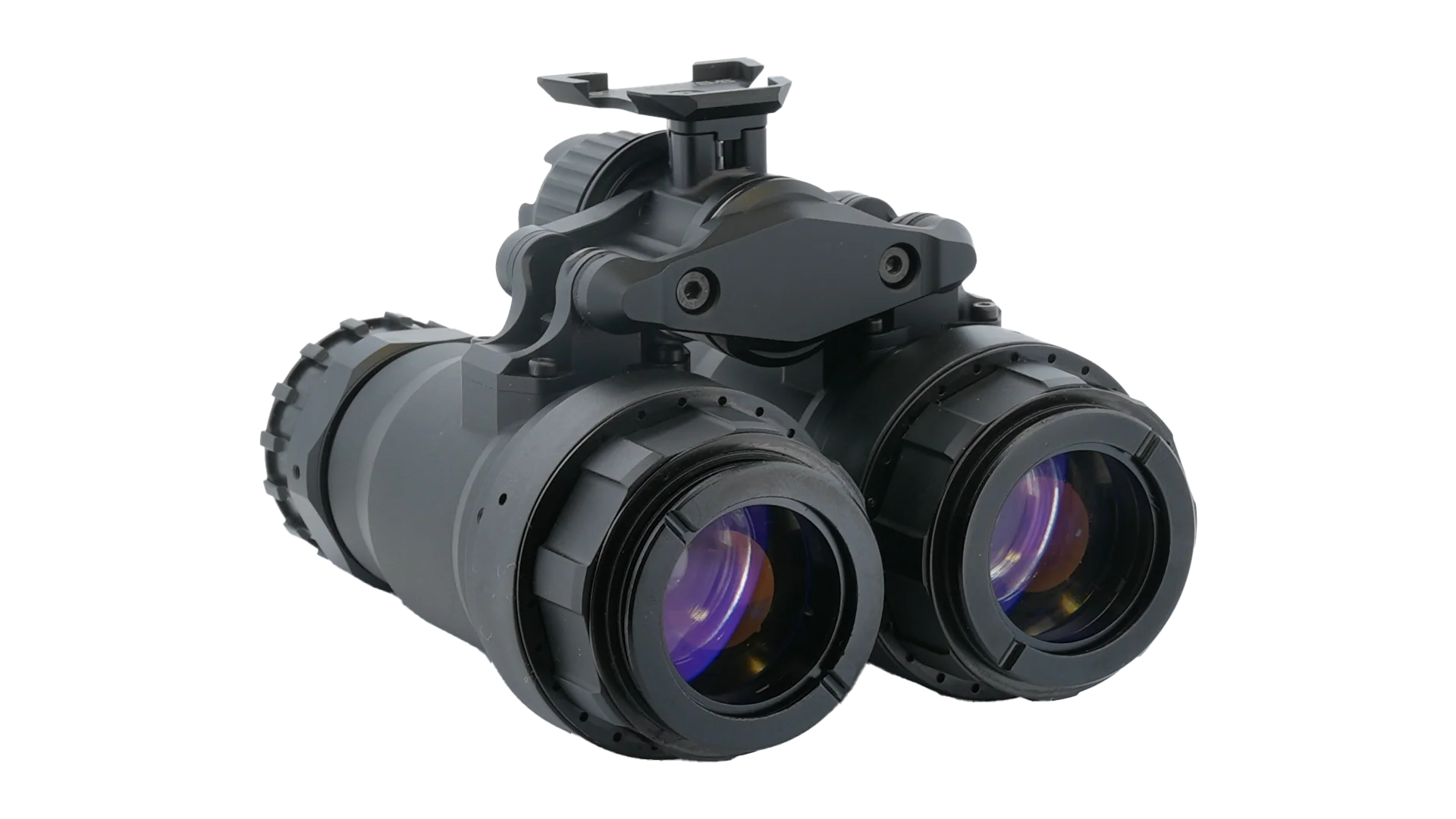

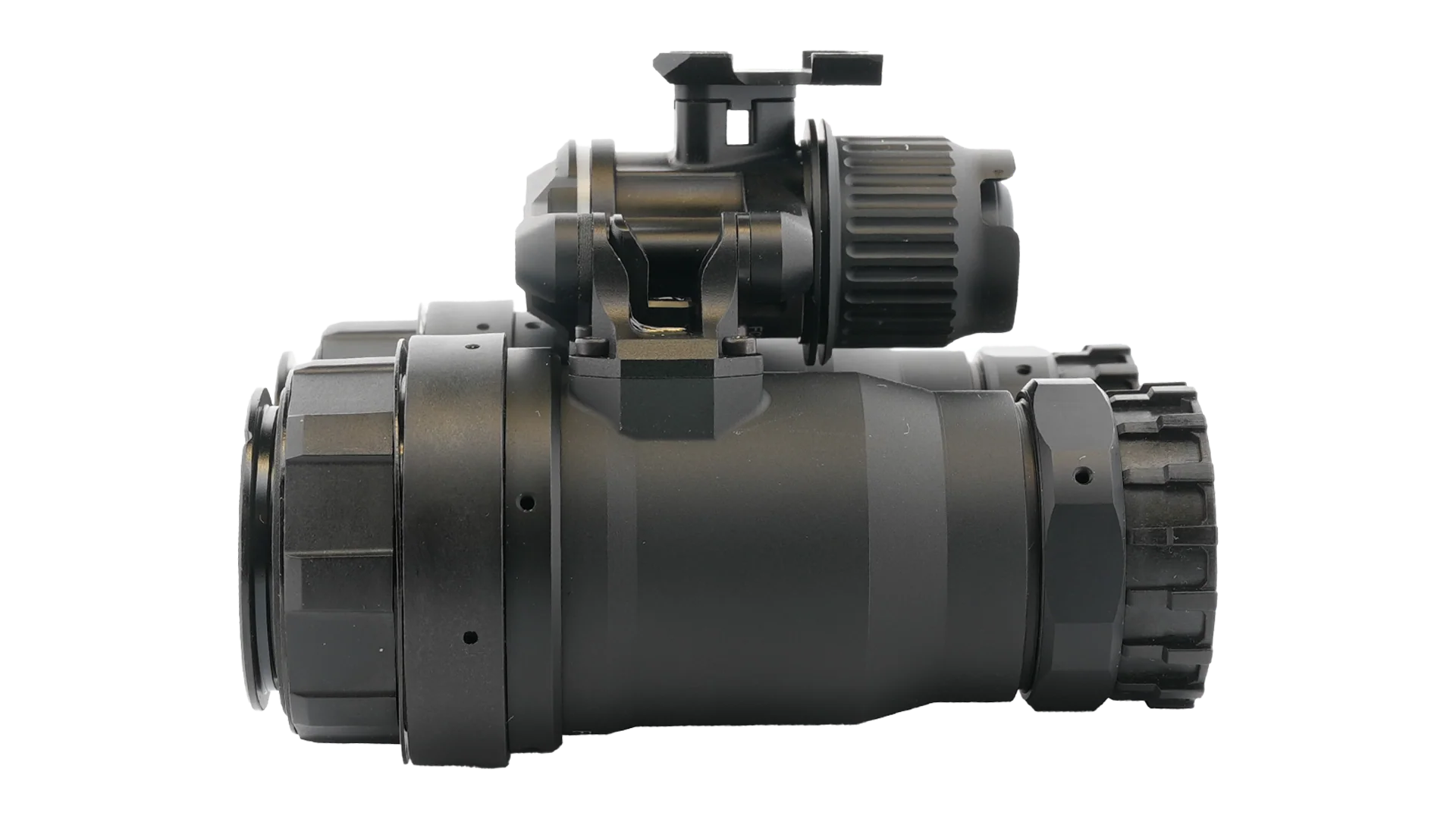

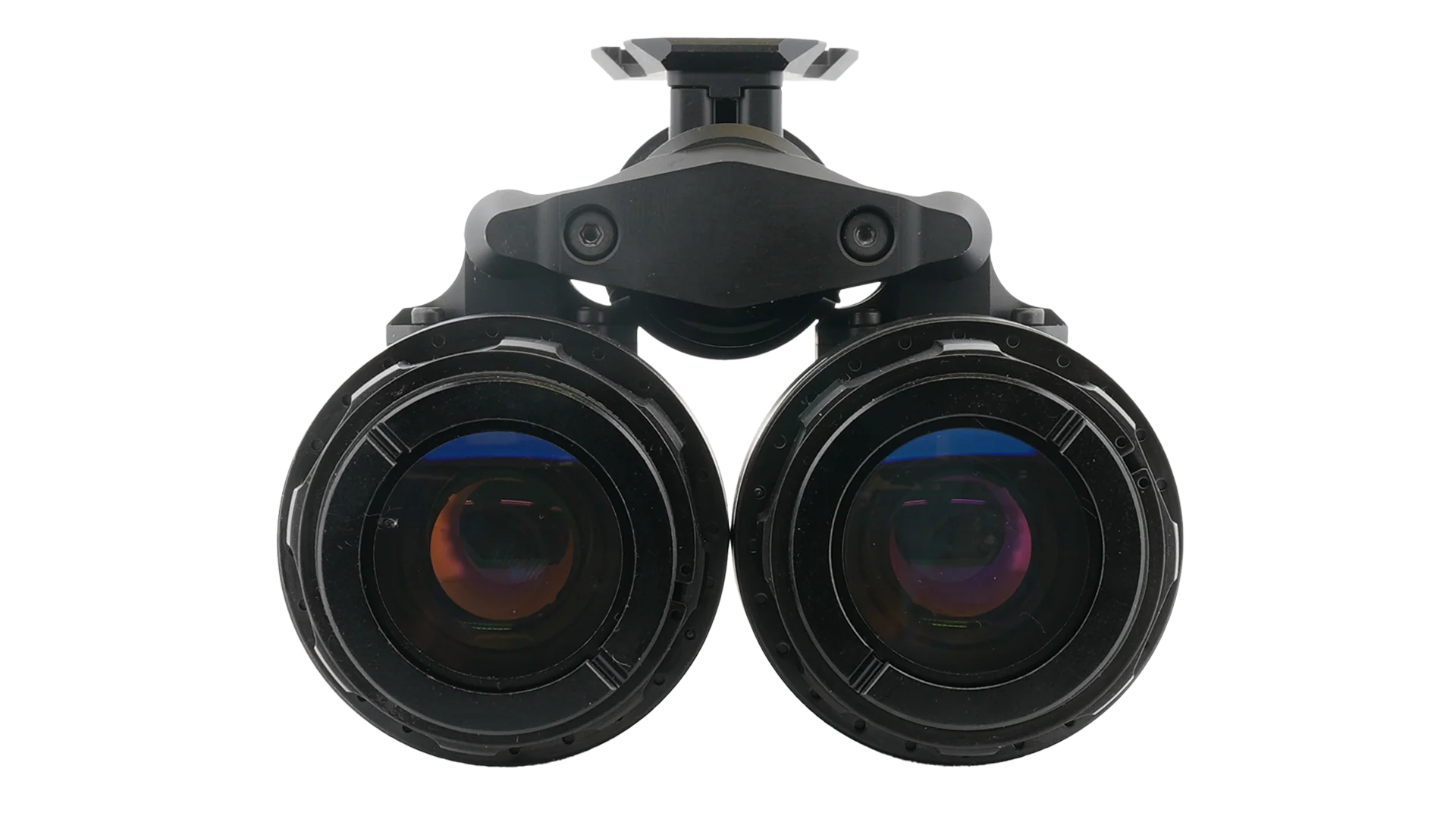

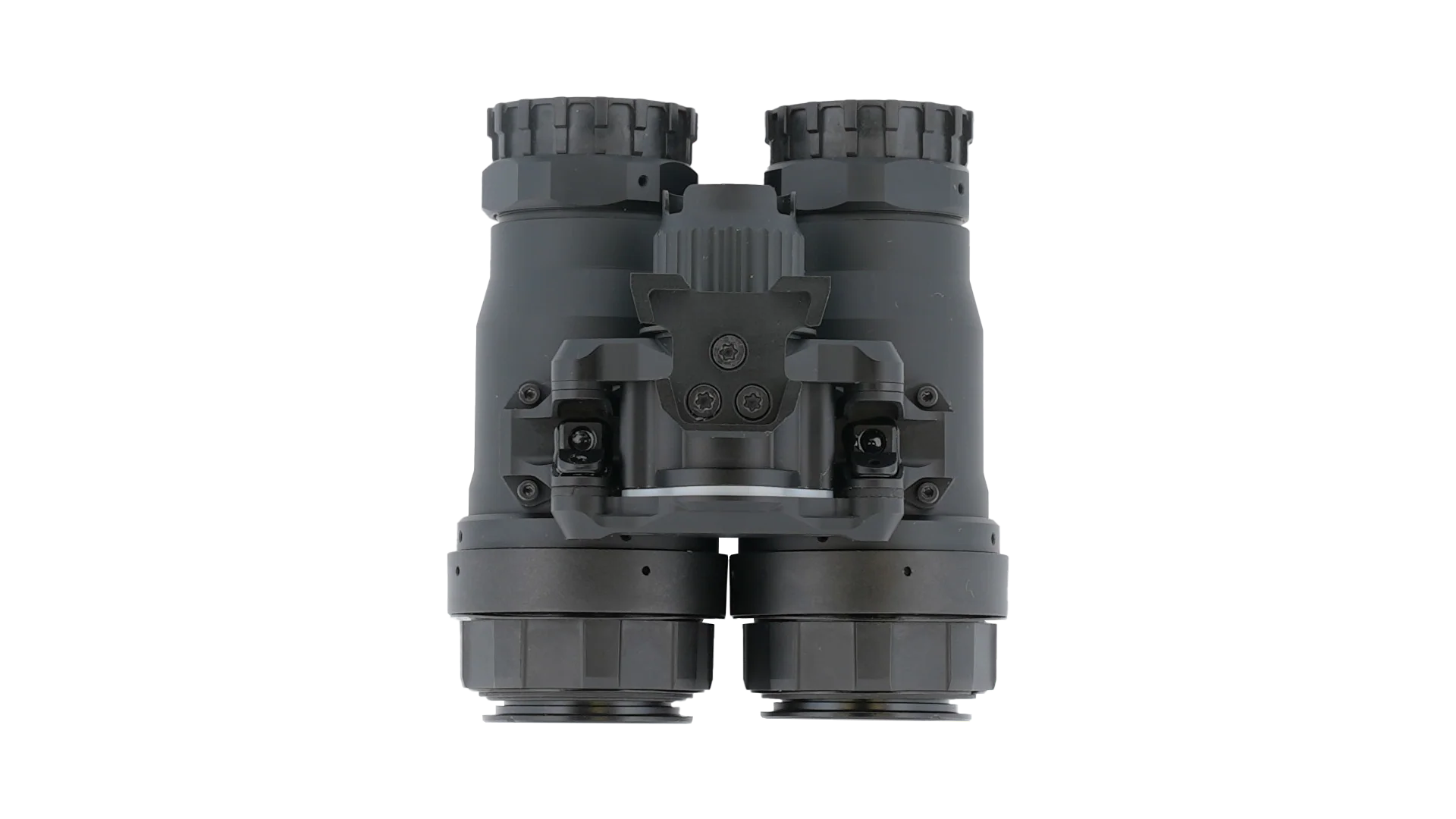

Falconclaw - FC-BR 1800+ ECHO
Both eyes open
A dual-tube white-phosphor binocular on autogated Photonis Echo tubes at 1800+ FOM. Aerospace-grade 7075 aluminum, around 470 g, with each eye looking through its own intensifier - so you keep depth perception and stereo vision in full dark.
Built for the field
Why the FC-BR
A binocular, not a monocular. Two independent pods, each on its own Photonis Echo white-phosphor tube, so depth perception and stereo vision hold up in the dark. Aerospace-grade 7075 aluminum housing, individual pod shut-off, autogated tubes.
Dual-tube binocular
Two independent intensifier pods, one per eye. Stereo night vision with real depth perception, not a flat single-tube image.
7075 aluminum housing
Aerospace-grade 7075 aluminum body. Around 470 g, 83 x 104 x 104 mm, built to take a knock.
Individual pod shut-off
Rotate a pod 90 degrees and it powers off on its own. Run one eye to save the tube and your dark adaptation.
Auto-gating
Autogated tubes, so there is no manual gain to adjust when light levels jump.
1800+
Tube FOMPhotonis Echo P45
40°
Field of viewtrue, 1x magnification
470 g
Weight7075 aluminum housing
1 x
Magnificationtrue 1:1 view
The numbers
Product Specs
Tube & Image
TubePhotonis Echo · P45 White Phosphor
Tube FOM1800+
AutogatingYes
Distortion< 1%
HaloSmall - Photonis class
Optics & Sensor
Magnification1x
True Field of View40°
Close Focus Limit0.25 m to ∞
Diopter Compensation-6 to +2 dpt
Performance
Infrared IlluminatorNo
Individual pod shut-offYes
Power & Battery
Power Supply1x CR123 onboard
Build & Durability
Finish7075 Aluminum
Dimensions83H x 104W x 104L mm
Weight470 g
Build your kit
Compatibility
Build it as a kit: up to -20% on mounts and bridges, -10% on a second optic. Applied in cart automatically. 3 ways to run it - pick your setup.
STANDALONE
View setup
Selected
Your STANDALONE build
What you need for this setup
The FC-BR on the helmet via a UDAPT F25 mount. Passive, lightweight, binocular depth out of the box.
UDAPT
UDAPT F25 Low Profile Helmet Mount
Sale price€434,00 EUR
€434,00
€347,20
Wilcox
Wilcox G24 Breakaway Dovetail Mount
Sale price€775,00 EUR
€775,00
€697,50
Argus
A4 LWNVM - Light Weight Night Vision Mount
Sale price€186,00 EUR
€186,00
€148,80
THERMAL OVERLAY - COTI
View setup
Selected
Your THERMAL OVERLAY - COTI build
What you need for this setup
Clip the FTO 640 thermal overlay onto the FC-BR to fuse heat detection over the night-vision image. Spot warm targets the tubes alone miss.
Falconclaw
FTO Falconclaw Thermal Overlay 640 (COTI)
Sale price€3.899,80 EUR
€3.899,80
€3.509,82
UDAPT
UDAPT F25 Low Profile Helmet Mount
Sale price€434,00 EUR
€434,00
€347,20
Wilcox
Wilcox G24 Breakaway Dovetail Mount
Sale price€775,00 EUR
€775,00
€697,50
Argus
A4 LWNVM - Light Weight Night Vision Mount
Sale price€186,00 EUR
€186,00
€148,80
PROTECTION LAYER
View setup
Selected
Your PROTECTION LAYER build
What you need for this setup
The objective lens is the part you least want to scratch. The Iris caps it with a sacrificial polycarbonate lens and an o-ring that keeps grit out, then lets you dial the aperture down when the night is brighter than you want. The turret clicks at infinity focus, so you find it in the dark by feel. FDE or Black.
Serial-matched inventory
Available Units
Every tube: Photonis Echo · P45 White Phosphor · 1800+ FOM · autogated · uniformity passed
LRSold outEvery order
What's in the Box
Box contents · 6 items
- FC-BR 1800+ ECHO unit factory collimated
- Hardcase
- Bikini covers
- Rubber daycaps
- Tube specification sheet
- Birth certificate
No helmet mount included a FC-BR mounts straight to a dovetail helmet mount (no J-arm) - see the kit options above
