Sold out0097
FOM1819
GAIN10 800
RES72
SNR25.26
FC-PVS14 1800+ FOM White Phosphor
FC-PVS14 1800+ FOM White Phosphor
Sale price€3.844,00 EUR
Serial-matched inventory
Available Units
Every tube: NNVT 1800+ FOM White Phosphor · autogated · per-tube specs listed
Sold out
Sold out0098
FOM1830
GAIN10 500
RES72
SNR25.41
Sold out0099
FOM1830
GAIN11 000
RES72
SNR25.42
Sold out0100
FOM1813
GAIN10 600
RES72
SNR25.18
Sold out0101
FOM1814
GAIN10 600
RES72
SNR25.19
Sold out0102
FOM1817
GAIN10 700
RES72
SNR25.23
Sold out0103
FOM1843
GAIN10 200
RES68
SNR27.10
Sold out0104
FOM1853
GAIN10 000
RES72
SNR25.74
Sold out0105
FOM1824
GAIN9 400
RES72
SNR25.34
Sold out0106
FOM1906
GAIN10 200
RES72
SNR26.47
Sold out0107
FOM1969
GAIN10 100
RES72
SNR27.35
Falconclaw PVS-14 kit
A real PVS-14, mounts in the box
True analog night vision on an NNVT 1800+ FOM white phosphor tube. Not a digital screen, not a toy. The helmet mount and our dovetail J-arm are already in the box, so you go from box to helmet in one purchase.
What you are actually getting
A genuine tube, no fluff
A true image-intensifier PVS-14, not a digital lookalike. White phosphor, autogated, and speced to the lowest FOM that still makes sense on a single tube. Everything you need to wear it is already in the case.
True analog PVS-14
A real image-intensifier tube, not a digital screen. The PVS-14 is the standard the whole night-vision world is built around. Autogated, so the tube protects itself in sudden bright light.
1800 FOM, why the minimum for a mono
On a monocular your brain only has one tube to work with, it cannot fuse a left and right image the way it does on a binocular. So a single tube needs more figure of merit to read sharp. 1800 is the floor we recommend for a mono.
Built-in IR illuminator
An onboard infrared light for pitch-black rooms and caves where there is no starlight at all. Honest note: it lights you up to anyone else wearing night vision, so keep it for true zero-light only.
About 40 hours on one AA
Runs around 40 hours on a single AA cell. Use a non-rechargeable lithium or alkaline AA, they hold voltage longer in the cold than rechargeables.
1800+
Tube FOMNNVT white phosphor
40°
Field of viewtrue, at 1x
1x
Magnificationtrue 1:1 view
40 h
Runtimeone AA cell
Why buy it as a kit
Mount and J-arm, already in the box
A bare monocular still needs a J-arm and a helmet mount before you can wear it, and the two have to fit each other and your helmet. This kit ships with both, matched to the tube, so there is nothing else to source. Pick a tube and go.
Our dovetail J-arm
The Falconclaw Dovetail J-Arm 2.0, 30 g, made in Estonia. The dovetail sits the tube as close to your eye as possible, so you use the full field of view even on a ballistic helmet.
Swap eyes in a second
A friction setting moves the tube from left eye to right eye and back with no knob to turn. Flip it up, fold it to the side, drop it down. Same on your dominant eye or your off eye.
Helmet mount that fits
A lightweight LWNVM shroud mount, around 140 g, with three-axis adjustment and a low-profile stow. Fits modern helmets with a standard shroud, no extra adapter to buy.
One purchase, box to head
No hunting for a compatible J-arm or mount and no guessing on fit. The case holds the tube, helmet mount, J-arm, rubber eyecup, daycap and spec sheet. Ready to wear out of the box.
The numbers
Product Specs
Tube & Image
Image Intensifier TubeNNVT · 1800+ FOM White Phosphor
AutogatingYes, protects the tube in bright light
GainAuto-gain only (manual knob non-functional)
Onboard IR IlluminatorYes
Optics
Magnification1×
True Field of View40°
Close Focus Limit0.25 m to ∞
Diopter Compensation-6 to +2 dpt
Power
Power Supply1× AA
Battery Life40 h
Physical
FinishImpact-resistant polymer
Dimensions70H × 64W × 114L mm
Weight300 g
Build your kit
Compatibility
The starter kit is ready to wear out of the box. Add the FTO 640 thermal overlay when you want heat detection too.
Build it as a kit and the add-ons come off automatically: -20% on every mount, bridge and adapter, -10% on a second optic. Applied in your cart, no code.
Helmet mount and J-arm are already in the box, so mount a tube and go. Add the FTO 640 thermal overlay to fuse heat onto your night-vision image and spot warm targets the tube alone misses.
THERMAL OVERLAY - COTI
Your THERMAL OVERLAY - COTI build
Parts you need to add
Clip the FTO 640 thermal overlay onto the PVS-14 to fuse heat detection onto your night-vision image. Spot warm targets the tube alone misses.
Infiray
FTO Falconclaw Thermal Overlay 640 (COTI)
Sale price€3.899,80 EUR
Every order

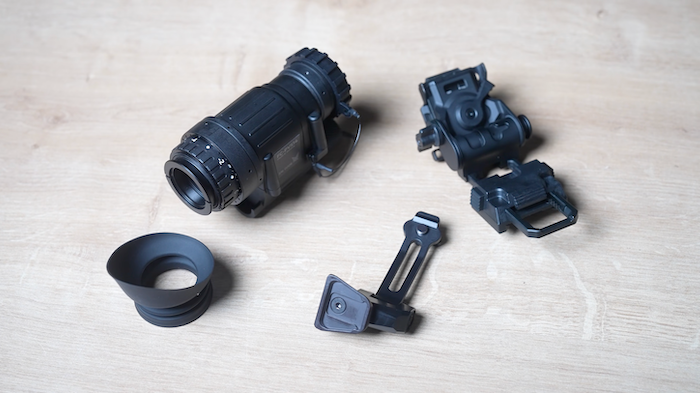

What's in the Box
Box contents · 8 items
- FC-PVS-14 Monocular factory collimated
- Hard case
- Argus LWNVM helmet mount included
- Falconclaw J-arm included
- Rubber eyecup
- Daycap cover
- Tube specification sheet
- Device birth certificate
Export control
Shipping & Export
This item is shipped
EU - SHIPS FREELY, ZERO PAPERWORKAll 27 EU countries. Order online, we dispatch next business day.
Ships free
EU001 - WE HANDLE EXPORT, YOU HANDLE IMPORTUK, Norway, Switzerland, Liechtenstein, Iceland, Canada, Australia, New Zealand, Japan. Dispatched under EU General Authorisation EU001.
We export
OTHER COUNTRIES - EXPORT LICENCE REQUIREDIndividual export licence to most other destinations (+€250). Contact us first.
Licence +€250
NOT AVAILABLE TO THE UNITED STATESWe cannot ship the FC-PVS14 1800+ FOM White Phosphor to the USA.
No US shipping
