Since the difference between units can be pretty big (both FOM and the existence of black spots), we have decided to make public units specification and picture of the tube (to see black spots). Price depends on the quality of the tube. Please be aware that not all spots are visible on those pictures and in real life the spots appear to be bigger than on this picture. Spots score is our own metric to compare visibility of spots between tubes.
Carson industries Night Vision Monocular provides the user with an integrated set of components fitted with the customer specified Image Intensifier Tubes.

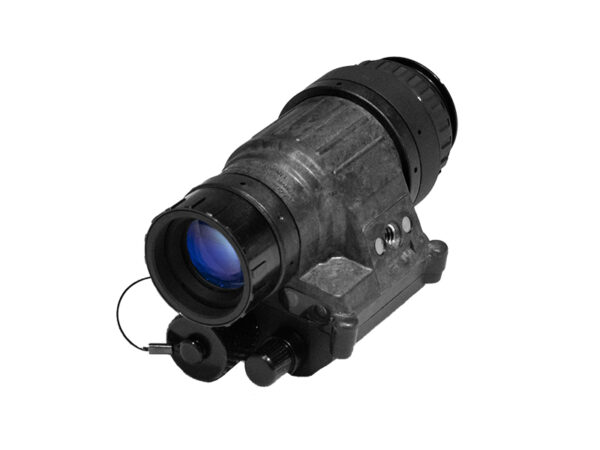

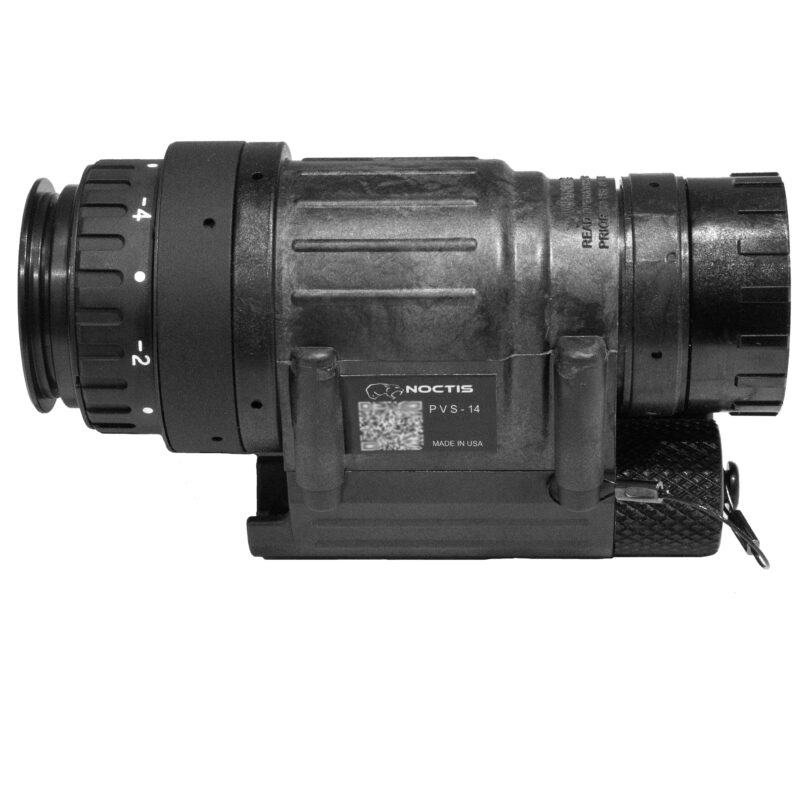

Noctis Technologies’ rugged yet lightweight AN/PVS-14 can be hand held, helmet mounted, or head-strap mounted. Key features include an automatic highlight cutoff, an infrared illuminator, an IR-On indicator, and low voltage indicator. A broad range of user requirements can be achieved by combining Noctis Technologies’ variety of available accessories with the standard kit components.
All components and accessories are manufactured, assembled, and tested in accordance with all applicable US Military specifications
Image Intensifier Tube
Elbit Systems GEN3 WP F9415XLSH max FOM 1600.
|Image Intensifier Tubes (IIT)||Elbit Systems GEN3 White Phosphor|
|Material||High Strength Resin|
|Spectral Response||Visible to 0.90 µm|
|(IR)Field of View||40° nominal|
|Focus Range||25 cm to infinity|
|Diopter Adjustment||+2 to –6 diopters|
|True field of view||40°|
|Battery Type||1x AA|
|Battery Life||40 Hours at Room Temperature|
|Dimensions||4.5 in x 2.0 in x 2.2 in (11.4 cm x 5.1 cm x 5.7 cm)|
