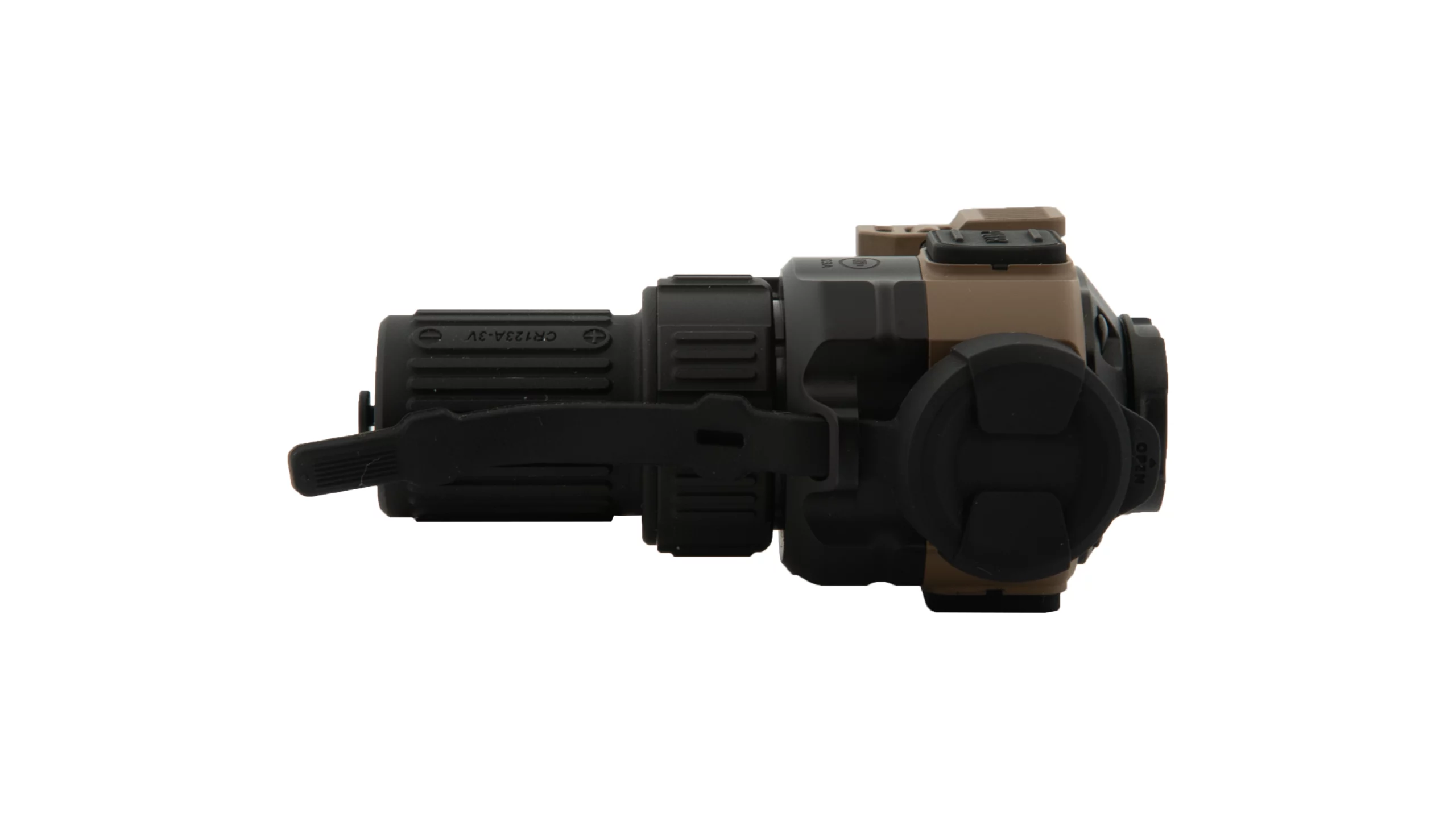

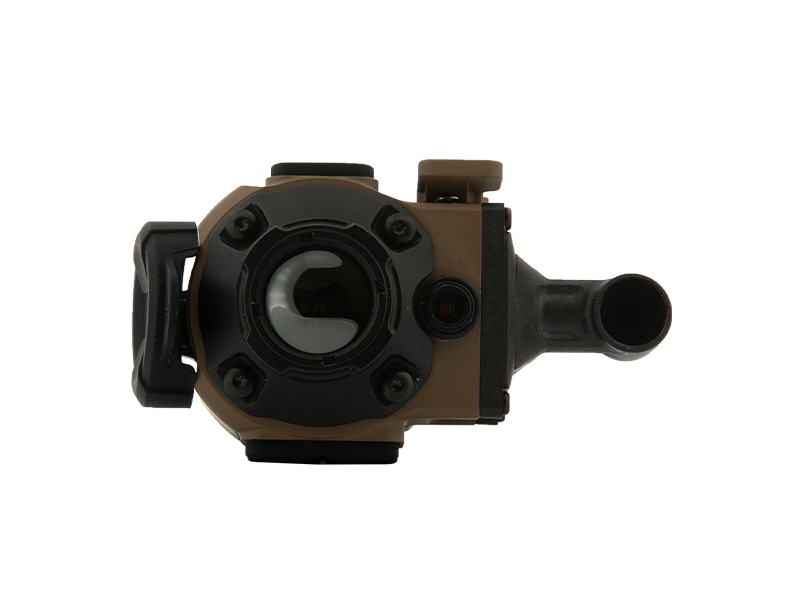

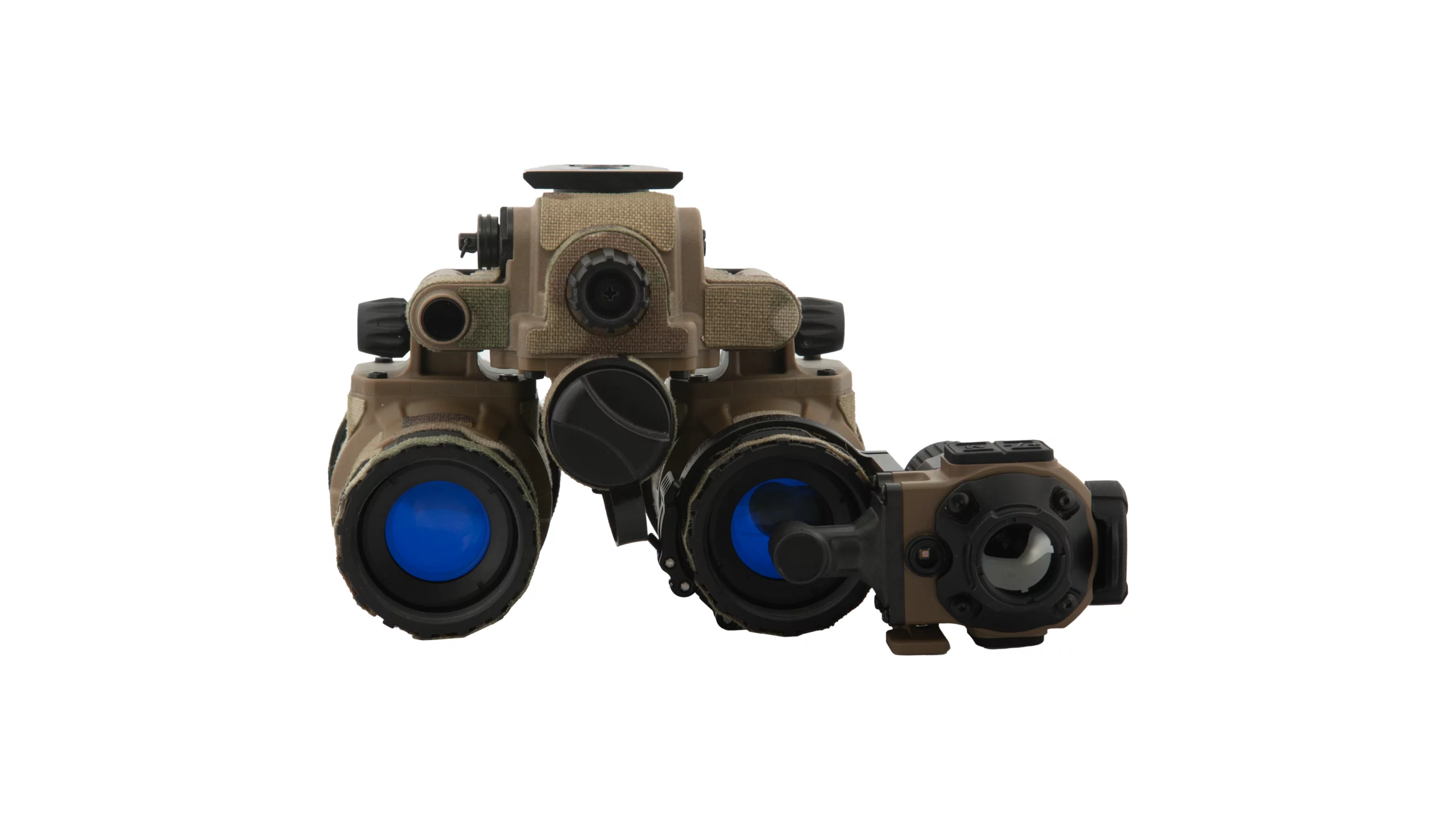

Falconclaw Thermal Overlay
The FC-TO is a compact thermal clip-on that adds a heat-based image overlay to your night vision device. This fusion of thermal and night vision gives you superior situational awareness giving you the ability to spot people, animals, or objects even in complete darkness or dense environments like forests.
Standard night vision struggles with still targets or very low light, but the FC-TO solves that by combining thermal detection with analog nightvision. You can switch between different viewing modes like low light, highlight, or outline to suit your surroundings.

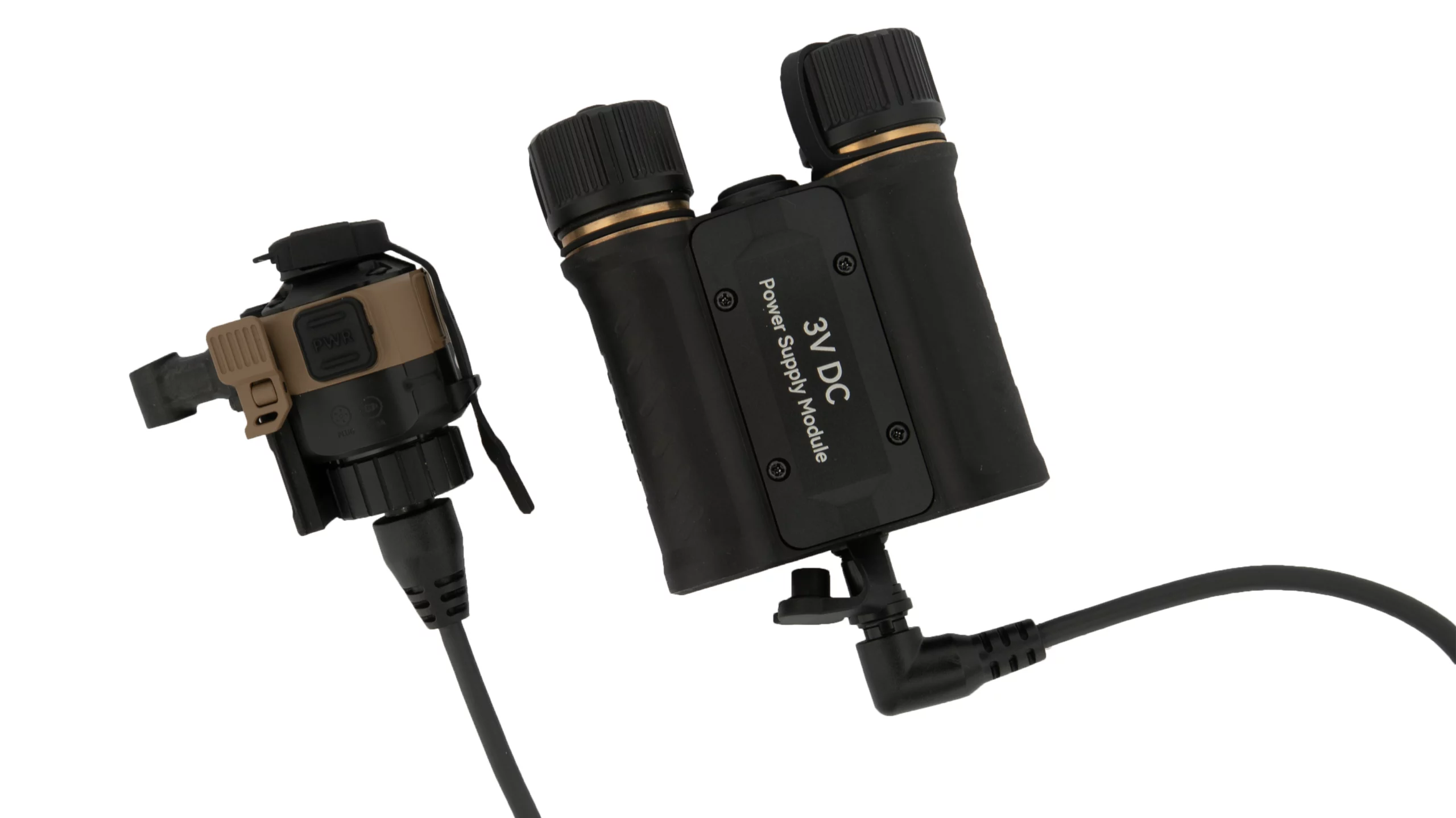

It’s extremely lightweight at just 62g, fits most night vision devices, and can be powered by an internal battery or external pack. The FC-TO Pro version is even smaller, lighter, and has a wider field of view for more comfort and performance.

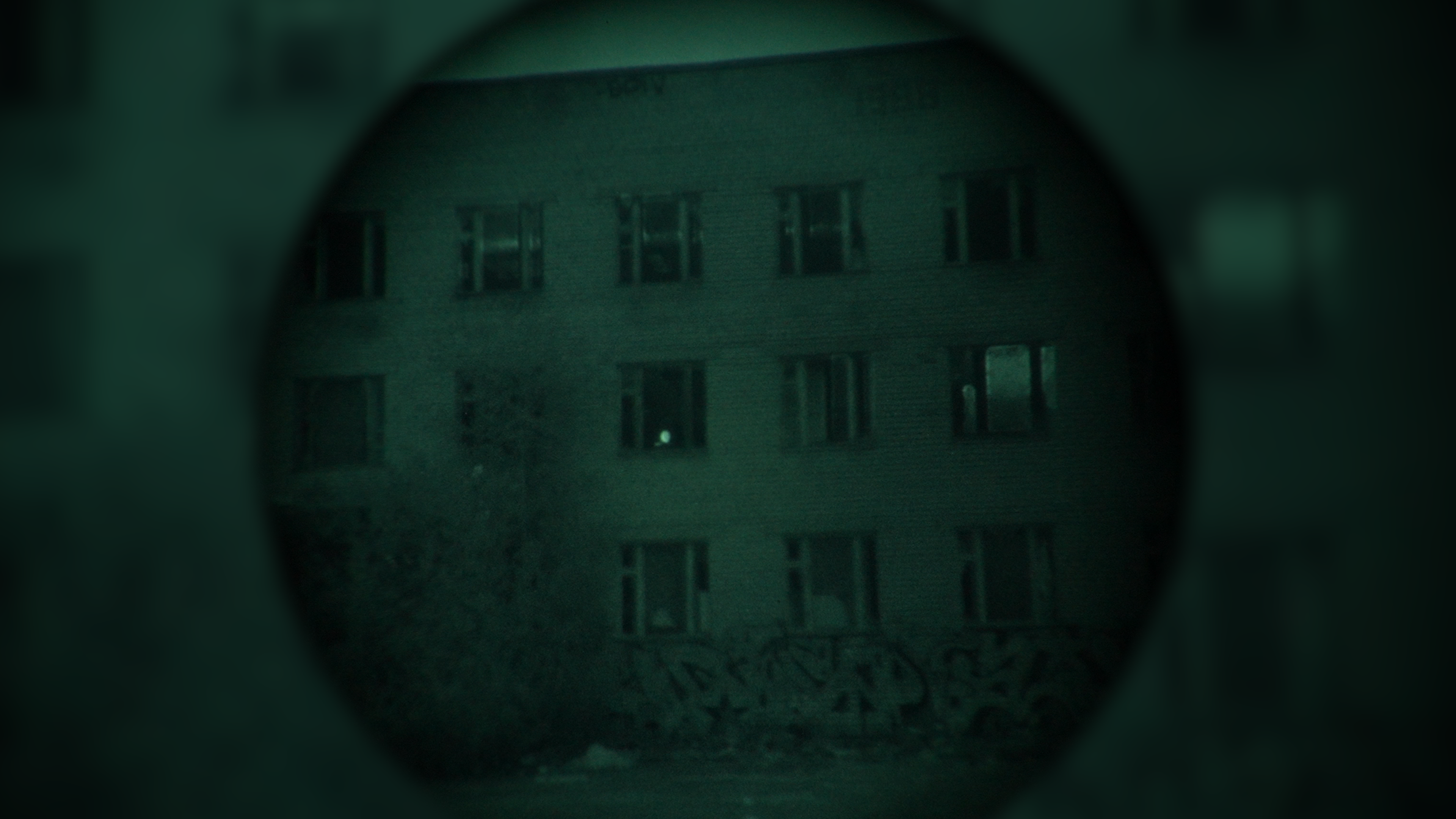

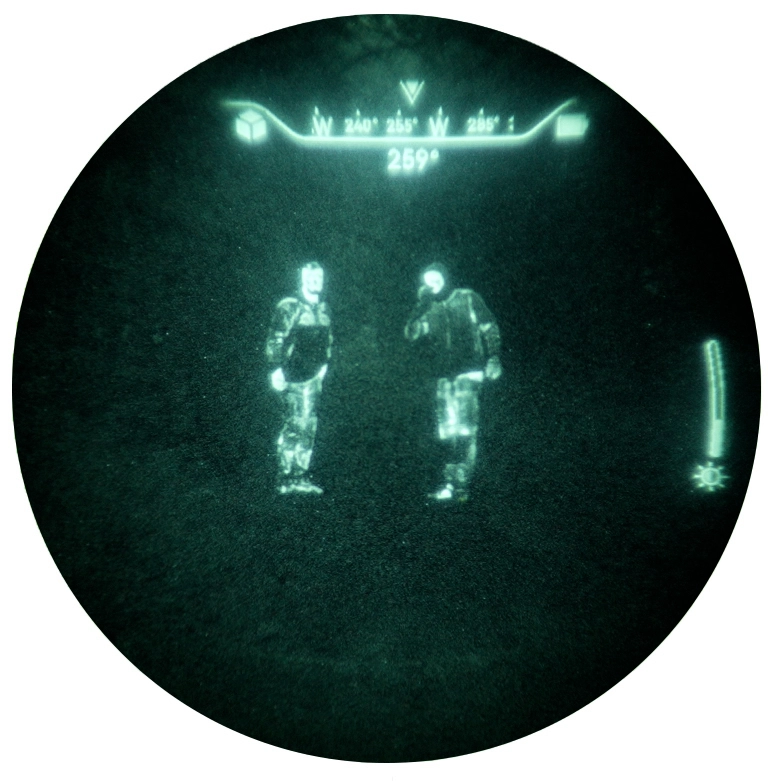

Highlight mode

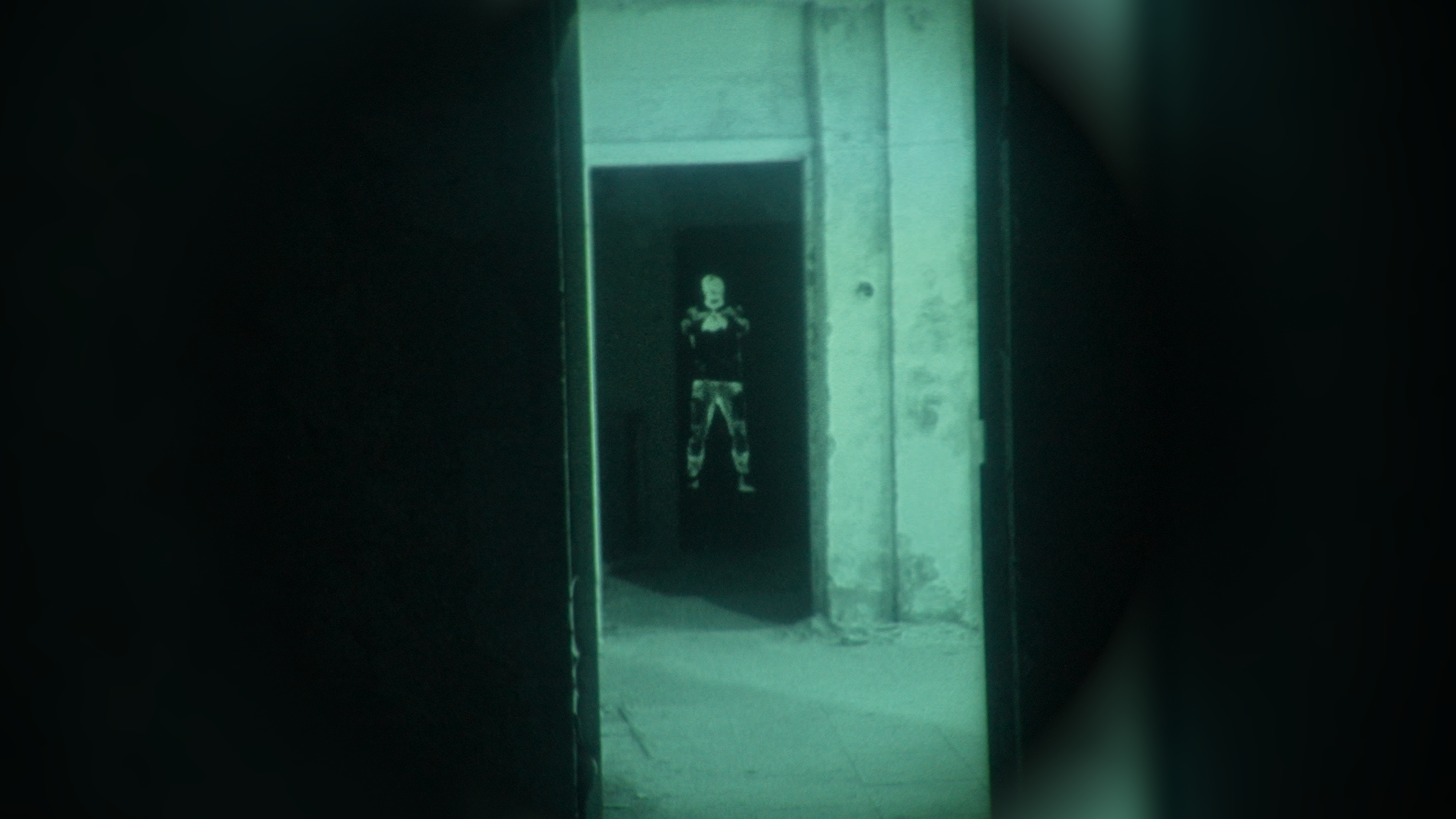

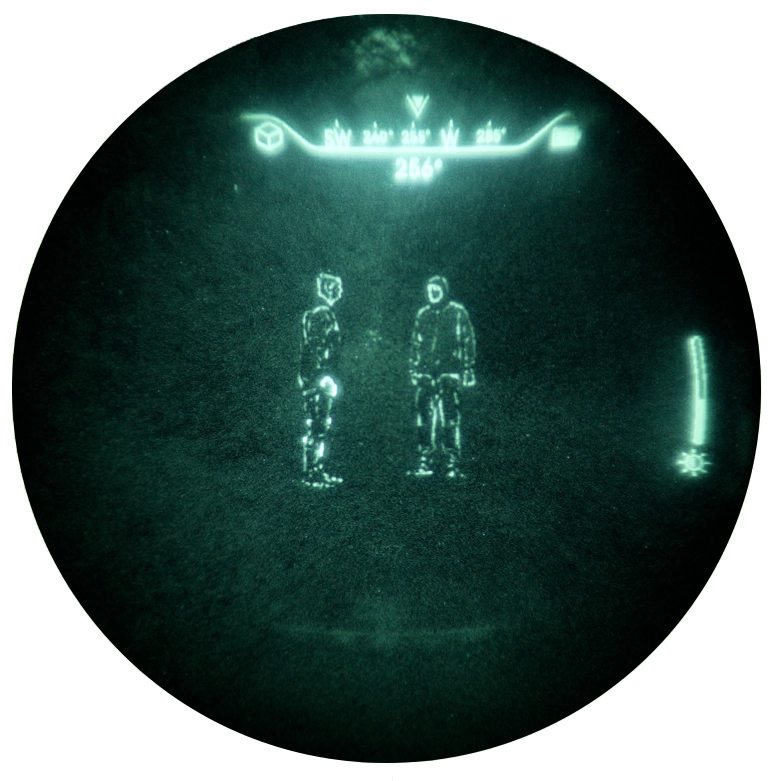

Outline Mode
| Specification | Details |
|---|---|
| Resolution | 640×512 ·12μm |
| Field of View (FOV) | 35° |
| Human Recognition Distance | 275 m |
| Mode | White-hot, Highlight, Outline |
| External Connectors | GPS, Battery Pack, Image Storage |
| Power Supply | CR123A 3V / 2x 18650 Battery Pack |
| Battery Life | 3 Hours / 10 Hours Battery Pack |
| Weight | 62 g |
| Dimensions | 86 × 65 × 40 mm |

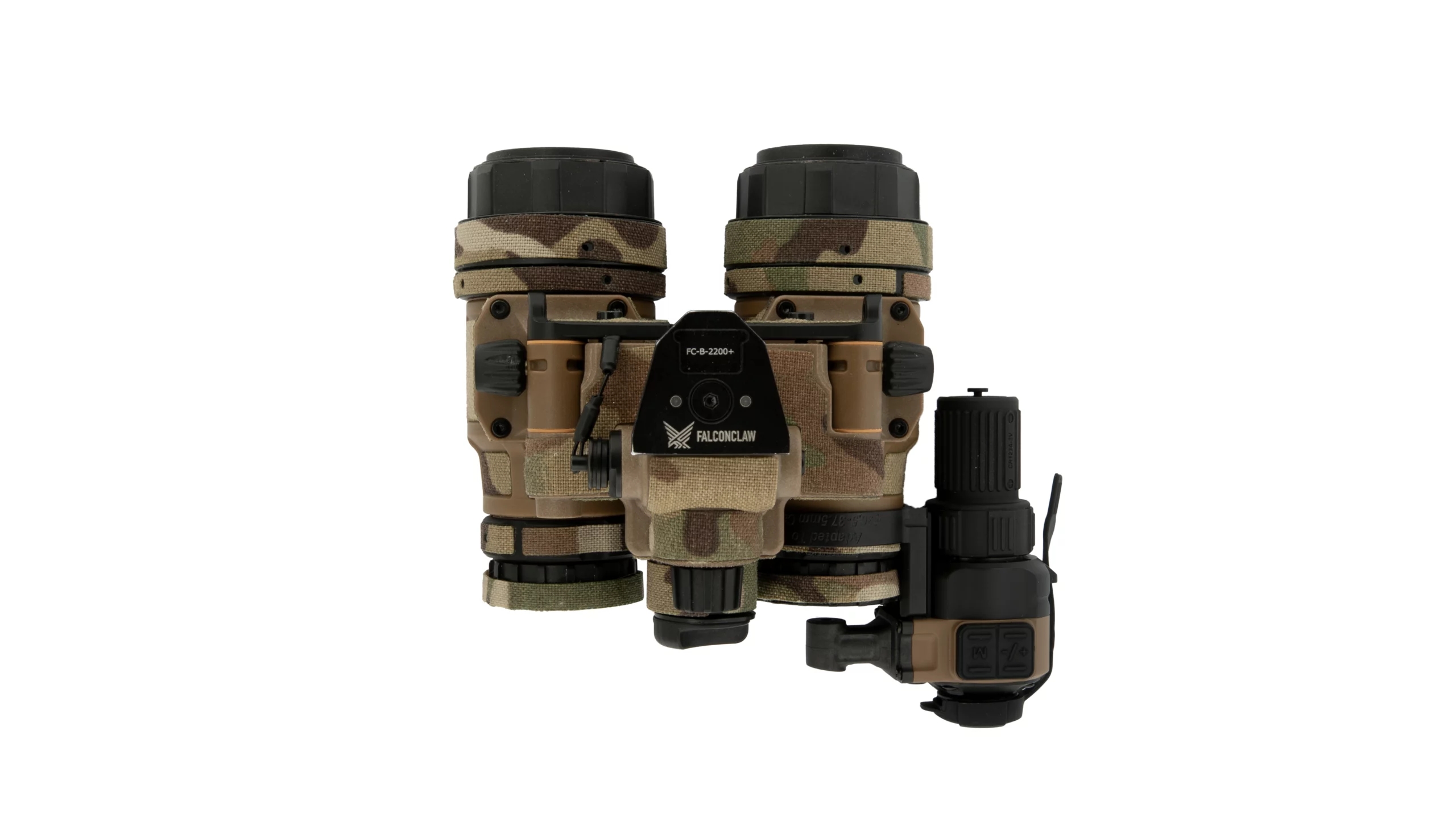

| Night Vision Compatibility | PVS-14, DTNVS, PVS-31, GPNVG,FC-B |
| Auto Shut-Down | Yes |
| Automatic Brightness | Yes |
| Flip-Up On-Off | Yes |
| Digital Magnetic Compass | Yes |
| Remote Control | Yes |
| Minimum Fusion Distance | 10m |

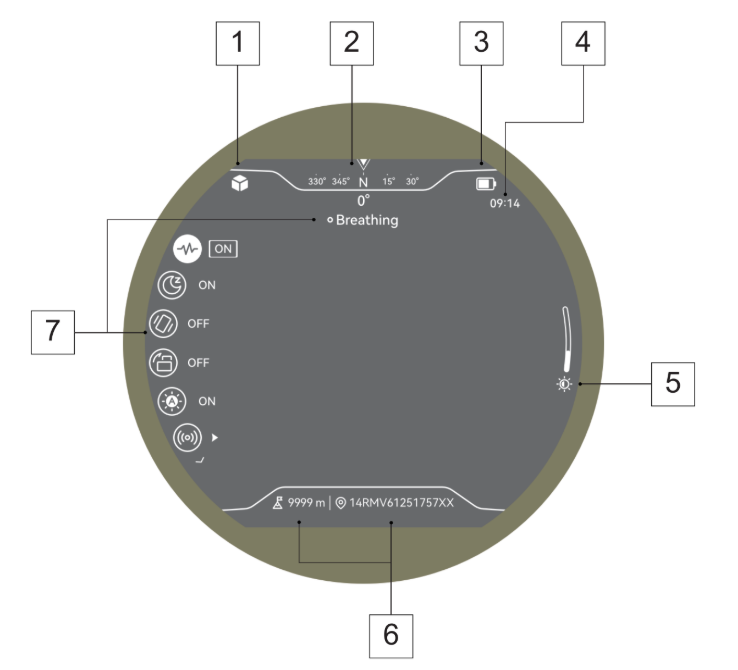

Heads Up Display
- Image Mode: Display the current image mode (highlight,outline)
- Compass: Display current orientation
- Battery: Display Current Power
- Time (When the GPS module is turned on)
- Quick Adjustment: (Adjust parameters for brightness, frequency, and threshold (100-10%)
- Current Location: (When GPS Module is active)
- Menu: functions in user-manual

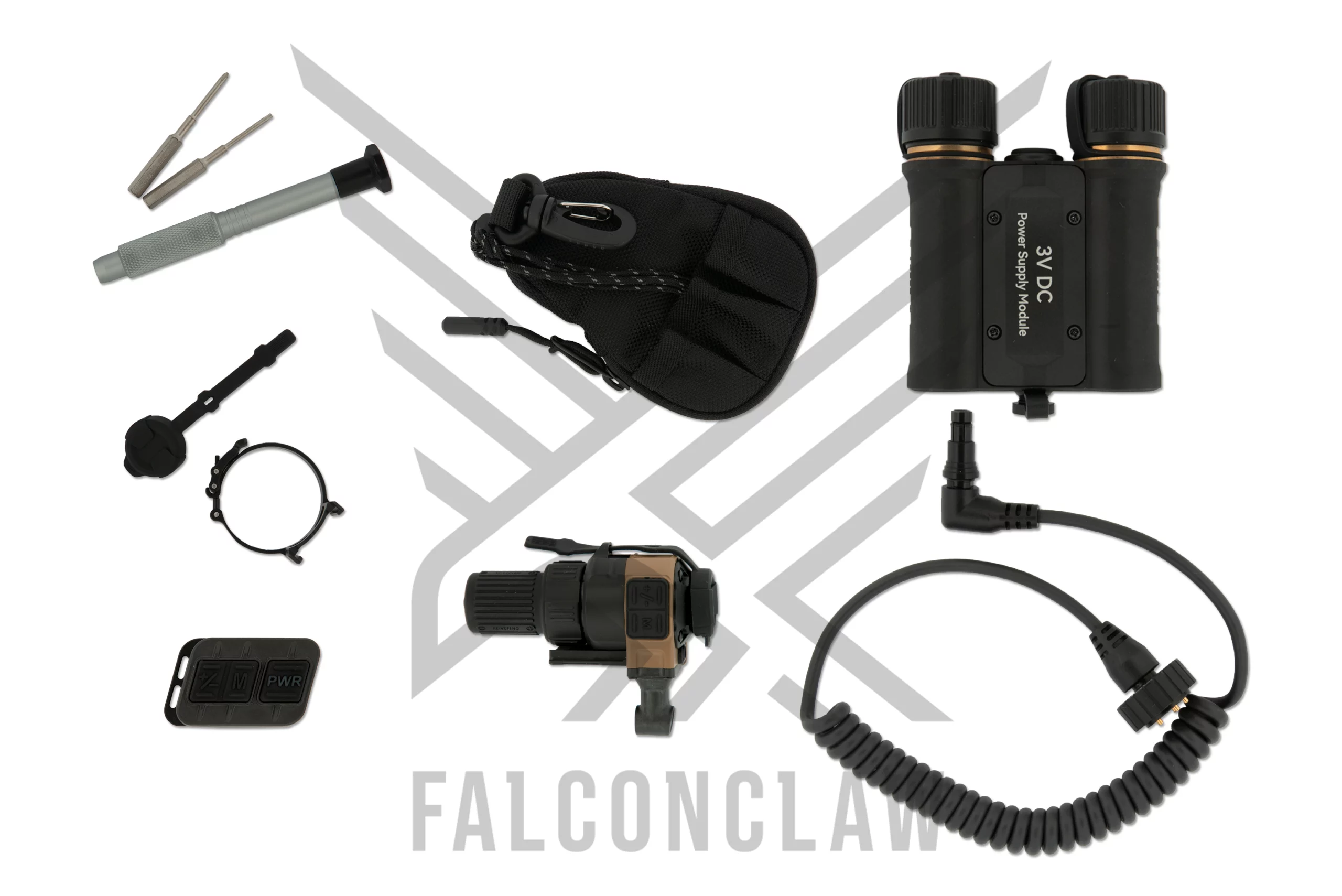

Included Accessories
- Hardcase
- Thermal Imager
- NVD Mounting Bracket
- Remote Control
- Lens Cover
- Screwdriver
- Battery Pack + Cable
- Product Manual
- Pouch
