ACT RNVG ECHO 16mm Green Phosphor

7 483.858 167.50

ACT RNVG Photonis ECHO 16mm Green Phosphor, FOM -2000, Autogated. Carson lenses.

FREE Shipping

7 483.858 167.50
RNVG ECHO 3660 3665 3680
Clear selection
GTIN: N/A SKU: RNVG-16-LNS40-ZSG1358D Category: Tags: ,

Description

SN: 3660

LEFTRIGHT
FOM17721752
Gain1296612734
Resolution6468
EBI0,130,07
SN27,6925,77
Price6185€ + VAT

SN: 3665

LEFTRIGHT
FOM19941933
Gain1198612393
Resolution6868
EBI0,140,10
SN29,3328,44
Price6750€ + VAT

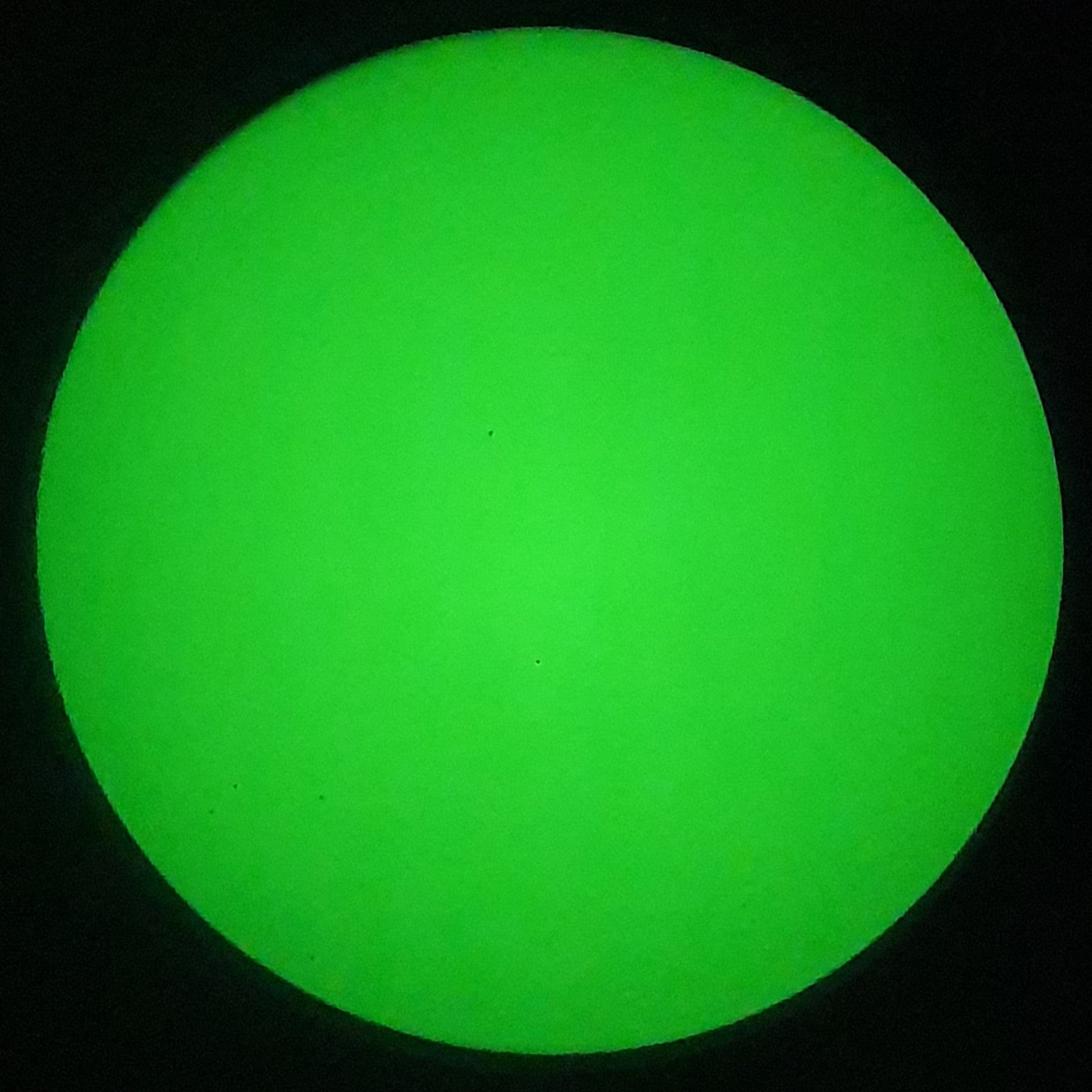

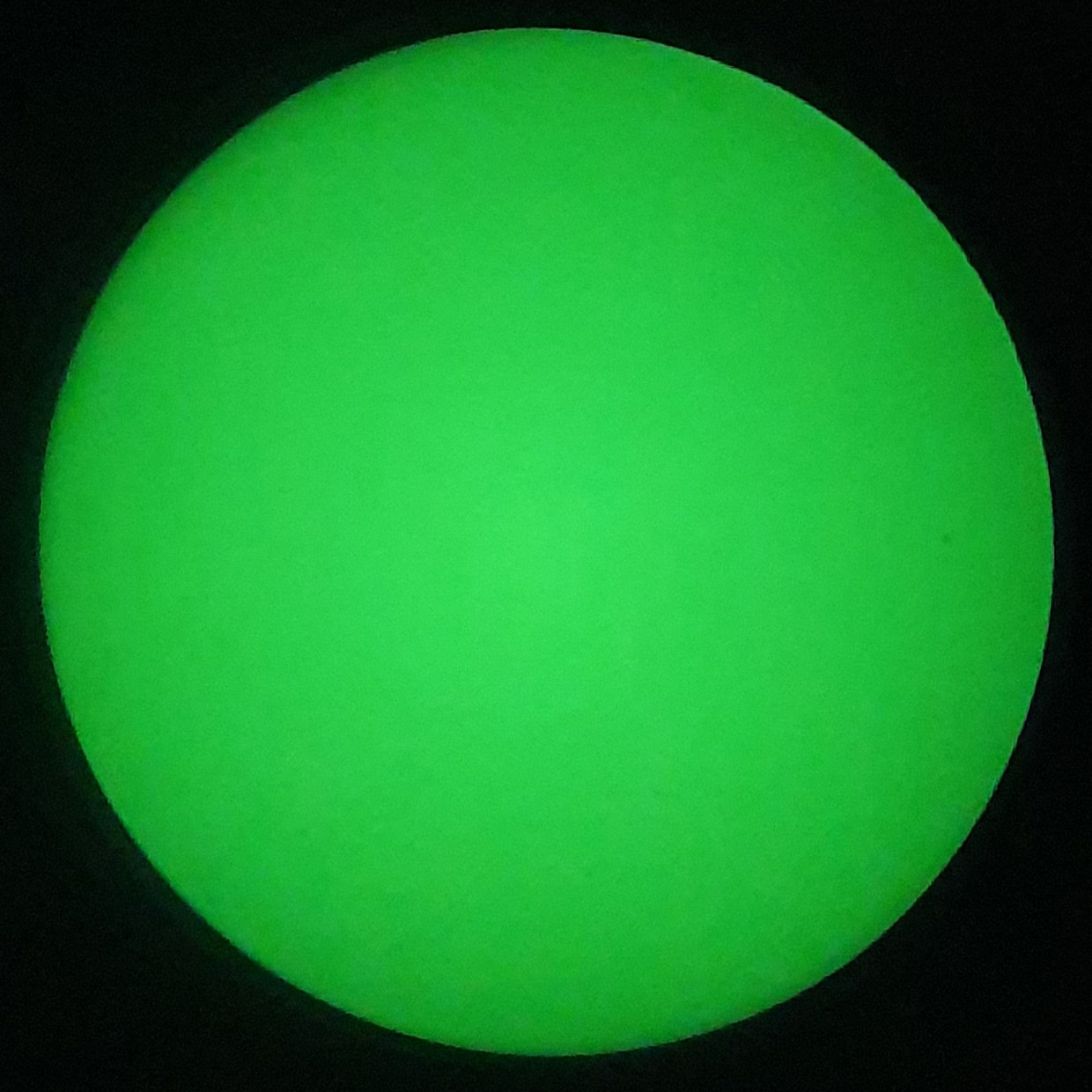

SN: 3680

LEFTRIGHT
FOM18411832
Gain1309912699
Resolution6868
EBI0,090,25
SN27,0826,95
Price6375€ + VAT

The RNVG is a ruggedized non-articulating binocular built to withstand the roughest use. The simplistic desing of the housing made out of CNC machined billet 7075 aluminium increases impact resistnace and reinforces common breakage points – making it the toughest unit with the best structural strenght out there.

The optic pods traverse on the bridge during interpupilary adjustment  The distance of pods between one eye and the other are adjusted by turning dual knobs on either side of the bridge.

The RNVG binocular incorporates built-in IR LED for close quarter missions with separate IR-ON indicator and low battery indicator in the field of view.

Two knobs – 1. OF-ON-IR / 2. Manual Gain

No external battery port – Why? The RNVG uses standard CR123A batteries as commonly found in lasers or flashlights. A single battery provides over 25h run time.

Image Intensifier Tubes (IIT) Photonis ECHO 16mm Green Phosphor
Finish Matte Black, Anodized, Corrosion Resistant
billet 7075 aluminum body
Capability Built-in IR LED with “IR-on” indicator in FOV
Low battery indicator in FOV
Waterproof: 20m (66ft)
Manual Gain
Autogated
Magnification 1x
Diopter compensation -6 to +2 dpt
Battery Life 25 h
Infrared illuminator yes
Interpupillary adjustment 51 to 73mm
True field of view 38°
Close focus limit 0.25 m to ∞
Power Supply 1x CR123
Dimensions 119 x 106 x 71 mm
Weight 540 g
Included accessories
  • Hardcase
  • Sacrificial lenses
  • Protective bikini covers
  • Rubber eye-cups
  • Objective lens caps
Included paperwork (original documentation is always included)
  • Tube specification sheet
  • Device birth certificate
  • Falconclaw user manual
  • Merchandise (patches, ACT lens cleaning paper)
  • Note! Flip the hardcase top cover foam to find everything above

Brand

ACT

Additional information

RNVG ECHO

3660, 3665, 3680
