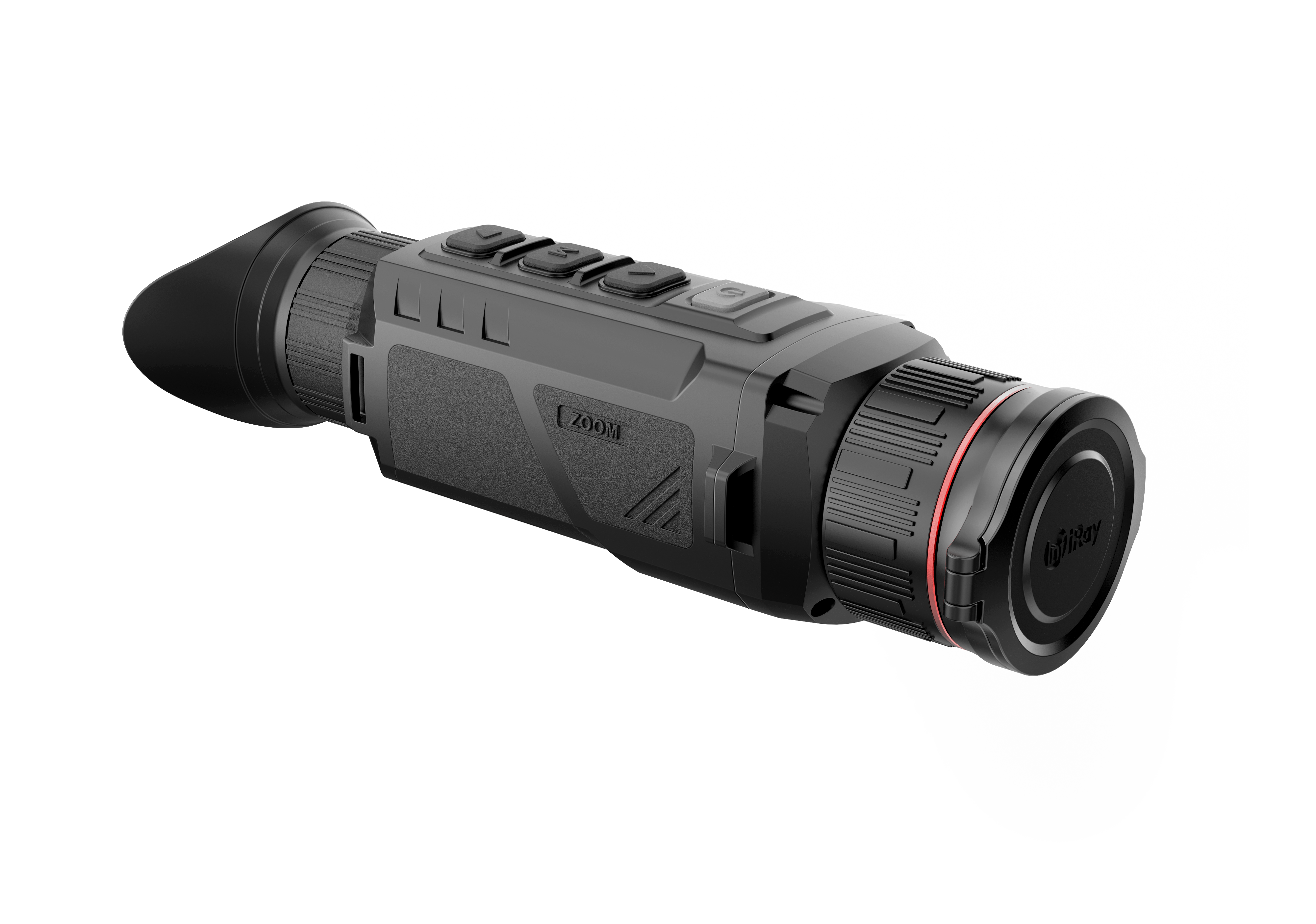

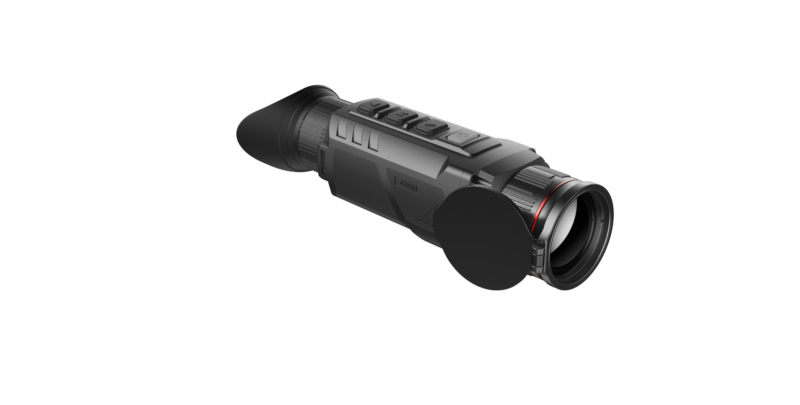

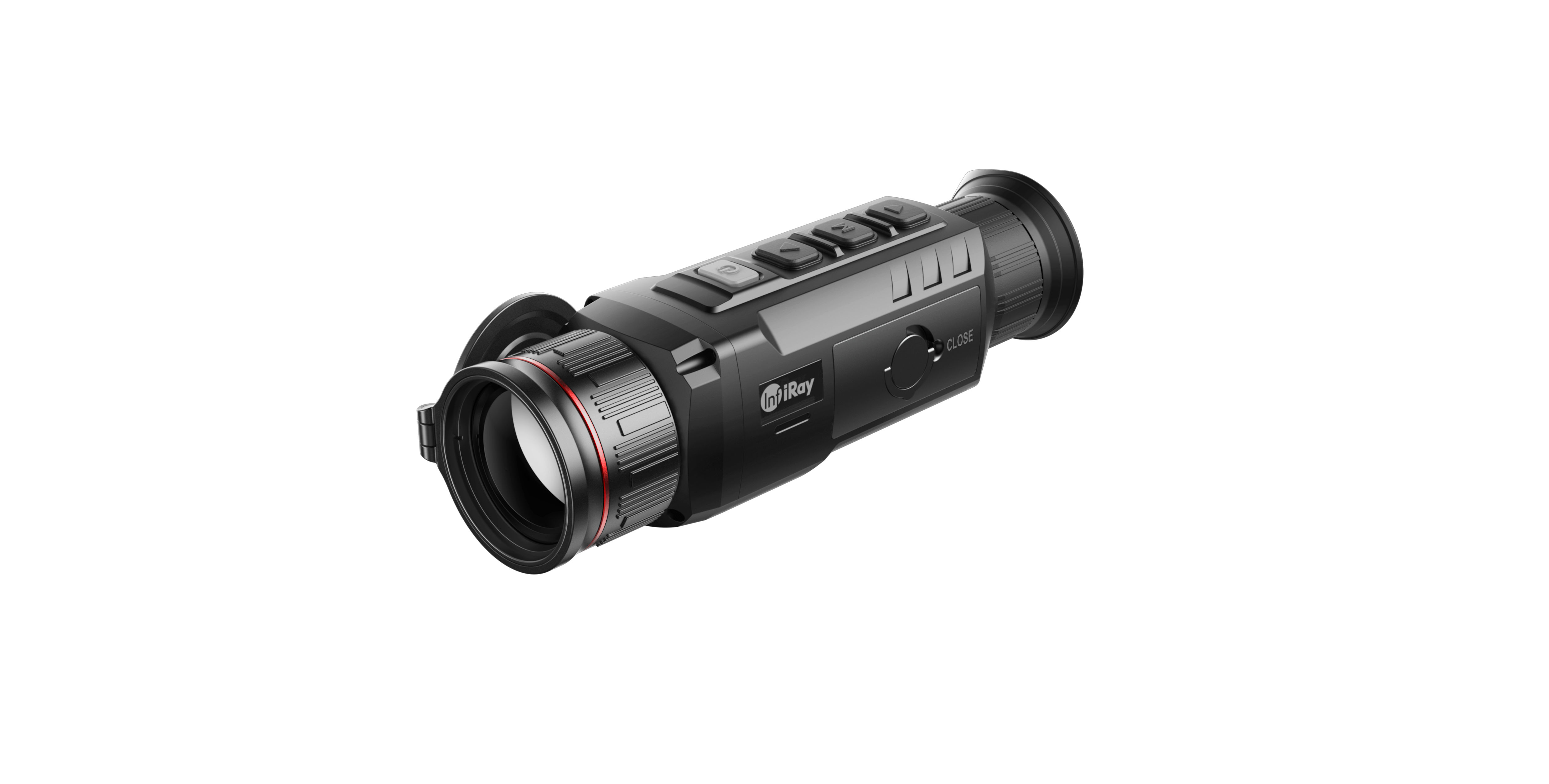

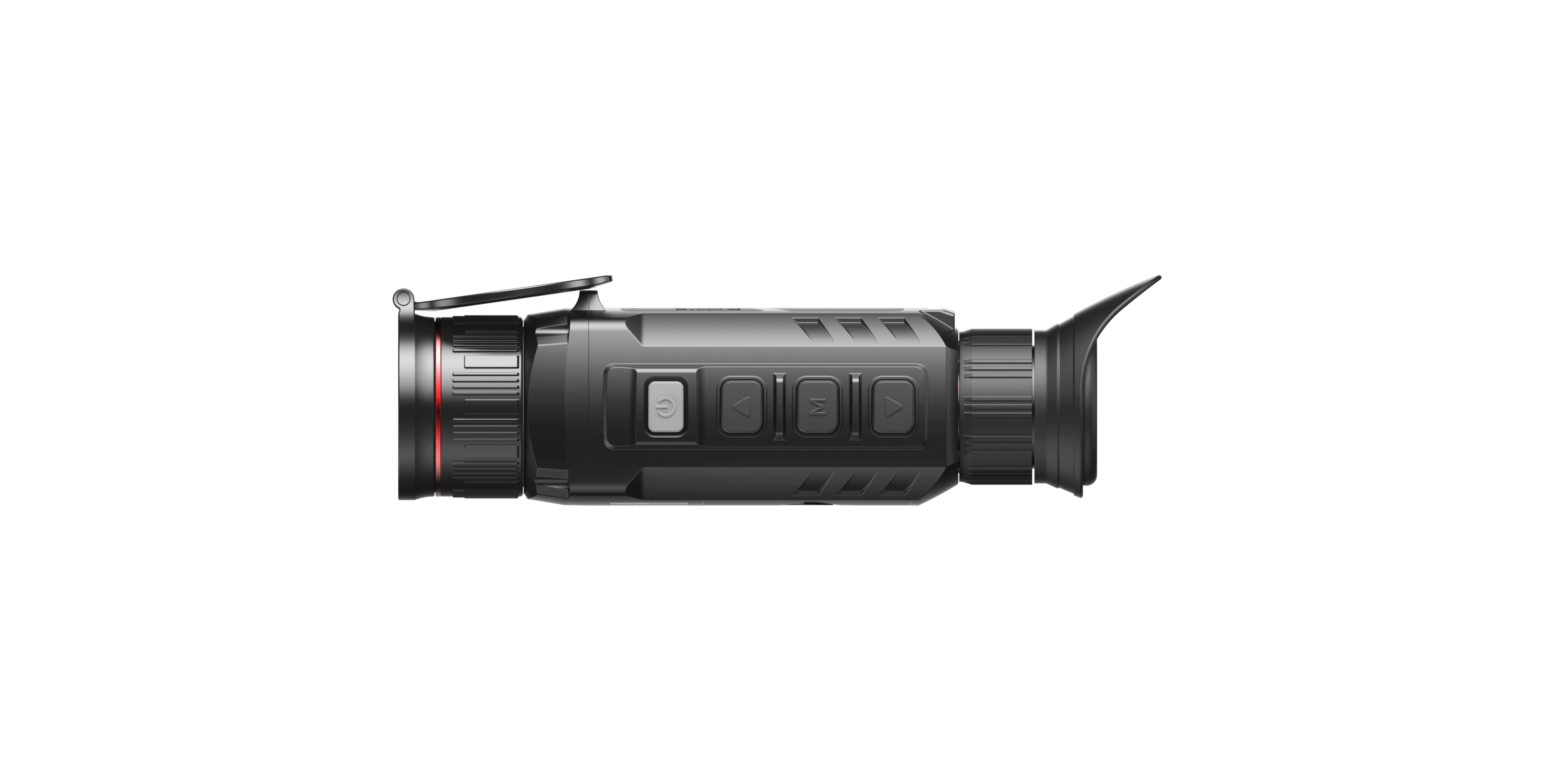

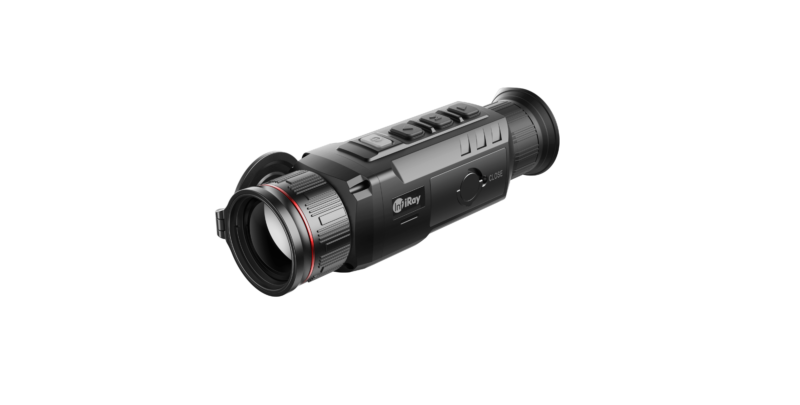

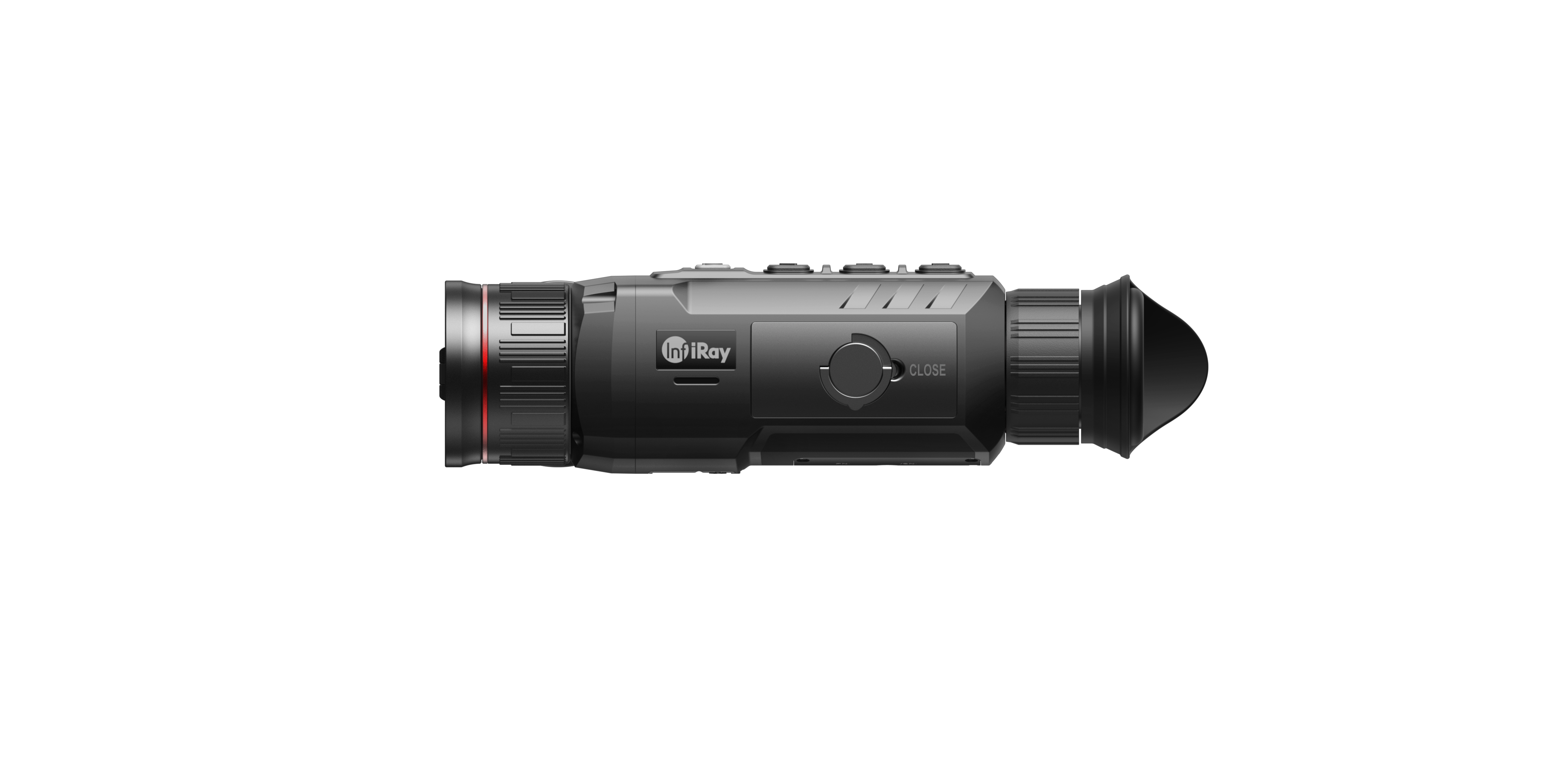

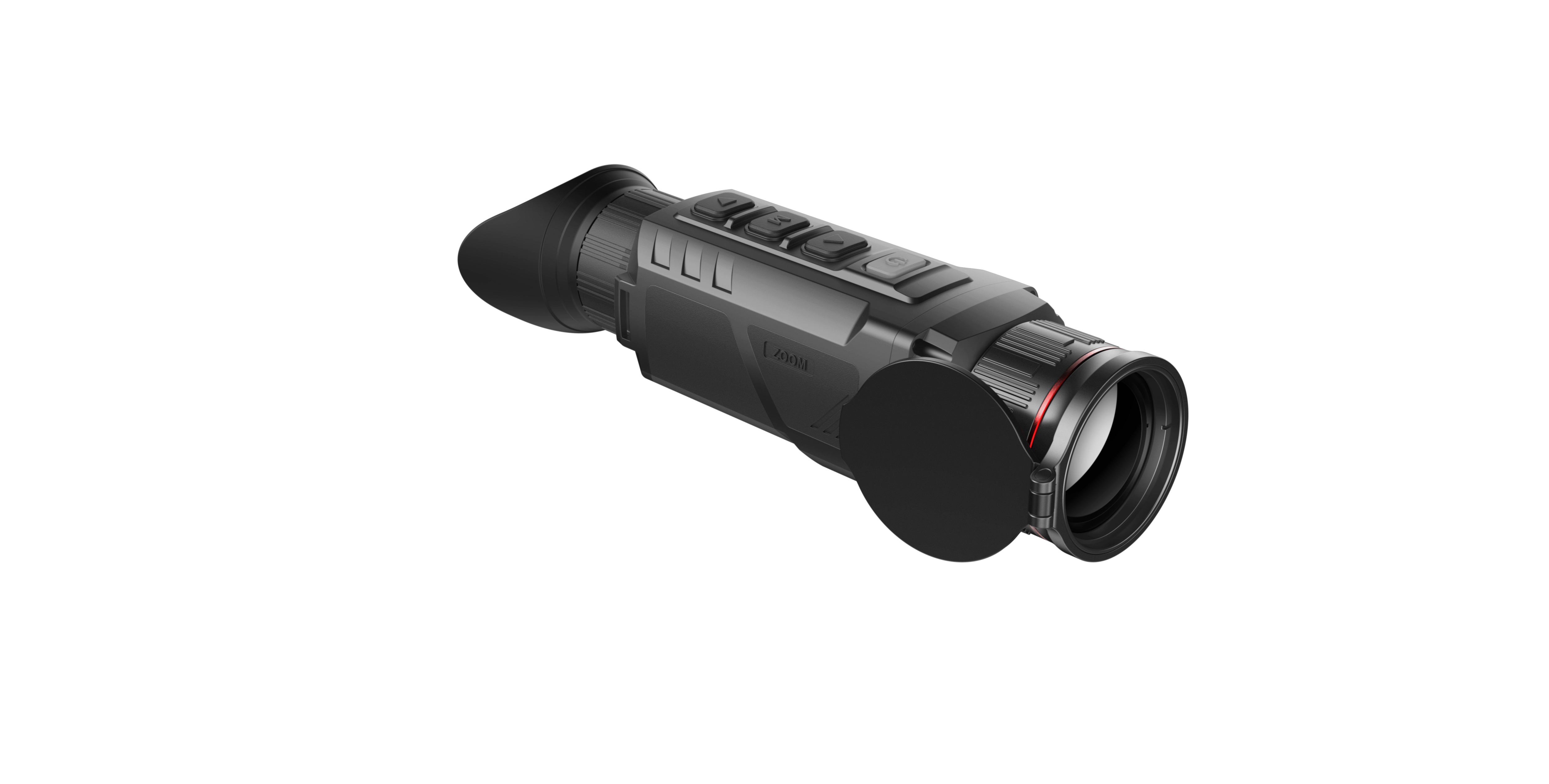

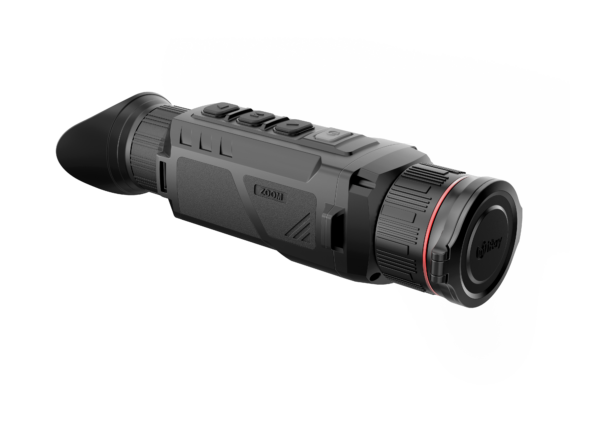

InfiRay ZH50 – Thermal Imaging Monocular

2 934.00

A top-end thermal monocular with the first of it’s kind dual field of view (FOV).
High end display resolution – 1440×1080 FHD OLED and shutterless technology.

In stock

GTIN: N/A SKU: IRAY-ZH50 Category:

Description

Description

The new ZOOM Thermal Core module incorporates InfiRay’s new Shutterless technology, nullifying the traditional shutter calibration to simplify operation, lower energy consumtion making the imaging quieter.

System functions:

  • First of it’s kind dual field of view (FOV).
  • The Infiray Zoom ZH50 thermal imager is provided with the latest 12 micron thermal technology with 640×512 resolution and sub 25mK NETD sensitivity.  With this new powerful sensor and image algorithm, the best possible image quality is observed.
  • High end display resolution – 1440×1080 FHD OLED and shutterless technology.
  • Full Colour High Definition display, up to 20x magnification with the adjustable eyepiece
  • Picture-in-Picture function
  • 32Gb of built-in memory to store photos & video footage of all your outdoor experiences
  • built in “Ultra Clear” mode – the Zoom ZH50 is designed for use in the harshest weather providing a high quality image in all weather conditions. Ultra clear mode results in a more detailed field of view and enhanced object identification capabilities.
Detector640 x 512 /12um
Lens25/50mm
Detective range1298 m / 2596 m (meters)
NETD≤25mK
Frame rate50Hz
FOV17.5°x13.1° / 8.7°x6.6°
Objective Lens25/50mm
Laser pointerNo
Diopter compensation-5 to +5 dpt
Optical zoomVariable optical zoom (25mm to 50mm)
Electonic zoom1 – 4x
Battery life≥ 10h
Battery typeLi-on battery pack / 4400mAh / DC 3.7V
Display1440×1080 FHD OLED
Storage32 GB
Recoil proofNo
Mounting optionsHandheld
Weight650 g
Dimentsions190 x 65 x 60 mm
IP raiting
Operating temperature-20°C to + 50°C
Storge temperature-20°C to + 50°C

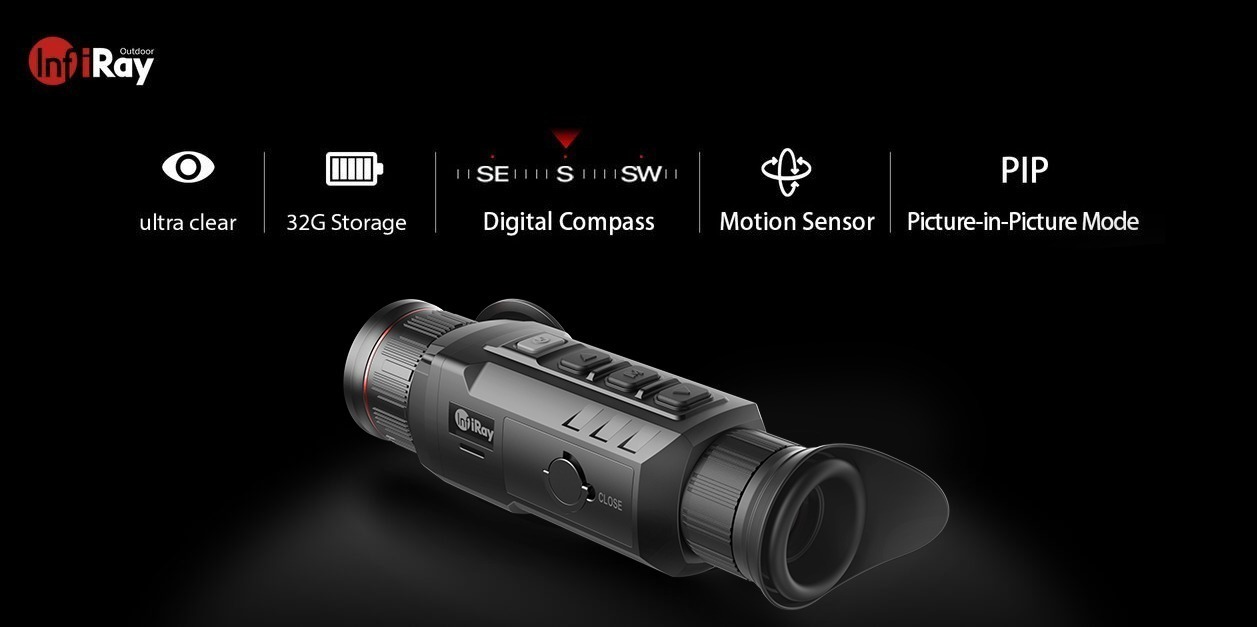

Other characteristics
  • 32Gb of built-in memory to store photos & video footage
  • The built-in WiFi module
  • Up to 10 hours battery life
  • Inclinometer and E-Compass
  • Shutterless thermal core
  • 5 Color Palettes

Brand

InfiRay
