Description

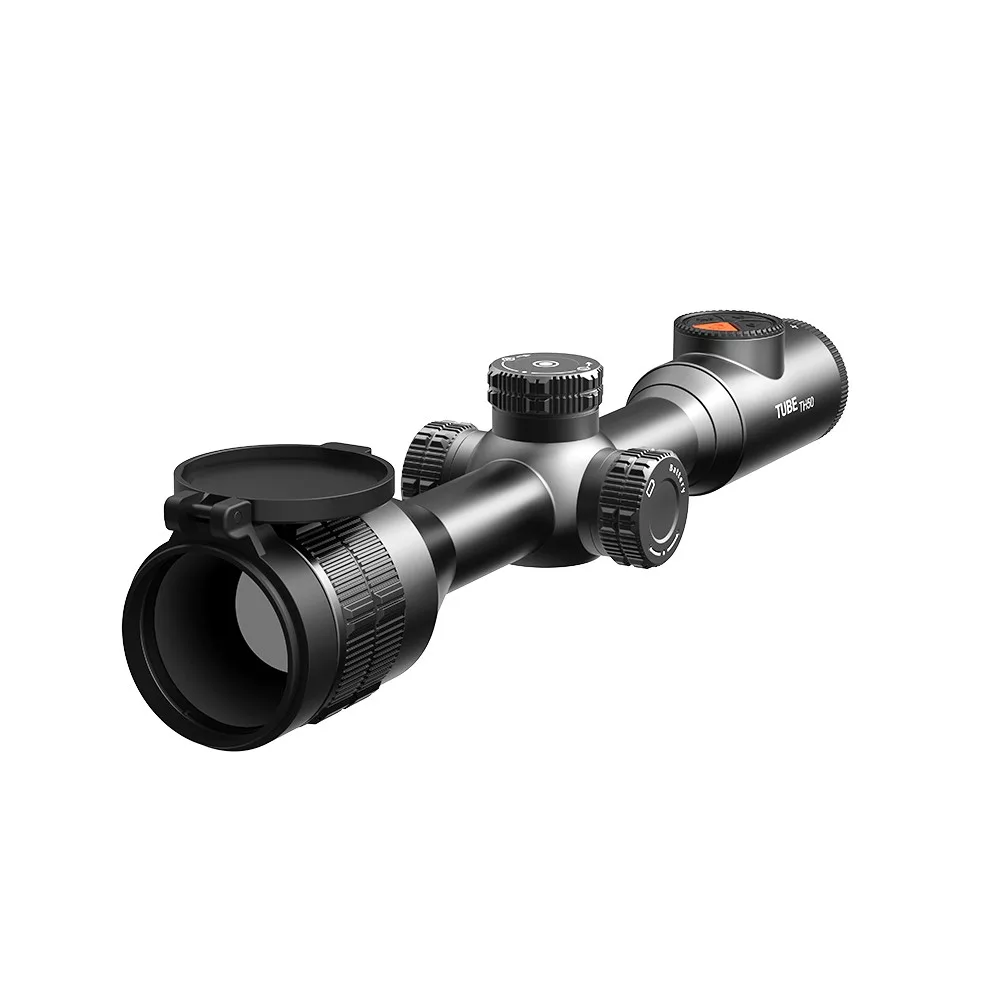

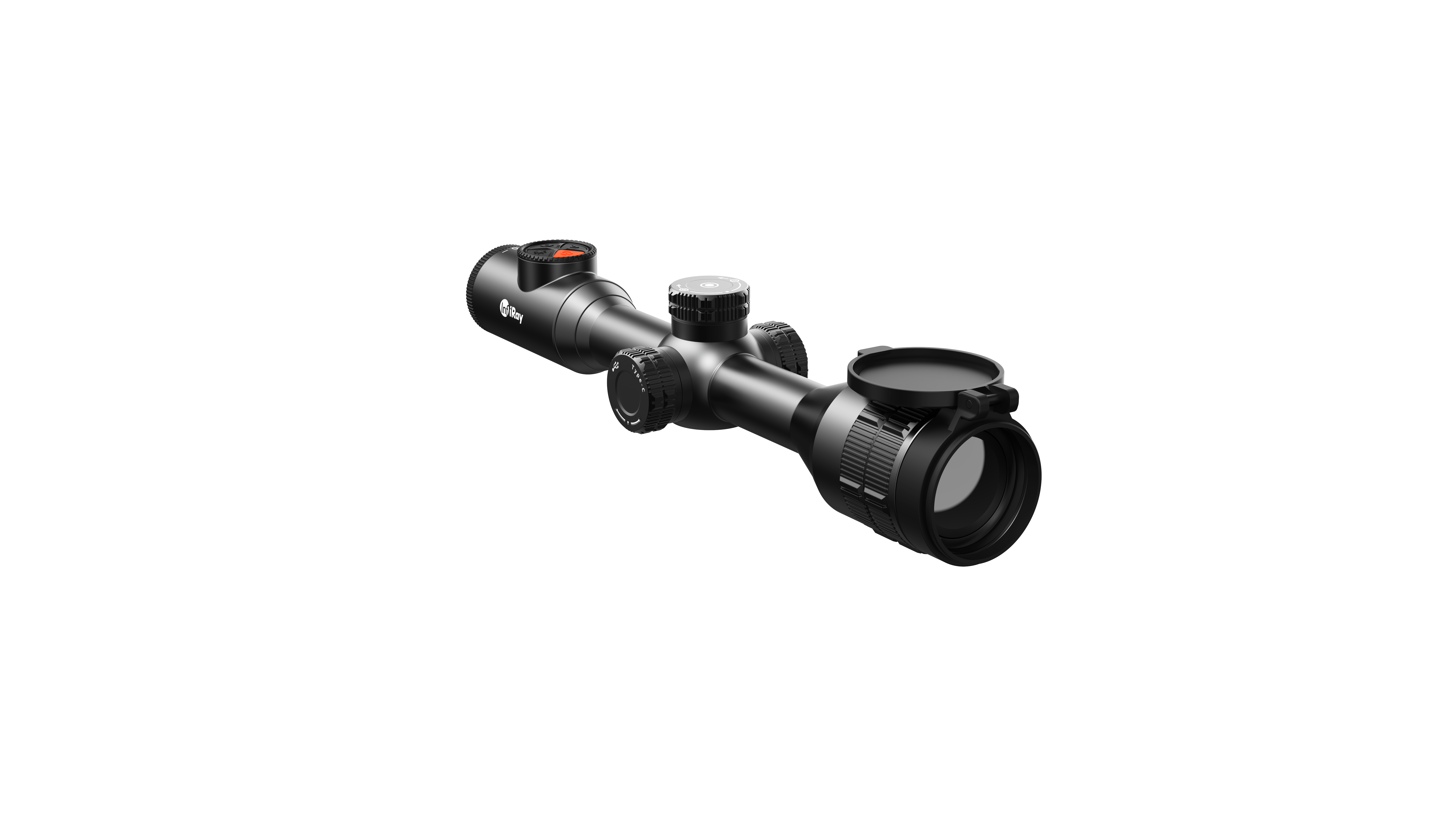

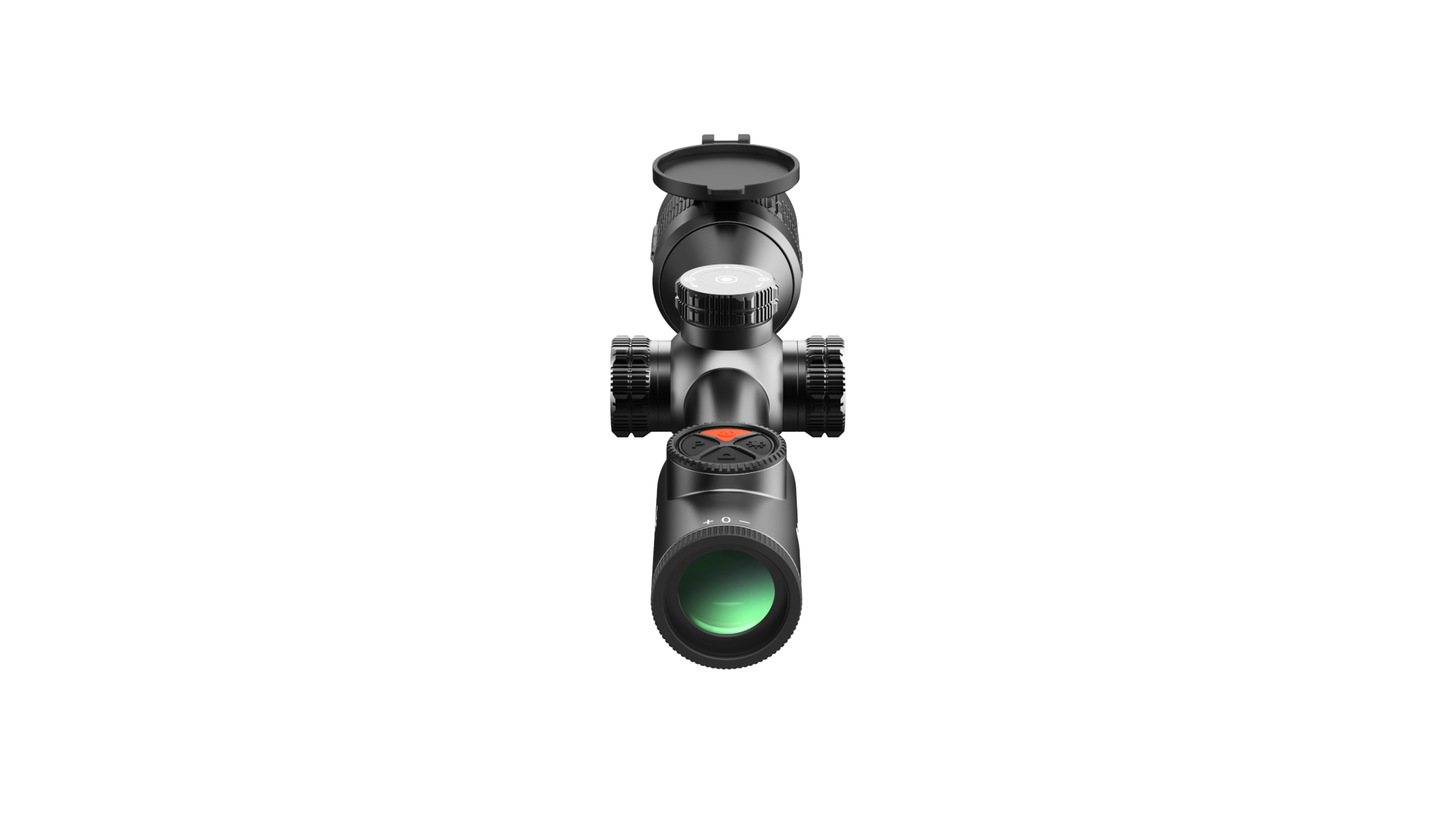

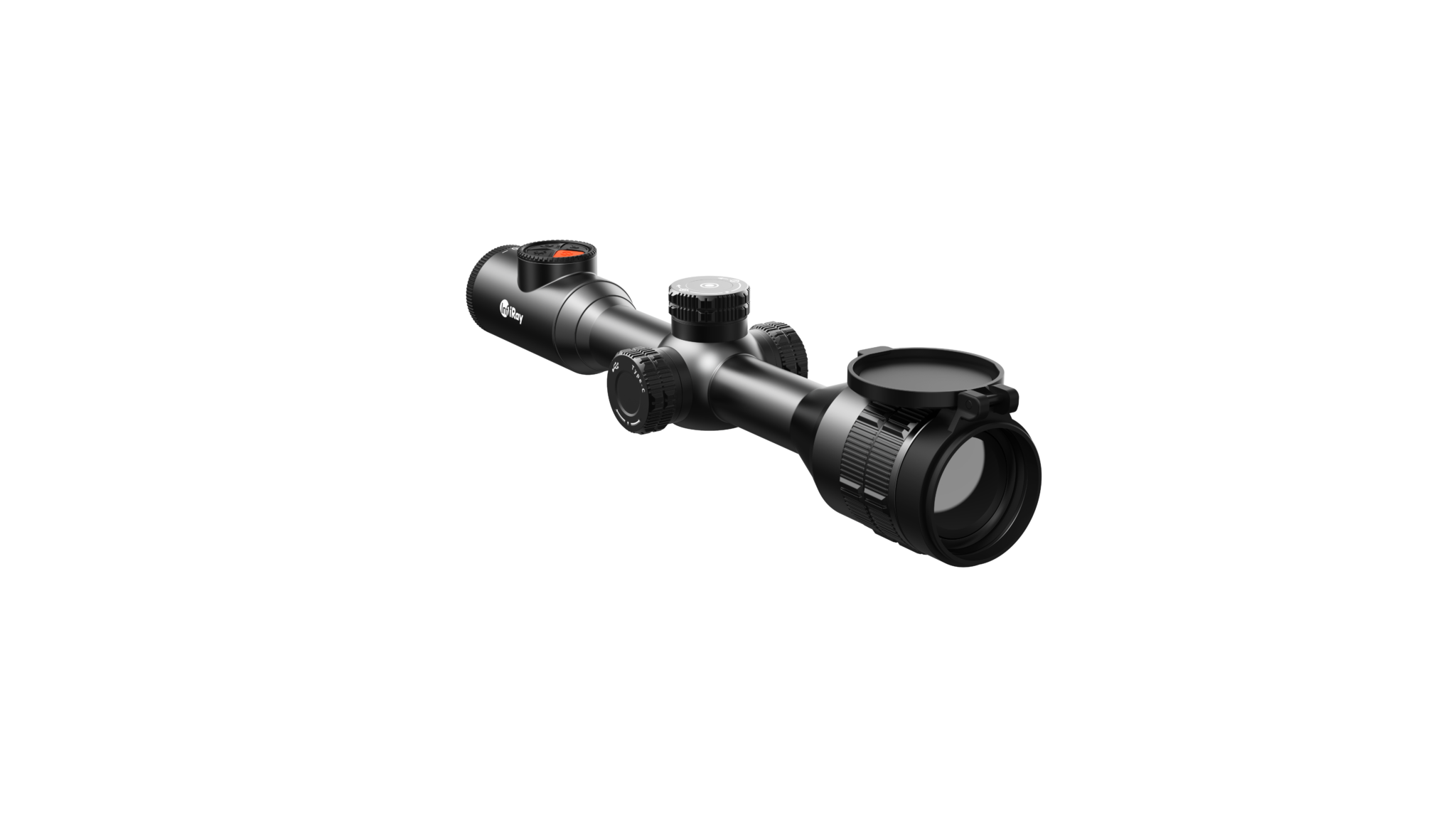

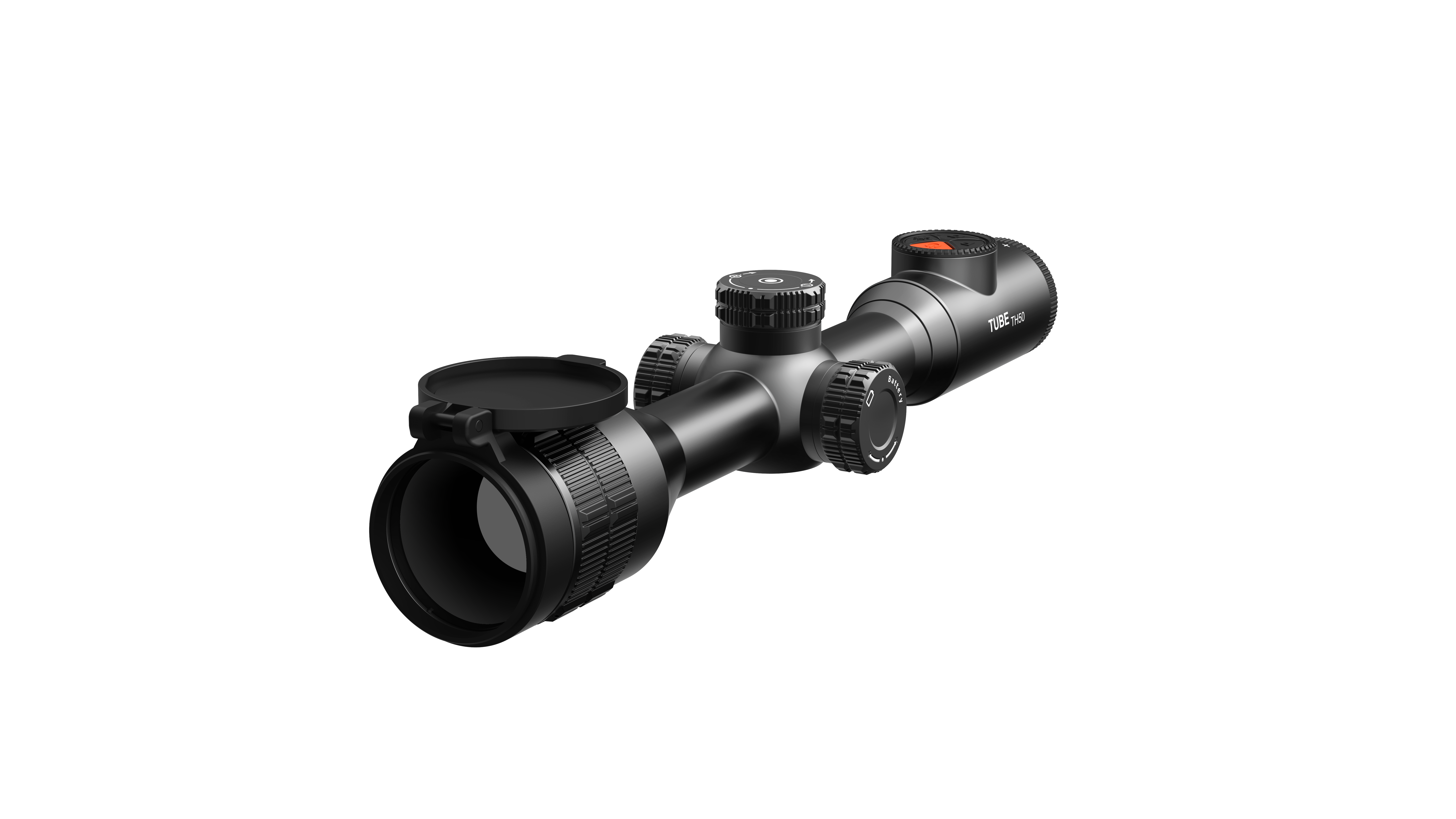

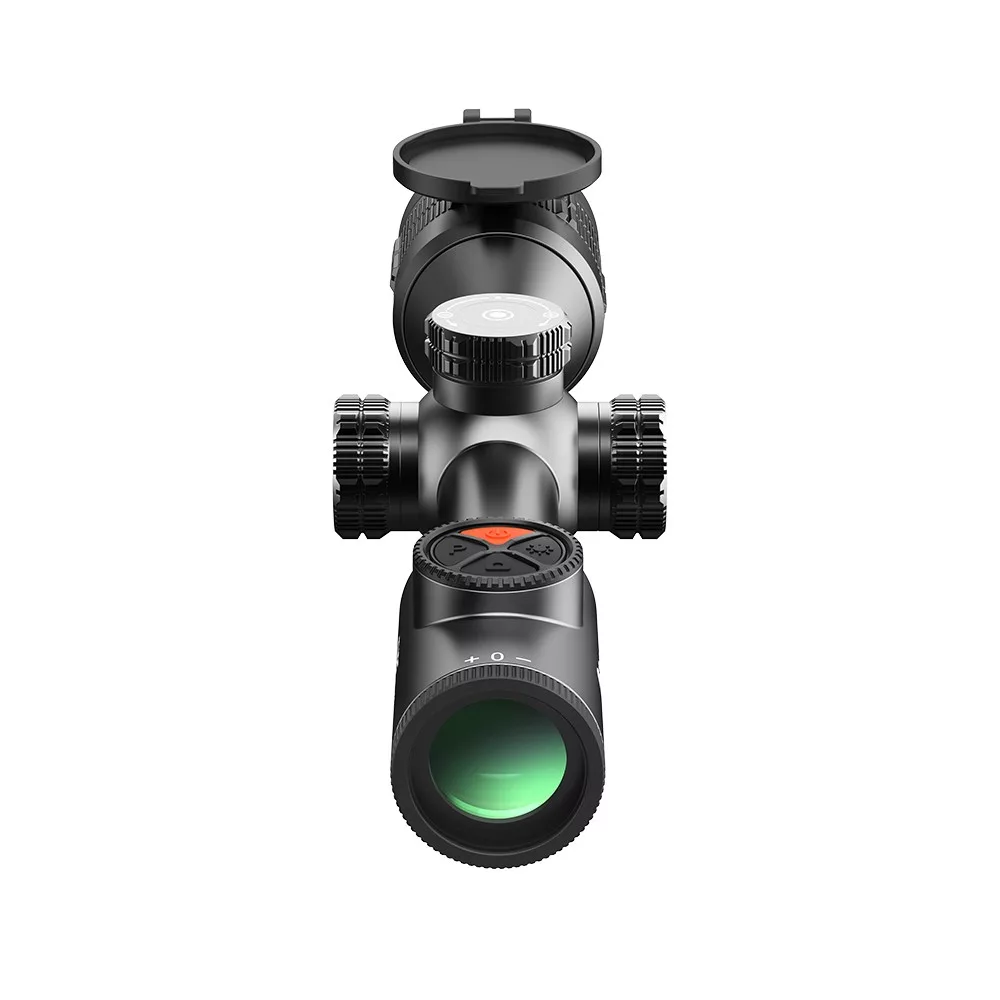

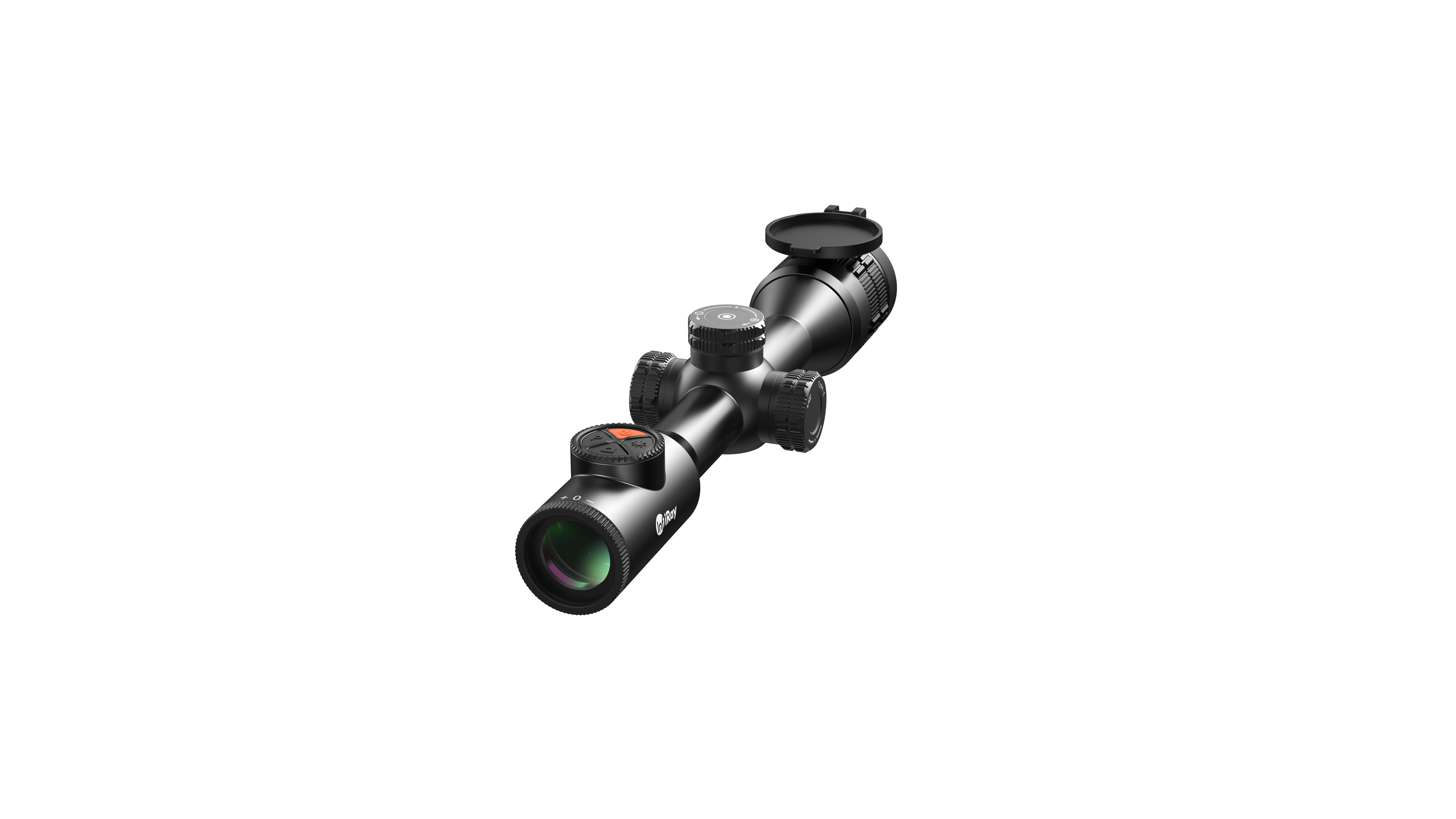

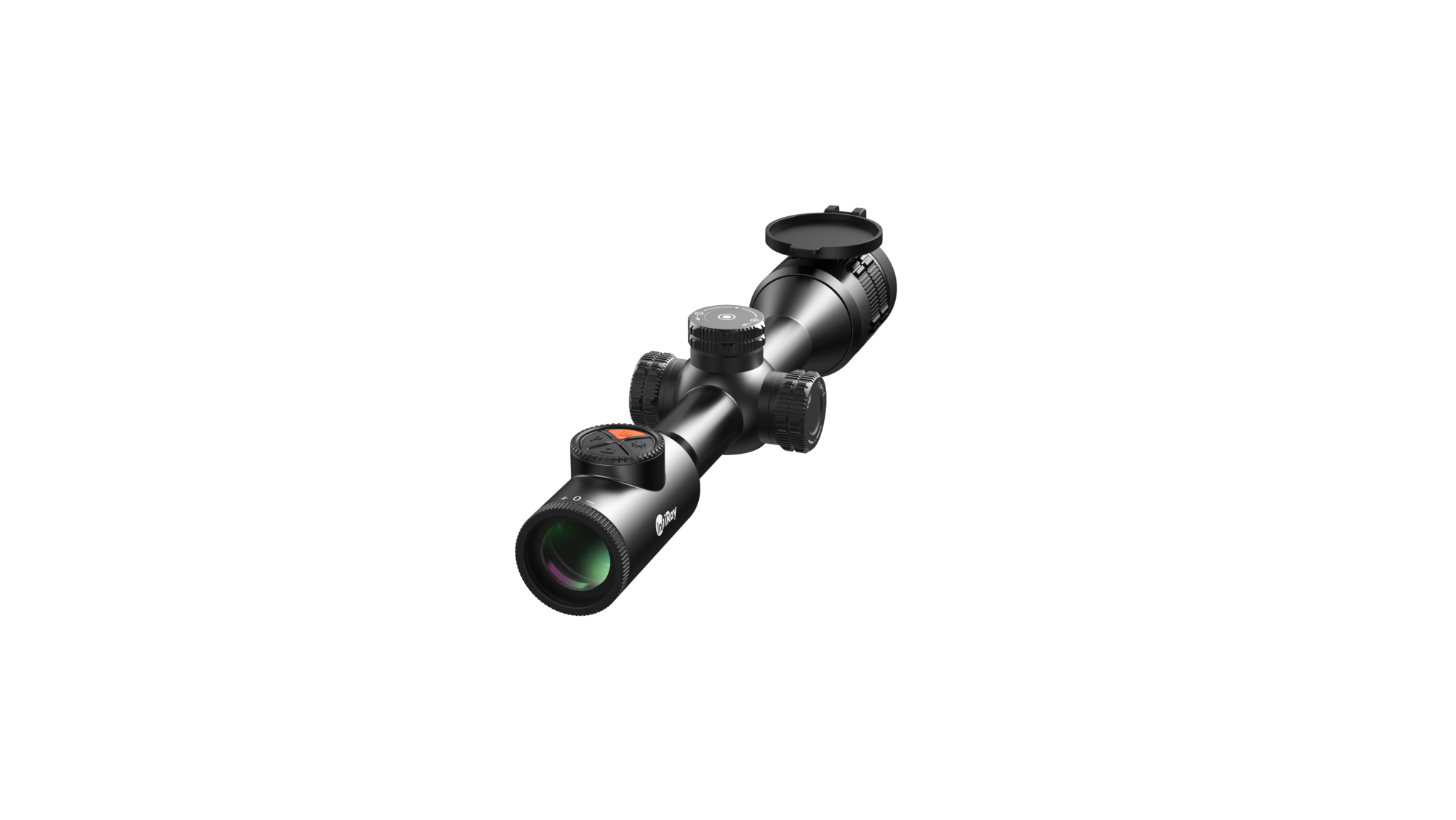

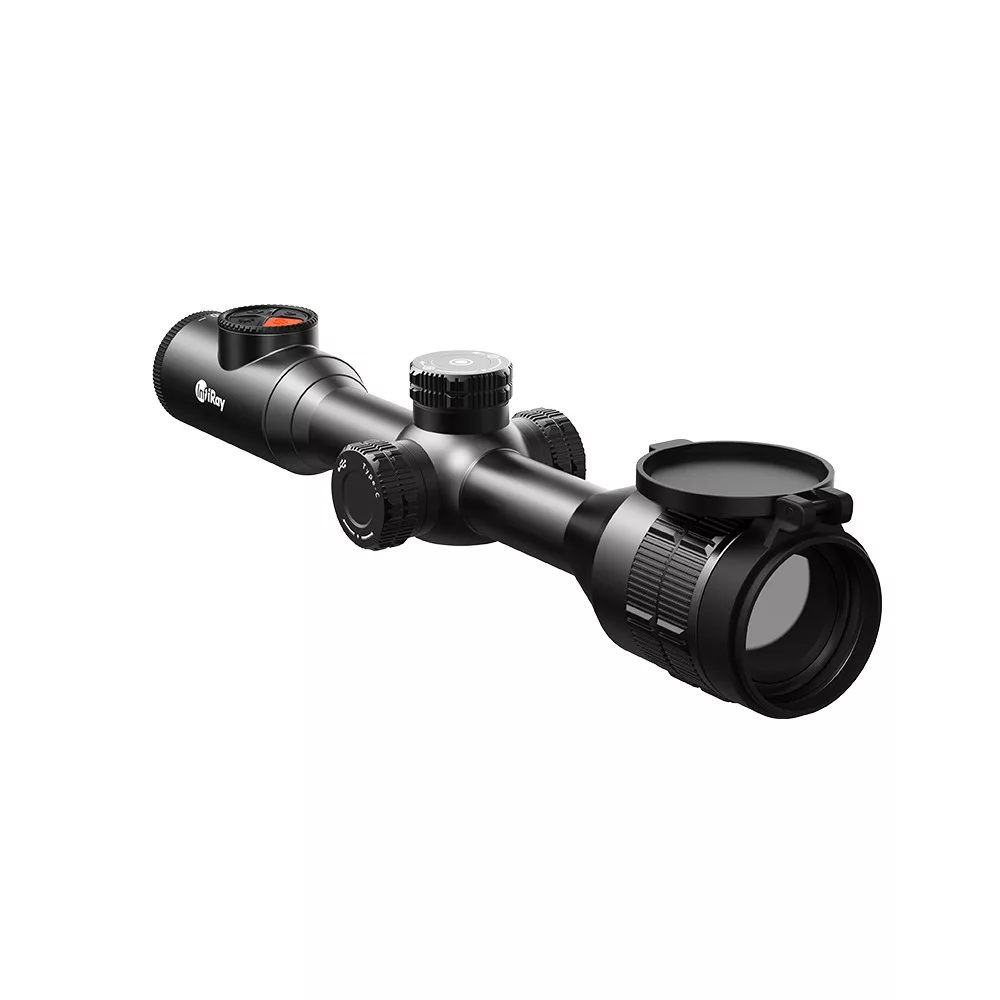

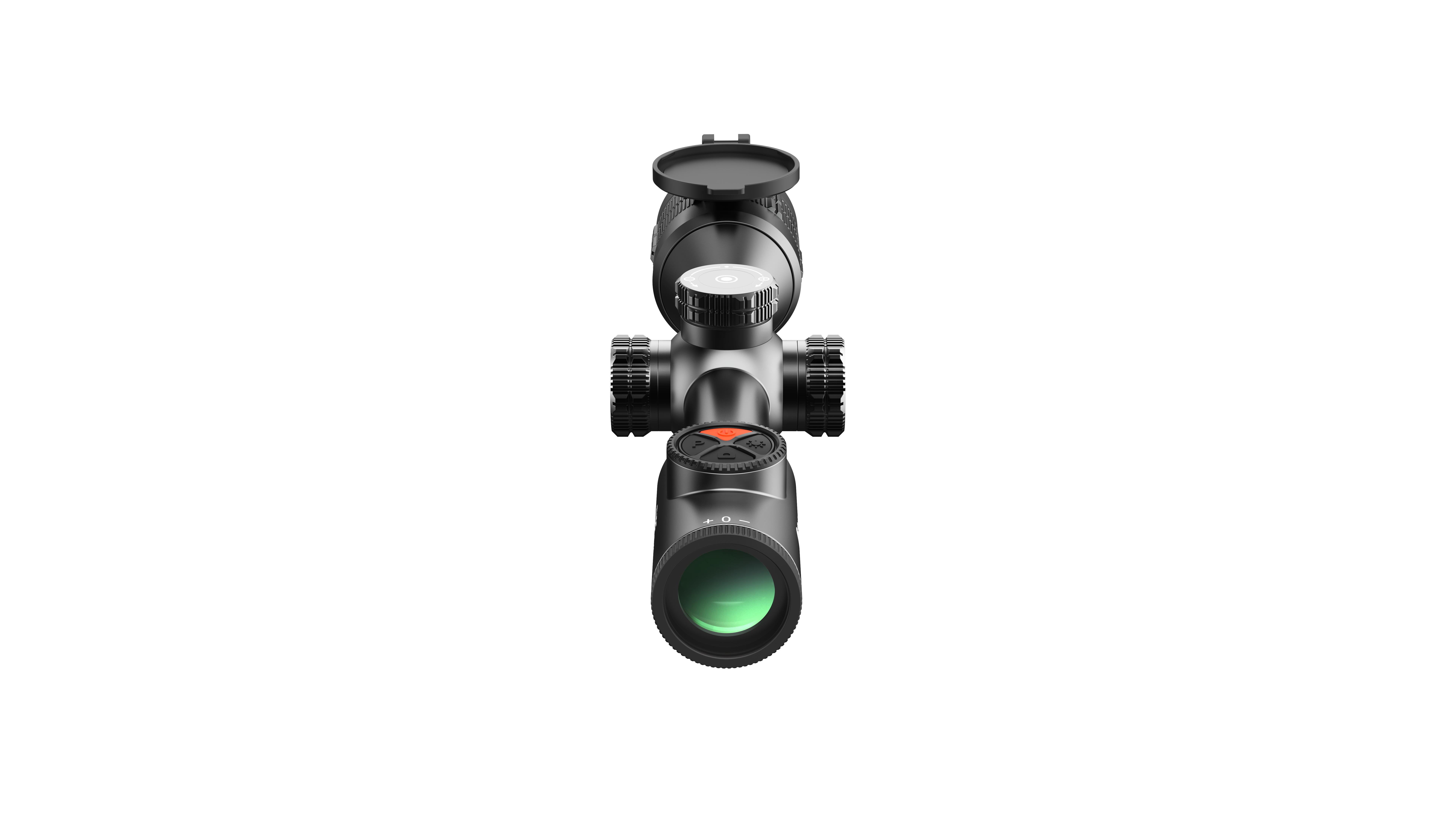

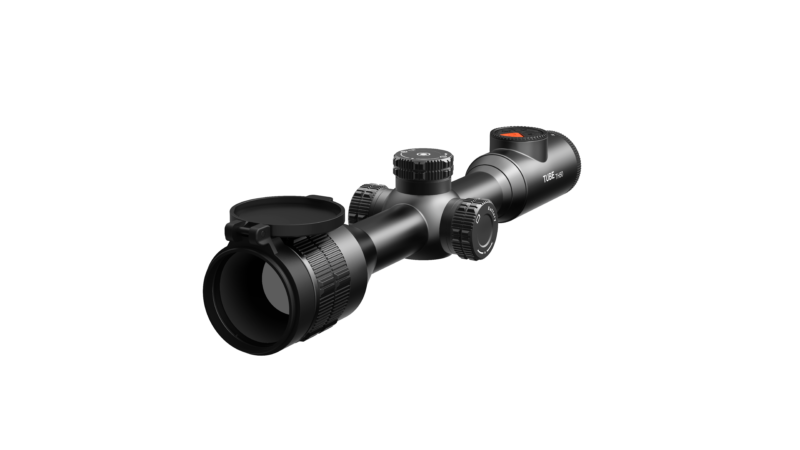

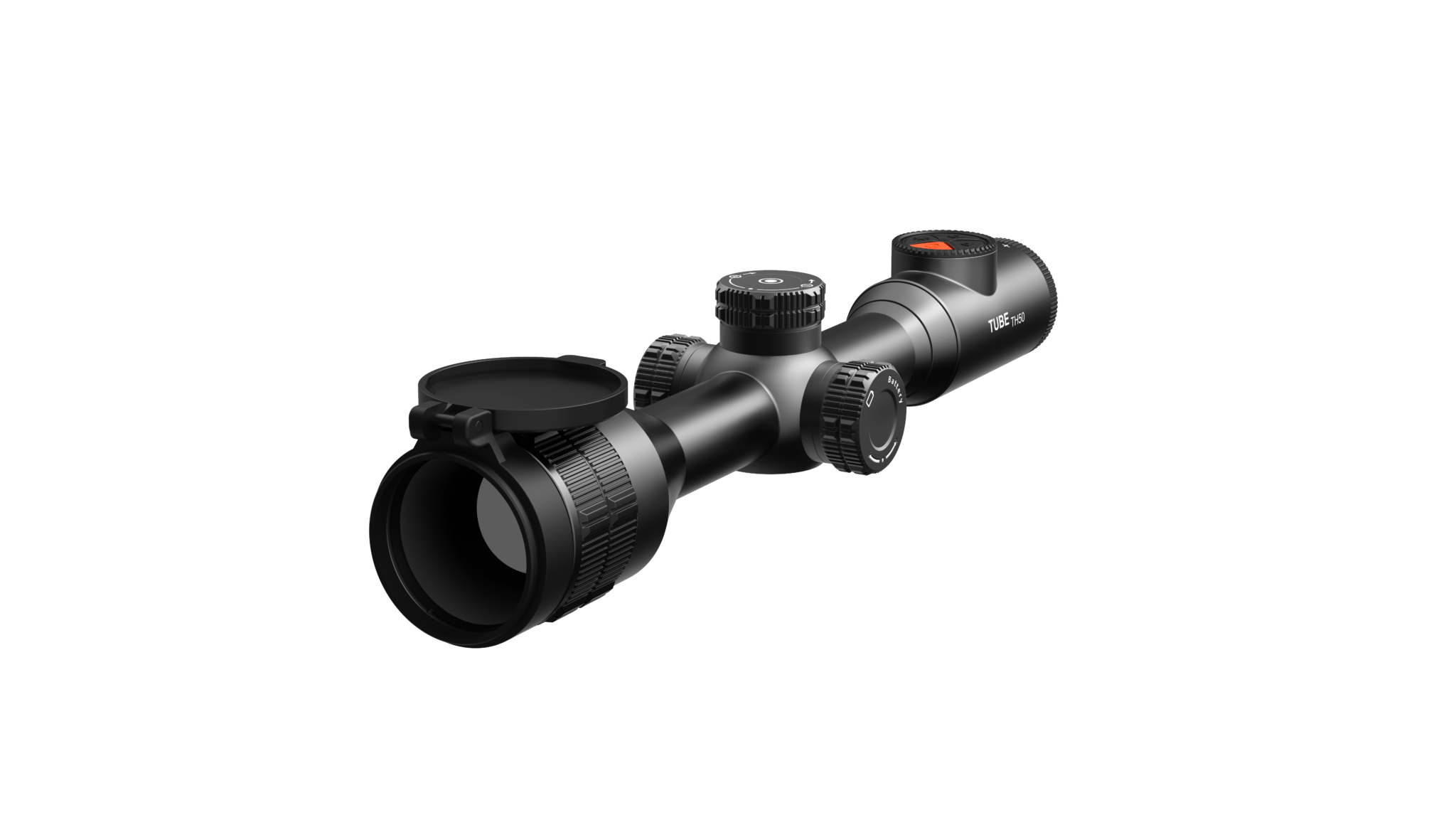

The Tube by InfiRay Outdoor combines traditional style and feel with advanced thermal imaging technology. With a 12um 640×512 sensor, 50mm optics, and a 2560×2560 1.03″ Micro-OLED display, the TH50 offers exceptional comfort, clarity, and precision for outdoor enthusiasts who seek technological advancements.
- High performance 12μm VOx detectors: provide clear images at night and in harsh weather conditions.
- TH50 is able to magnify the image smoothly without flicker and stutter bringing users comfort when observing.
- The shutterless core module is adopted to nullify the shutter calibration, simplify the operation, and lower the energy consumption, making the imaging quieter and linear.
| Detector | 640×512/12um |
| Lens | 50mm |
| Human recognition | 2000m |
| Vehicle recognition | 3000m |
| NETD | ≤40mK |
| Frame rate | 50Hz |
| FOV | 8.8°x7.0° |
| Laser pointer | No |
| Diopter compensation | -4 to +4 dpt |
| Optical zoom | 3.5x |
| Electonic zoom | 1 – 4x (Hybrid zoom 14x) |
| Battery life | ≥ 10h |
| Battery type | Two built-in 18650 batteries |

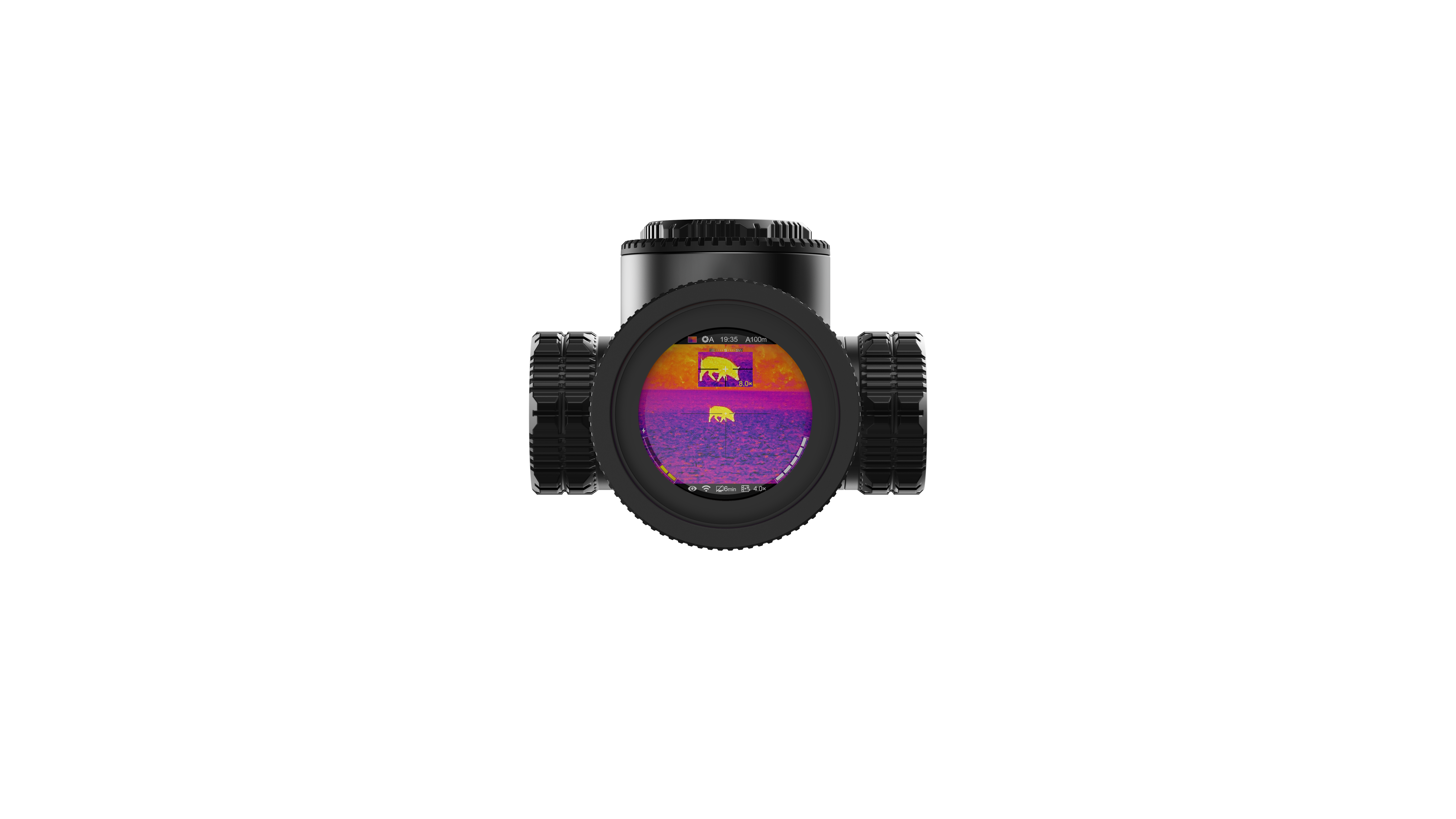

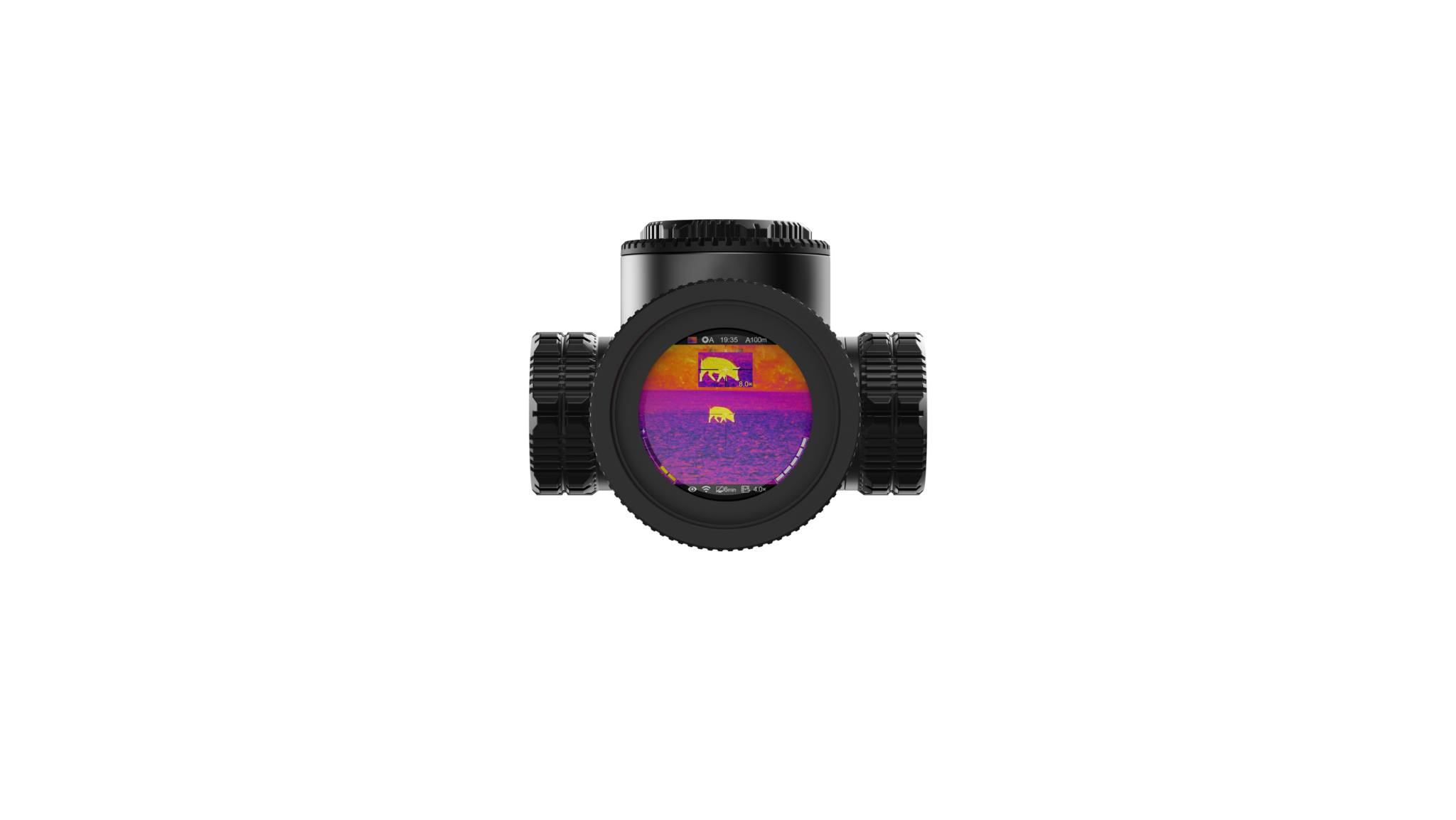

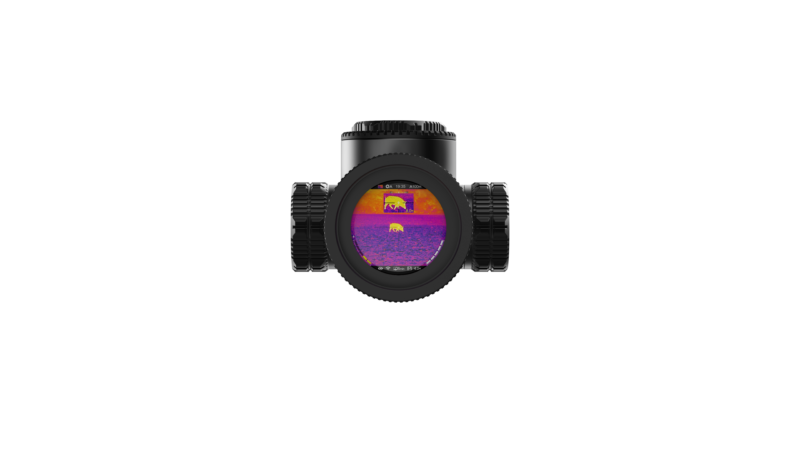

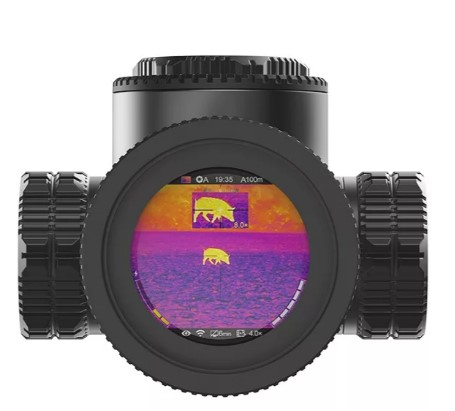

| Display | 2560×2560 AMOLED |
| Storage | 32 GB |
| Recoil proof | Yes – 1000 g/s² |
| Mounting options | Handheld / Rifle |
| Weight | 940 g |
| Dimensions | 370×85×75 |
| IP raiting | IP67 |
| Operating temperature | -20°C to + 50°C |
| Storge temperature | -20°C to + 50°C |
| Other characteristics |
|
Combining the extraordinary sensor and the powerful 50mm optics, TH50 can achieve the detection range up to 2361m.

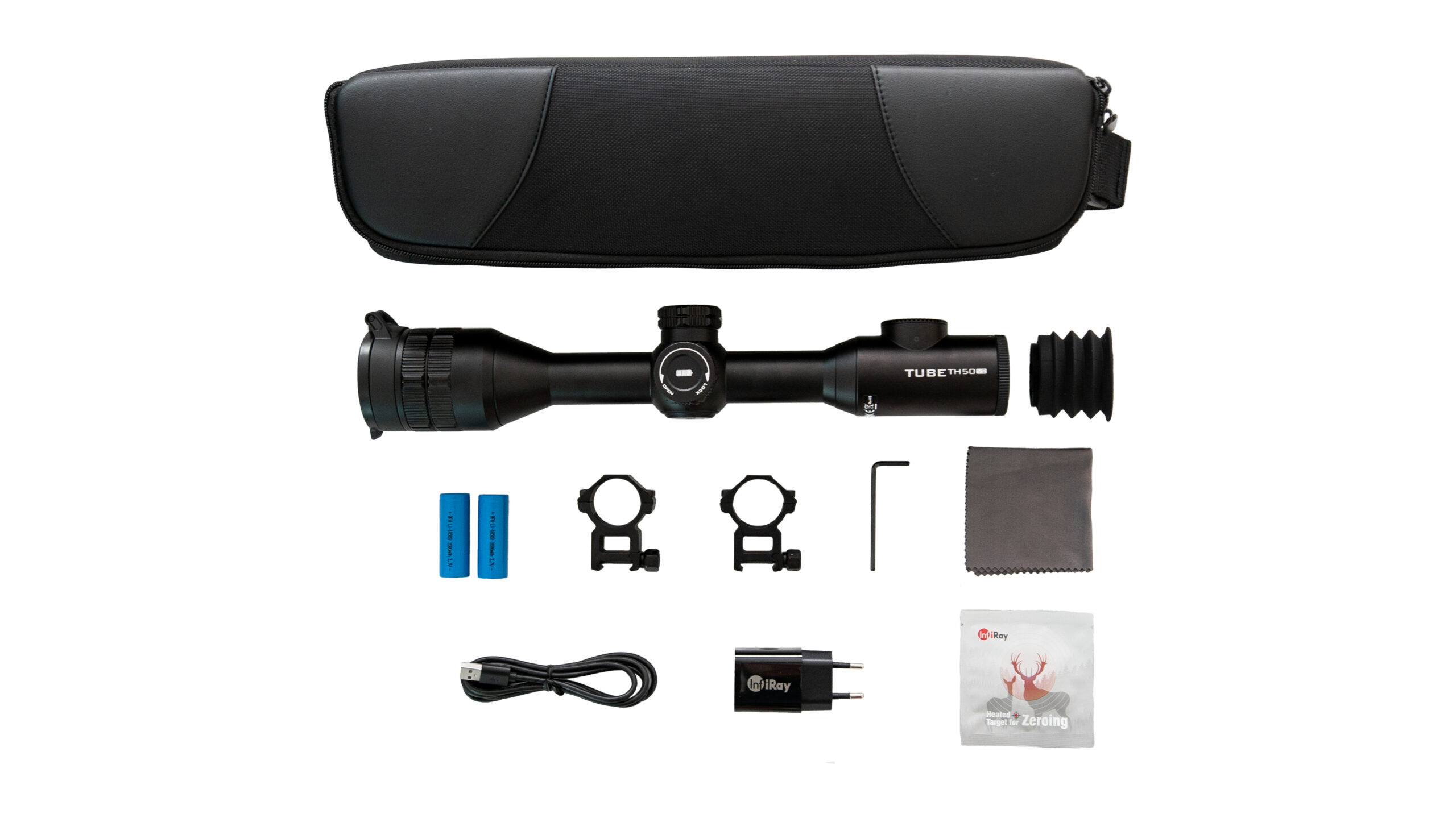

Included accessories
- InfiRay TH50 V2
- 2 x 30mm mounting rails for picatinny
- 5x heat pads
- Rubber eye cup
- Charging and data transfer cables
- USB Power adapter
- Microfiber cloth
- User manual
