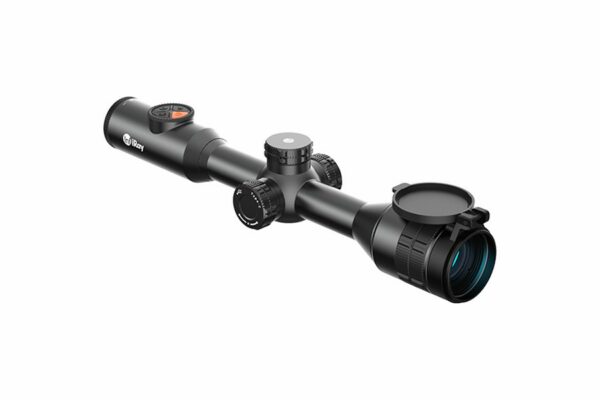

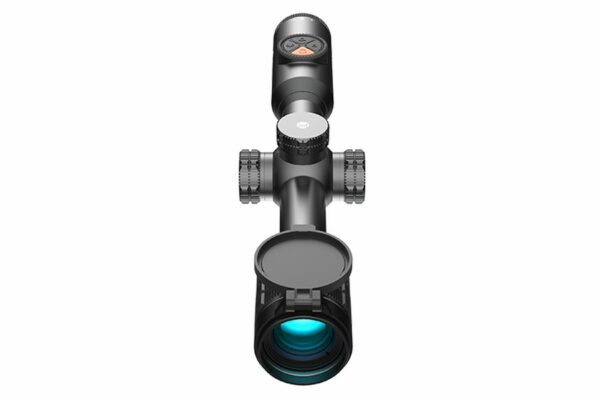

Infiray TL35 Thermal Imaging Scope

2 100.00

Thermal Imager Riflescope, similar appearance with the day riflescope.  384×288 50hz, 35mm Objective, Detection Range 1816 meters

Out of stock

Email when stock available

GTIN: N/A SKU: IRAY-TL35 Category:

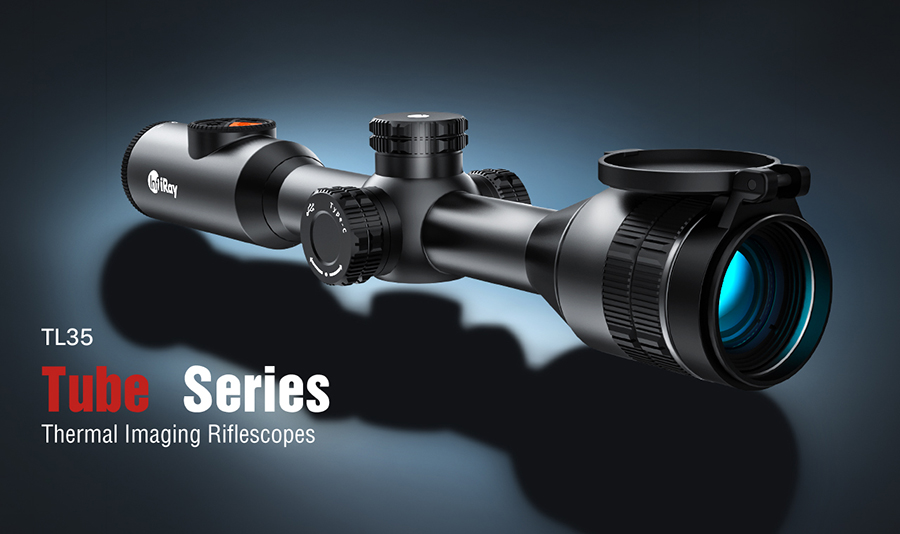

Meet Tube TL35 Series. The Tube series is a cutting-edge thermal imaging riflescope, which has a similar appearance with  the Day riflescope. The state-of-the-art design is especially for professional hunters who value  traditions and seek technological superiority.

System functions:

  • Picture-in-Picture (PiP)
  • Full Aluminum Housing
  • Mounts on standard 30mm rings
  • +8 hours of continuous use
  • Up to 1800m detection range
  • Video Recording
  • WiFi image transfer
  • Ultraclear Mode: Built-in Ultra-clear mode is designed for  bad weather conditions, such as heavy  fog and rain. It will make the Tube series (BOLT in the US) more sensitive and capable of providing  more details.
TH35 (2)
TH35 (7)

Detector464 x 464/12um
Human recognition1816 m
Vehicle recognition1816 m
Frame rate50Hz
Objective Lens35mm
Laser pointer
Diopter compensation-4 to +4 dpt
Optical zoom3 – 9x
Electonic zoom1 – 4x
Battery life≥ 11.5h
Battery typeBuilt-in two 18650 batteries and a
replaceable 18500 battery
Display1280×960 OLED
Storage32  GB
Recoil proofYes, 1000 g/s²
Mounting optionsGun-mounted
Weight950 g
Dimentsions375 x 85 x 75 mm
IP raitingIP67
Operating temperature-20°C to + 50°C
Storge temperature-20°C to + 50°C
Other characteristics
  • Shuttered and manual calibration
  • Variety of Power Supply Options (USB-C)
  • Double power supply solutions, ultra-long operation duration
Included accessories
  • Soft carry-on bag
  • Eyeshade
  • Mounting for Picatinny rail
  • USB-C cable
  • Power adapter
  • Microfiber cloth for lens wiping
