Infiray SAIM SCH50

2 830.00

Thermal Imager 640×512 50hz, 50 mm objective lens, internal battery, NETD≤40mk, internal recording, WiFi, OLED

Out of stock

Email when stock available

GTIN: N/A SKU: IRAY-SCH50 Categories: ,


The cutting-edge design of the Saim SCH50 thermal imaging scope makes it a totally outstanding performer. Experienced users will have more options in tuning the image for different scenarios.

The affordable top-end thermal scope SCH50 among Saim Series provide you with beyond value experience with its 12 um 640×512 resolution, 1024×768 OLED display and integrated into adjustable image brightness and contrast functions to improve shooting and hunting playability. The first-time range notification function enables users to set the prey height and effective range.

System functions:

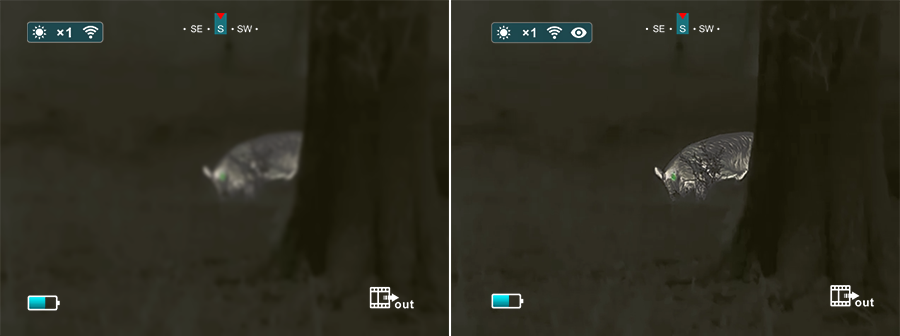

  • Ultra Clear Mode
  • Picture-in-Picture
  • Compass and Motion Sensor
  • Adjustable image brightness and contrast

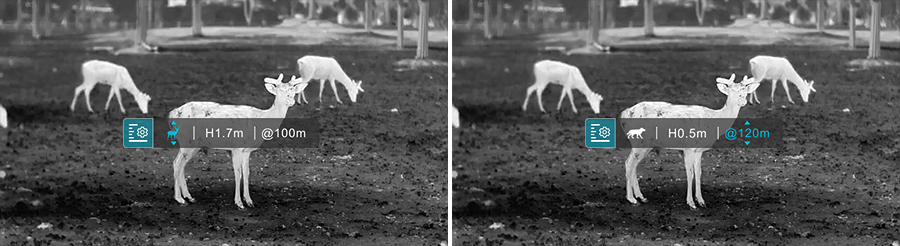

  • Target height setting and range notification
  • High Shock Resistance up to 1000G
  • Long detection range up to 1800m
  • Eight Diff­erent Reticles and Greater 2.91 Visual Magnification
  • Built-in Video Recorder and WIFI Connection

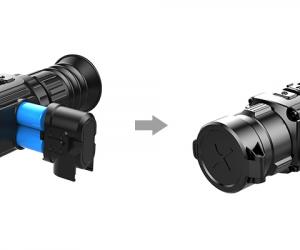

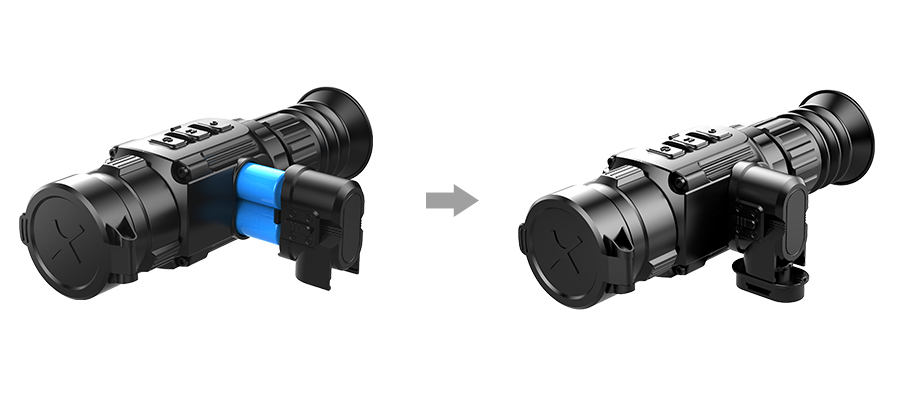

  • (optional) Extended battery compartment

DISCLAIMER: By default the reticle is disabled on every SCH50 unit. Unit can be still used as a hand-held monocular, but reticle function is not accessable. If your country laws* allow using thermal sights, the lock on reticle function can be lifted. Please contact Falconclaw for more guidance.

* Falconclaw can guide on how to remove the lock, but is not responsible for any restrictions you might have in your country. The buyer is responsible for underanding the law in his country

Detector 640×512/12um
Detection Range 2597m
NETD ≤40mK
Frame rate 50Hz
FOV 8.8°x6.6°
Objective Lens 50
Laser pointer No
Diopter compensation -5 to +5 dpt
Magnification 2.91x (optical) – 11.64x (digital + optical)
Electonic zoom 1 – 4x
Battery life ≤ 3.5h
Battery type 2x CR123 or 2x 16650 (with optional accessory)
Display 1024×768 OLED
Storage 32 GB
Recoil proof Yes, 1000 g/s²

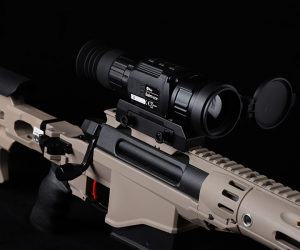

Mounting options Handheld, rifle mounted
Weight 510 g (without batteries)
Dimentsions 216 x 61 x 61 mm
IP raiting IP67
Operating temperature -10°C to + 50°C
Storge temperature -10°C to + 50°C
Other characteristics
  • Wi-Fi program update
  • Ultraclear mode for harsh weather conditions
  • Long-distance detection range
  • Variable reticle types and color
