Description

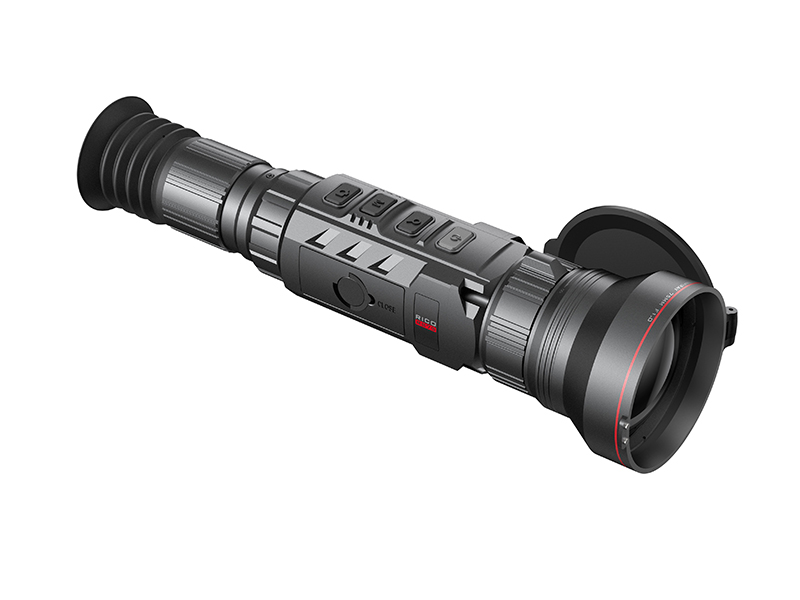

The RICO HD Series RS75 from InfiRay Outdoor marks a new chapter in
thermal technology. Featuring an industry-first 1280×1024 12μm sensor, an ultra-high resolution 1.03-inch 2560×2560 AMOLED display, low-distortion orthoscopic eyepiece, and a 75mm f/1.0 lens, the RS75 is the perfect blend of optical performance and sensor resolution. The RICO HD also offers crystal-clear onboard audio recording and 128 GB of storage so you can capture each countdown and relive every impact. With the RS75, InfiRay Outdoor has finally unleashed capabilities that night hunters had previously only dreamed of.
System functions:
- Picture in picture
- Acelerometer and Digital Compass
- High Shock Resistance
- Long detection range up to 3300 m
- Expandable Laser Ranging Function (optional)
- Built-in digital compass and gravity sensor
- Video recording and easy transmission via Wifi. 128 Gb of internal memory provide many hours of recorded video and tons of photos.
- Digital Zoom: ×2/×4/×8/×16
DISCLAIMER: By default the reticle is disabled on every RS75 unit. Unit can be still used as a hand-held monocular, but reticle function is not accessable. If your country laws* allow using thermal sights, the lock on reticle function can be lifted. Please contact Falconclaw for more guidance.
* Falconclaw can guide on how to remove the lock, but is not responsible for any restrictions you might have in your country. The buyer is responsible for underanding the law in his countr
| Detector | 1280×1024/12 μm |
| Detection | 3292m |
| NETD | ≤25mK |
| Frame rate | 30Hz |
| FOV | 11.7° × 9.4° |
| Objective Lens | 75 mm f/1.0 |

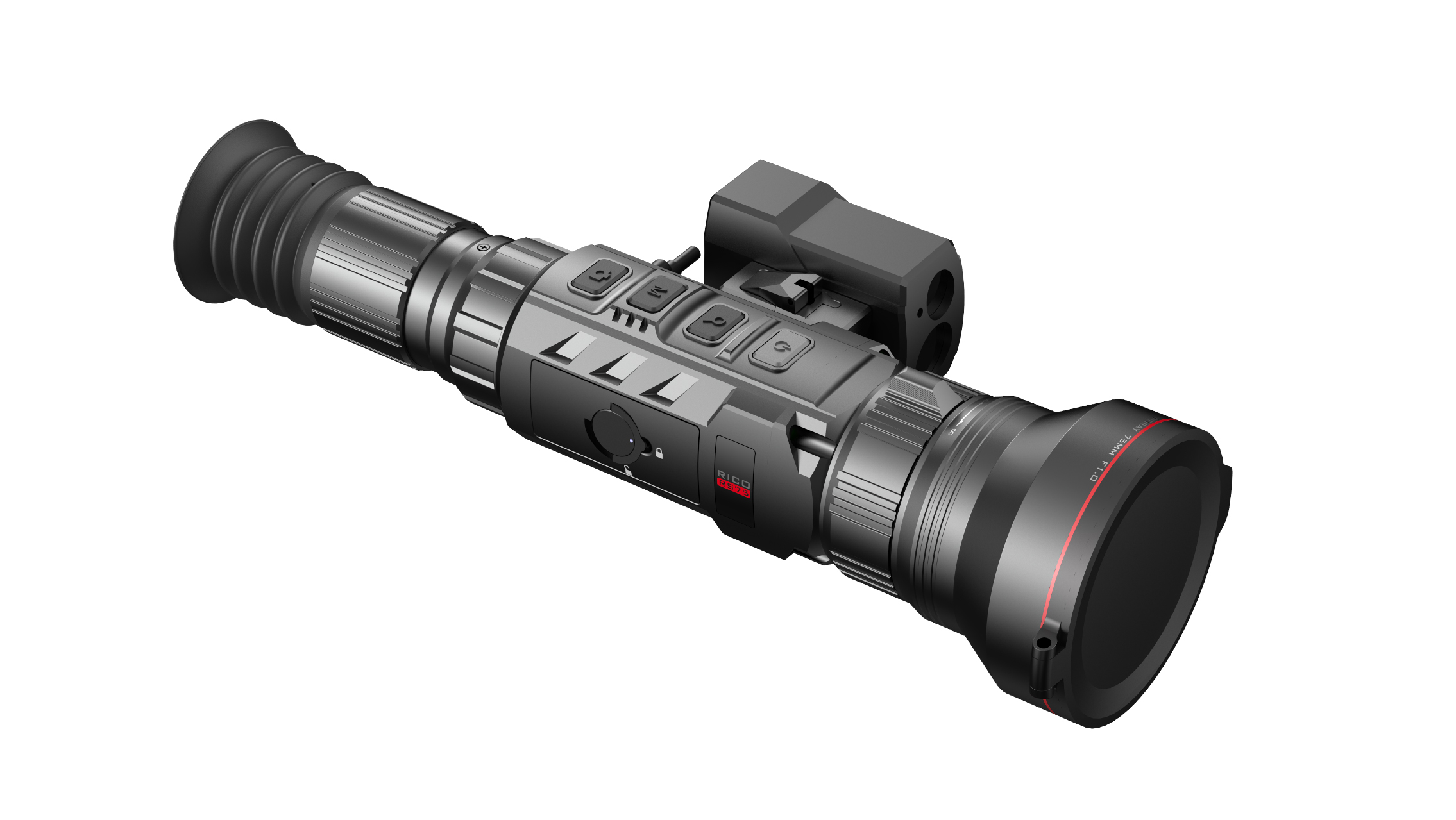

| Rangefinder | ILR-1000 Laser Rangefinder |
| Diopter compensation | -3 to +3 |
| Magnification | 2x (optical) – 16x (digital + optical) |
| Reticle Types | 7 (Reticle Colors: Black, White, Red, Green) |
| Battery life | 4 h, Each Battery |
| Battery type | IBP-1 Battery ×2 |
| Display | 2560×2560 AMOLED |
| Storage | 128 GB |
| Recoil proof | Yes, 1000 g/s2 (300 Win./7mm Mag) |

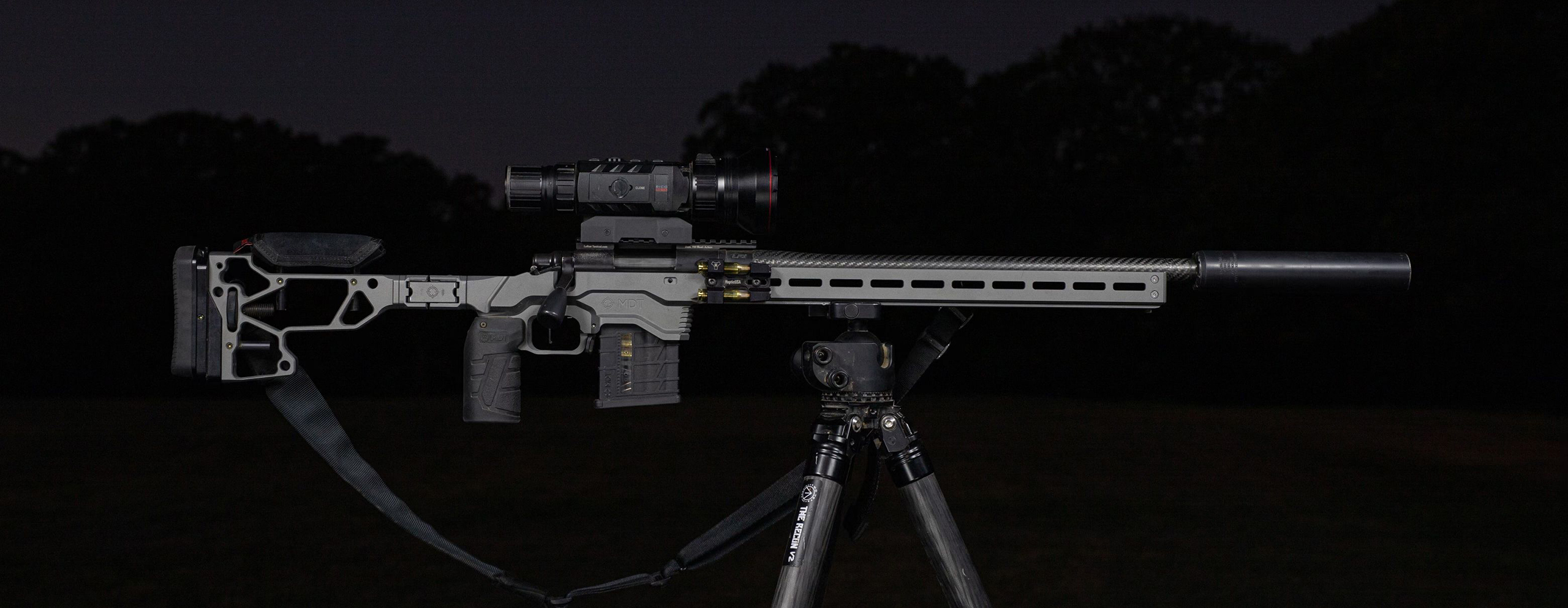

| Mounting options | Handheld, rifle mounted |
| Weight | 1273 g |
| Dimentsions | 319 x 85 x 99 mm |
| IP raiting | IP67 |
| Operating temperature | -16°C to + 50°C |
| Warranty | 2 Years |
| Other characteristics |
|

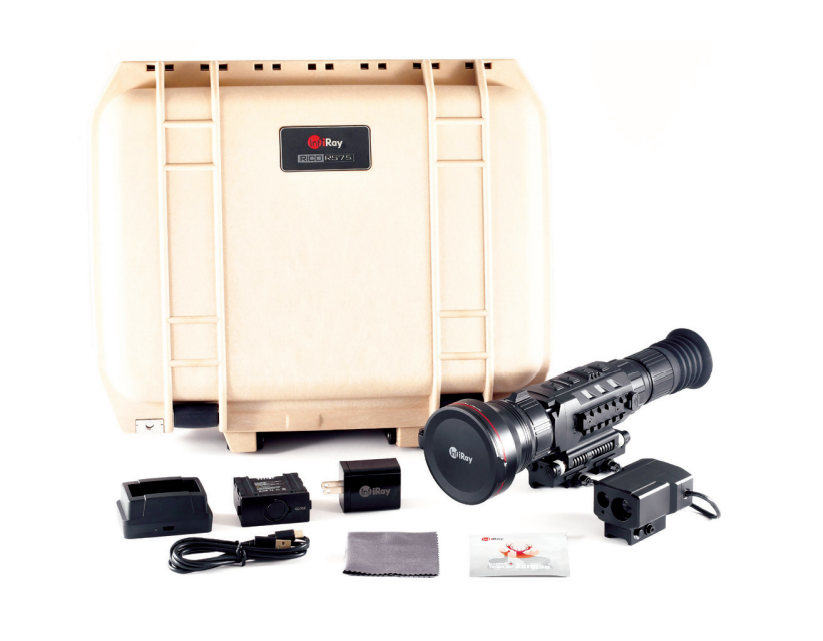

Included accessories
- ILR-1000 Laser Rangefinder Module
- USB-C to Analog RCA/USB Cable 36”
- Objective Lens Cap for RICO RS75

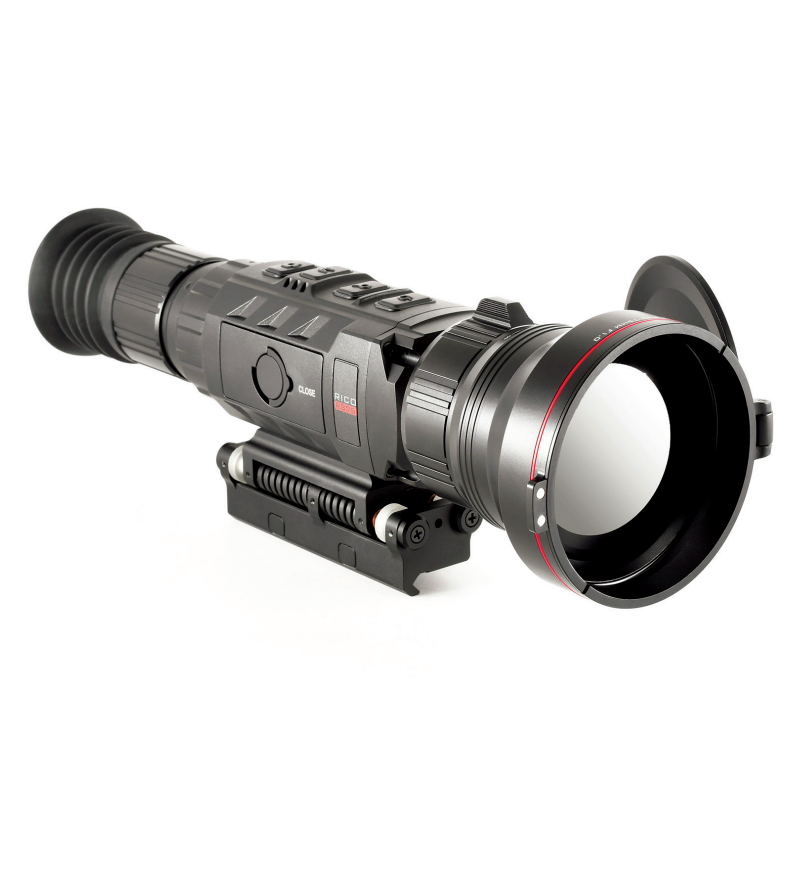

- Shock Reduction Picatinny Mount for RICO RS75
- Standard Rubber-Eyecup for RICO RS75
- IBP-1 Battery Pack x2
- IBC-1 Battery Charger for IBP-1 Battery
- USB Power Adapter
- M5 Screws for Shock Reduction Picatinny Mount
- Spanner/T15 Tool
- Hard Case
- Lens Cloth
- User Manual
