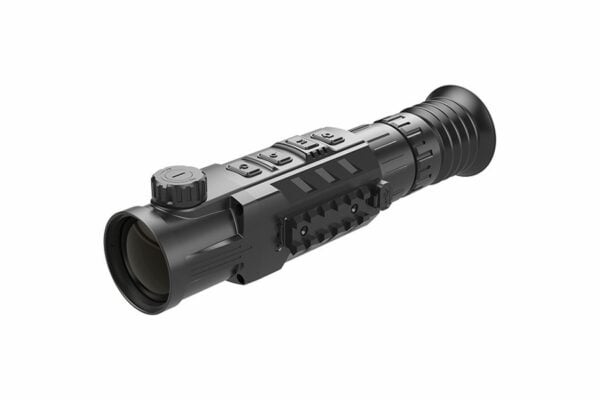

Infiray RICO RH50

4 0204 614

Thermal Imager 640×512 50hz, 50mm objective lens, internal battery, NETD≤40mk, internal recording, WiFi, AMOLED

4 0204 614
Include Laser Rangefinder Yes No
Clear selection
GTIN: N/A SKU: IRAY-RH50 Category:


The Rico series is a multifunctional and highly expandable infrared thermal imaging product. The product is featured with alterable laser rangefinder (optional), detachable battery pack, eyepiece magnification up to 16 times, and comprehensive upgrade of software interface. With the updated, the Rico series also offers advanced image correction and automatic image optimization.

Main Features:

  • High Image Quality The Rico series is embedded with an infrared, independently developed high performance VOx detector, which offers you vivid, highly detailed thermal images. It is easier to search for targets in the dark with amazingly sharp image quality.
  • AMOLED Micro Display The high contrast AMOLED micro display with HD resolution offers sharp image and vivid colors. The display screen has excellent image quality and gives a flawless performance, even in freezing temperature.
  • Ultraclear Mode The built-in ultraclear mode is especially designed for harsh weather conditions, such as in heavy fog and rain. It will be more sensitive and display more details.
  • User-Friendly Interface Simple and easy to operate is the initial design intention of the Rico series. The vivid icon design offers a visualized guide and translucent background of the menu display, ensuring the user to observe the target unobstructed.
  • High Shock Resistance The Rico series features exceptionally high shock resistance up to 1000 G.
  • 12 µm Thermal Imaging Sensor High performance 12 μm pixel pitch detectors are embedded.
  • Expandable Laser Ranging Function (optional) The Rico series offers laser ranging capabilities, which can accurately capture and display the target distance with an accuracy of ± 1 m and a maximum distance of 1000 m. Integrated, precision laser rangefinder provides accurate rangefinding in two modes – Single Time Measurement and Scanning mode with ±1 m accuracy up to 1 km distance. Scanning mode allows the shooter to adjust quickly to changing distances for better shot placement.
  • Long detection range up to 2600 m Powerful objective lens in combination with professional grade thermal imaging sensor with NETD ≤40 mK provides exceptional detection capabilities. A standard 1.8m tall object can be detected at a 2600 m distance in complete darkness.
  • Replaceable Battery Pack The Rico series support a 3.7 V, 4400 mAh large capacity battery pack that operates for 6 hours. With the ability to maintain continuous power supply at any time outdoors, it provides an ideal battery solution. The batteries can be quickly removed and replaced with new ones in a matter of seconds.
  • Video Recording The Rico series offer video record and image capture during observation. The video and photo can be easily transmitted via wired or WiFi connection. The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. 32 Gb of internal memory provide many hours of recorded video and tons of photos.

DISCLAIMER: By default the reticle is disabled on every RH50 unit. Unit can be still used as a hand-held monocular, but reticle function is not accessable. If your country laws* allow using thermal sights, the lock on reticle function can be lifted. Please contact Falconclaw for more guidance.

* Falconclaw can guide on how to remove the lock, but is not responsible for any restrictions you might have in your country. The buyer is responsible for underanding the law in his country.

RICO RH50 Specifications:

Resolution 640×512
Pixel size 12μm
NETD, mK ≤40
Frame Rate 50hz
Objective lens F50 / 1.1
Optical magnification 3.0~12.0× (including digital zoom 2/4x)
IP Raiting IP67
Internal memory 32GB
Power Supply Replaceable battery 3.7V 4400mAh
Dimensions 250 x 61 x 58mm
Weight ~840g
Warranty 24 months



Additional information

Weight 4 kg
Laser Rangefinder for RICO

Yes, No
