InfiRay PFN 384+ Multi-functional Thermal monocular

3 960.00

Four functions in one camera: Handheld/CLIP-ON/Riflescope/Helmet mountable. 384×288 50hz, 25mm objective, Detection Range 420-700 meters

In stock

GTIN: N/A SKU: IRAY-PFN384+ Category:


Meet PFalcon Series, the Multi-functional thermal imager monocular. Handheld, helmet, clip-on, direct aim multi-purpose equipment, which is used for individual reconnaissance. Lighweight, small in size, easy to carry, and has the characteristics of long working time and good concealment.

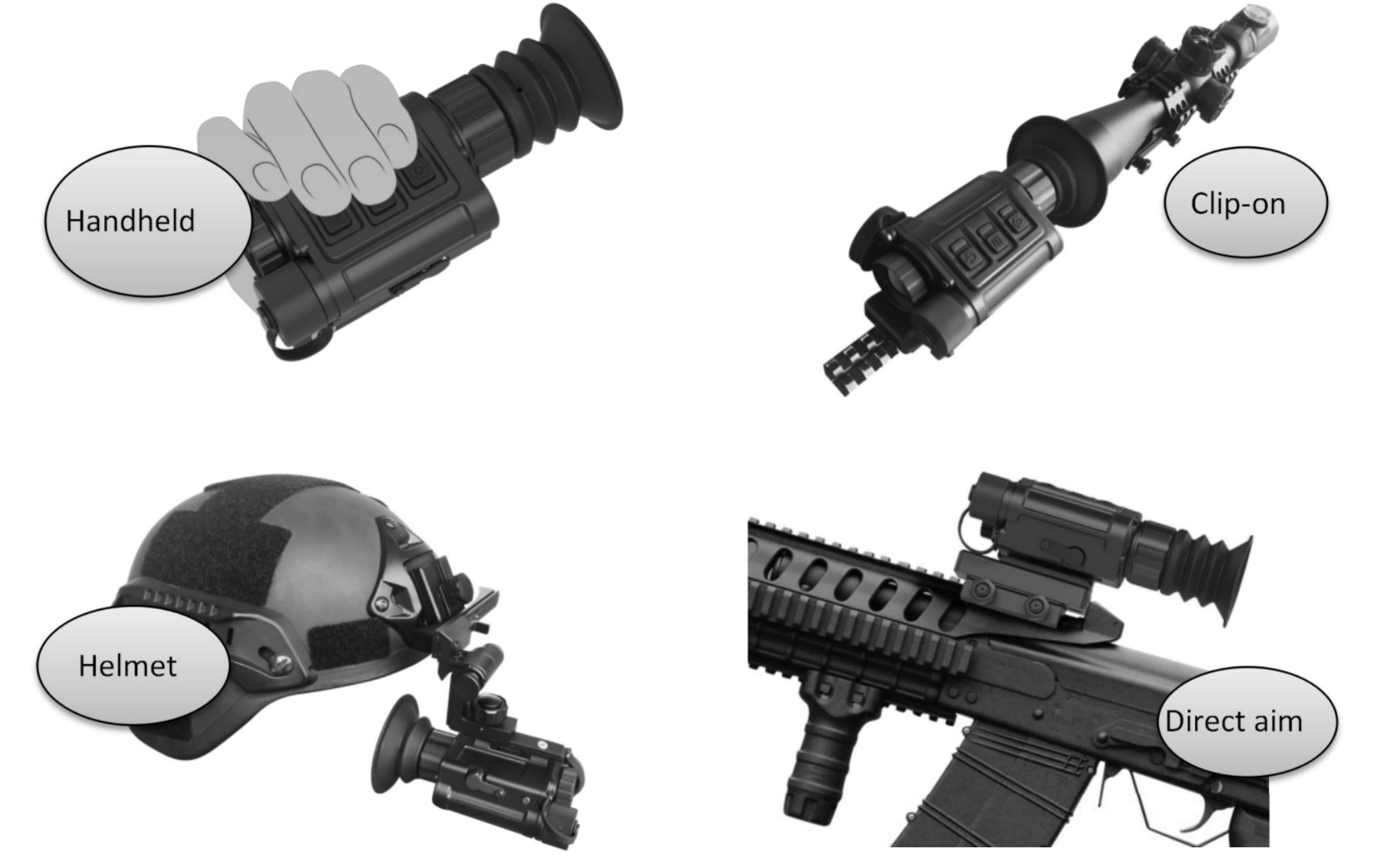

  • Support 4 modes of use: handheld, helmet, clip-on and direct aim;
  • High performance 12μm VOx detectors: provide clear images at night and in harsh weather conditions;

DISCLAIMER: By default the reticle is disabled on every PFN384+ unit. Unit can be still used as a hand-held monocular, but reticle function is not accessable. If your country laws* allow using thermal sights, the lock on reticle function can be lifted. Please contact Falconclaw for more guidance.

* Falconclaw can guide on how to remove the lock, but is not responsible for any restrictions you might have in your country. The buyer is responsible for underanding the law in his country.

The PFN384+ is equipped with two lengths of battery cover, which can be adapted to batteries with two lengths of 65mm and 70mm.

Human recognition420m
Vehicle recognition700m
Frame rate50Hz
Ocular Lens14
Laser pointerNo
Diopter compensation-4 to +4 dpt
Optical zoom1x
Electonic zoom1 – 4x
Battery life≥ 6h
Battery type1x 18650
Display1024×768 AMOLED
Storage64 GB
Recoil proofYes
Mounting optionsHandheld, helmet, clip-on, direct aim
Weight355 g
Dimentsions105 x 65 x 48 mm
IP raitingIP67
Operating temperature-40°C to + 55°C
Storge temperature-55°C to + 70°C
Other characteristics
  • Wi-Fi program update, transfer files;
  • Up to 1600 images and 40 hours of video on 64G internal memory;
  • 3 types of calibration guns, support custom calibration distance;
  • The vibration absorbing bracket is connected to absorb shock vibration, and the image is more stable;
Included accessories
  • Soft carry-on bag
  • Eye-cup (2 – one for weapon mount, other for helmet mount & as clip-on)
  • Helmet mount (minirail)
  • Charging and data transfer cables
  • USB Power adapter (USA)
  • Battery charger
  • Battery cap for 18650 & 18700
  • Weapon mount (Picatinny)
  • Connector between PFalcon and helmet mount
  • Microfiber cloth
  • Tool kit
  • Screws (blunt tip for helmet mount / triangle tip for weapon mount)
