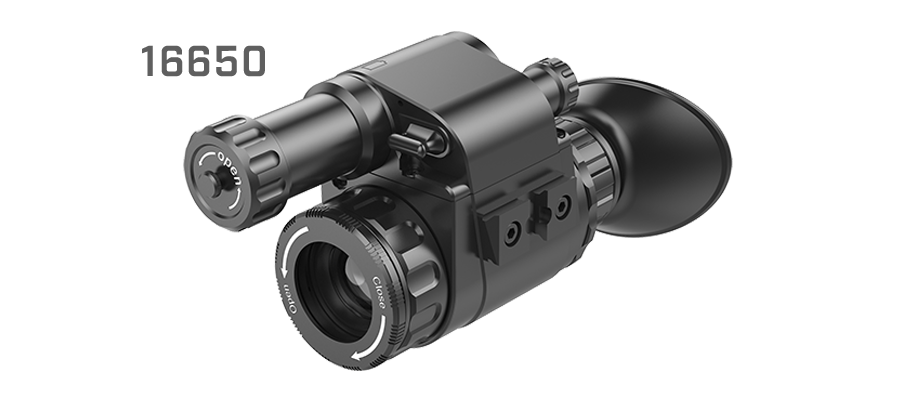

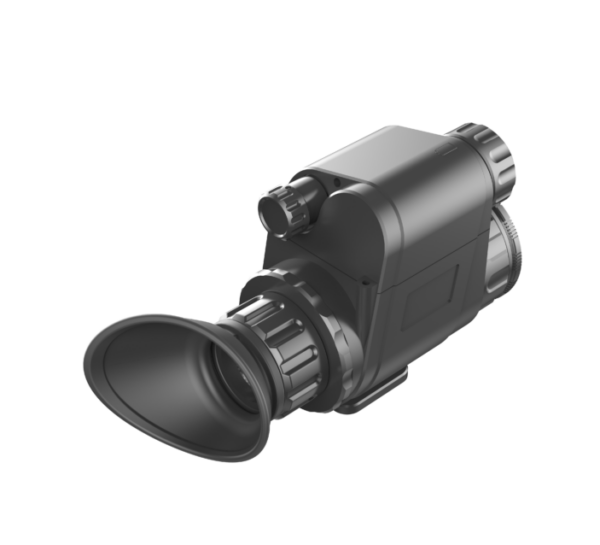

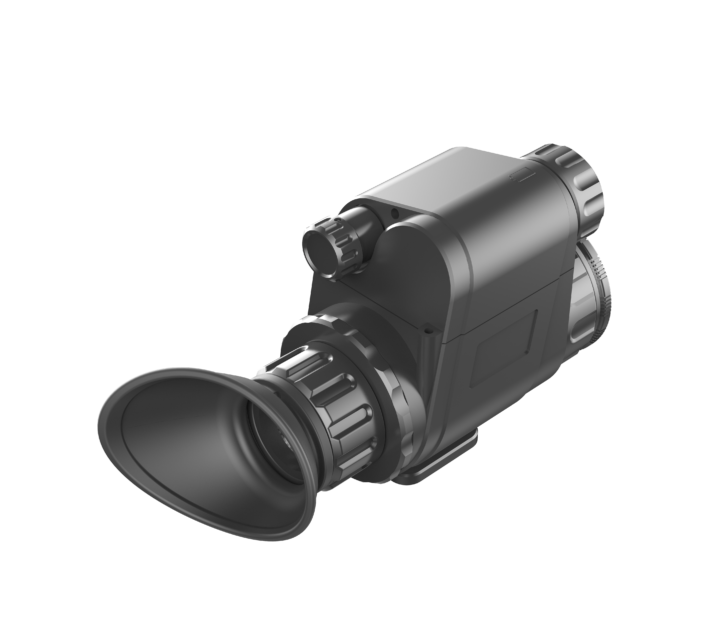

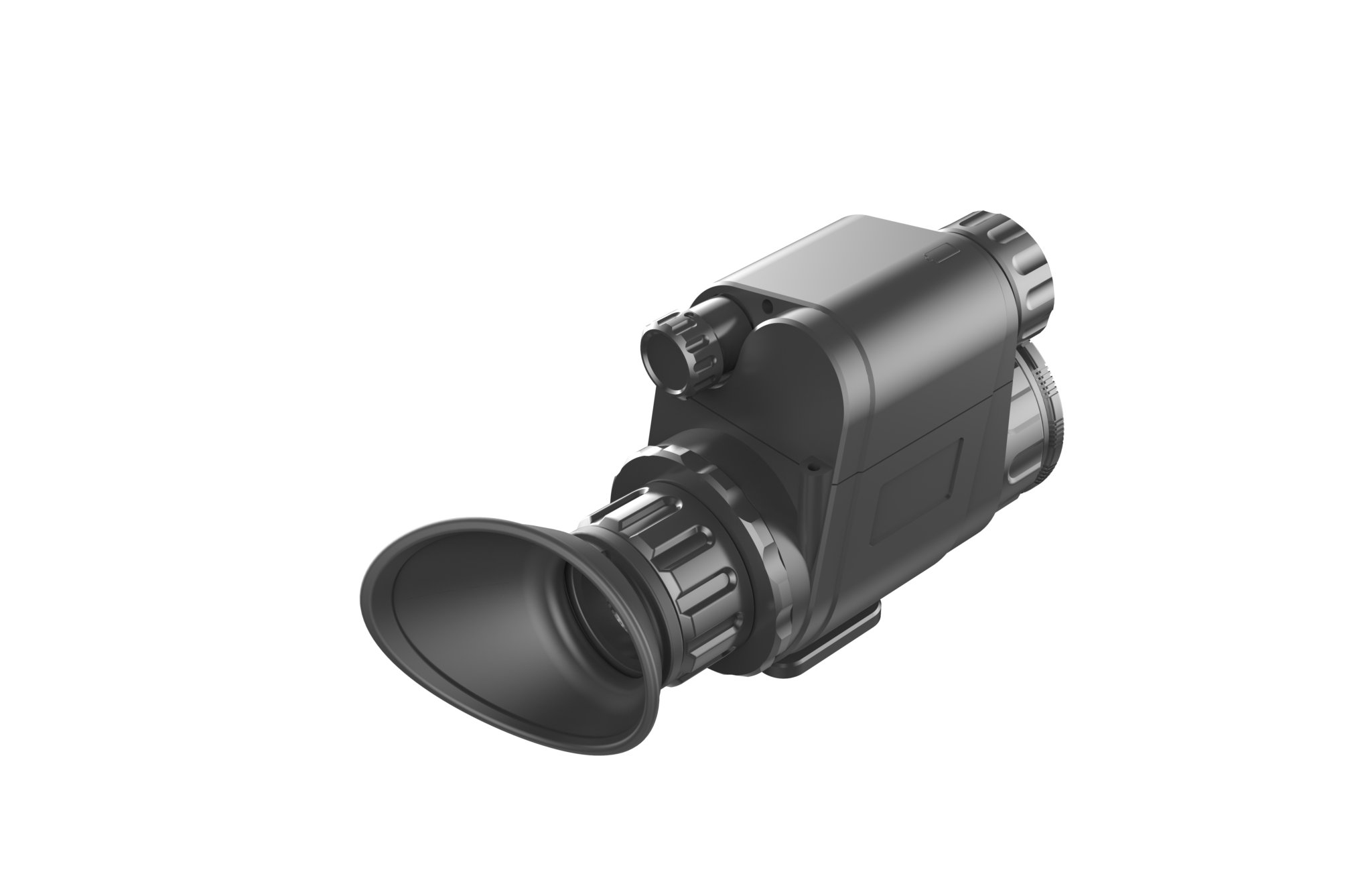

InfiRay ML-19 Thermal Imager

1 730.00

InfiRay ML-19 Thermal Imager with 384×288 50hz thermal sensor, 60mK. Weighs only 225g. Helmet mountable.

In stock

GTIN: N/A SKU: IRAY-ML19 Category:


Xmini is a multifunction thermal imager with built-in VOx uncooled infrared focal plane array detector. Xmini has small size, light weight, high performance, various purpose and many other strengths. Moreover, a variety of sensors are equipped and it not only can be used as Monocular hand-held thermal imager but also can be used as wearable device when installed on the helmet. Xmini can be widely used in investigation, security, search and rescue, outdoor sports and other application fields.

System functions:

  • Image calibration:Background calibration/Shutter calibratiom
  • Image mode: Black hot/White hot/Red hot/Pseudo Color
  • Image brightness/sharpness/contrast adjustment
  • Motion sensor adjusts the forward image
  • Dip measurement
  • Probability rangefinder
  • Picture in picture
  • Automatic standby
  • Supply power and transmitting data through Type-C interface
  • Will not work without a 3,7V battery
IMPORTANT: This product cannot be used as thermal sight. It’s not certified to be mounted on a firearm and does not withstand the recoil. Hand-held or helmet-mountable only.
InfiRay MH25 JPEG
Detector384 x 288 /17um
Human recognition696m
Frame rate50Hz
Objective Lens19mm
Laser pointerNo
Diopter compensation-4 to +3 dpt
Optical zoom1x
Electonic zoom1 – 4x
Battery life≥ 4h
Battery type1x CR123A 3,7V / With extender 1×16650 (Rechargeable battery)
Display1280×960 LCOS
Internal Recording Support and StorageN/A
Wifi SupportNo
Recoil proofNo
Mounting optionsHandheld, helmet
Weight225 g
Dimentsions121 x 70 x 45 mm
IP raitingIP67
Operating temperature-10°C to + 50°C
Storge temperature-10°C to + 50°C
Other characteristics
  • Stadiametric Rangefinder
  • Inclinometer and E-Compass
  • Variety of Power Supply Options (USB-C)

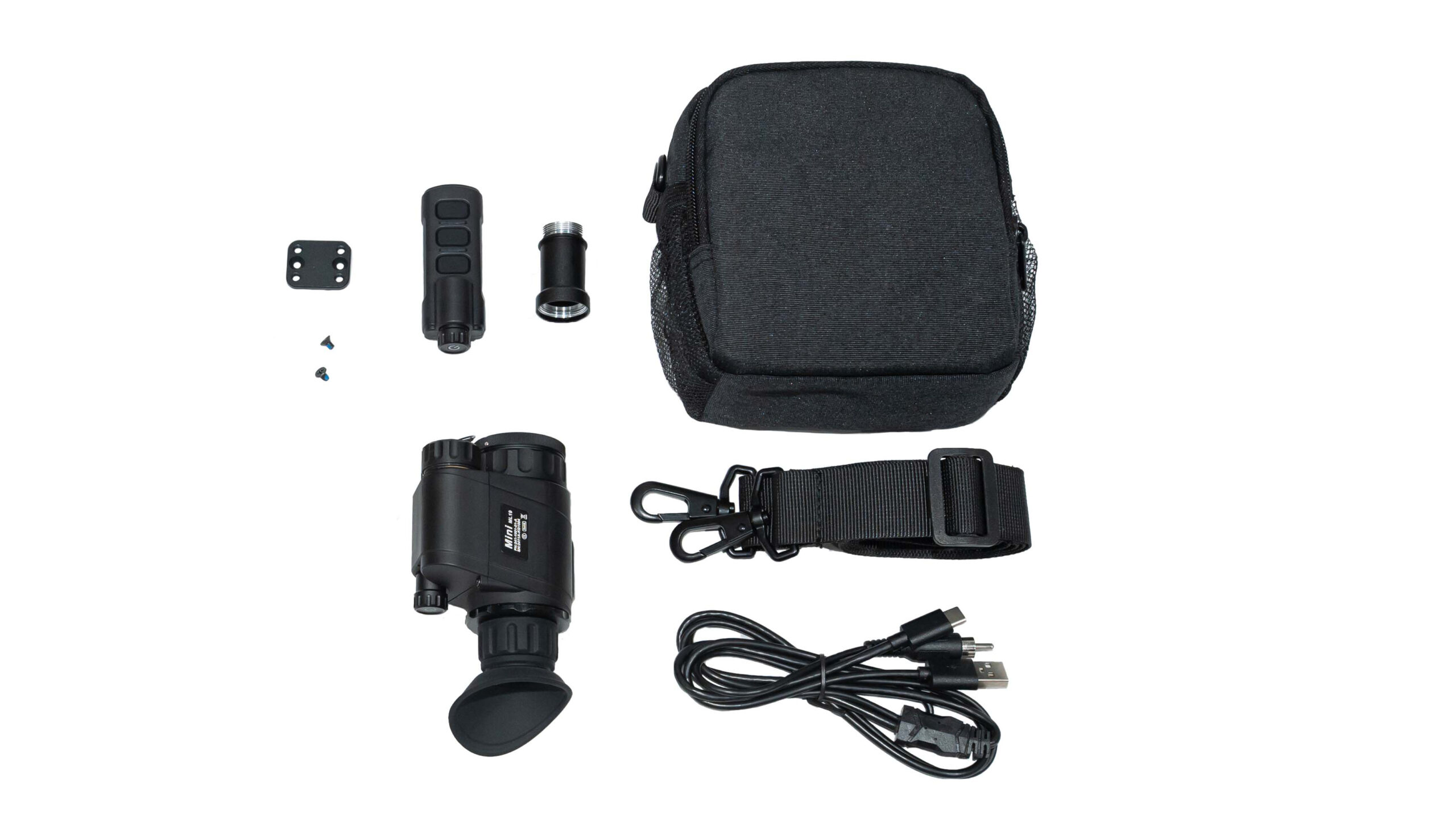

Included accessories
  • Soft carry-on case
  • Data cable
  • Remote control
  • 16650 battery extender
  • Mini-rail adapter
Recorded with external DVR device
