Infiray HL13 Holo Thermal Imager

1 490.40

Holo is a direct view multifunctional thermal reflex sight. Thermal Imager 320×280 25hz, NETD≤40mk, 13mm objective, Detection Range 476 meters

In stock

GTIN: N/A SKU: IRAY-HL13 Category:

Description

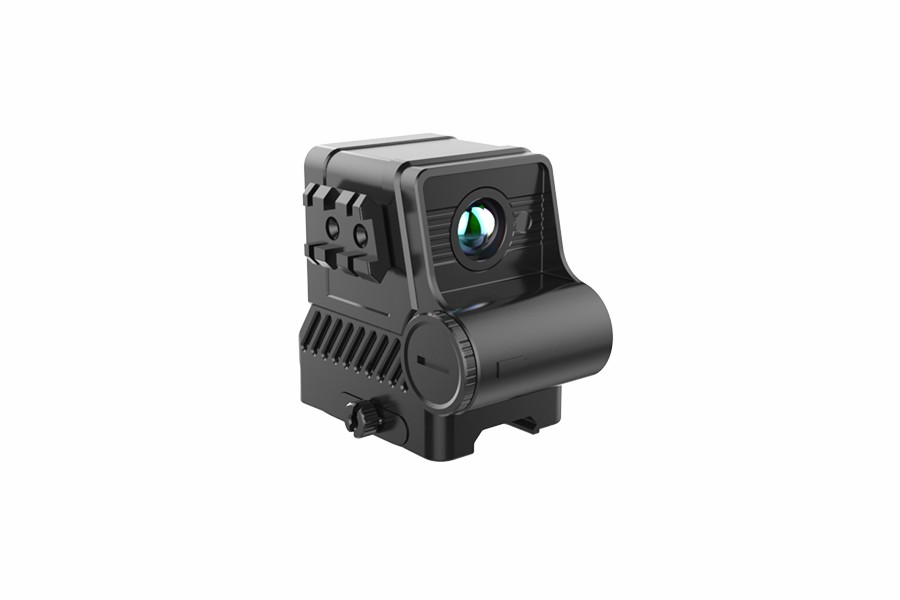

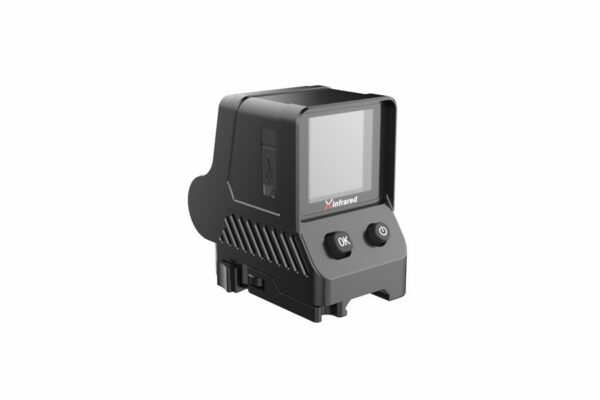

Meet Holo Series. Holo is a direct view multifunctional thermal reflex sight embedded with the InfiRay’s latest generation thermal imaging detector. The 1.63”OLED display brings excellent visual experience of quick target acquisition without visual difference. It can be the ideal option for those users who want thermal aiming camera with compact size, easy operation and multiple installation interfaces (side picatinny available).

System functions:

  • Dual-Purpose Holo Thermal Scope is a sharp and distinct thermal monocular which looks pretty much similar to an ordinary handheld video camera
  • Compact Size and Lightweight, IP67 Fully Waterproof

DISCLAIMER: By default the reticle is disabled on every HL13 unit. Unit can be still used as a hand-held thermal imager, but reticle function is not accessable. If your country laws* allow using thermal sights, the lock on reticle function can be lifted. Please contact Falconclaw for more guidance.

* Falconclaw can guide on how to remove the lock, but is not responsible for any restrictions you might have in your country. The buyer is responsible for underanding the law in his country.

Detector320 x 280 /17um
Lens
Human recognition476 m
Vehicle recognition476 m
NETD460mK
Frame rate25Hz
FOV28.4°x214°
Objective Lens13mm
Laser pointer650nm
Diopter compensation-4 to +3 dpt
Optical zoom1x
Electonic zoom1 – 8x
Battery life≥ 3.5h
Battery type1x CR123
Display1.63″ AMOLED
StorageN/A
Recoil proofYes
Mounting optionsHandheld, gun-mounted
Weight230 g
Dimentsions58.5 x 80.5 x 74.5 mm
IP raitingIP67
Operating temperature-10°C to + 50°C
Storge temperature-10°C to + 50°C
Other characteristics

Brand

InfiRay

Additional information

Weight 2 kg
