Description

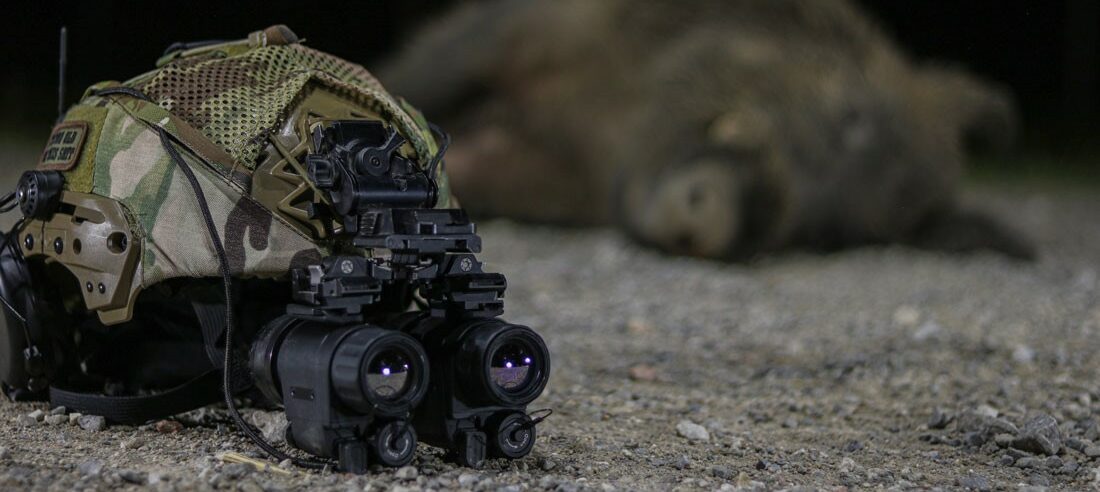

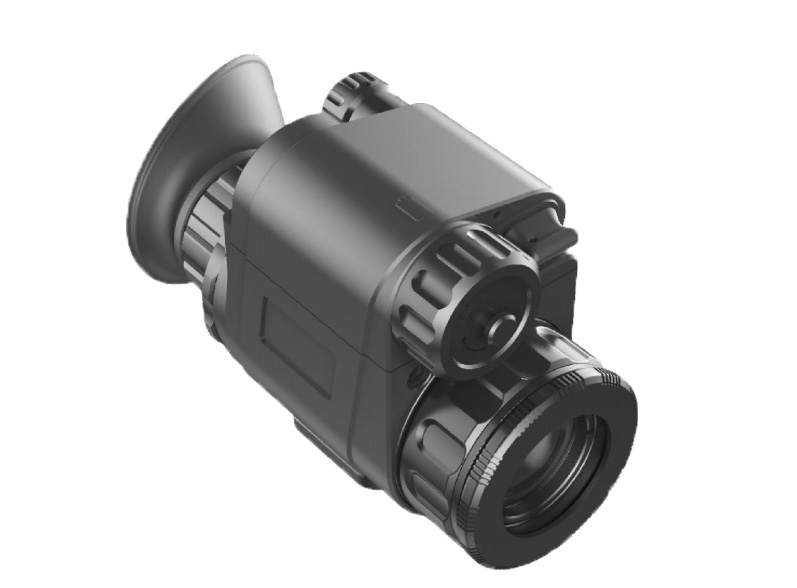

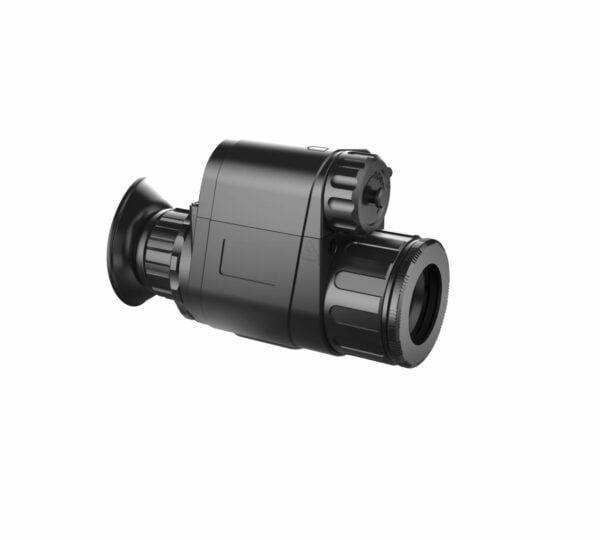

The InfiRay Mini MH25 is one of the smallest fully multi-functional 12-micron thermal imagers on the market. It can be used as a handheld monocular or helmet mounted for hands-free use. It’s features include picture-in-picture, Bluetooth, Digital magnetic compass, pitch and roll measurement, and analog video output. The MH25 is compatible with rechargeable 16650 and 16340 batteries and can be powered externally through the USB-C port with a 5V battery pack. The MH25 is operated by an intuitive menu system and user-friendly rotary encoder button. This one button operation has positive clicks with each selection and allows for quick and easy operation in dark environments.
System functions:
- Image calibration：Background calibration/Shutter calibration
- Image mode: Black hot/White hot/Red hot/Pseudo Color
- Image brightness/sharpness/contrast adjustment
- Motion sensor adjusts the forward image
- Picture in picture
- Automatic standby
- Supply power and transmitting data through Type-C interface
| Detector | 640 x 512 /12um |
| Lens | f25mm |
| Human recognition | 1000m |
| Vehicle recognition | 1298 m |
| NETD | ≤60mK |
| Frame rate | 50Hz |
| FOV | 17.5°x14° |
| Objective Lens | 25mm |
| Laser pointer | No |
| Diopter compensation | -4 to +3 dpt |
| Optical zoom | 1x |
| Electonic zoom | 1 – 8x |
| Battery life | ≥ 2h / 4.5h |
| Battery type | 1x CR123 3,7V / With extender 1×16650 (Rechargeable battery) |
| Display | 1280×960 LCOS |
| Built-in memory | No |
| Recoil proof | No |
| Mounting options | Handheld, Helmet, Weapon |
| Weight | 245g |
| Dimentsions | 128 x 70 x 45 mm |
| IP raiting | IP67 |
| Operating temperature | -10°C to + 50°C |
| Storge temperature | -10°C to + 50°C |
| Other characteristics |
|

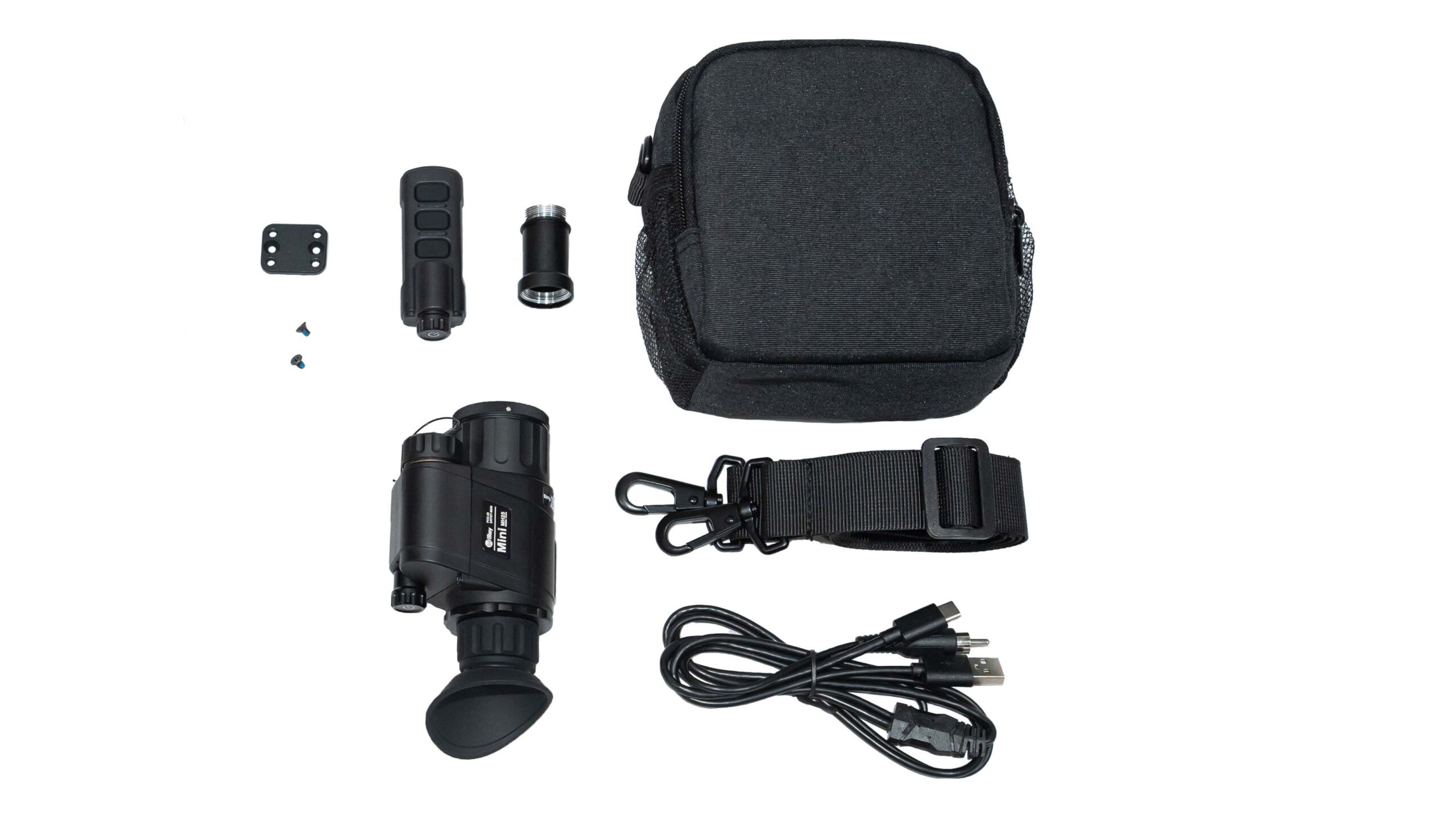

Included accessories
- Soft carry-on case
- Data cable
- Remote control
- 18650 battery extender
