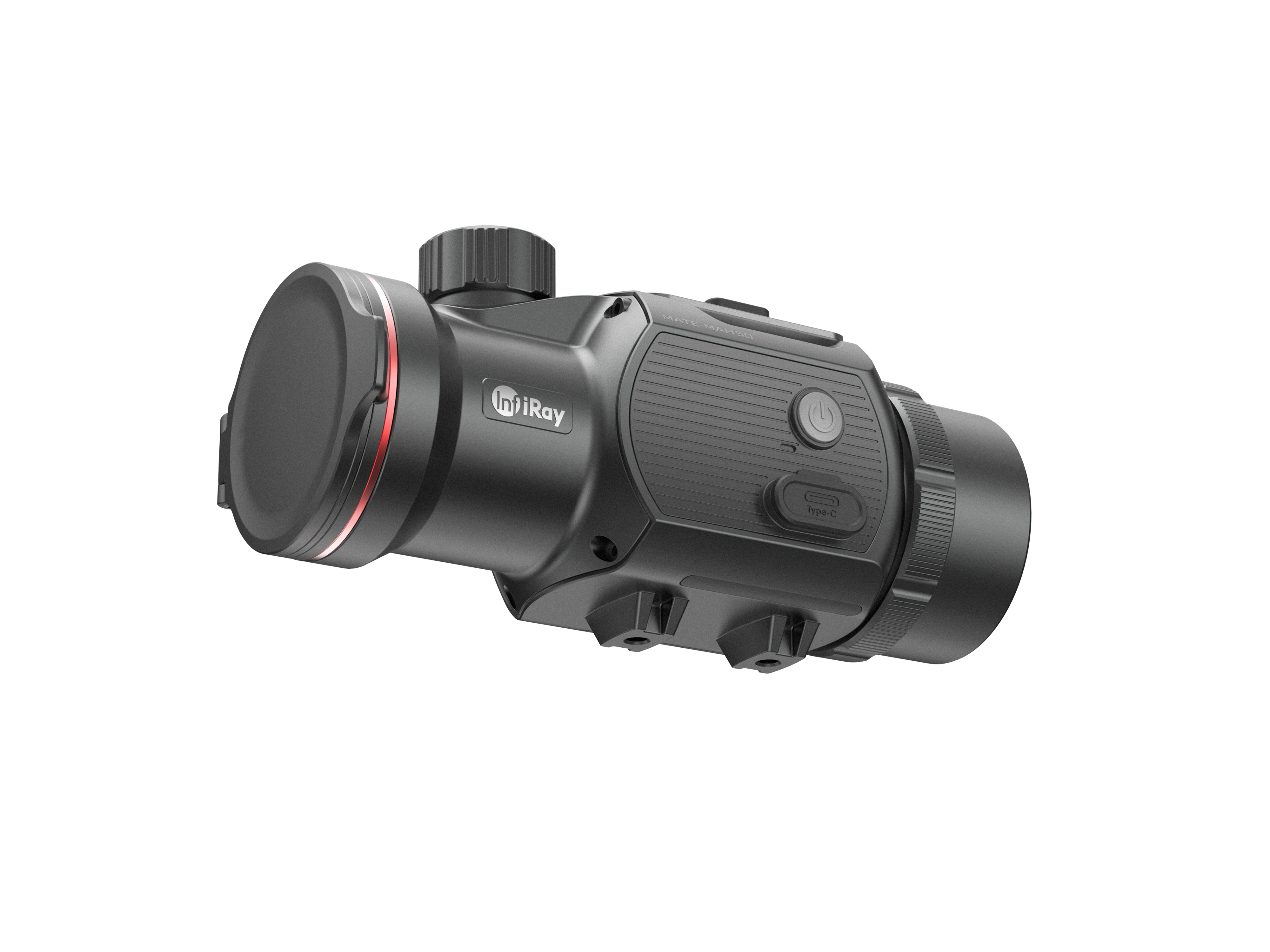

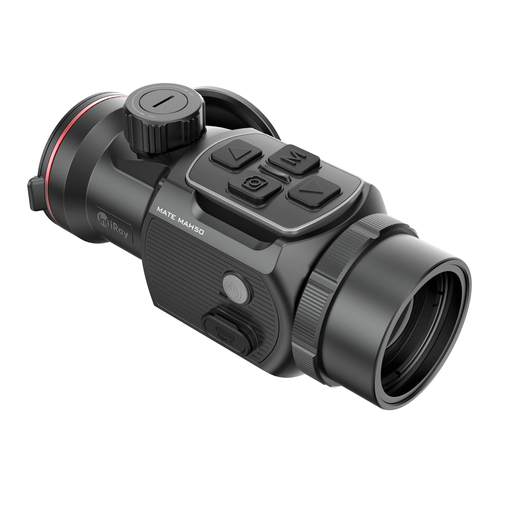

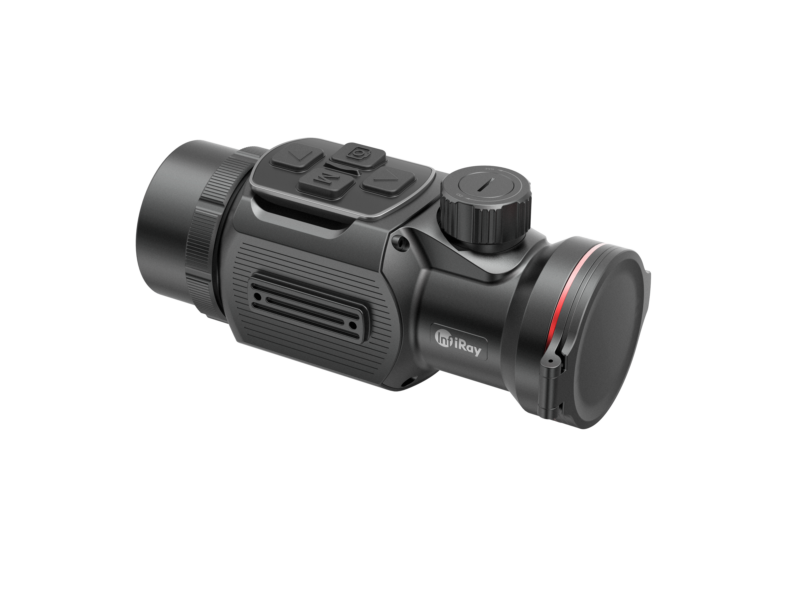

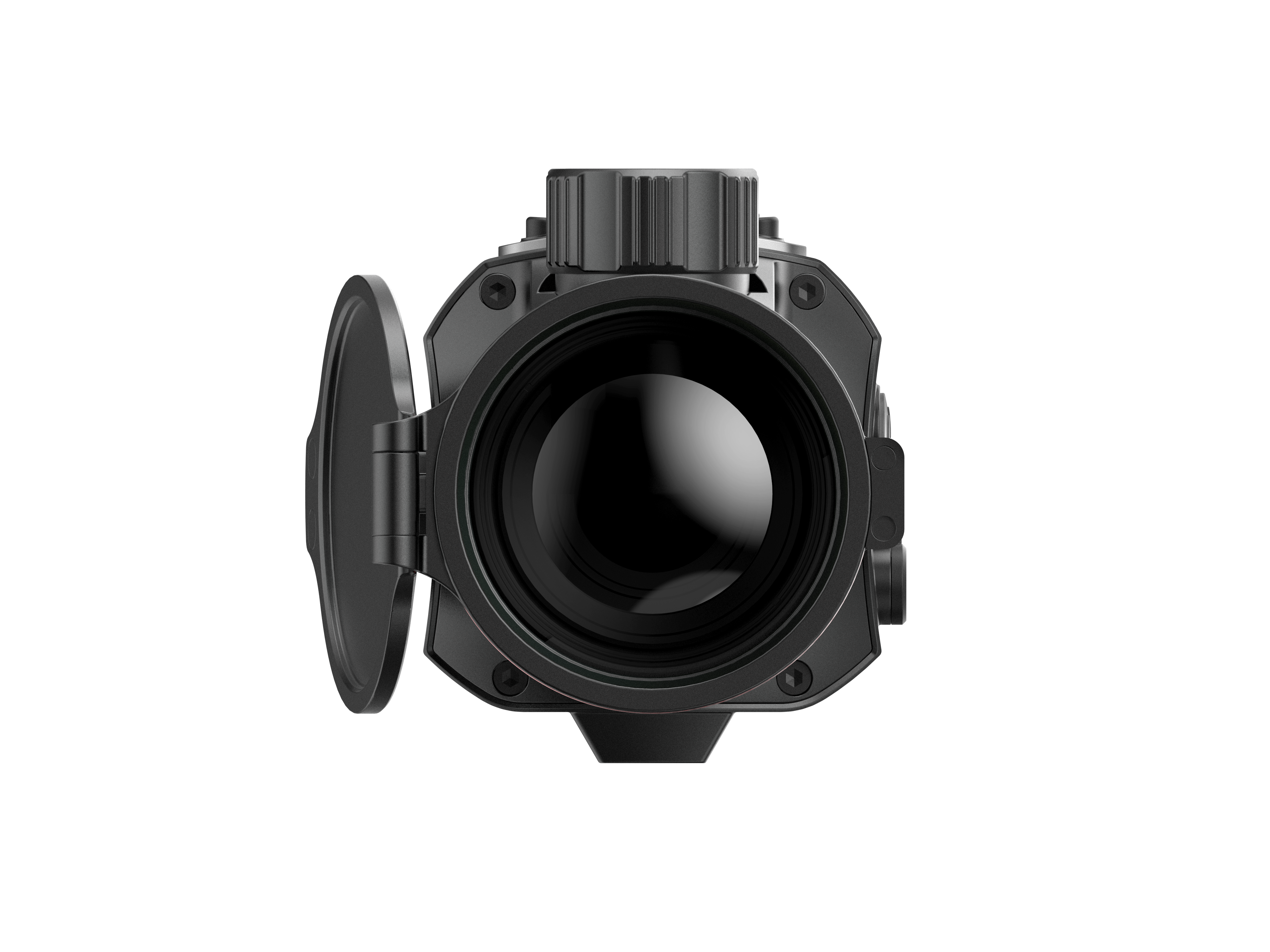

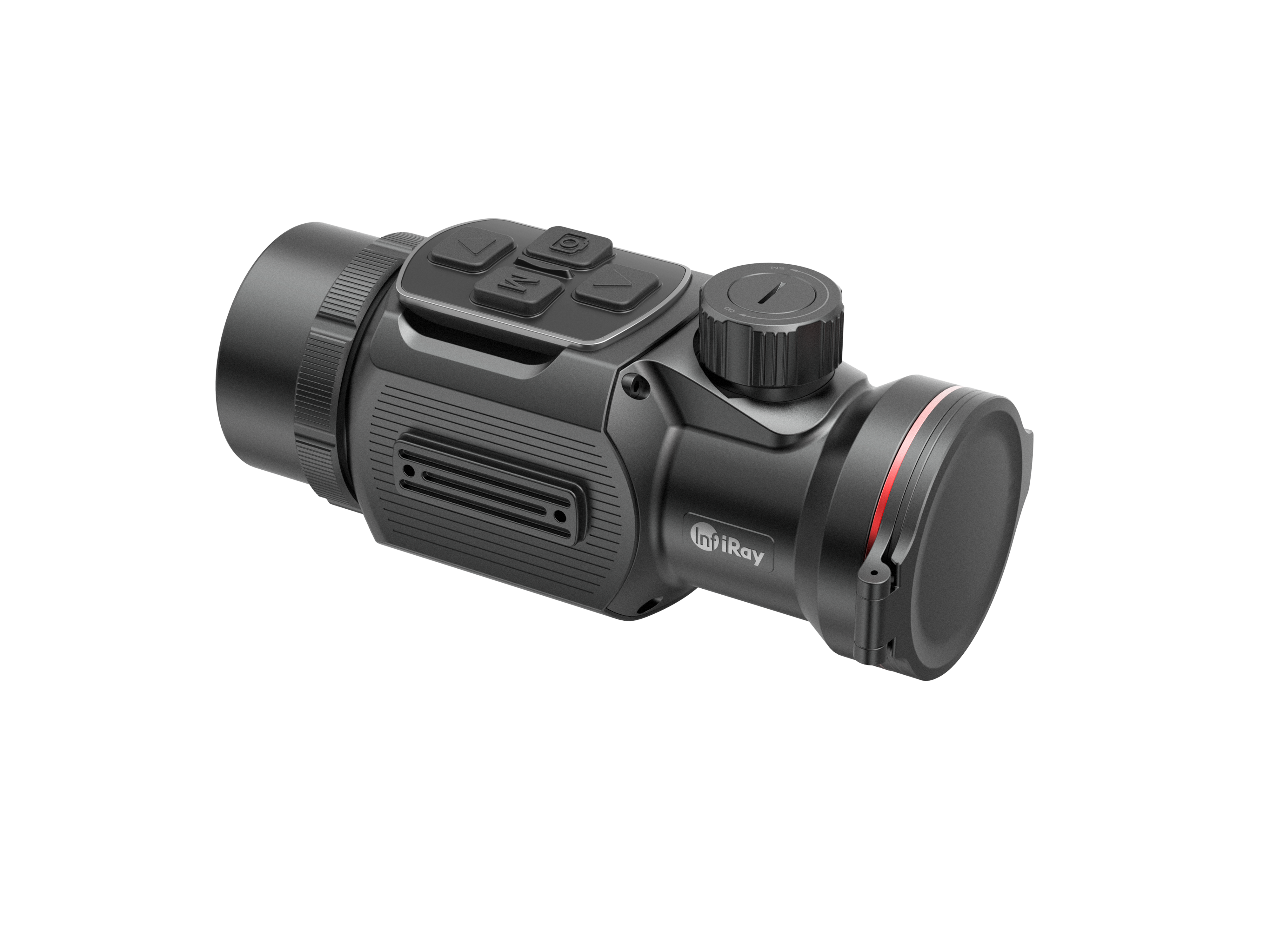

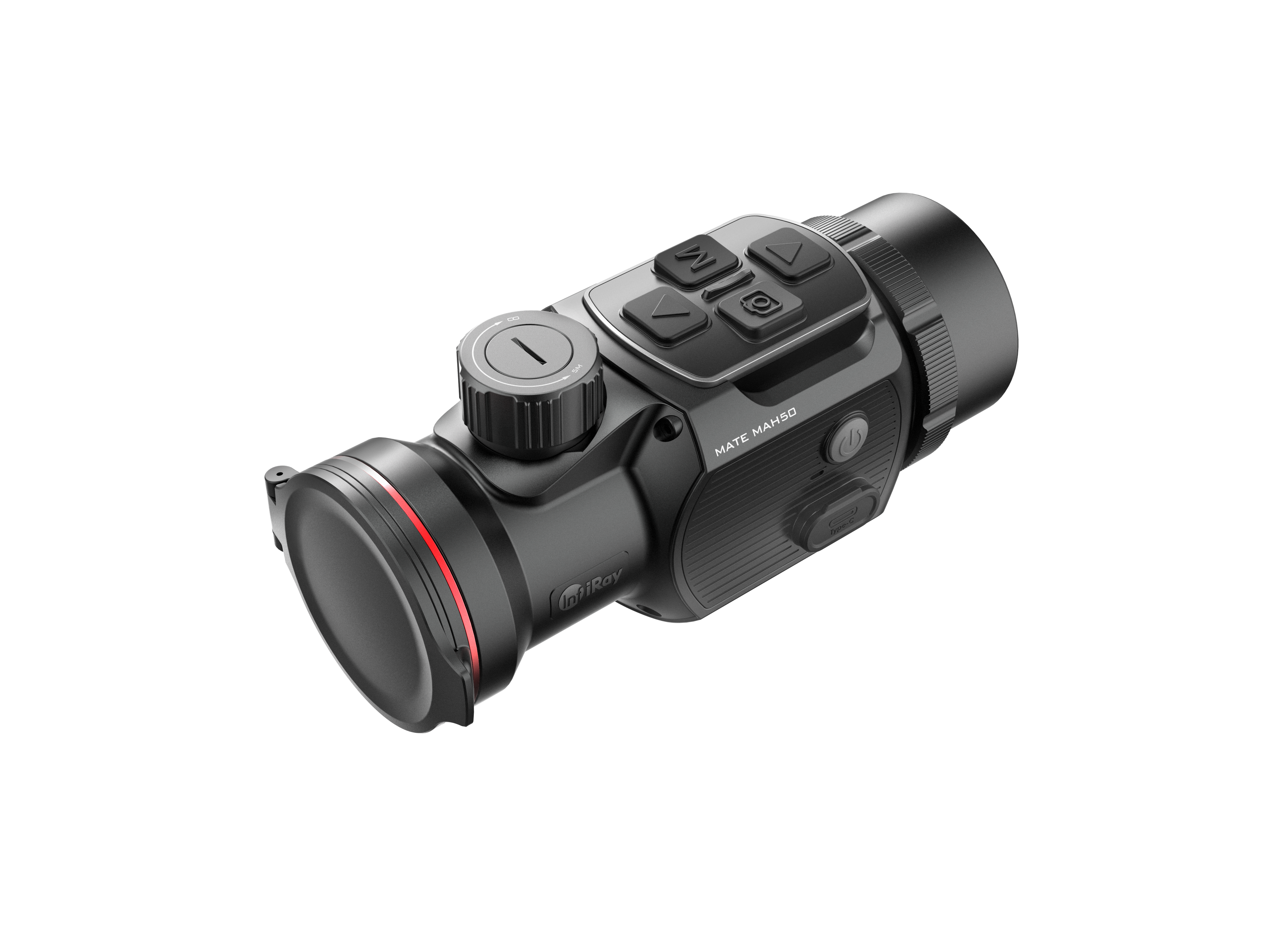

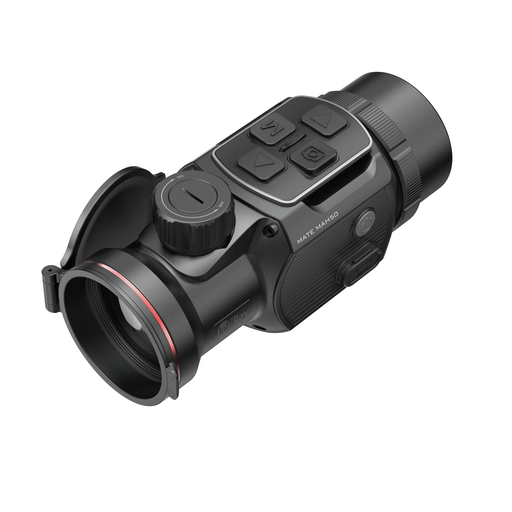

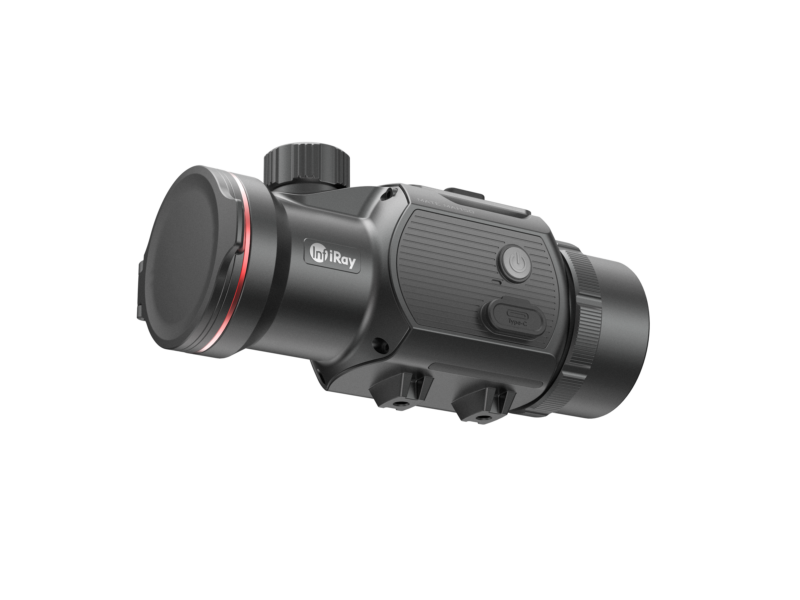

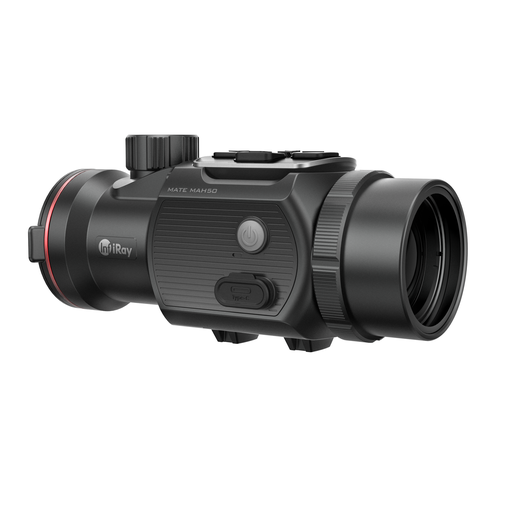

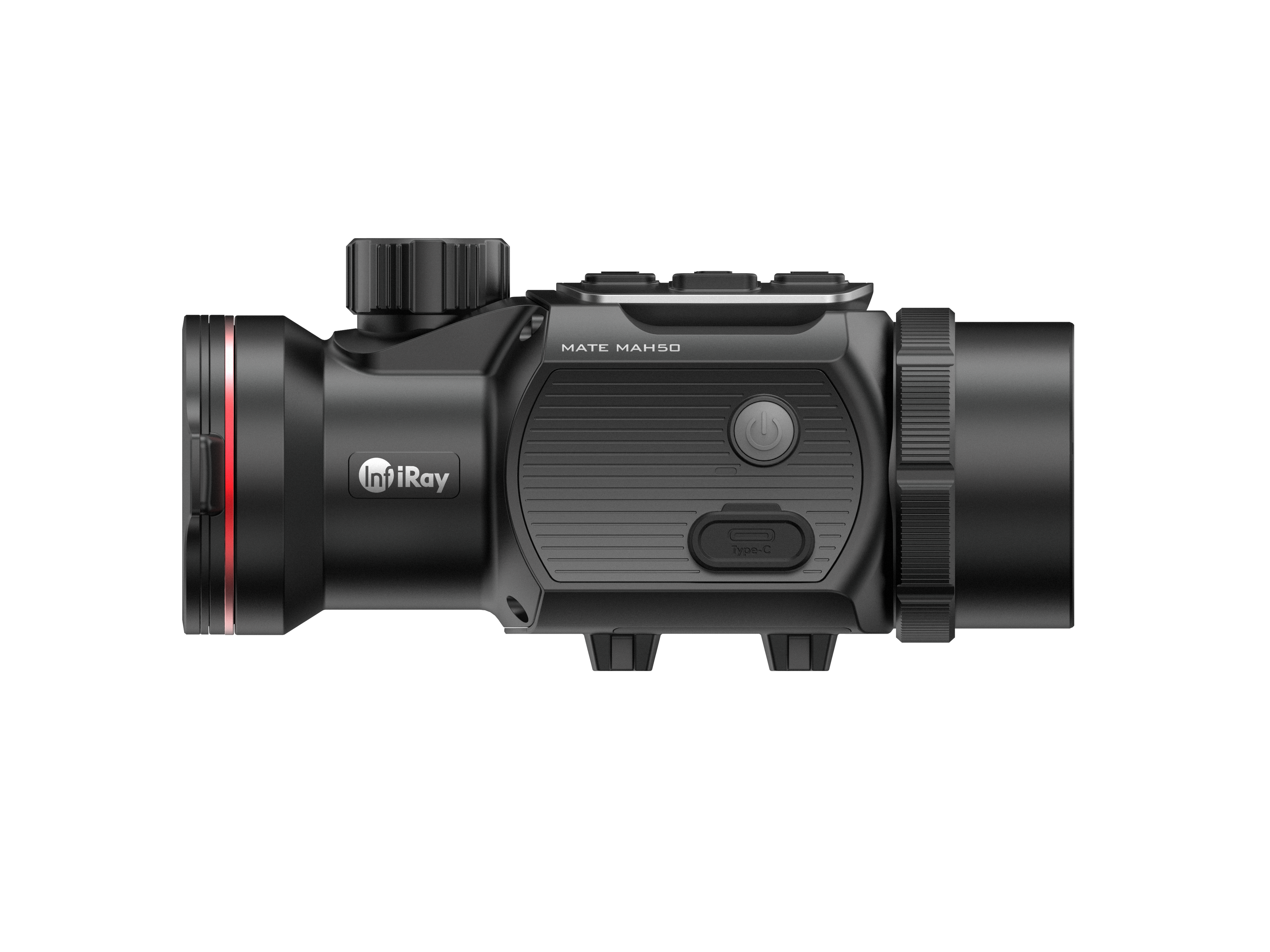

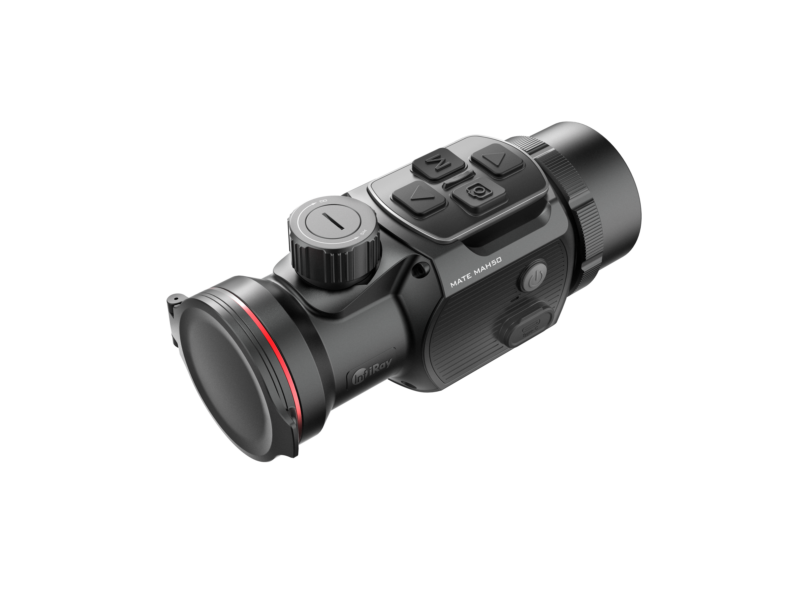

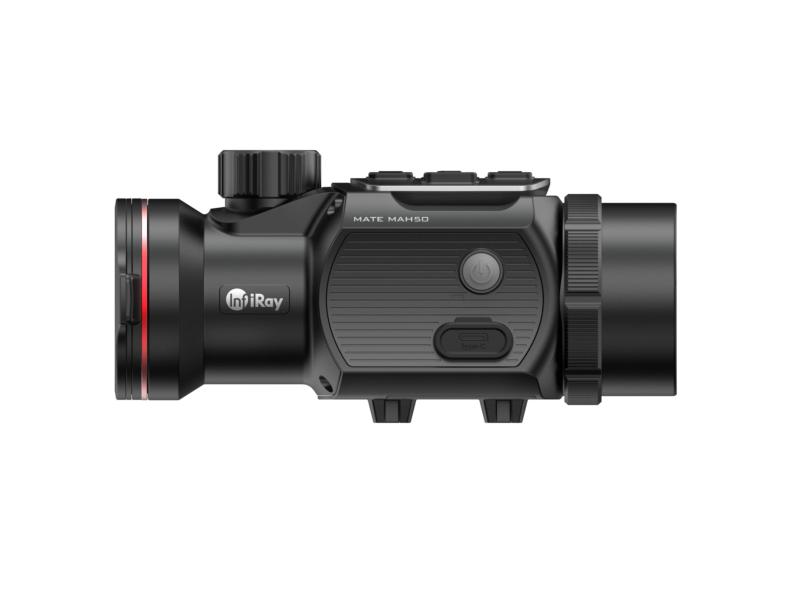

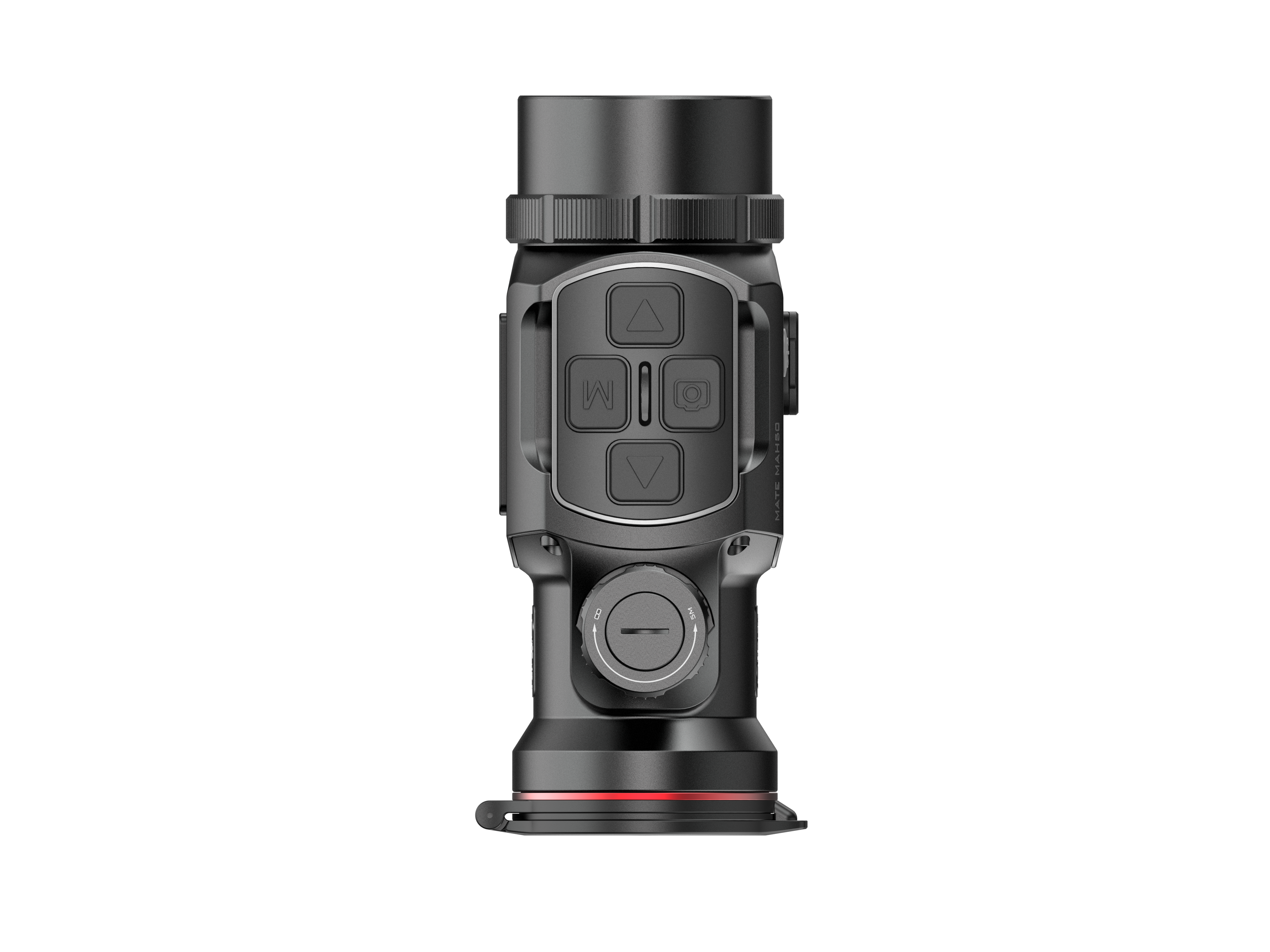

Infiray MATE MAH50

3 350.00

Thermal Imaging attachment 640×512 detector, 50 Hz, 50 mm objective lens, internal battery,  NETD ≤ 25mK, internal recording, WiFi, OLED

Out of stock

Email when stock available

GTIN: N/A SKU: IRAY-MAH50 Categories: ,

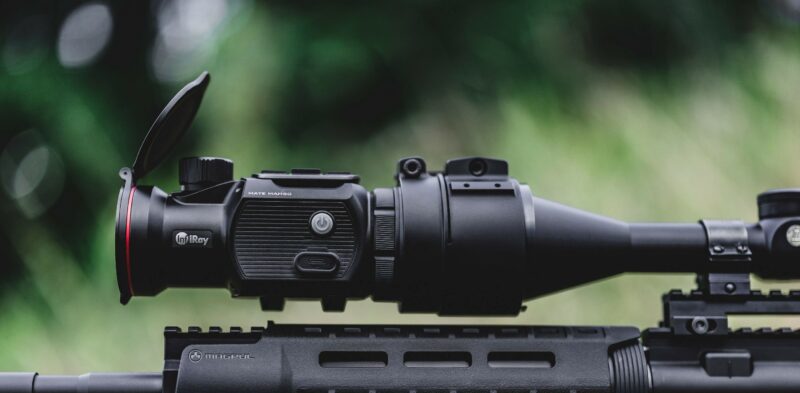

The Mate Series is designed as an attachment for any type of the standard day sight. NO REZEROING is needed just CLAMP & SHOOT.

It combines and incorporates features from InfiRay’s years of experience in clip-on development. The device offers ultra-precise adjustability in the X and Y axis and score a guaranteed value of 1 MOA in terms of accuracy, surpassing all previous devices from the manufacturer.

The MAH50 is the flagship of the new Infiray MATE series

The magnesium alloy housing reduces the weight by up to 50% from previous thermal attachments.

System functions:

  • High-performance 640*512, 12μm detector with NETD less than 25mk combined with advanced image processing create brilliant and sharp images.
  • Sense-based algorithms improve image quality by setting suitable preset parameters based on different environments, forest, plain, and city
  • A high-quality optical imaging system offers a distortion-free image even when used with a 10 times daytime scope.
  • High contrast OLED display with HD resolution offers crisp images and vivid colors.
  • MAH50 meets the high-precision requirement of “POI=1MOA” even by matching it with high-caliber rifles

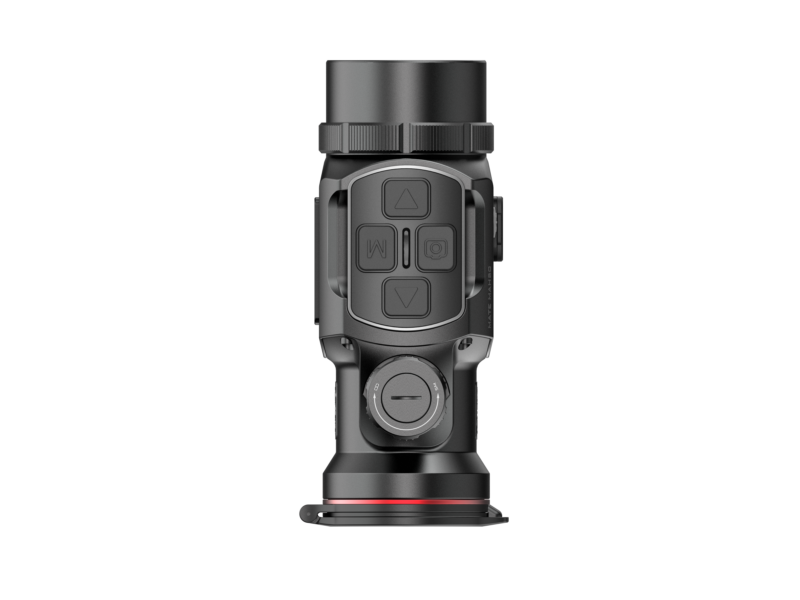

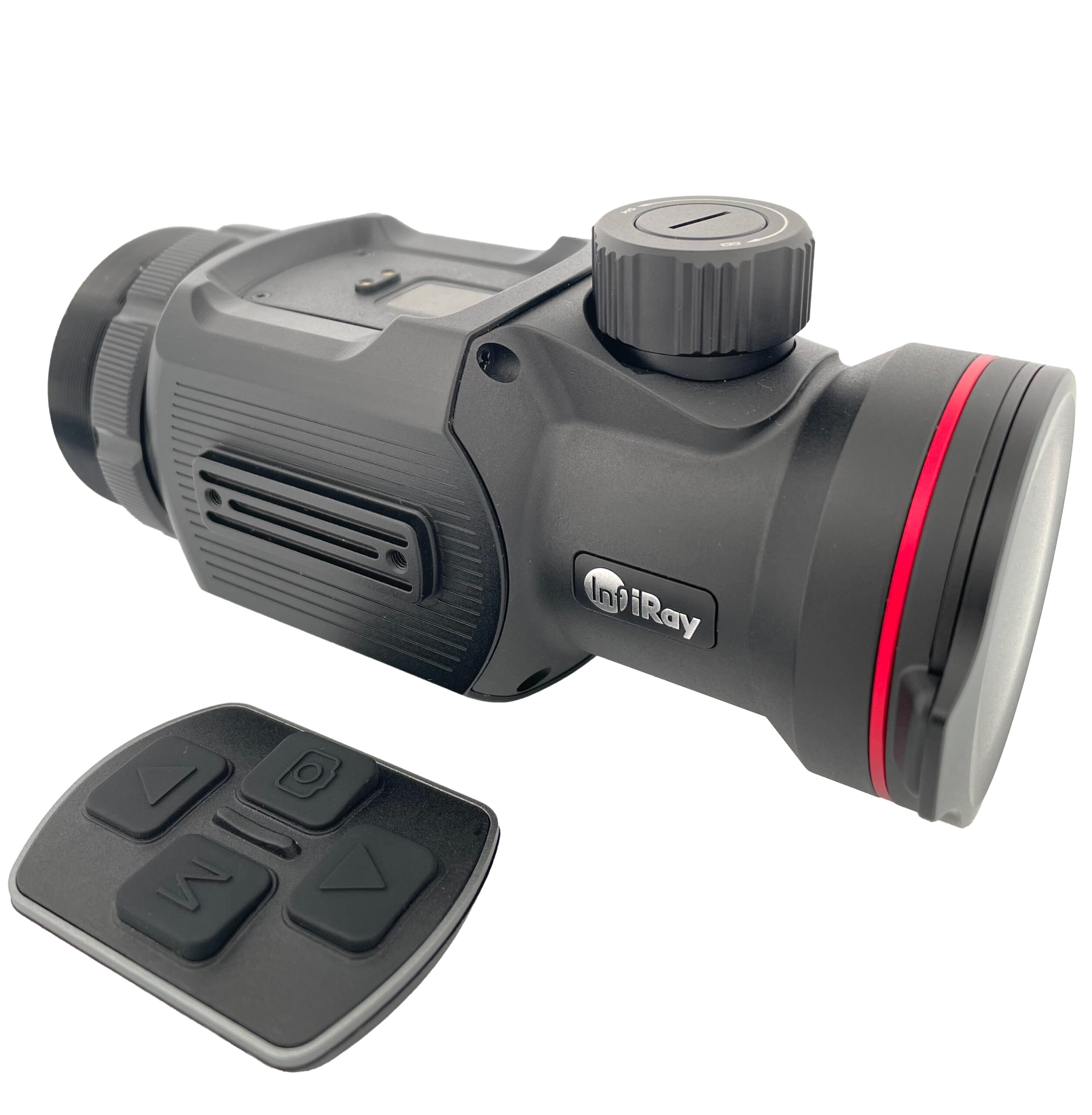

  • Removable buttons acting as a remote can be fixed near the trigger or any place of shooters liking.
Detector 640 x 512 /12um

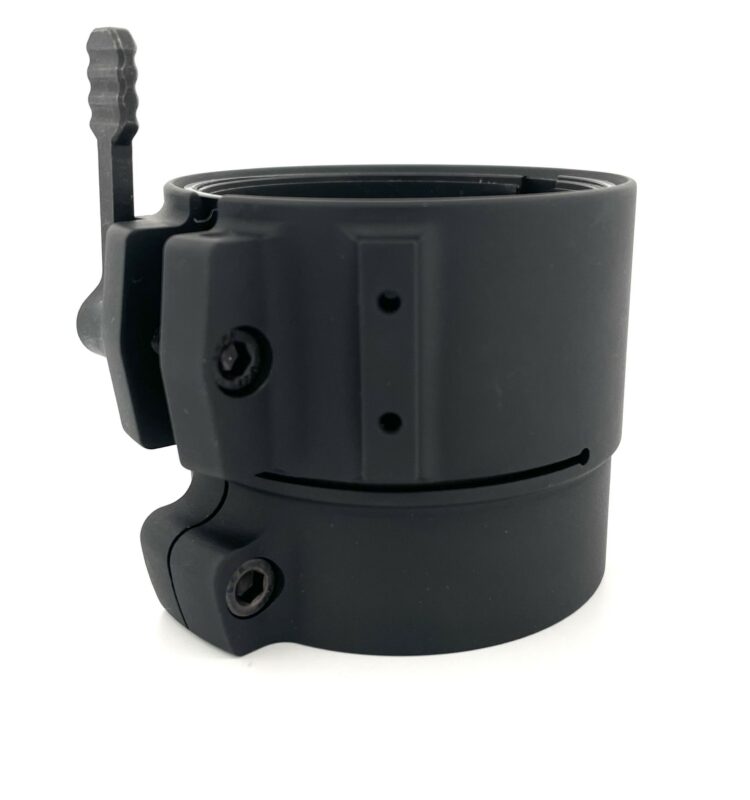

Adapter Ring M52x0.75
Human recognition 2597 m
Frame Rate, Hz 50
NETD ≤25mK
Frame rate 50Hz
FOV 8.8°x7°

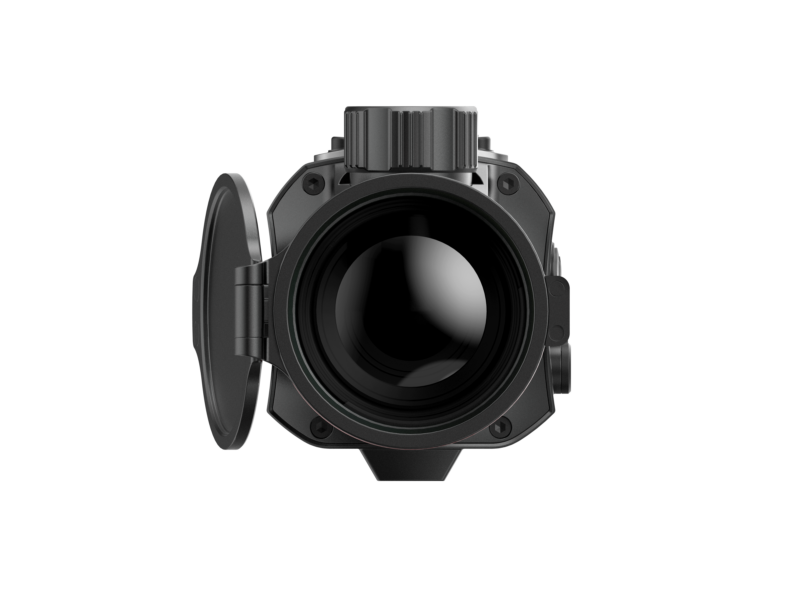

Objective Lens 50mm
Laser pointer No
Diopter compensation N/A
Optical zoom 1x
Electonic zoom 1 – 4x
Battery life 4h +7h
Battery type Built-in Battery + Infiray Battery Pack
Display 1024×768 OLED
Storage 32GB
Recoil proof Yes, 8000J
Mounting options Handheld, scope-mounted
Weight 530 g
Dimensions 146 x 62 x 73 mm
IP rating IP67
Operating temperature -10°C to + 50°C
Storge temperature -10°C to + 50°C
Other characteristics
  • Bluetooth remote control
  • Variety of Power Supply Options (USB-C)
  • Power Bank in Box

Additional information

Weight 2.378 kg
