Description
To make up for the limited performance of the low light level and low illumination night vision devices under the extreme environment

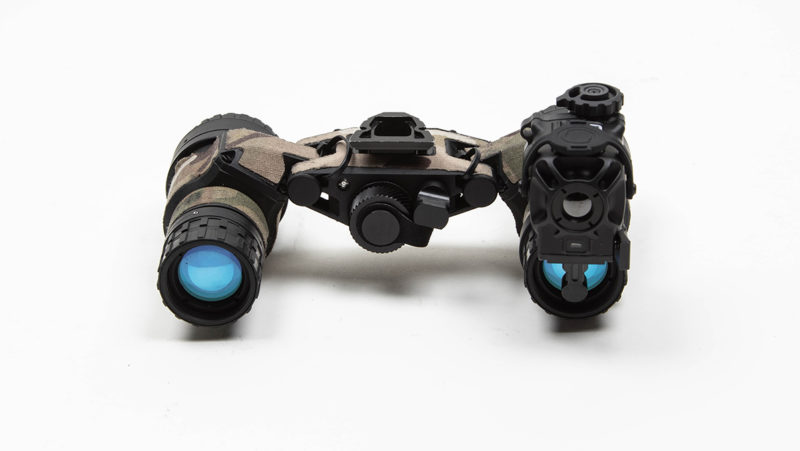

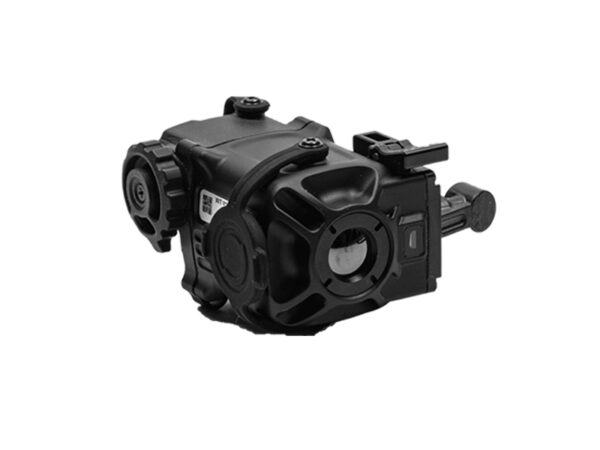

Jerry-C is a thermal imaging enhancement attachment designed for the rapid upgrade, front-fusion, and multi-mode display of equipment in service. It can enhance the
user’s night perception ability to ensure the absolute tactical advantages to priorly identify the potential enemies.

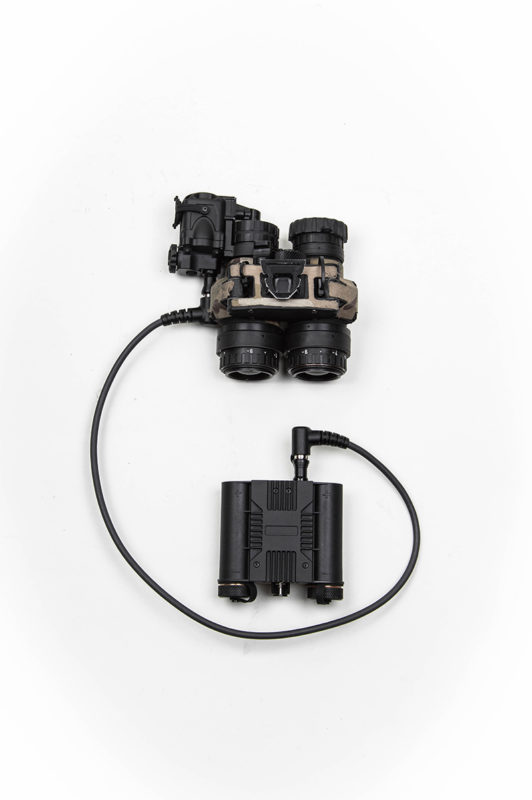

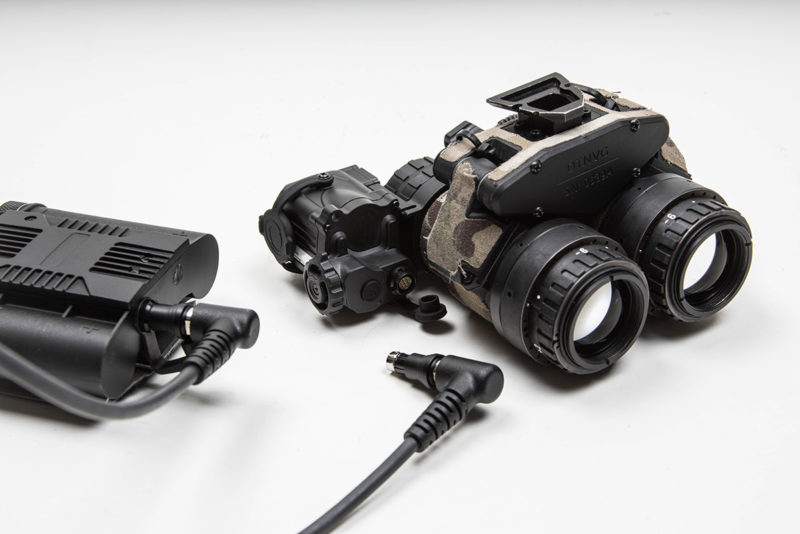

This model has extrernal battery back that takes 2x 18650 rechargable batteries.
System functions:
- Image calibration: Background calibration/Shutter calibratiom
- Image brightness/contrast adjustment
- Threshold Adjustment
- Menu rollover

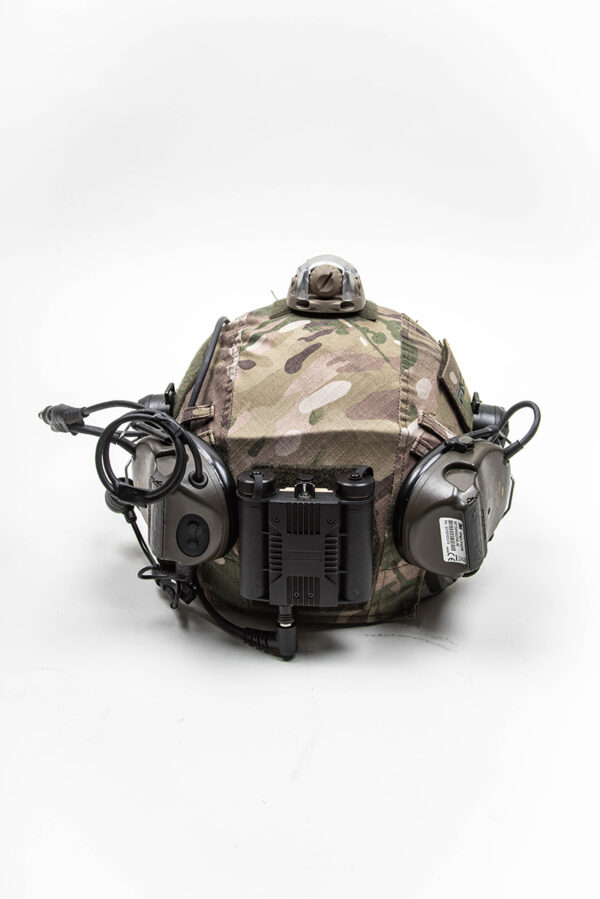

- External battery pack
Low light mode
Highlight mode
Outline Mode
| Detector | 640 x 512 /12um |
| Lens | f25mm |
| Human recognition | 1088m |
| Vehicle recognition | 1472 m |
| NETD | ≤60mK |
| Frame rate | N/A |
| FOV | 30.5° |
| Objective Lens | |
| Laser pointer | No |
| Diopter compensation | N/A |
| Optical zoom | 1x |
| Electonic zoom | N/A |
| Battery life | ≥ 10h (2x 18650 2200mAh) |
| Battery type | External battery back – 2x 18650 batteries (Rechargeable batteries) |
| Display | Supported modes: Whit hot/Highlight/Outline |
| Storage | N/A |
| Recoil proof | No |

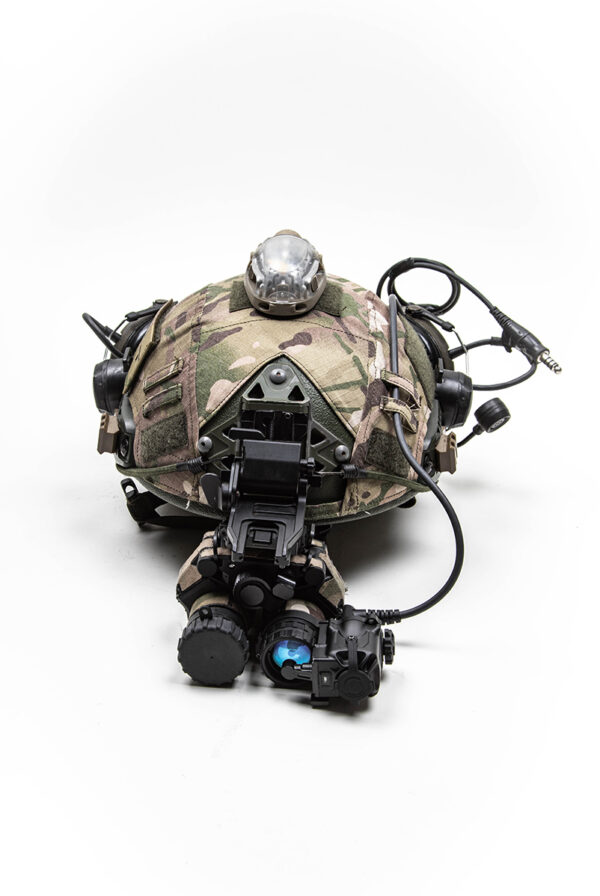

| Mounting options | Clip-on: NVD mounted |
| Weight | 78 g |
| Dimentsions | |
| IP raiting | IP67 |
| Operating temperature | -40°C to + 60°C |
| Storge temperature | -40°C to + 60°C |
| Other characteristics |
|
NOTE! Battery pack supports the battery 18650, length of 64~66mm, flat head. If the battery is longer than 66mm, the battery cap could not cover enough.
Included in the package
Jerry CE5
Hard Case
Power Cable
Battery Pack for 2x 18650
Battery Pack Mount
Comparisons
