Description

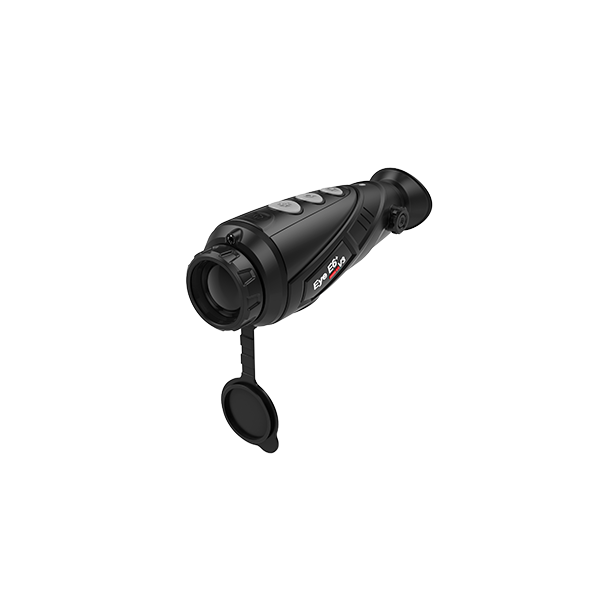

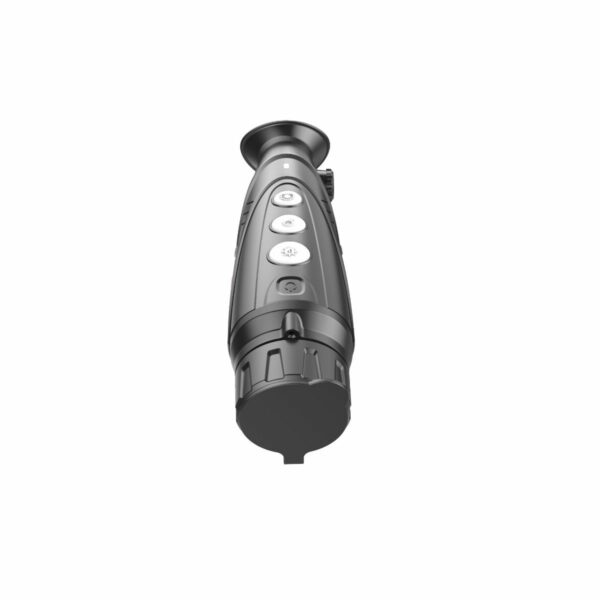

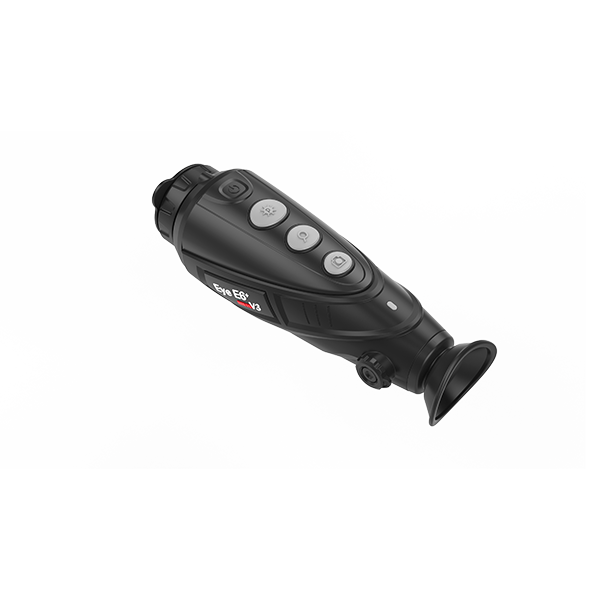

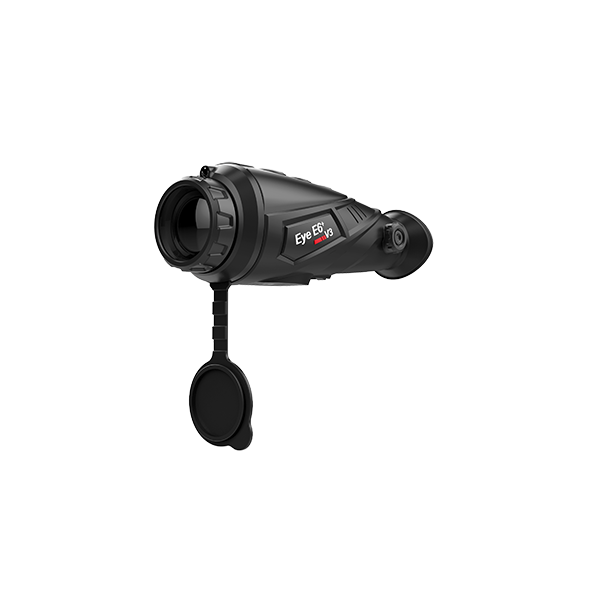

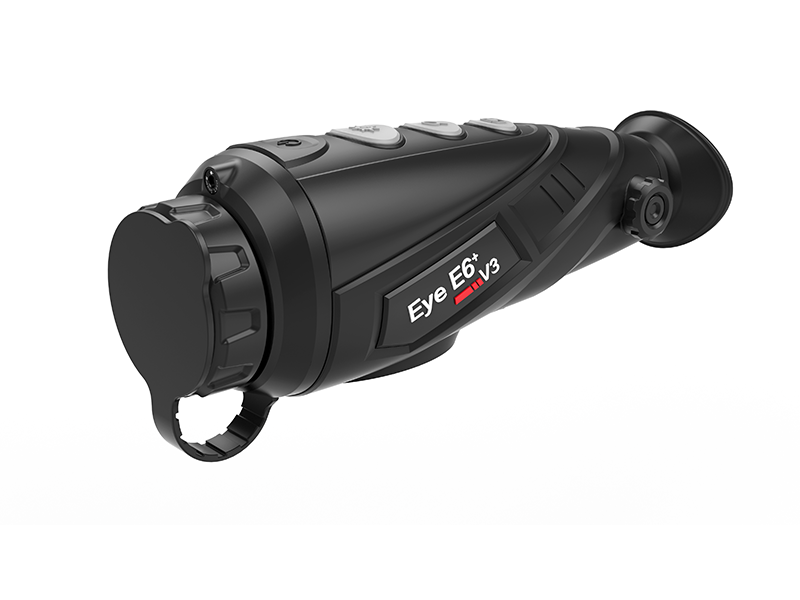

Meet Infiray thermal imaging monocular EYE IIV3(E6+V3 and E6PROV3) which imaging quality has come to a new level with excellent performance12um 640 resolution thermal imaging sensor featuring NETD≤25mK(@25 °C,F#=1.0) and richly contrast 1024*768 resolutions OLED integrated display. Better sensor, clearer imaging!
System functions:
- Image calibration：Background calibration/Shutter calibratiom
- Image mode: Black hot/White hot/Red hot/Pseudo Color
- Image brightness/sharpness/contrast adjustment
- Motion sensor adjusts the forward image
- Dip measurement
- Probability rangefinder
- Picture in picture
- Automatic standby
- Supply power and transmitting data through Micro-USB interface
IMPORTANT: This product cannot be used as thermal sight. It’s not certified to be mounted on a firearm and does not withstand the recoil. Hand-held or helmet-mountable only.
| Detector | 640 x 512 /12um |
| Human recognition | 1818 m |
| NETD | ≤25mK |
| Frame rate | 50Hz |
| FOV | 12.5°x10.0° |
| Objective Lens | 35mm |
| Laser pointer | Yes, 650nm |
| Diopter compensation | -4 to +3 dpt |
| Optical zoom | 2x |
| Electonic zoom | 1 – 4x |
| Battery life | ≥ 6h |
| Battery type | Internal battery |
| Display | 1024×768 OLED |
| Recording Support & Storage | Yes, 32 GB |
| Wifi Support | Yes |
| Recoil Proof | No |
| Mounting options | Handheld |
| Weight | 420 g |
| Dimentsions | 188 x 65 x 64 mm |
| IP raiting | IP67 |
| Operating temperature | -10°C to + 50°C |
| Storge temperature | -10°C to + 50°C |
| Other characteristics |
|
