Description

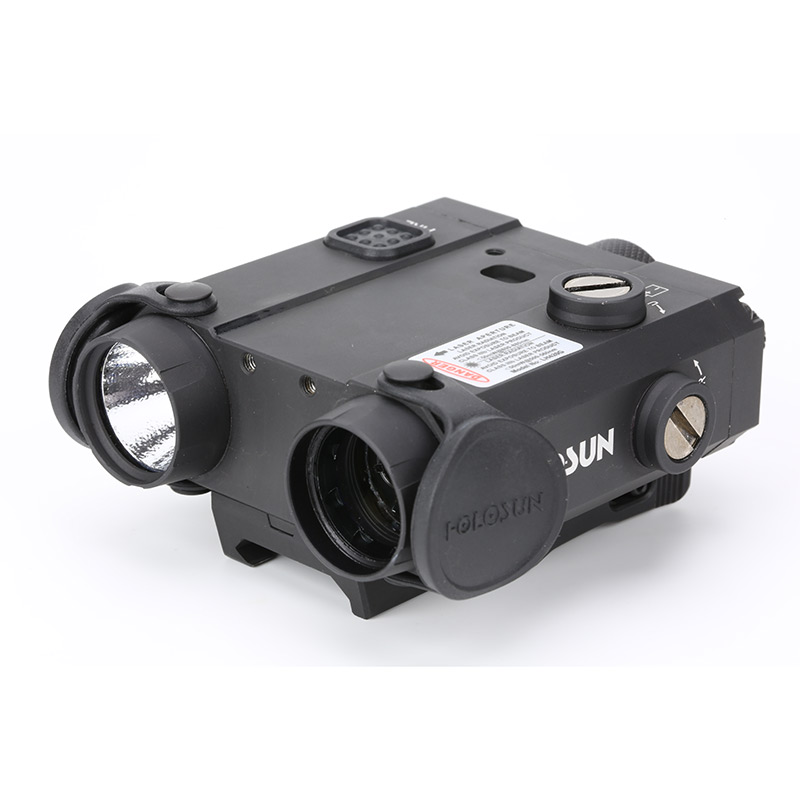

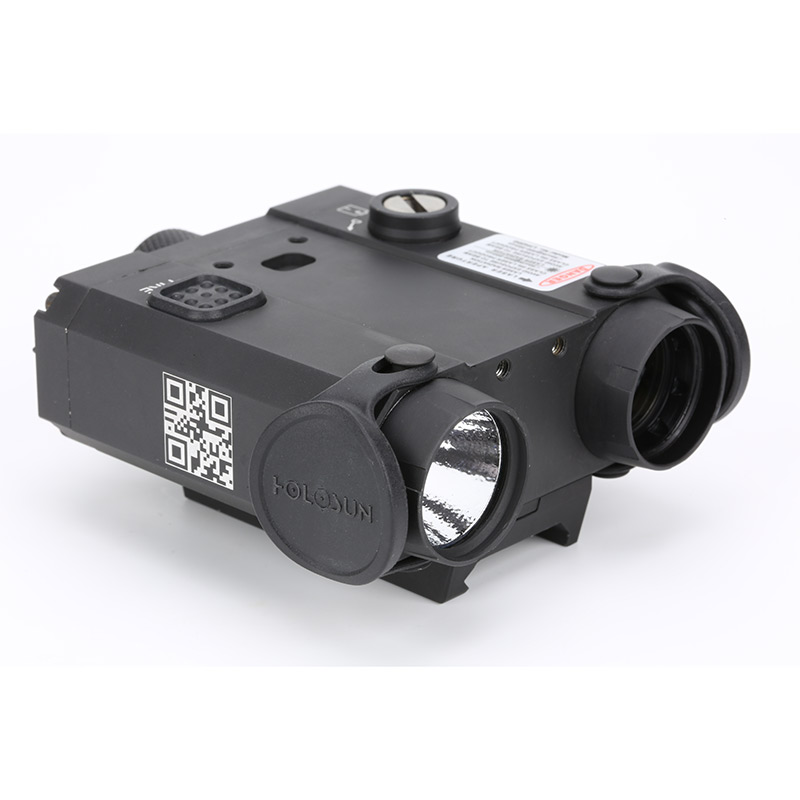

The LS420 is a multi-laser device that integrates a green laser, IR laser, IR illuminator and 600 lumen white LED Flashlight. It has a rear facing mode selector switch allowing the user to fire different emitters and combinations of emitters by pressing the fire button. The laser beams are co-aligned so all the emitters can be zeroed at the same time by manipulating the windage and elevation adjusters. The IR illuminator-focusing knob is located at the rear of the unit for ease of adjustment from a wide to narrow beam. Also included is a mounting plate to attach a red-dot optic to the top of the laser housing.
In the Box
- QD Release Mount
- T10 L Key
- Remote Cable Switch
- User Manual
| ELECTRONIC DATA | |
|---|---|
| Power Source | Battery |
| Battery Type | 2x CR123A / 1x 18650 falt or nubhead |
| Battery Life (Hours) | 50,000 |
| Brightness Setting | 10 DL&2 NV |
| PHYSICAL PARAMETERS | |
|---|---|
| Window Size | 0.58×0.77 |

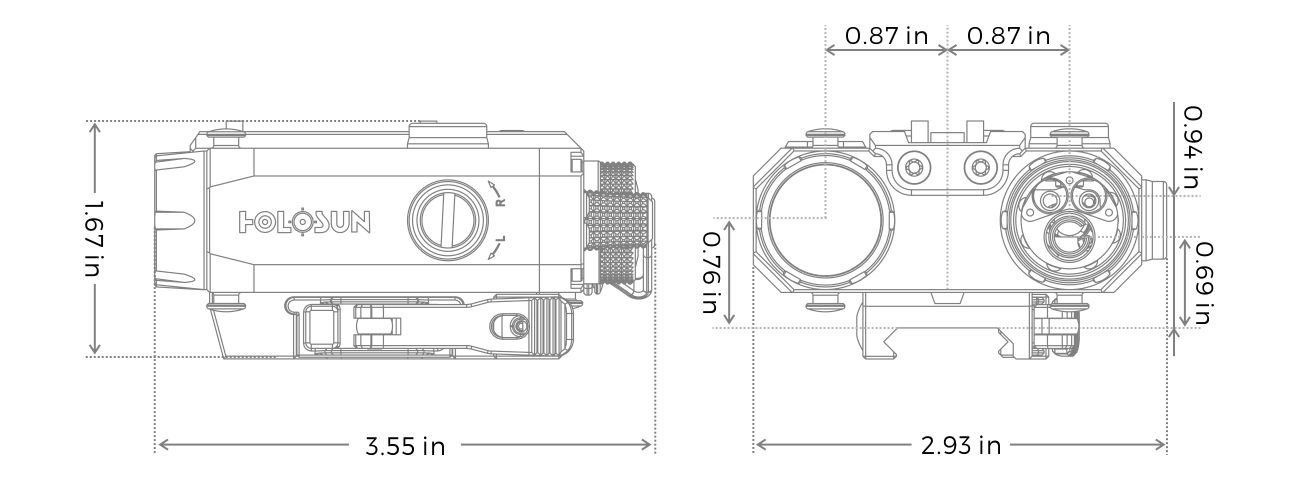

| Dimensions | 74x91x41mm |
| Weight | 300g |
| MECHANICAL DATA | |
|---|---|
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | MAO |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
| ENVIRONMENTAL PARAMETERS | |
|---|---|
| Storage Temperature | -40℃~ 65℃ |
| Working Temperature | -40℃~ 51℃ |
| Submersion | IP67 |
| Vibration | 1000G |
| LASER PARAMETERS | |
|---|---|
| Laser & Illuminator | Dual Laser & Dual Illuminator |
| White LED Output Type | 600 Lumens |
| IR Illuminator Class | N/A |
| IR Illuminator Output | 0.7mw |
| IR Pointer Class | N/A |
| IR Pointer Output | 0.1mw(low)/0.7mw(high) |
| Visible Laser Class | IIIA |
| Visible Laser Output | 1mw(low)/5mw(high) |
