Description

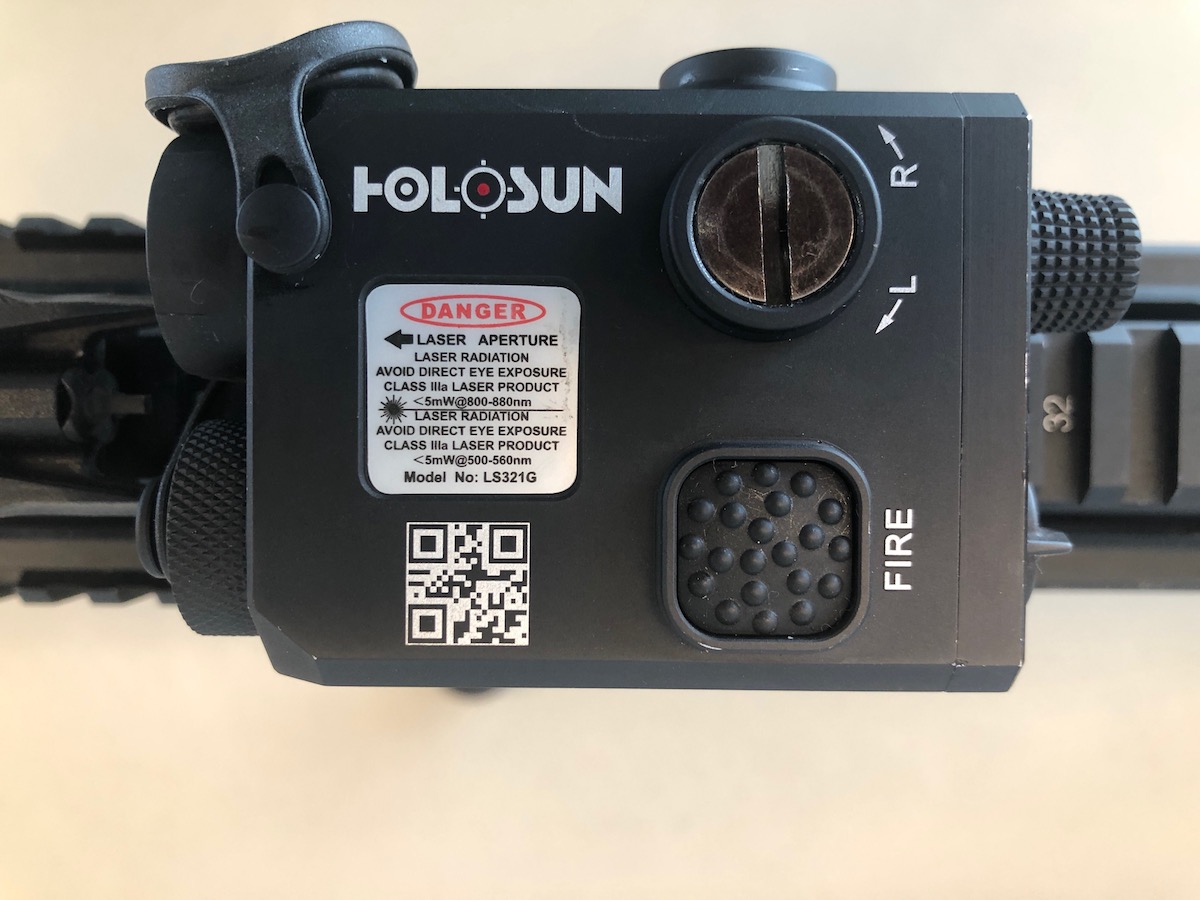

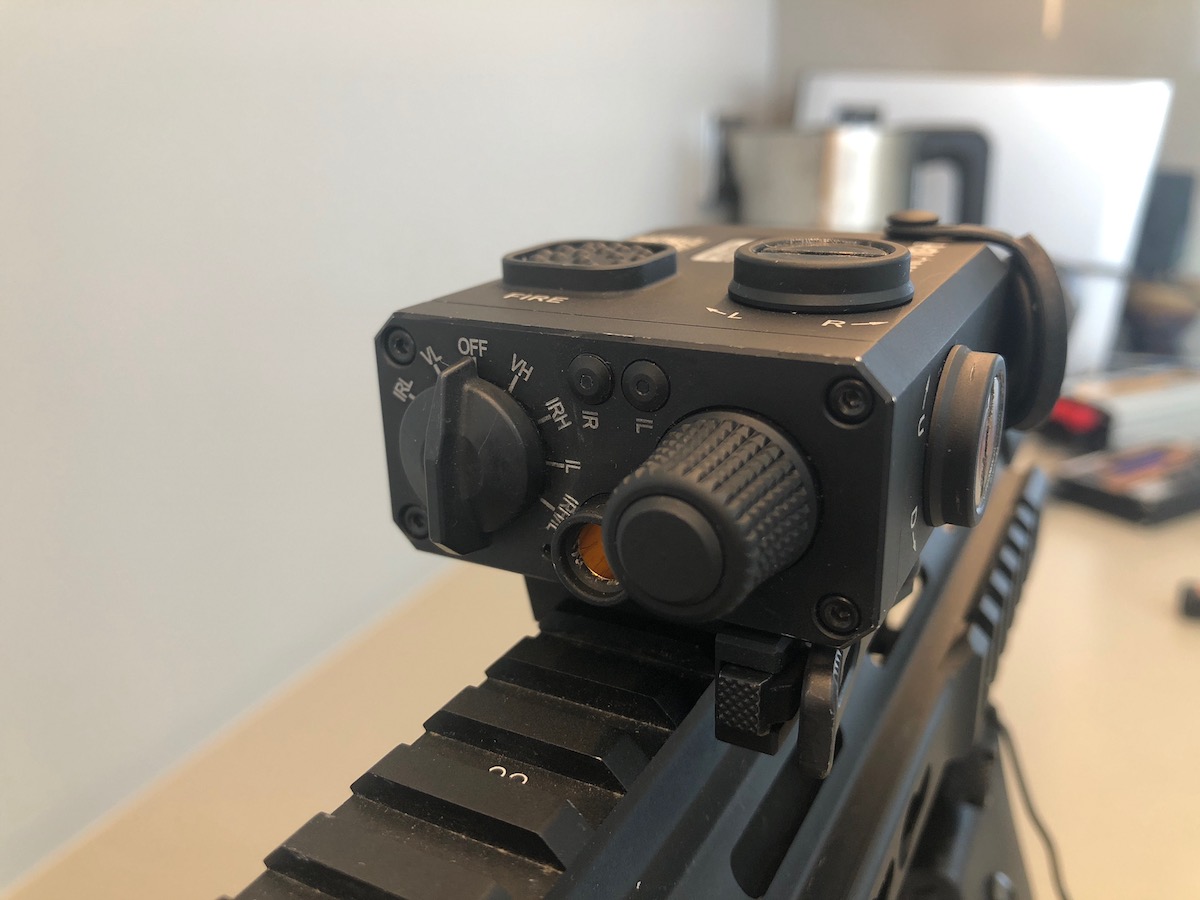

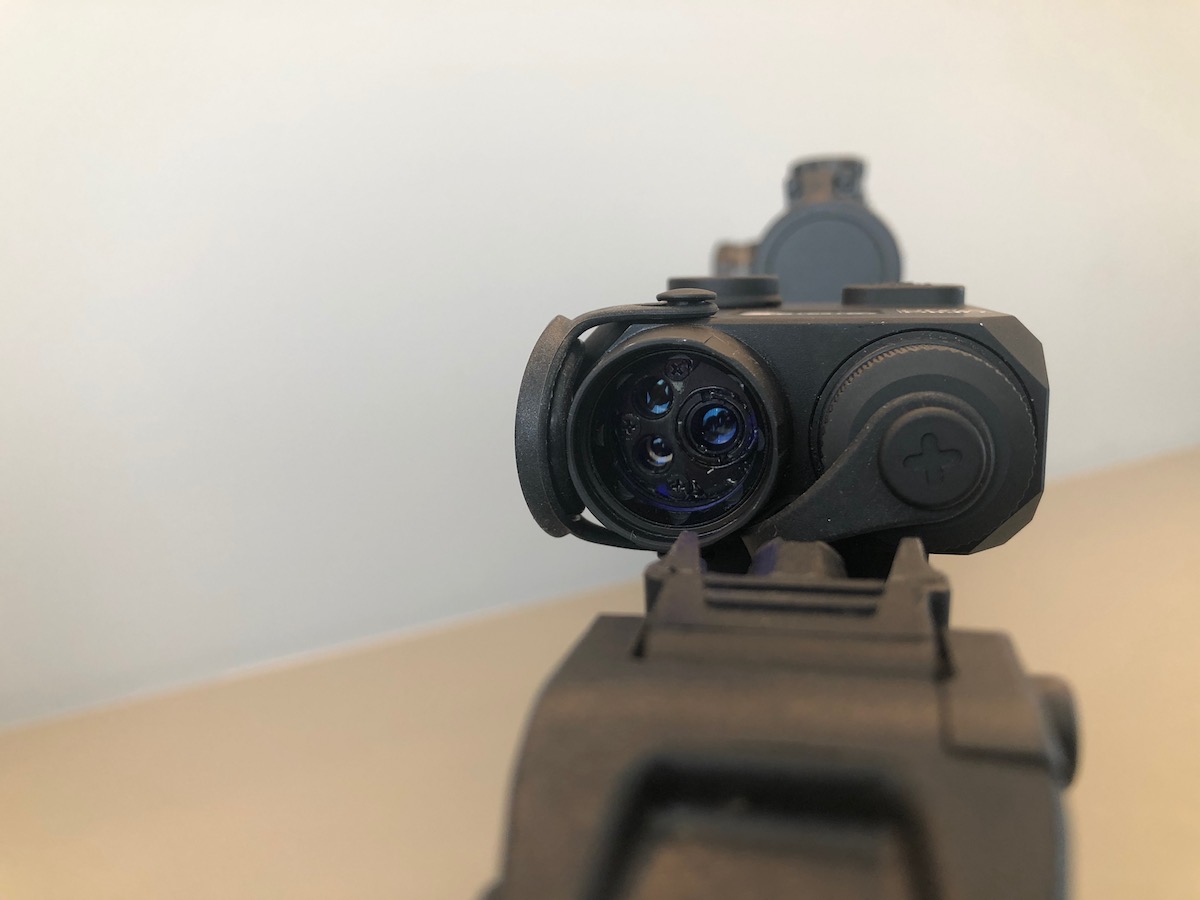

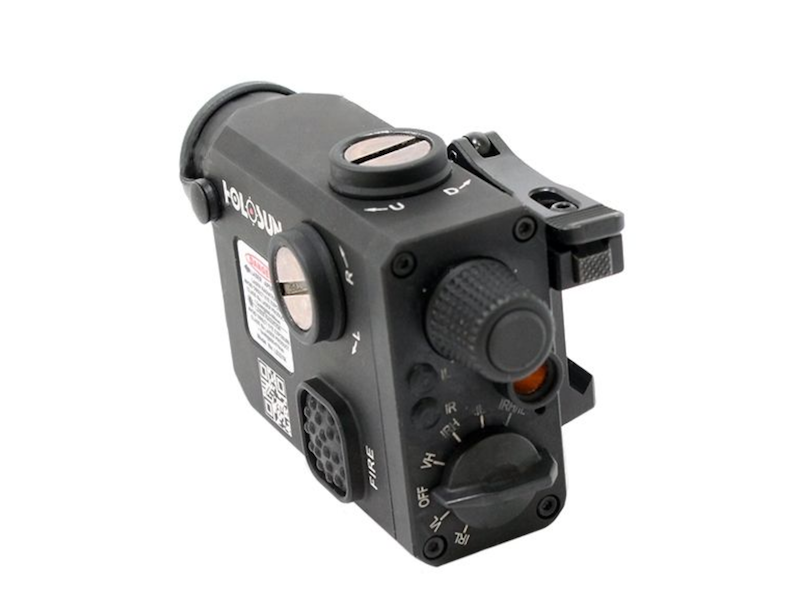

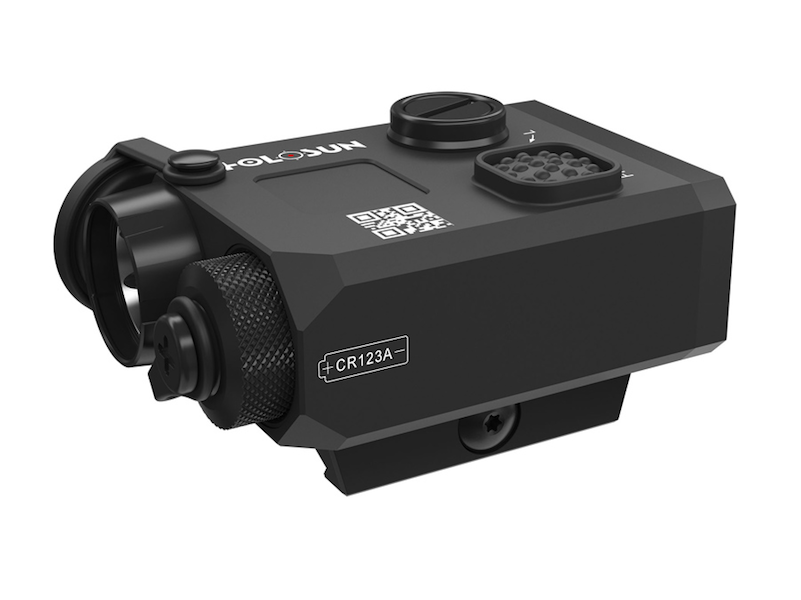

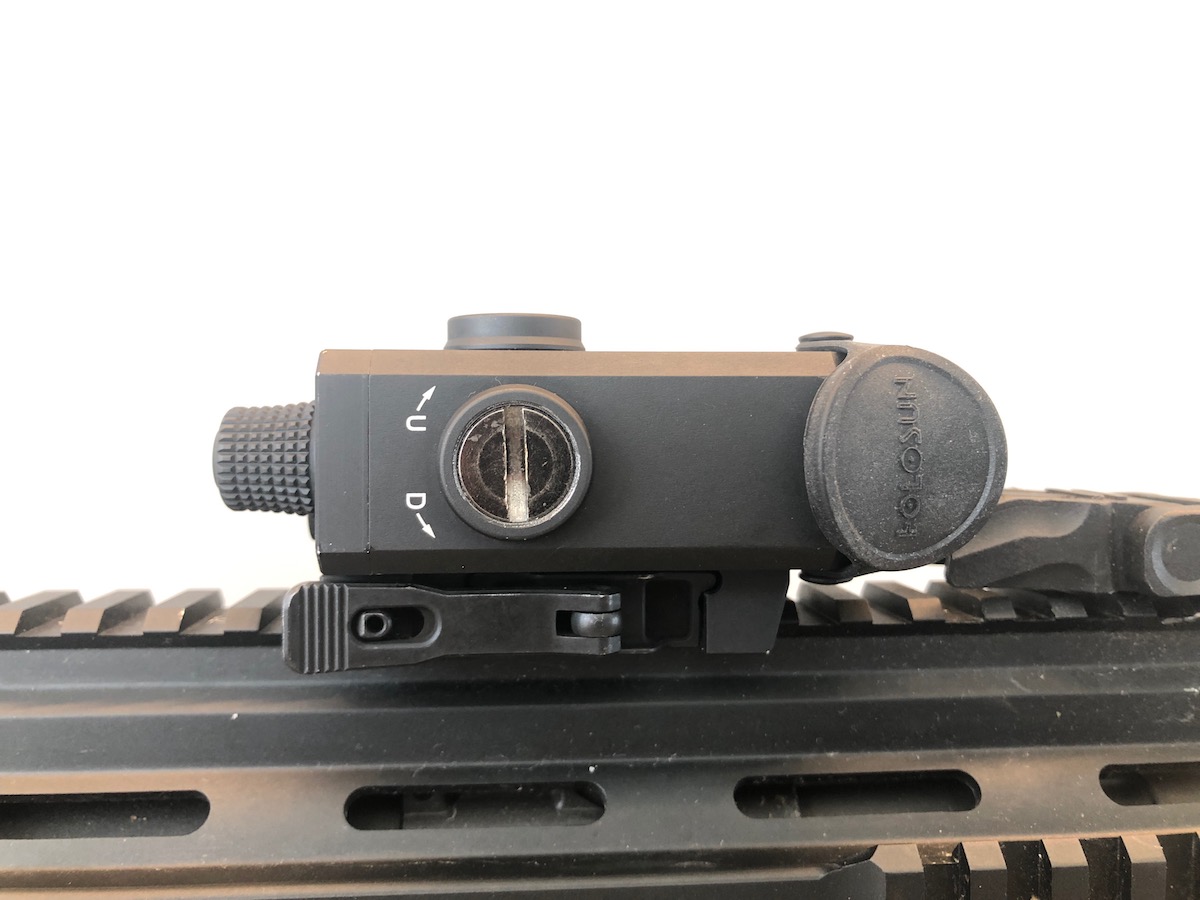

LS321G is a multi-laser device that integrates green laser, IR laser and IR illumintor. It has a mode selector to choose the different functions. The user could use same W&E adjuster to adjust the 3 laser beams at the same time. The focusing knob locates at the rear side which is convenient for user. It features high and low power laser pointers.
Housing Material Aluminum Housing Color Black Waterproof IP67.

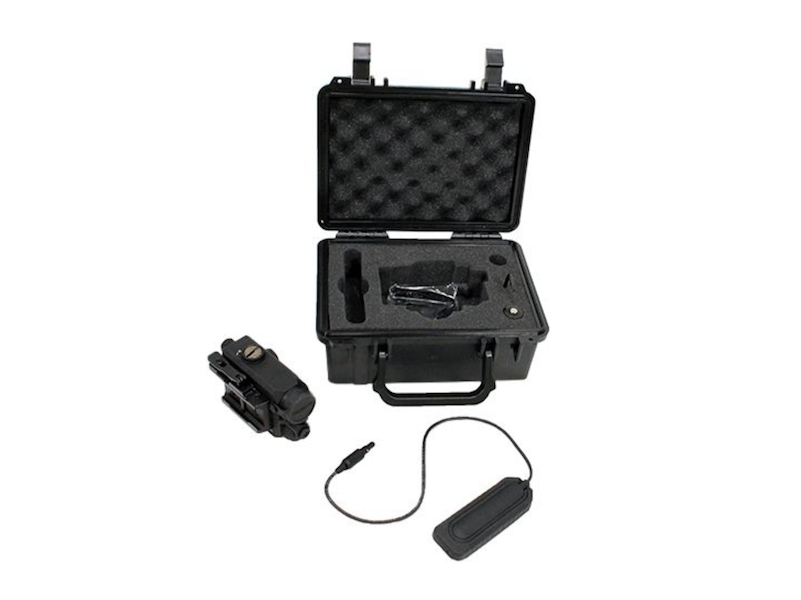

In the Box
- QD Release Mount
- T10 L Key
- CR123A Battery
- Remote Cable Switch
- User Manual
| ELECTRONIC DATA | |
|---|---|
| Power Source | Battery |
| Battery Type | CR123A |
| Battery Life (Hours) | Up to modes |
| Brightness Setting | Up to modes |
| PHYSICAL PARAMETERS | |
|---|---|
| Window Size | N/A |

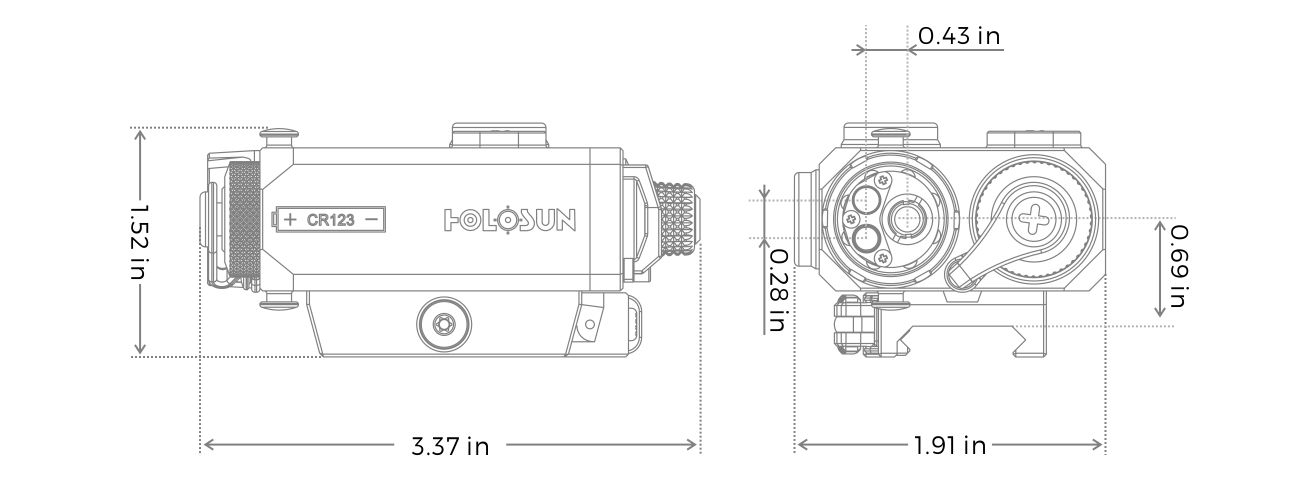

| Dimensions | 57x92x43mm |
| Weight | 245g |
| MECHANICAL DATA | |
|---|---|
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | MAO |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
| ENVIRONMENTAL PARAMETERS | |
|---|---|
| Storage Temperature | -40℃~ 65℃ |
| Working Temperature | -40℃~ 51℃ |
| Submersion | IP67 |
| Vibration | 1000G |
| LASER PARAMETERS | |
|---|---|
| Laser & Illuminator | Dual Laser & Dual Illuminator |
| White LED Output Type | N/A |
| IR Illuminator Class | N/A |
| IR Illuminator Output | 0.7mw |
| IR Pointer Class | N/A |
| IR Pointer Output | 0.1mw(low)/0.7mw(high) |
| Visible Laser Class | IIIA |
| Visible Laser Output | 1mw(low)/5mw(high) |
