Description
LS221G is a dual laser sight that features one visible green laser and one IR laser to be used with Night Vision devices. The two lasers are coaxial so that the user could adjust them synchronously using same windage and elevation adjustments.
Housing Material Aluminum Housing
Color Black Waterproof IP67

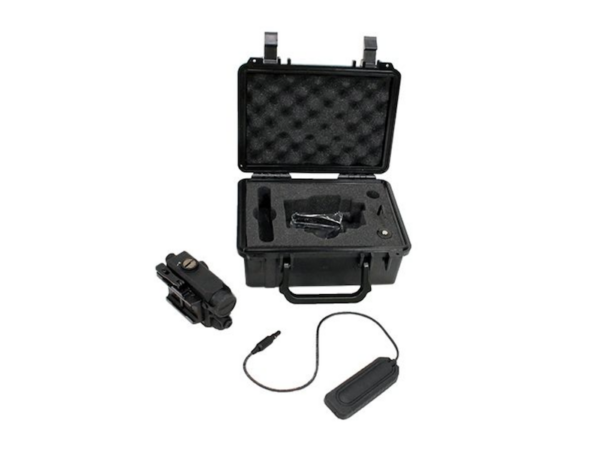

In the Box
- QD Release Mount
- T10 L Key
- CR123A Battery
- Remote Cable Switch
- User Manual
| ELECTRONIC DATA | |
|---|---|
| Power Source | Battery |
| Battery Type | CR123A |
| Battery Life (Hours) | Up to modes |
| Brightness Setting | Up to modes |
| PHYSICAL PARAMETERS | |
|---|---|
| Window Size | N/A |

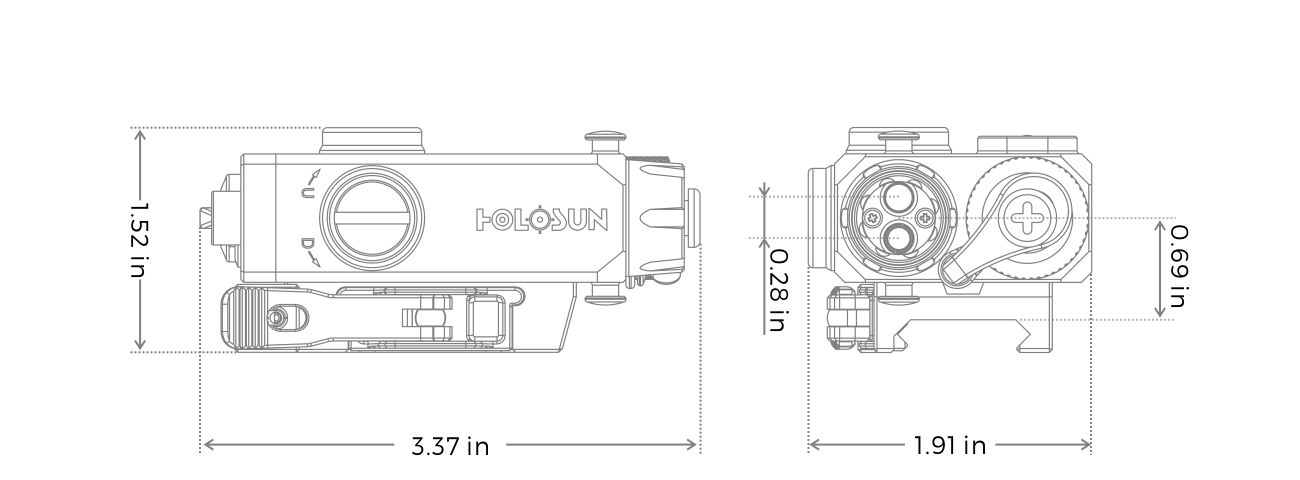

| Dimensions | 49x86x39mm |
| Weight | 189g |
| MECHANICAL DATA | |
|---|---|
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | MAO |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
| ENVIRONMENTAL PARAMETERS | |
|---|---|
| Storage Temperature | -40℃~ 65℃ |
| Working Temperature | -40℃~ 51℃ |
| Submersion | IP67 |
| Vibration | 1000G |
| LASER PARAMETERS | |
|---|---|
| Laser & Illuminator | Dual Laser |
| White LED Output Type | N/A |
| IR Illuminator Class | N/A |
| IR Illuminator Output | 0.7mw |
| IR Pointer Class | N/A |
| IR Pointer Output | 0.1mw(low)/0.7mw(high) |
| Visible Laser Class | IIIA |
| Visible Laser Output | 1mw(low)/5mw(high) |
