Description

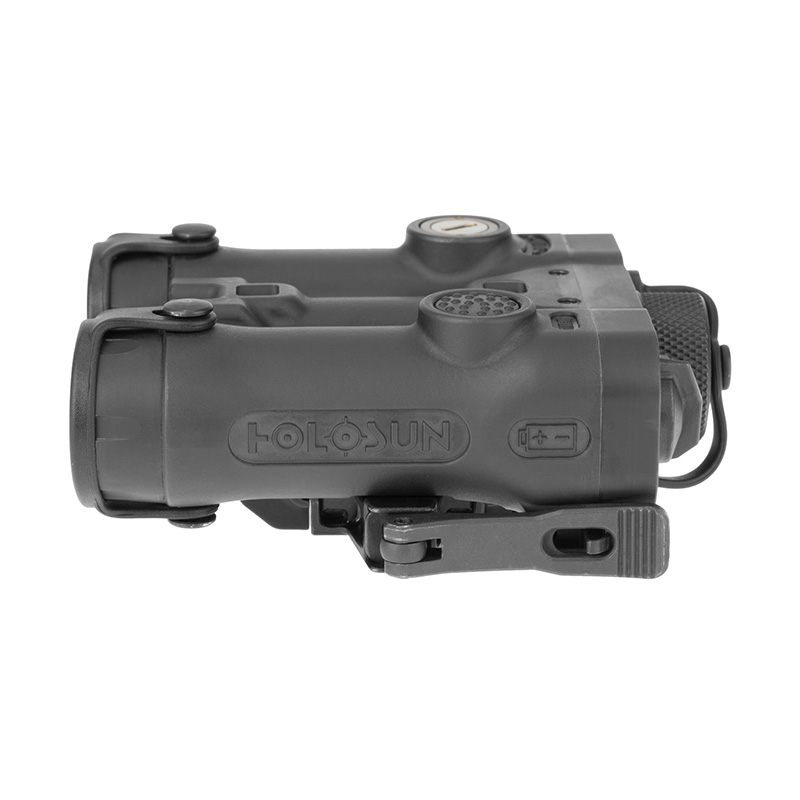

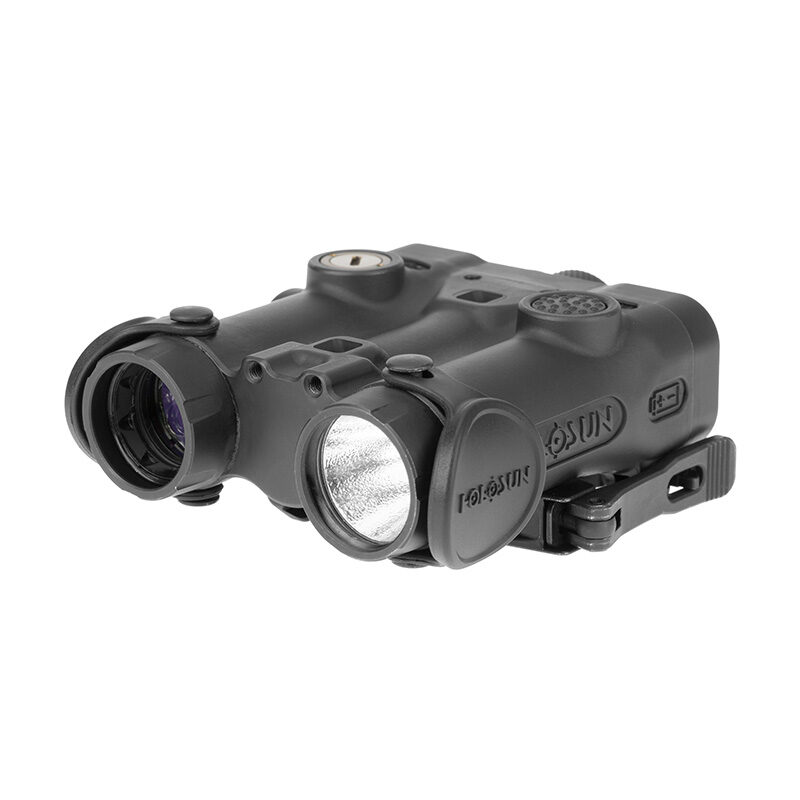

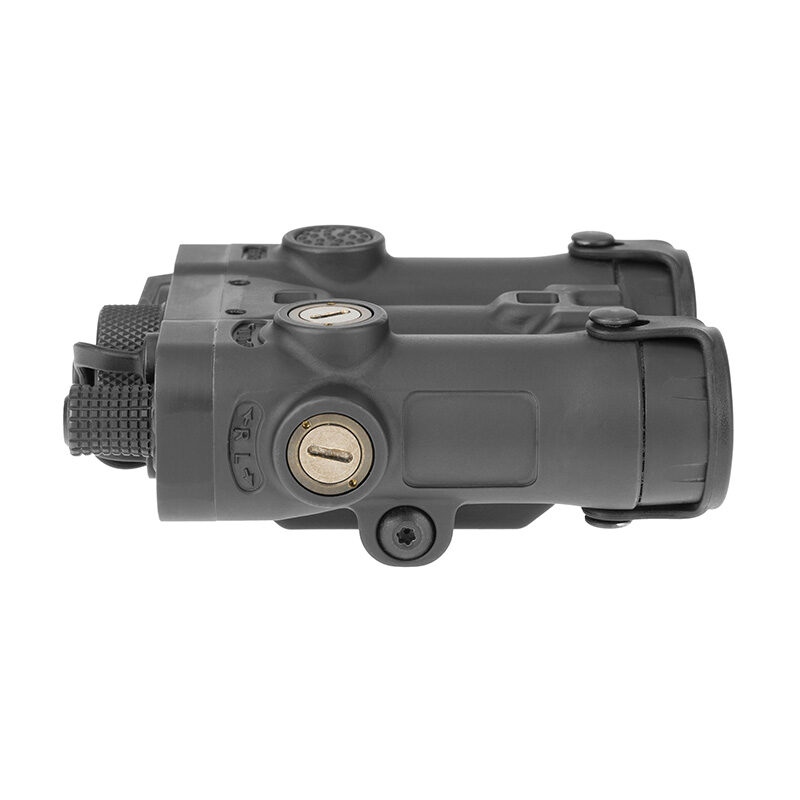

The LE420-GR is a Titanium bodied multi- laser aiming device. Includes class IIIA visible green laser, class 2M IR laser, and IR Illuminator coaxially mounted for easy zeroing. Also features a 600 Lumen white light, IR Illuminator focus adjustment, quick release picatinny rail mount, remote pressure switch, IPX8 water resistance, and is powered by two CR123 batteries for increased run-time.
In the Box
- QD Release Mount
- T10 L Key
- Remote Cable Switch
- User Manual
| ELECTRONIC DATA | |
|---|---|
| Power Source | Battery |
| Battery Type | 2x CR123A / 18650 flat or nubhead |
| Battery Life (Hours) | Up to modes |
| Brightness Setting | Up to modes |
| PHYSICAL PARAMETERS | |
|---|---|
| Window Size | N/A |
| Dimensions | 78x93x37mm |
| Weight | 310g |
| MECHANICAL DATA | |
|---|---|
| Housing Material | Titanium |
| Surface Finish | Titanium |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±60 MOA |
| ENVIRONMENTAL PARAMETERS | |
|---|---|
| Storage Temperature | -40℃~ 65℃ |
| Working Temperature | -40℃~ 51℃ |
| Submersion | IPX8 |
| Vibration | 1000G |
| LASER PARAMETERS | |
|---|---|
| Laser & Illuminator | Dual Laser & Dual Illuminator |
| White LED Output Type | 600 Lumens |
| IR Illuminator Class | N/A |
| IR Illuminator Output | 0.7mw |
| IR Pointer Class | N/A |
| IR Pointer Output | 0.1mw(low)/0.7mw(high) |
| Visible Laser Class | IIIA |
| Visible Laser Output | 1mw(low)/5mw(high) |
