Description

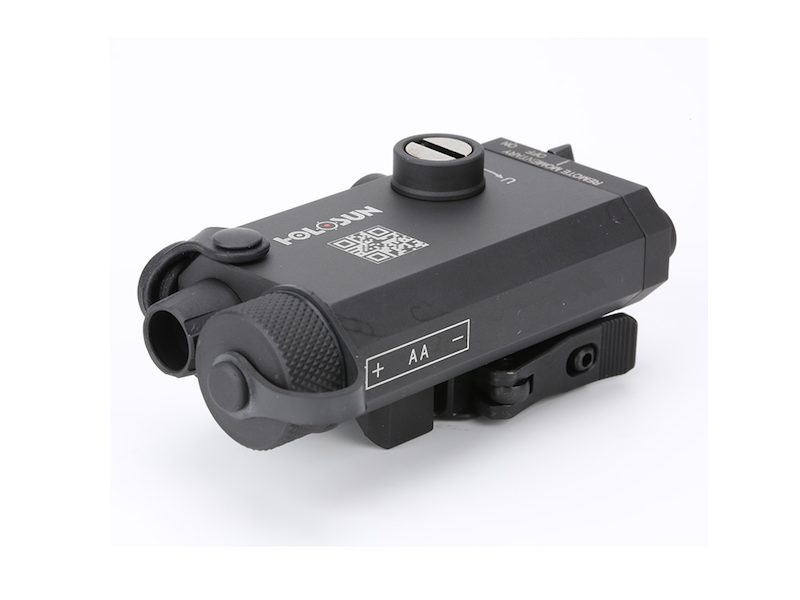

LS117IR is a compact and lightweight single-beam laser sight. Fully adjustable windage and elevation allows for greater accuracy to make that perfect shot in adverse lighting conditions. Housing Material Aluminum Housing
Color Black Waterproof IP67
In the Box

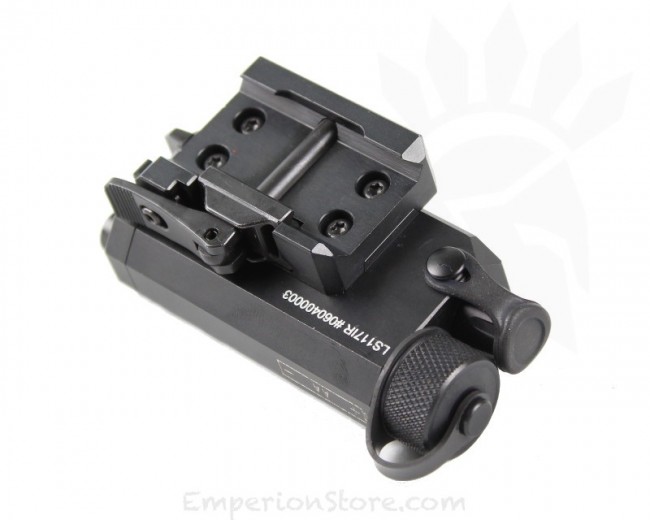

- QD Release Mount
- T10 L Key
- AA Battery

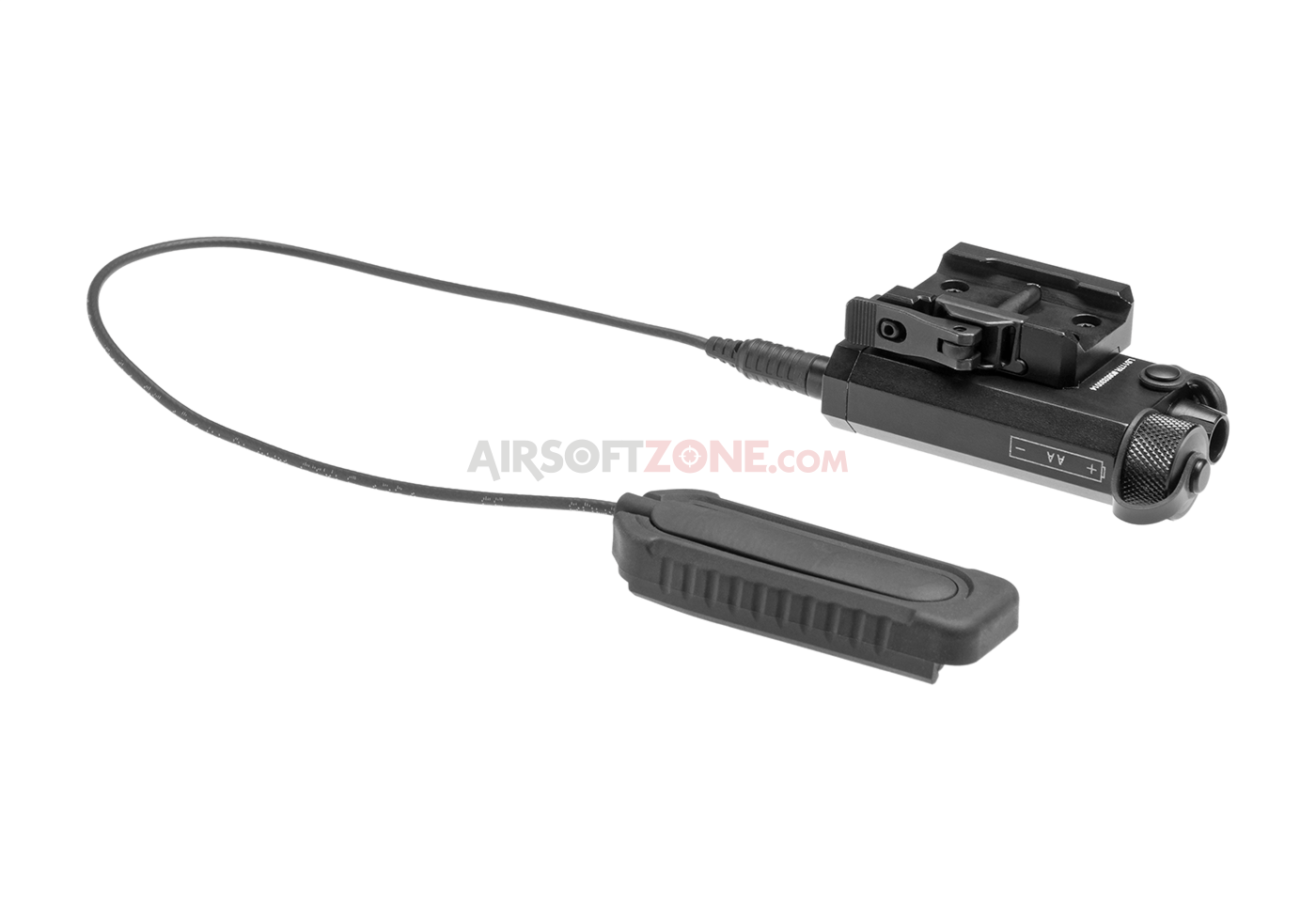

- Remote Cable Switch
- User Manual
| ELECTRONIC DATA | |
|---|---|
| Power Source | Battery |
| Battery Type | AA |
| Battery Life (Hours) | 50,000 |
| Brightness Setting | 10 DL&2 NV |
| PHYSICAL PARAMETERS | |
|---|---|
| Window Size | N/A |

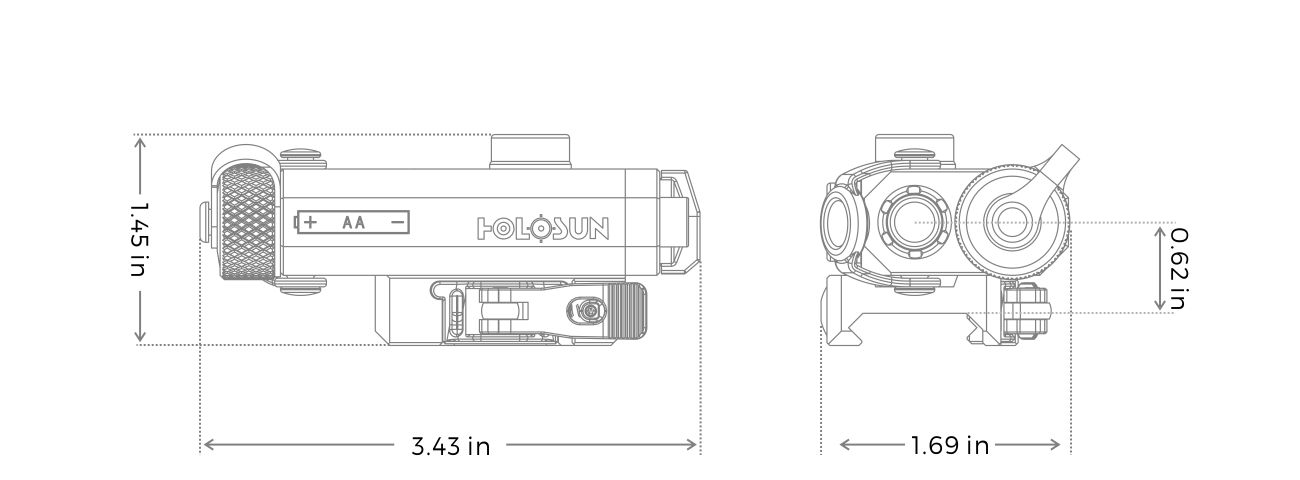

| Dimensions | 40x25x24mm |
| Weight | 130g |
| MECHANICAL DATA | |
|---|---|
| Housing Material | 6061 T6 Aluminum |
| Surface Finish | Anodize |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | N/A |
| ENVIRONMENTAL PARAMETERS | |
|---|---|
| Storage Temperature | -20℃~ 65℃ |
| Working Temperature | -20℃~ 51℃ |
| Submersion | IP56 |
| Vibration | 1000G |
| LASER PARAMETERS | |
|---|---|
| Laser & Illuminator | Dual Laser |
| White LED Output Type | 300 Lumens |
| IR Illuminator Class | IIIB |
| IR Illuminator Output | 0.7mw |
| IR Pointer Class | IIIB |
| IR Pointer Output | 0.1mw(low)/0.7mw(high) |
| Visible Laser Class | IIIA |
| Visible Laser Output | 1mw(low)/5mw(high) |
