Description
SN: 3793
 |  |
| LEFT | RIGHT | ||
| FOM | 1948 | 1920 | |
| Gain | 9322 | 9372 | |
| Resolution | 72 | 72 | |
| EBI | 0,13 | 0,12 | |
| SN | 27,06 | 26,67 | |
| Price | 7280€ + VAT | ||

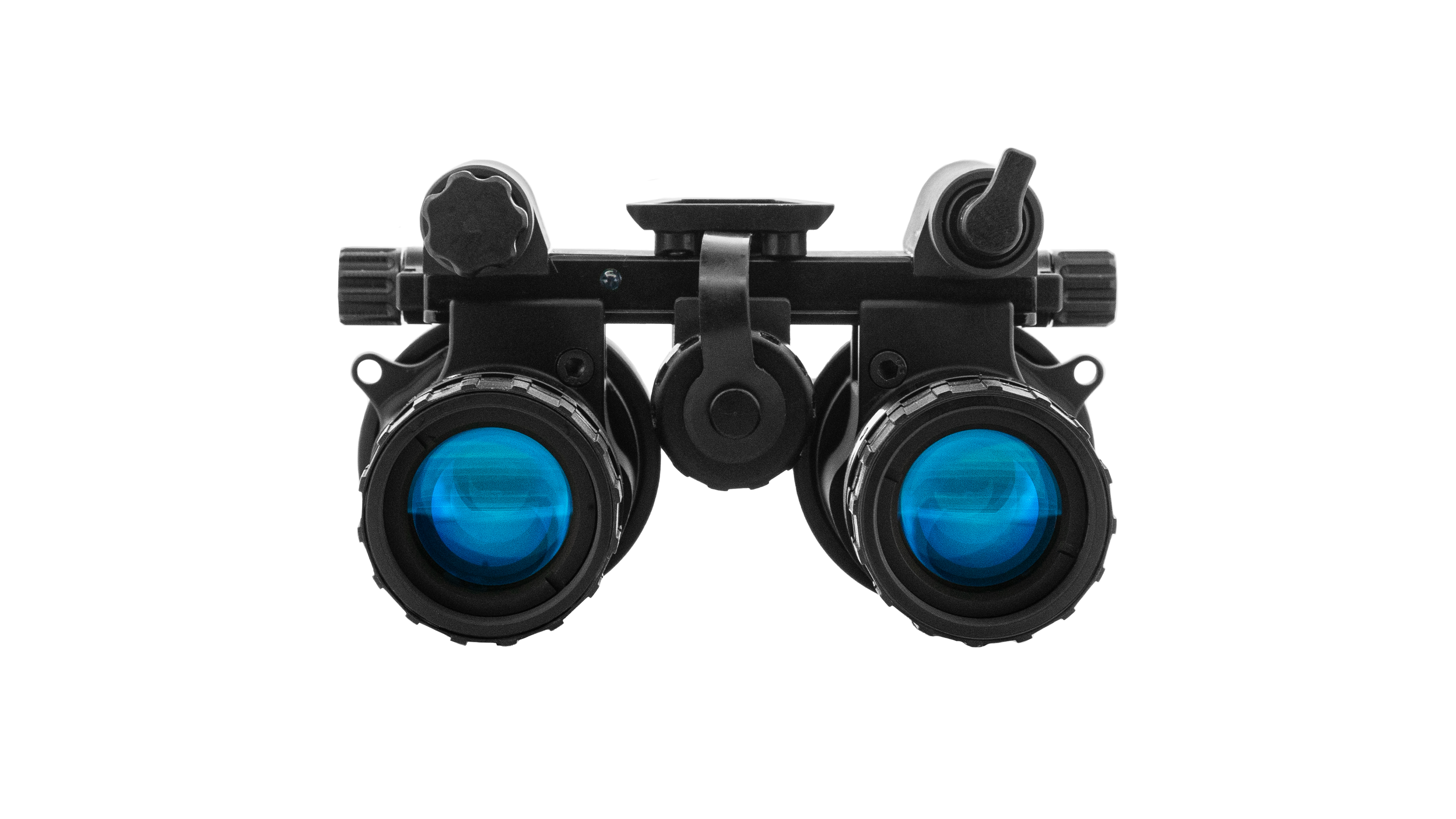

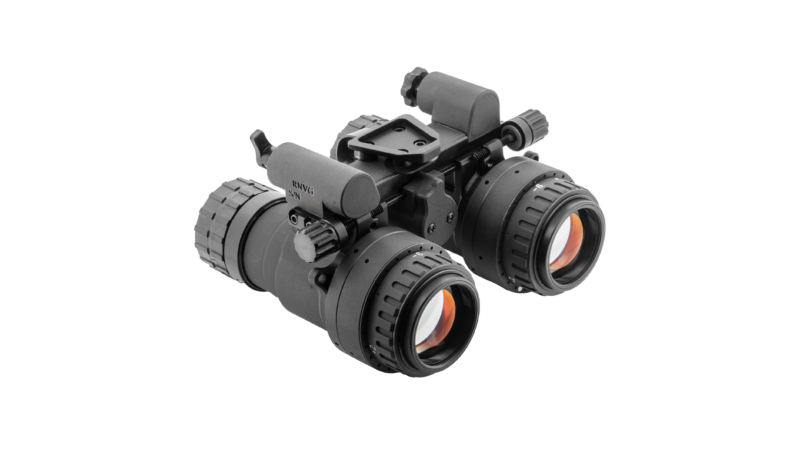

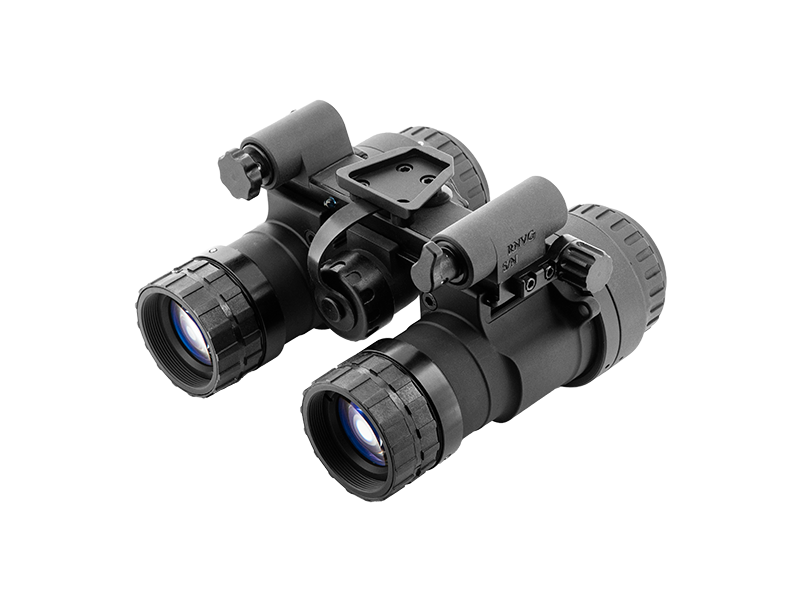

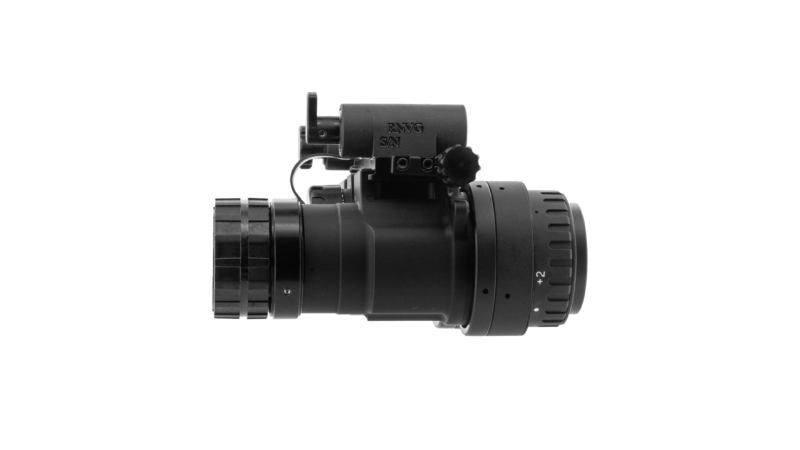

The RNVG is a ruggedized non-articulating binocular built to withstand the roughest use. The simplistic desing of the housing made out of CNC machined billet 7075 aluminium increases impact resistnace and reinforces common breakage points – making it the toughest unit with the best structural strenght out there.
The optic pods traverse on the bridge during interpupilary adjustment The distance of pods between one eye and the other are adjusted by turning dual knobs on either side of the bridge.
The RNVG binocular incorporates built-in IR LED for close quarter missions with separate IR-ON indicator and low battery indicator in the field of view.
Two knobs – 1. OF-ON-IR / 2. Manual Gain
No external battery port – Why? The RNVG uses standard CR123A batteries as commonly found in lasers or flashlights. A single battery provides over 25h run time.
| Image Intensifier Tubes (IIT) | Photonis ECHO 16mm White Phosphor |
| Finish | Matte Black, Anodized, Corrosion Resistant billet 7075 aluminum body |
| Capability | Built-in IR LED with “IR-on” indicator in FOV Low battery indicator in FOV Waterproof: 20m (66ft) Manual Gain Autogated |
| Magnification | 1x |
| Diopter compensation | -6 to +2 dpt |
| Battery Life | 25 h |
| Infrared illuminator | yes |
| Interpupillary adjustment | 51 to 73mm |
| True field of view | 38° |
| Close focus limit | 0.25 m to ∞ |
| Power Supply | 1x CR123 |
| Dimensions | 119 x 106 x 71 mm |
| Weight | 540 g |

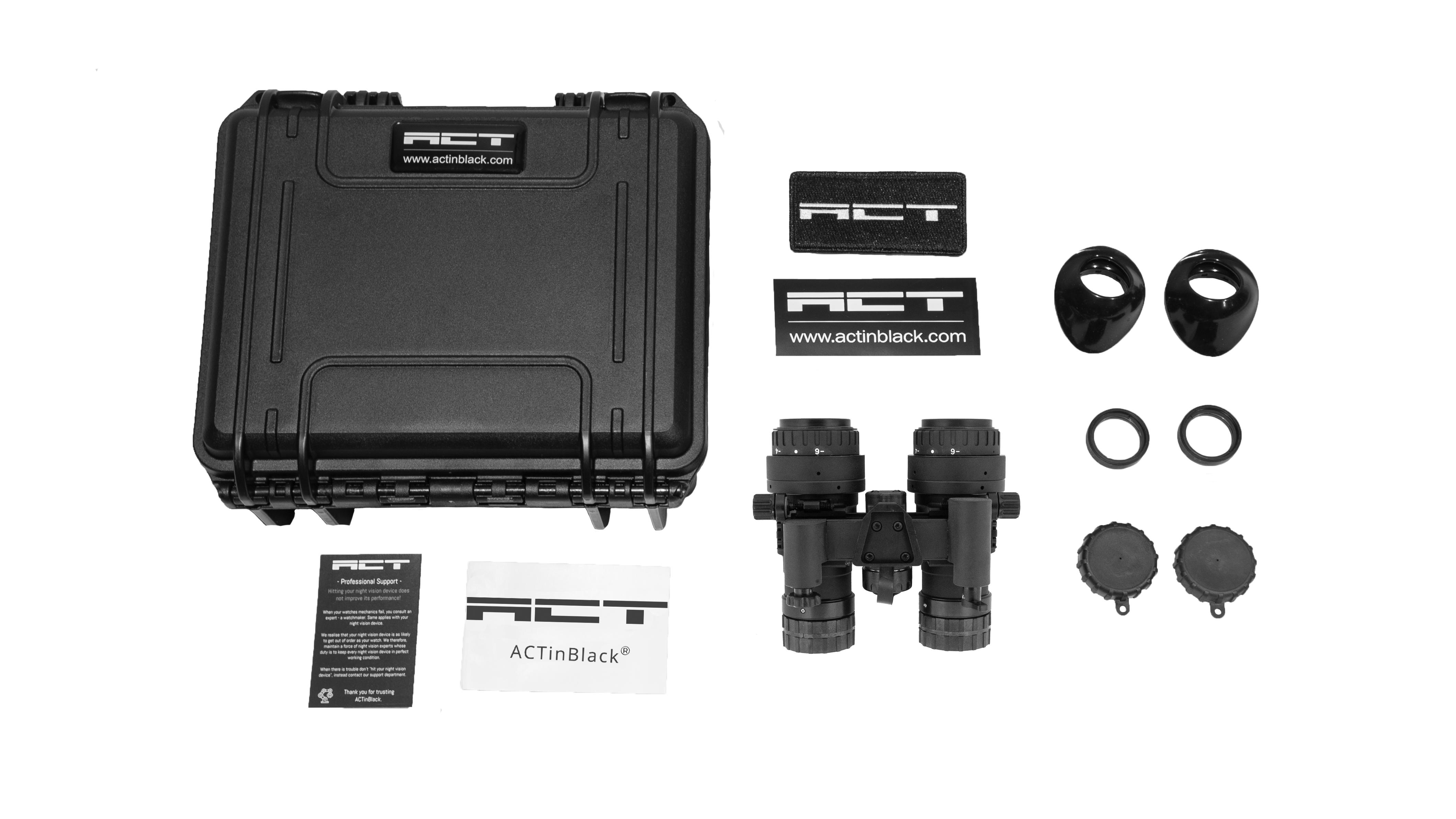

Included accessories
- Hardcase
- Sacrificial lenses
- Rubber eye-cups
- Objective lens caps
Included paperwork (original documentation is always included)
- Tube specification sheet
- Device birth certificate
- Falconclaw user manual
- Merchandise (patches, ACT lens cleaning paper)
- Note! Flip the hardcase top cover foam to find everything above
