ACT PVS-14 ECHO+ WP

5 490.005 922.00

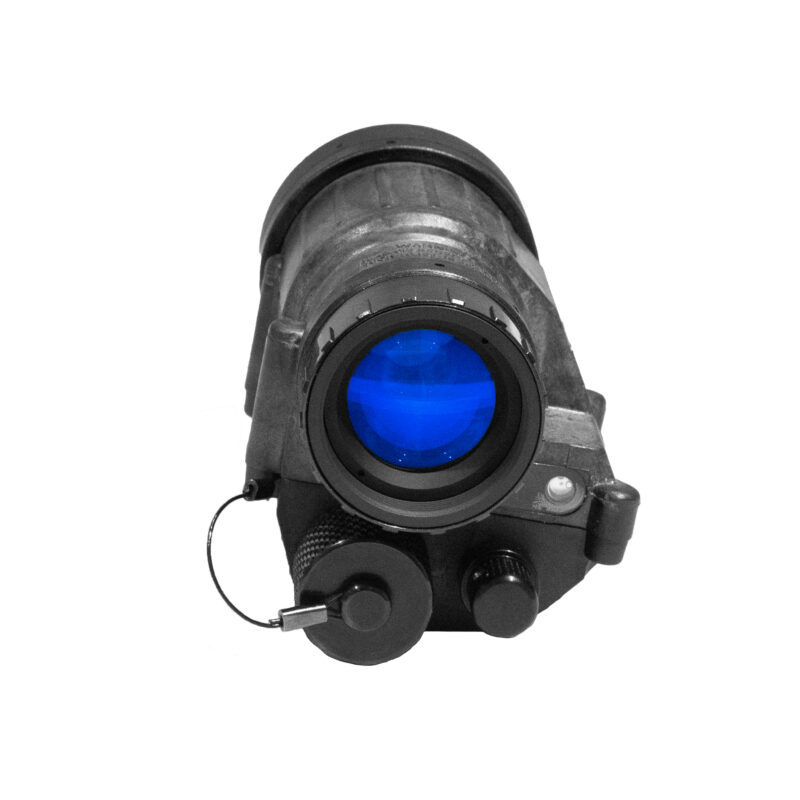

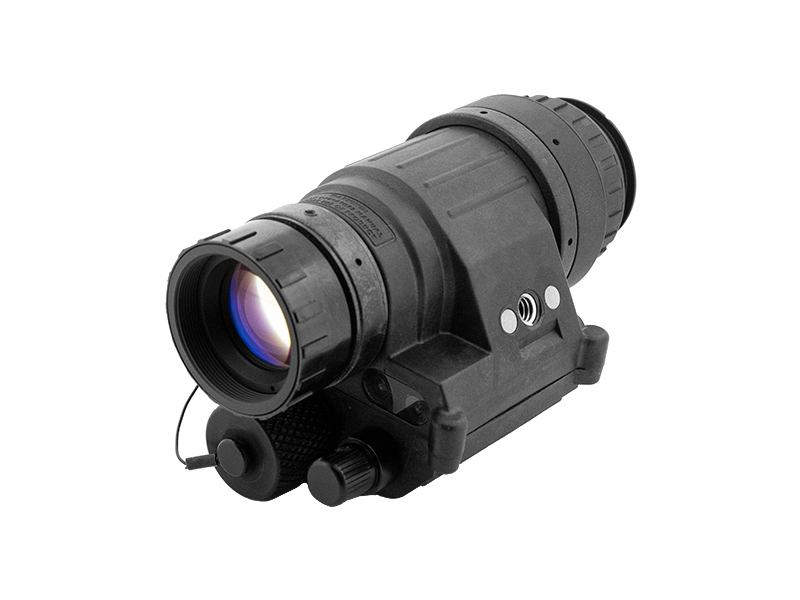

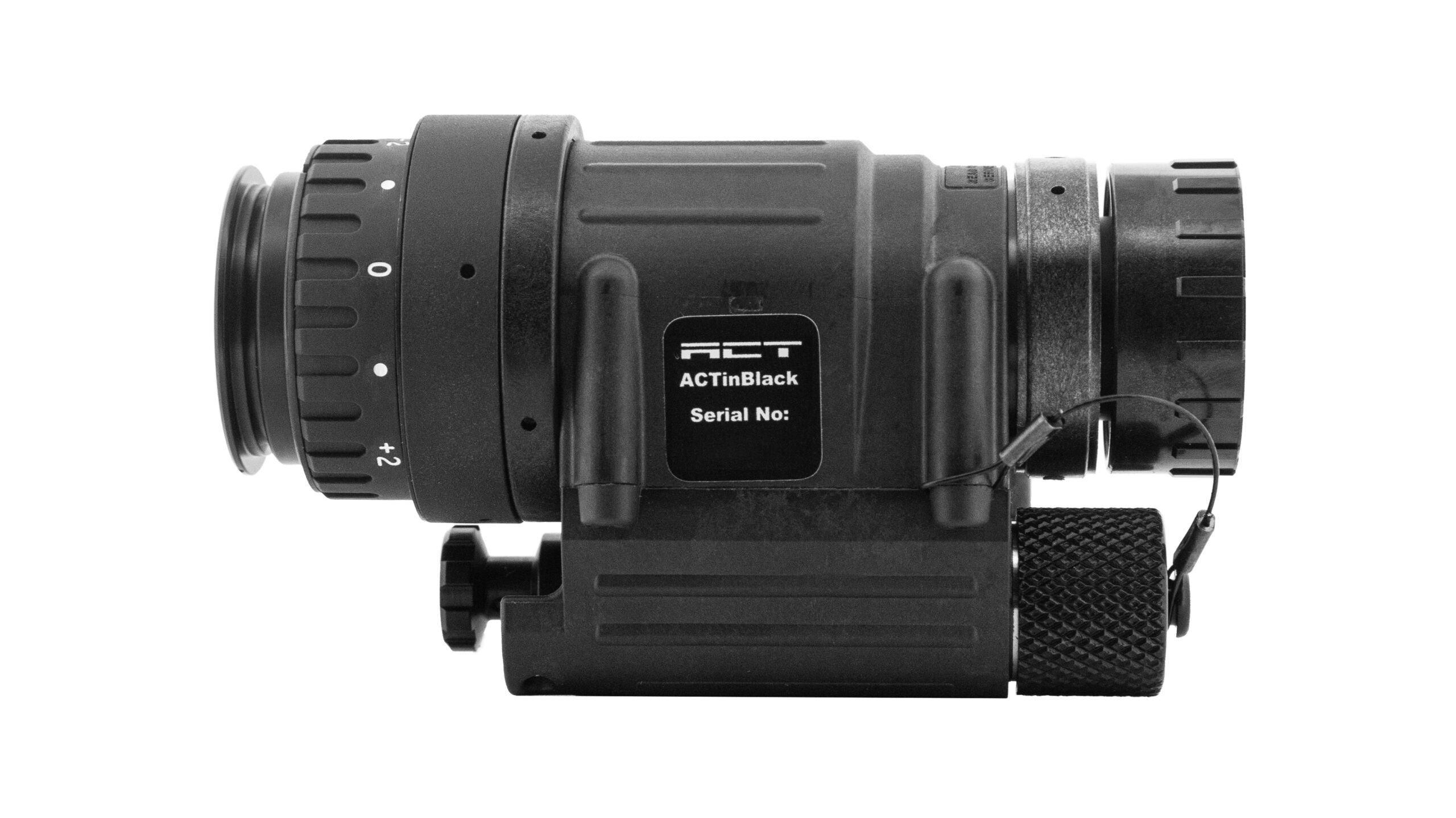

PVS-14 night vision monocular with LNS40 optics package and Photonis Echo+ 2000FOM
Autogated EGC White Phosphor image intensifier

5 490.005 922.00
PVS-14 LNS ECHO+ A001945 A001946 A001947 A001948 A001949
Clear selection
GTIN: N/A SKU: PVS14-ZW0973D Category: Tags: , , ,

Description

Available models

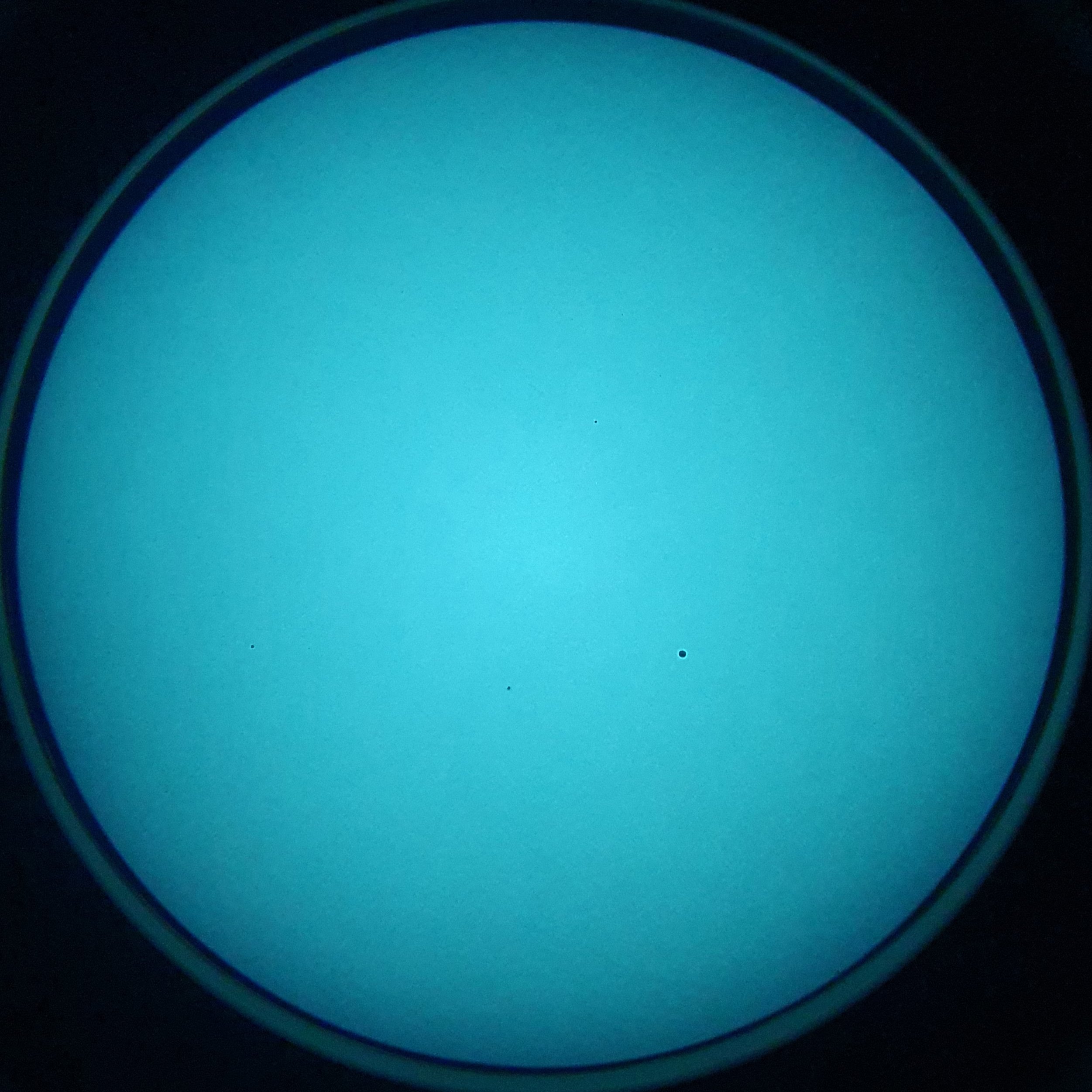

Since the difference between units can be pretty big (both FOM and the existence of black spots), we have decided to make public units specification and picture of the tube (to see black spots). Price depends on the quality of the tube. Please be aware that not all spots are visible on those pictures and in real life the spots appear to be bigger than on this picture. Spots score is our own metric to compare visibility of spots between tubes.

A001945

FOM2165
Gain9953
Resolution67
EBI0.08
SN32.32
IA0.07
Price4755€ + VAT

A001946

FOM2132
Gain9392
Resolution68
EBI0.07
SN31.35
IA0.11
Price4575€ + VAT

A001947

FOM2143
Gain9698
Resolution68
EBI0.08
SN31.51
IA0.21
Price4595€ + VAT

A001948

FOM2206
Gain10087
Resolution70
EBI0.08
SN31.52
IA0.08
Price4680€ + VAT

A001949

FOM2287
Gain9883
Resolution72
EBI0.10
SN31.76
IA0.08
Price4935€ + VAT
Housing

ACT PVS14 provides the user with an integrated set of components fitted with the customer specified Image Intensifier Tubes.

Act In Black rugged yet lightweight AN/PVS-14 can be hand held, helmet mounted, or head-strap mounted. Key features include an automatic highlight cutoff, an infrared illuminator, an IR-On indicator, and low voltage indicator. A broad range of user requirements can be achieved by combining the devices variety of available accessories with the standard kit components.

All components and accessories are manufactured, assembled, and tested in accordance with MIL-STD-810G

Image Intensifier Tube

Photonis ECHO+ WP ZW0973D Min 2000 FOM.

Image Intensifier Tubes (IIT)Photonis ECHO+ White Phosphor
ColorBlack
MaterialHigh Strength Resin
Spectral ResponseVisible to 0.90 µm
(IR)Field of View40° nominal
Magnification1x
Focus Range25 cm to infinity
Diopter Adjustment+2 to –6 diopters
Infrared illuminatoryes
StandardsExceeding MIL-STD-810G
True field of view40°
Immersion1m
Battery Type1x AA
Battery Life40 Hours at Room Temperature
Dimensions4.5 in x 2.0 in x 2.2 in (11.4 cm x 5.1 cm x 5.7 cm)
Weight322 g
Warranty2 year

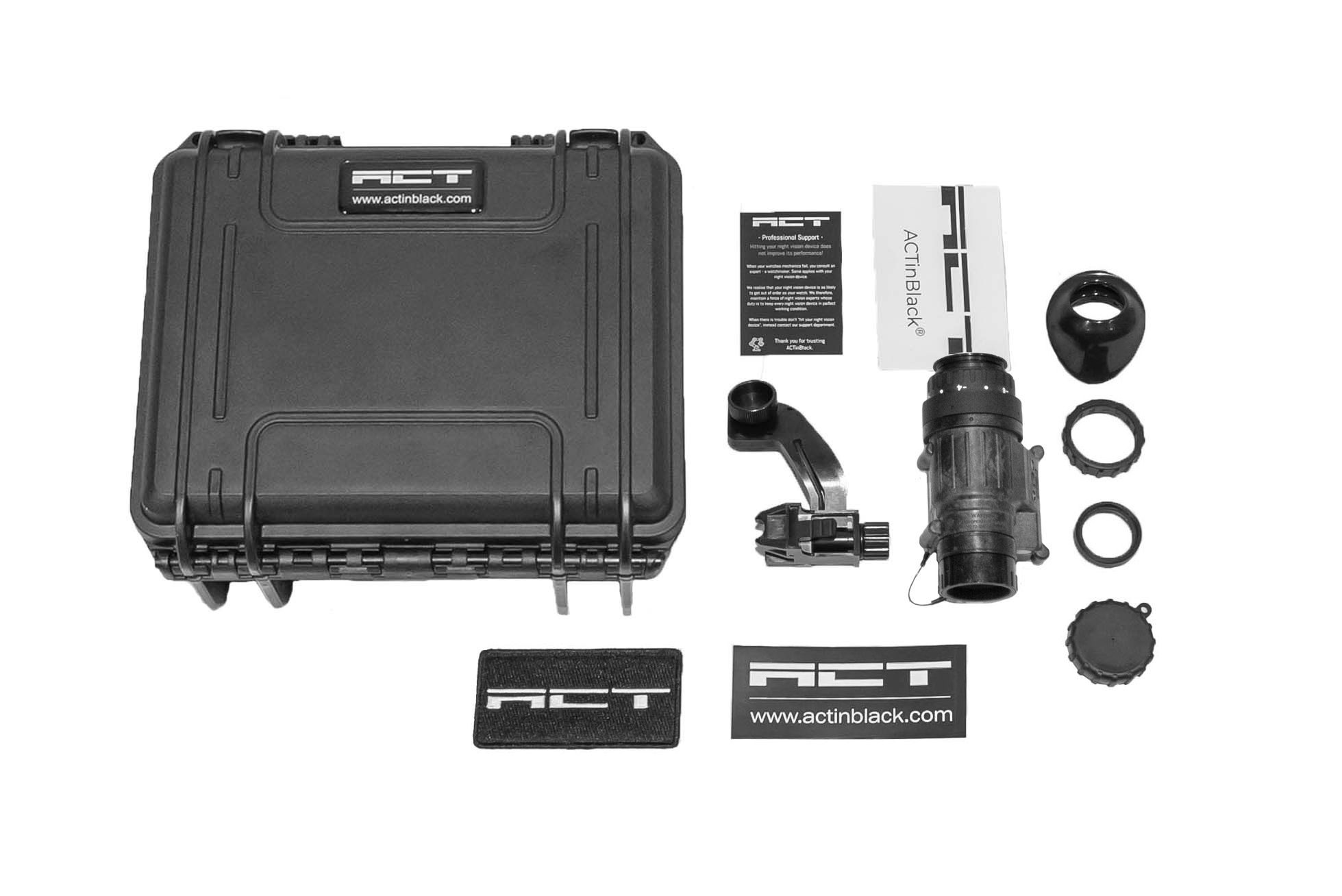

Included accessories
  • Hardcase
  • Standard J-Arm (Bayonet)
  • Sacrificial lens
  • Demist shield
  • Rubber eye-cup
  • Objective lens cap

Additional information

PVS-14 LNS ECHO+

A001945, A001946, A001947, A001948, A001949
