Description
Available models

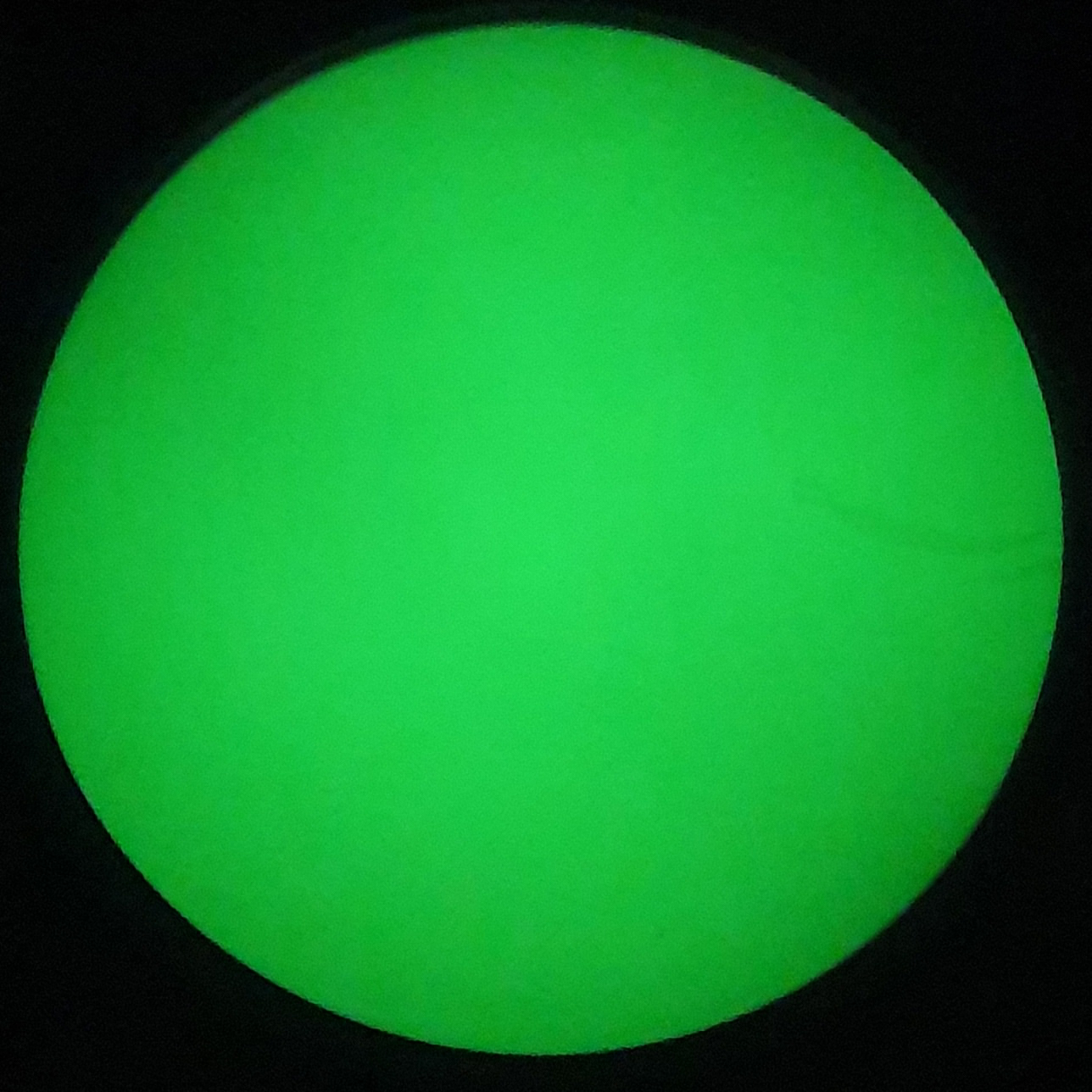

Since the difference between units can be pretty big (both FOM and the existence of black spots), we have decided to make public units specification and picture of the tube (to see black spots). Price depends on the quality of the tube. Please be aware that not all spots are visible on those pictures and in real life the spots appear to be bigger than on this picture. Spots score is our own metric to compare visibility of spots between tubes.
A001926
| FOM | 2265 |
| Gain | 13674 |
| Resolution | 72 |
| EBI | 0.14 |
| SN | 31.47 |
| Price | 3375€ + VAT |
Housing
The MUM-14 Mini-monocular is a small and versatile high performing system in a small tough package. (16mm optics)
Extremely lightweight and versatile, the MUM-14 can be hand-held, head-mounted, helmet-mounted, camera/camcorder adapted or weapons mounted, which enables night vision capabilities to daytime optical sights.
The MUM-14 has a 66ft / 20m submersion rating.
MUM-14 is not compatible to all PVS-14 type accessories, and utilises MINIRAIL for mounting options.
Image Intensifier Tube
Photonis ECHO GP ZSG1358D FOM range 1600-2000.
| Image Intensifier Tubes (IIT) | Photonis ECHO Green Phosphor |
| Capability | Built-in IR LED with “IR-on” indicator in FOV Low battery indicator in FOV Waterproof: 20m (66ft) for 2h Autogating |
| Magnification | 1x |
| Diopter compensation | -6 to +2 dpt |
| Battery Life | 40 h CR123 / 20H AA (battery adapter included) |
| Infrared illuminator | yes |
| Standards | Exceeding MIL-STD-810G |
| True field of view | 38° |
| Range of focus | 0.25 m to ∞ |
| Power Supply | 1x AA or 1x CR123 |
| Dimensions | 108 x 69 x 50 mm |
| Weight | 260 g |
Included accessories
- Hardcase
- Minirail J-Arm (Bayonet)
- Sacrificial lens
- Demist shield
- Rubber eye-cup
- Objective lens cap
- Battery adapter (conversion from CR123 battery to AA)
Included paperwork (original documentation is always included)
- Tube specification sheet
- Device birth certificate
- Falconclaw user manual
- Merchandise (patches, ACT lens cleaning paper)
- Note! Flip the hardcase top cover foam to find everything above
