ACT LWT DTNVS ECHO+ White Phosphor

9 450.009 820.00

ACT DTNVS Photonis ECHO+ White Phosphor, FOM 2000-2300, Autogated. Ultralight RPO Optics

FREE Shipping

9 450.009 820.00
Unit 2016D 2017D 2018D 0946C 2015D
Clear selection
GTIN: N/A SKU: DTNVS-14-LWT40-ZW0124C Category: Tags: ,

Description

2016D

LEFTRIGHT
FOM22702277
Gain986611072
Resolution6668
EBI0,20,11
SN34,3933,49
IA0,120,14
Price9820€ + VAT

2017D

LEFTRIGHT
FOM21532226
Gain96849385
Resolution6867
EBI0,120,11
SN31,6633,23
IA0,070,04
Price9790€ + VAT

2018D

LEFTRIGHT
FOM21802159
Gain98019855
Resolution6768
EBI0,140,11
SN32,5431,75
IA0,180,17
Price9760€ + VAT

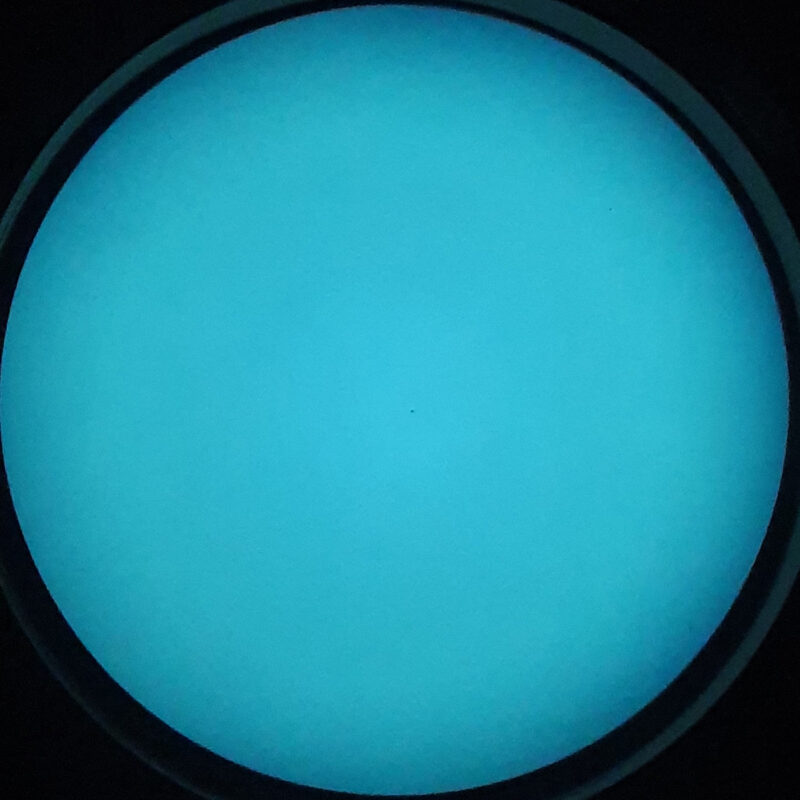

0946C

LEFTRIGHT
FOM20452120
Gain99279554
Resolution6868
EBI0,070,16
SN30,0731,18
IA0,130,10
Price9460€ + VAT

2015D

LEFTRIGHT
FOM22102137
Gain102019561
Resolution6868
EBI0,180,1
SN32,531,43
IA0,070,17
Price9450€ + VAT

The DTNVS is a lightweight folding binocular built on proven technology and enhanced for greater reliability verse previous generations of Night Vision Binoculars. The DTNVS binocular combines lightweight materials and a low profile when folded to the helmet which reduces neck strain during extended missions.

The DTNVS binocular has a full feature set with individual sideways ON/OFF for each eyepiece and Flip-Up ON/OFF when folded up preventing backsplash on the helmet. To complete the DTNVSs’ features it incorporates built-in IR LED for close quarter missions with separate IR-ON indicator and low battery indicator in the field of view.

No external battery port – Why? The DTNVS uses standard CR123A batteries as commonly found in lasers or flashlights. A single battery provides over 25h run time. However, as the pods shut off when flipped up and therefore halve the power consumption, most users report up to 35h on a single battery.

Image Intensifier Tubes (IIT) Photonis ECHO+ White Phosphor
Finish Matte Black, Corrosion Resistant
Fibre re-enforces polycarbonate body
Capability Flip-Up On-Off
Side Flip-Up On-Off
Built-in IR LED with “IR-on” indicator in FOV
Low battery indicator in FOV
Waterproof: 20m (66ft) for 2 hours
Corrosion Resistance against salt water
Magnification 1x
Diopter compensation -6 to +2 dpt
Battery Life 25 h
Infrared illuminator yes
Standards Exceeding MIL-STD-810G
True field of view 40°
Close focus limit 0.25 m to ∞
Power Supply 1x CR123
Dimensions 76 x 105 x 111 mm
Weight 510 g
Included accessories
  • Hardcase
  • Molle pouch
  • Sacrificial lenses
  • Demist shields
  • Protective bikini covers
  • Rubber eye-cups
  • Objective lens caps
Included paperwork (original documentation is always included)
  • Tube specification sheet
  • Device birth certificate
  • Falconclaw user manual
  • Merchandise (patches, ACT lens cleaning paper)
  • Note! Flip the hardcase top cover foam to find everything above

Additional information

Weight 1.527 kg
DTNVS ECHOplus WP Tube

2016D, 2017D, 2018D, 0946C, 2015D

Brand

ACT
