Description
1719A
 |  |

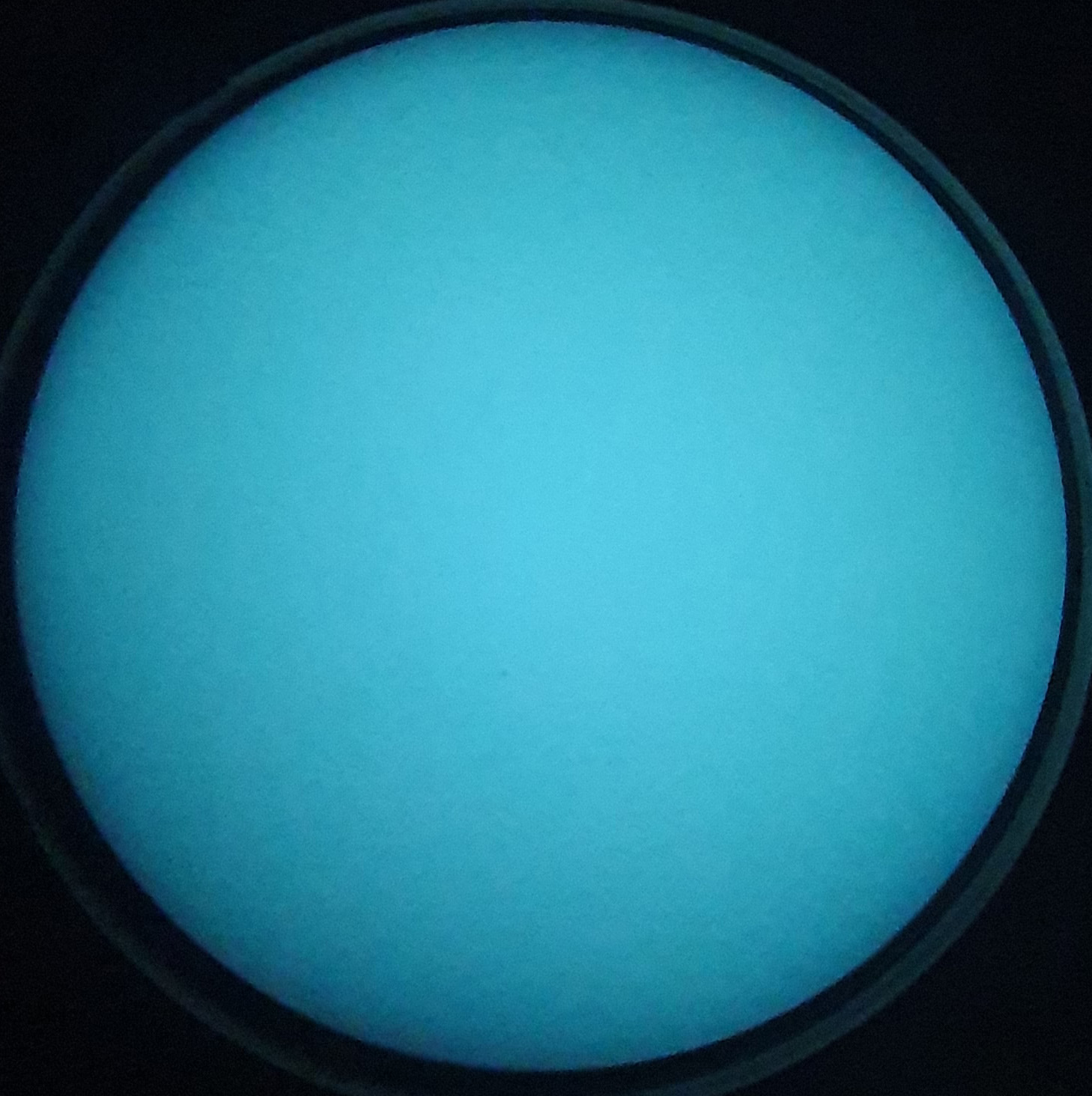

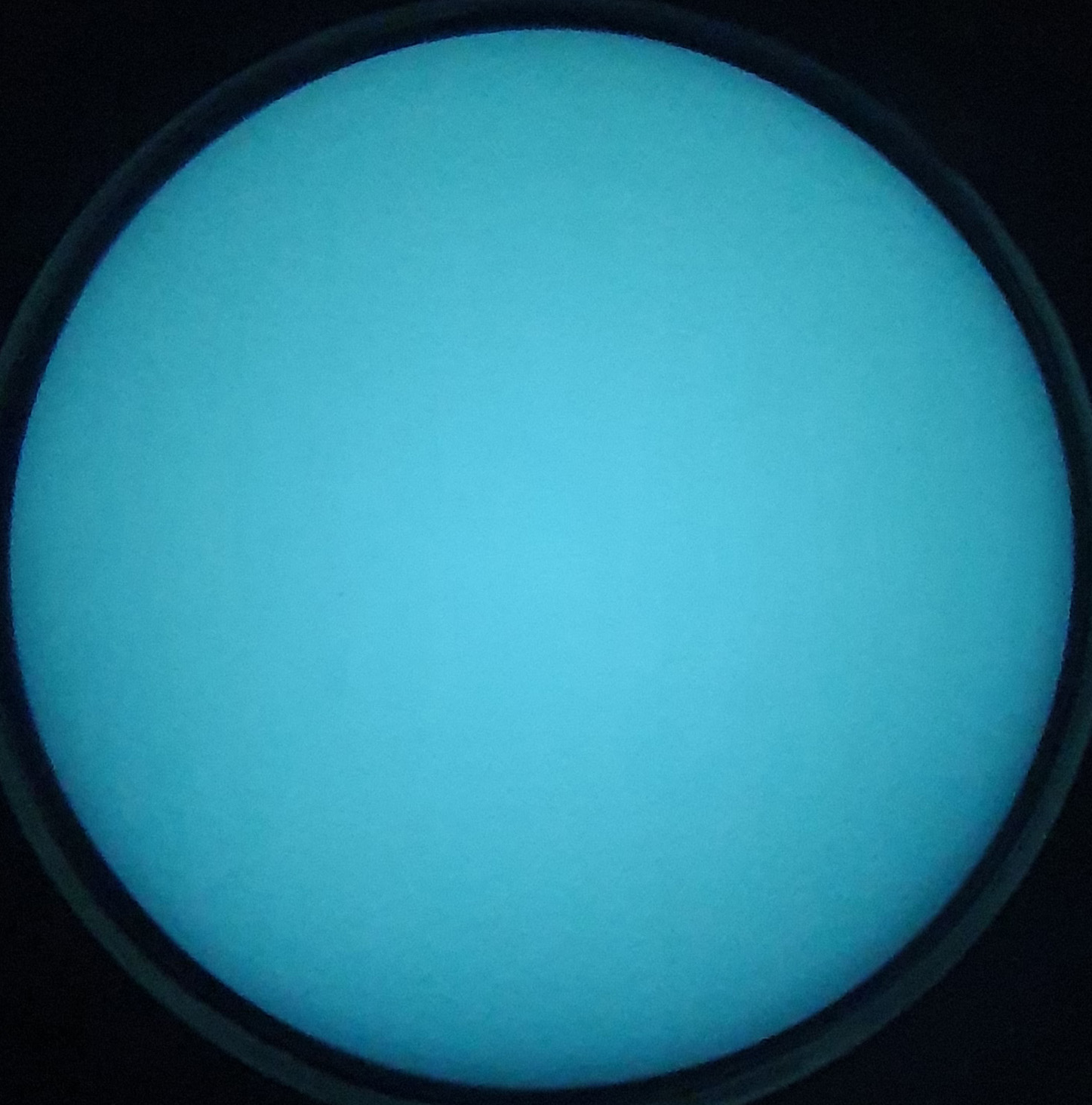

| LEFT | RIGHT | ||
| FOM | 1920 | 2058 | |
| Gain | 11409 | 11369 | |
| Resolution | 68 | 67 | |
| EBI | 0,16 | 0,18 | |
| SN | 28,23 | 30,71 | |
| IA | 0,13 | 0,18 | |
| Price | |||
The DTNVS is a lightweight folding binocular built on proven technology and enhanced for greater reliability verse previous generations of Night Vision Binoculars. The DTNVS binocular combines lightweight materials and a low profile when folded to the helmet which reduces neck strain during extended missions.
The DTNVS binocular has a full feature set with individual sideways ON/OFF for each eyepiece and Flip-Up ON/OFF when folded up preventing backsplash on the helmet. To complete the DTNVSs’ features it incorporates built-in IR LED for close quarter missions with separate IR-ON indicator and low battery indicator in the field of view.
No external battery port – Why? The DTNVS uses standard CR123A batteries as commonly found in lasers or flashlights. A single battery provides over 25h run time. However, as the pods shut off when flipped up and therefore halve the power consumption, most users report up to 35h on a single battery.
| Image Intensifier Tubes (IIT) | Photonis 4G White Phosphor |
| Finish | Matte Black, Corrosion Resistant Fibre re-enforces polycarbonate body |
| Capability | Flip-Up On-Off Side Flip-Up On-Off Built-in IR LED with “IR-on” indicator in FOV Low battery indicator in FOV Waterproof: 20m (66ft) for 2 hours Corrosion Resistance against salt water |
| Magnification | 1x |
| Diopter compensation | -6 to +2 dpt |
| Battery Life | 25 h |
| Infrared illuminator | yes |
| Standards | Exceeding MIL-STD-810G |
| True field of view | 40° |
| Close focus limit | 0.25 m to ∞ |
| Power Supply | 1x CR123 |
| Dimensions | 76 x 105 x 111 mm |
| Weight | 450 g |

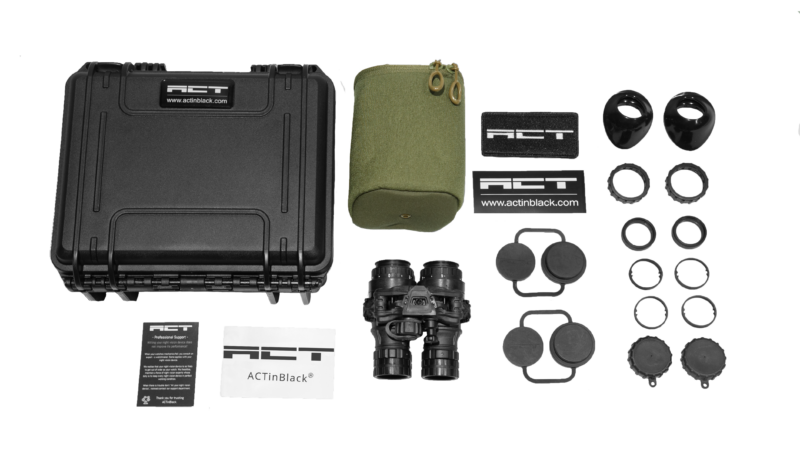

Included accessories
- Hardcase
- Molle pouch
- Sacrificial lenses
- Demist shields
- Protective bikini covers
- Rubber eye-cups
- Objective lens caps
Included paperwork (original documentation is always included)
- Tube specification sheet
- Device birth certificate
- Falconclaw user manual
- Merchandise (patches, ACT lens cleaning paper)
- Note! Flip the hardcase top cover foam to find everything above
